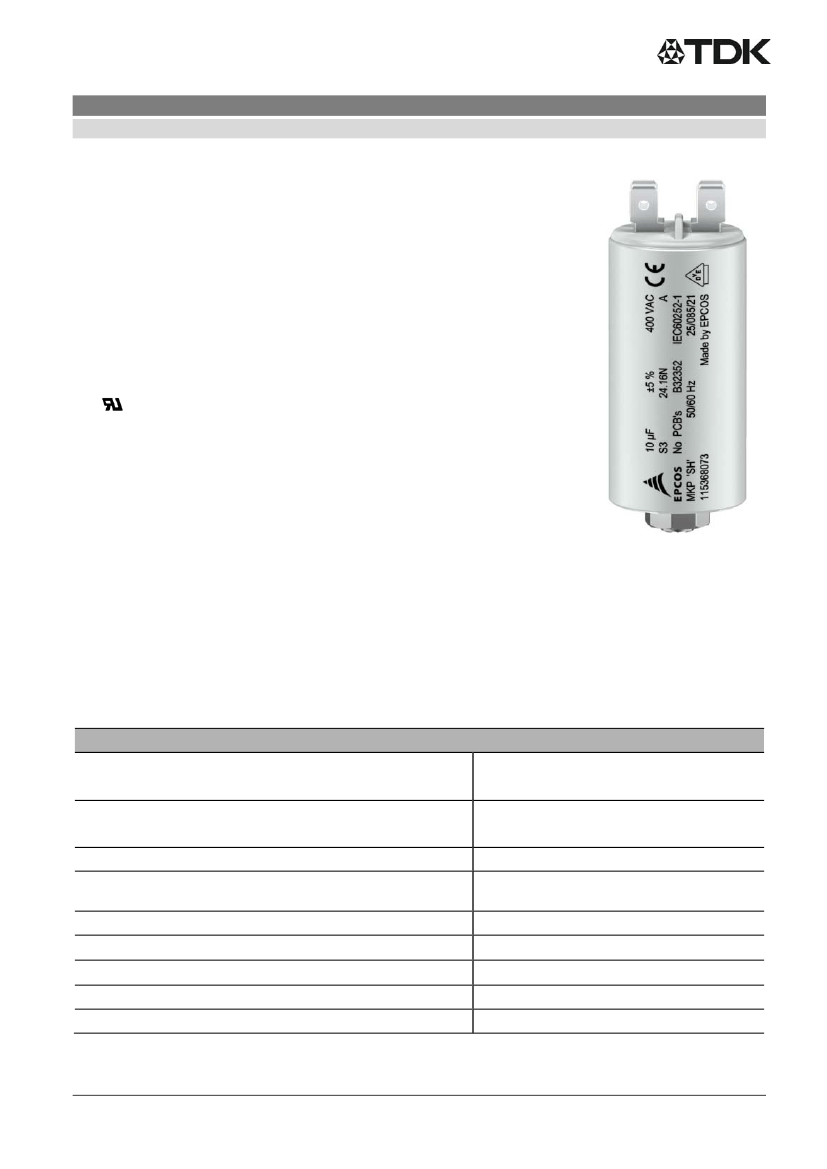

Film Capacitors – AC Capacitors
Motor run capacitors
B32350/B32352
B32350/B32352 – MotorCap S3 Compact
Construction
Metallized polypropylene film
Plastic can with plastic top
Dry type resin
Features
Self-healing properties
Low dissipation factor
Highest safety level S3 safety class to IEC60252-1 (ed.2) am1:
High insulation resistance
file E 106388, component approval mark, on request
EN 60335-1 compatible
Applications
For general sine wave applications,
mainly as motor run capacitor
Terminals
B32350 – Single Fast-on: 6.3 x 0.8 mm
B32352 – Double Fast-on: 6.3 x 0.8 mm
Mounting parts (optional
)
Threaded stud at bottom of can (M8, max. torque = 5 Nm)
Fast fixation for mounting into a hole of Ø 8 mm
Mounting in any position possible
Technical data and specifications
Reference standards
Life expectancy to IEC 60252-1 /2013
Safety class to IEC 60252-1/ 2013
UL 810 file E 106388
Rated capacitance C
R
Tolerance
Permitted capacitance
C/C
Rated voltage V
R
Rated frequency f
R
EN60252-1: 2014-07
IEC60252-1: Ed 2,2013-8,amendment 1
400 V: 30000 h (class A)
450 V: 10000 h (class B)
S3
Approved component,10000 AFC protected
up to 450 V (Approval mark upon request)
See table ordering codes, page 5, 6
5%
3%
450 V AC
50/60 Hz
CAP RD FILM PD AC
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 8
September 2016
Film Capacitors – AC Capacitors
Motor run capacitors
B32350/B32352
B32350/B32352 – MotorCap S3 Compact
Maximum ratings
Maximum permissible voltage V
max
Maximum permissible current I
max
Test data
AC test voltage terminal to terminal U
TT
AC test voltage terminals to can U
TC
Insulation resistance R
ins
or time constant
at +20 °C,
Rel. humidity max. value 85%, annual means
65%
Dissipation factor tan
at +20 °C
Maximum rate of voltage rise dv/dt
max
Climatic data
Climatic category
Lower category T
min
Upper category T
max
Damp heat test t
test
Mechanical and thermal properties
Ball pressure test to IEC 60309-1 sec. 27.3
Tracking test to IEC 60112 solution A
Plastic can and top disk material
Glow wire test to IEC 60695 – 2 – 1 / 1
Test temp 550 º C for I
R
0.5 A
Test temp 750 º C for I
R
≥
0.5 A
Part compliant to EN 60335-1
Glow wire test acc. to EN60335-1:2002 +A11+A1
+A12+Corr.+A2:2006, IEC60335-1 ed 4+A1+A2
20 N at 125 °C
>250 V
UL 94 V2 min/ Compliant to EN60252-1/ EN60335-
1
Self-extinguish within 2 s of withdrawing glow wire
without igniting wrapping tissue to GWIT
Self extinguish within 2 s with GWT 750 ºC and
within 60 s with GWFI 850 ºC of withdrawing the
glow wire and without igniting the wrapping tissue
25/085/21 to IEC 60068-1
-25 °C
+85 °C
21 days
2 V
R
, 2 s (routine test)
2 V
R
, 60 s (type test)
2 kV AC, 2 s (routine test)
2 kV AC, 60 s (type test)
3000 s
1.0
·10
-3
(120 Hz)
10 V/s
1.1 ·V
R
1.3 · I
R
(V
R
= rated voltage)
(I
R
= rated current)
Compatibility to RoHS
Compliance to directive 2002/95/EC
Approvals
VDE
– 400 V/85 °C: 30000 h (class A)
VDE
– 450 V/85 °C: 10000 h (class B)
UL 810 E106388
Approved
Approved
Approved component 10000 AFC,
protected up to 450 V
Compliance to LV directive 2014/35/EU
CAP RD FILM PD AC
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 8
September 2016
Film Capacitors – AC Capacitors
Motor run capacitors
B32350/B32352
B32350/B32352 – MotorCap S3 Compact
Logistics
Delivery mode
EU pallet as standard
Cardboard tape on pallet
Pack unit, see dimension table

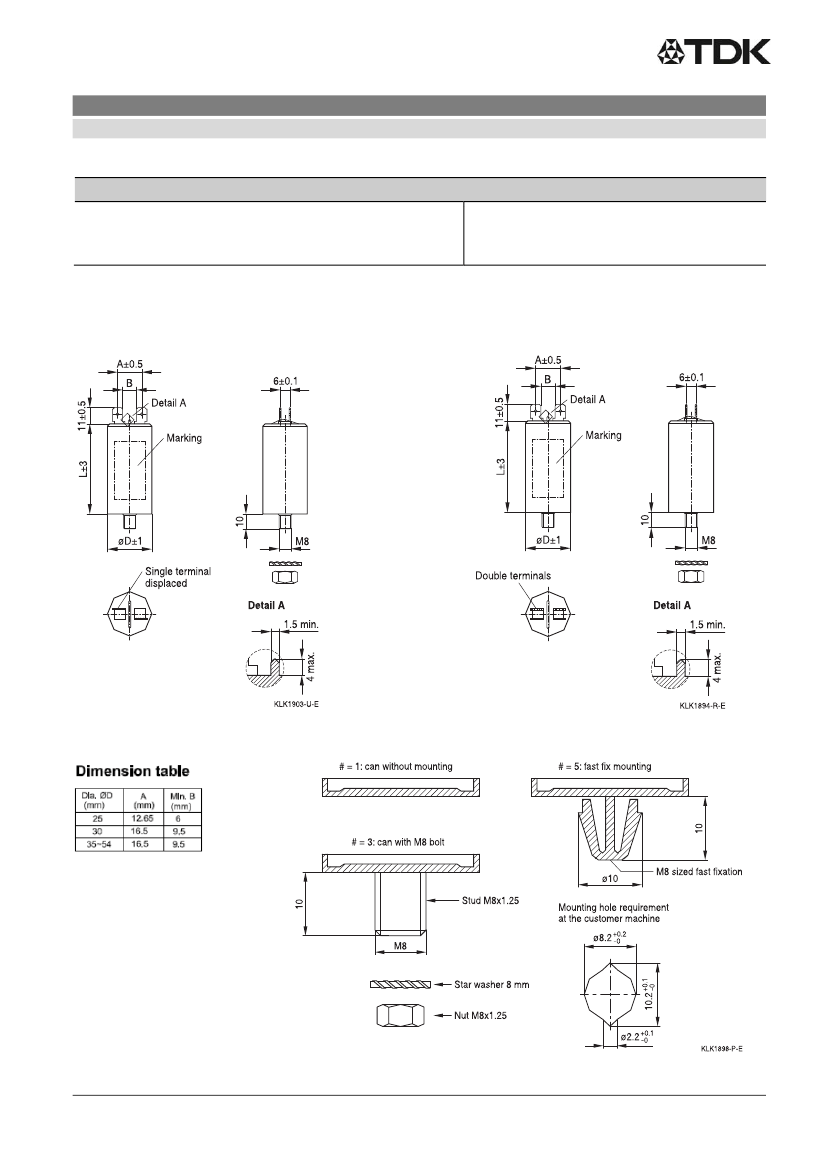

Dimensional drawings
B32350-series
B32352-series
CAP RD FILM PD AC
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 8
September 2016
Film Capacitors – AC Capacitors
Motor run capacitors
B32350/B32352
B32350/B32352 – MotorCap S3 Compact
Ordering codes and packaging units
B32350-series (Single Fast-on connector)
V
R
V AC
C
R
µF
2
2.5
3
3.15
4
5
6
6.3
7
7.5
400/450
8
9
10
11
12
12.5
14
15
16
17.5
18
20
Dimensions
D×L
mm
25 × 58
25 × 58
30 × 62
30 × 62
30 × 62
35 × 62
35 × 62
35 × 62
35 × 62
35 x 71
35 × 71
35 × 71
35 × 71
40 × 71
40 × 71
40 × 71
45 × 71
45 × 71
45 × 96
45 × 96
50 × 96
50 × 96
B32350A4205J0#0
B32350A4255J0#0
B32350A4305J0#0
B32350A4315J5#0
B32350A4405J0#0
B32350A4505J0#1
B32350A4605J0#0
B32350A4635J0#0
B32350A4705J0#0
B32350A4755J0#0
B32350A4805J0#0
B32350A4905J0#0
B32350A4106J0#0
B32350A4116J0#0
B32350A4126J0#0
B32350A4126J5#0
B32350A4146J0#0
B32350A4156J0#0
B32350A4166J0#0
B32350A4176J5#0
B32350A4186J0#0
B32350A4206J0#0
Ordering code
Packing units
pcs
112
112
112
112
112
84
84
84
84
84
84
84
84
60
60
60
45
45
45
45
32
32
Composition of ordering code
#: construction
1
plastic can
3
plastic can with M8 bolt
5
plastic can with fast fixation device, available for diameter 30 mm and 35 mm,
others on request
