NISSEI-ARCOTRONICS
C95/0-C95/4
MKP Series
ALUMINIUM CASE CAPACITORS
WITH SAFETY DEVICE
250Vac APPLICATIONS
TECHNICAL DATA
Reference standard:
Homologation EN:
Homologation UL810:
Service:
Temperature range:
Storage:
Nominal Voltage Vn (ac):
Nominal Frequency (Hz):
Max change Voltage/Time:
Max admitted voltage:
Nominal RMS current (In):
Max admitted RMS current:
Dissipation factor, tgδ:
Safety protection:
Max altitude:
Standard capacitance tolerance:
Mounting:
Terminals:
Case:
Deck:
Filling resin:
Safety Device
Dielectric
Plates
Test voltage:
Terminal to terminal:
Terminal to case:
Electrical clearance in air:
Between parts under voltage:
Between parts under voltage and metal ones
in the surrounding:
Vibration test:
C950
C954
EN61048 ed. 1993 A.1/1996 – EN 61049
[ENEC 03]
In progress
Continuous
-25/100°C
-25/100°C
250
450
50
25 V/µs
275 Vac
495 Vac
78500 * (Cn)
1.3 * (In)
30x10
-4
(50Hz-V) (not applicable to push-in
terminals)
IP00
2200m
±10%
±4%
Metal bolt M8 threaded (ground)
Faston 2.8x0.8mm DIN46244 – push-in
Aluminum
Plastic with self-extinguishing UL V0 rating
Polyurethane
Overpressure disconnector
Metallized Polypropylene film
Zn
500 Vac
2000 Vac
(Min. 5mm) STD 9mm
Min. 6mm
IEC 68-2-6
900 Vac
2000 Vac
NISSEI-ARCOTRONICS
C95/0-C95/4
MKP Series
ALUMINIUM CASE CAPACITORS
WITH SAFETY DEVICE
250Vac APPLICATIONS

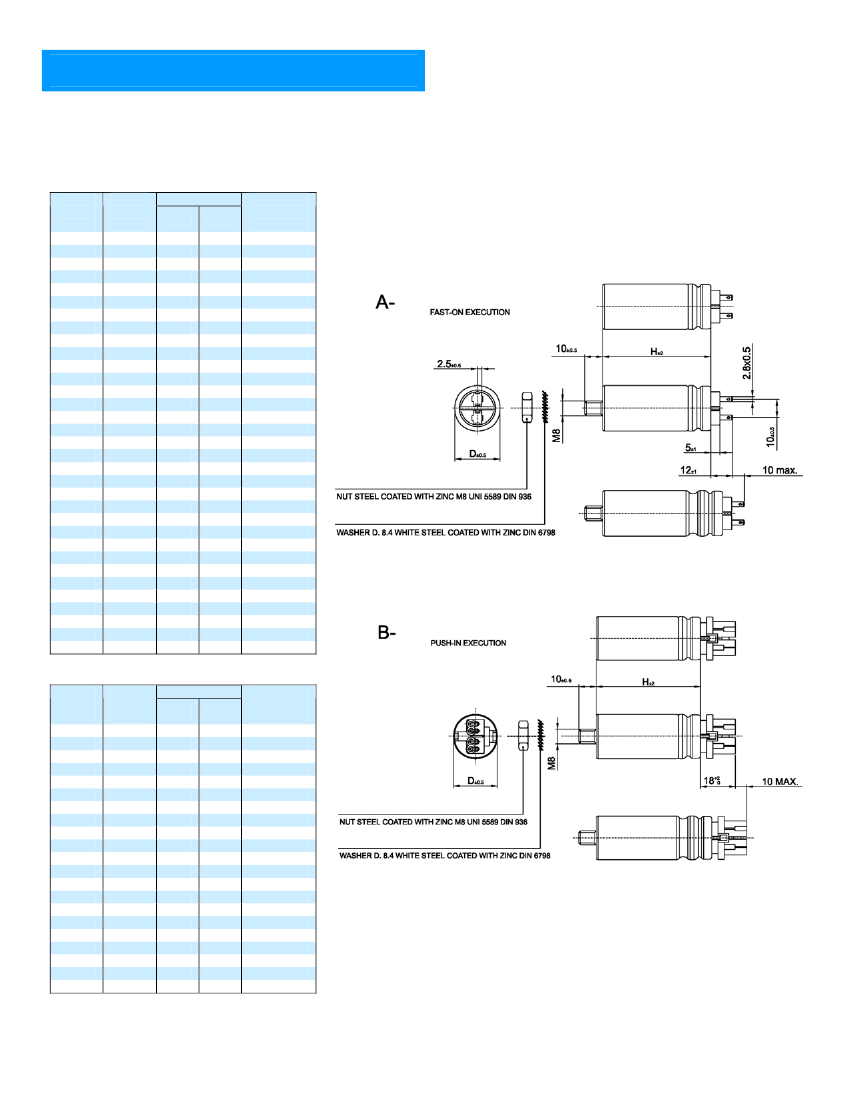

C950 for parallel compensation
Rated
Cap.
µF
2
2.5
3
4
4.5
5
5.5
6
6.3
7
8
8.4
9
10
12
12.5
13
13.5
14
15
16
18
20
22
25
30
31.5
32
35
36
40
45
50
High
runner
Codes
Case
D
25
25
30
30
25
25
25
25
25
25
25
25
25
30
30
30
30
30
30
30
35
35
35
35
35
35
35
35
35
40
40
40
45
H
48
48
48
48
78
78
78
78
78
98
98
98
98
78
98
98
98
98
98
98
78
98
98
98
133
133
133
133
133
133
133
133
133
Approx.
Weight
g
25
25
36
36
40
40
40
40
40
50
50
50
50
58
73
73
73
73
73
73
79
99
99
99
134
134
134
134
134
175
175
175
222
*
*
*
*
Available executions
*
*
*
*
*
*
C954 for series compensation
Rated
Cap.
µF
2.5
2.7
2.8
2.85
2.9
3
3.4
3.5
3.6
4
4.4
4.5
5
5.3
5.4
5.5
5.7
5.9
6
6.5
6.8
High
runner
Codes
Case
D
25
25
25
25
25
25
25
25
25
30
30
30
30
30
30
30
30
30
30
35
35
H
78
78
78
78
78
78
78
78
78
78
78
78
78
78
78
78
78
78
78
78
78
Approx.
Weight
g
162
162
162
162
162
162
162
162
162
110
110
110
110
110
110
110
110
110
110
86
86
*
*
*
Max operating temperature = 100°C.
NISSEI-ARCOTRONICS
C95/0-C95/4
MKP Series
ALUMINIUM CASE CAPACITORS
WITH SAFETY DEVICE
250Vac APPLICATIONS
Part Numbering System
C95 0
P
F
1
5500
AA
4
K..
Tolerance:
X=±4%, J=±5%, K=±10%
Series
4
th
Digit
C95.0:
Parallel comp.
C95.4:
Series comp.
Marking
P = Standard
Z = Special
Case
F = Metal case
12 Digit
A
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
th
Diameter of aluminum case:
0: D=25mm
1: D=30mm
2: D=35mm
3: D=40mm
4: D=45mm
Terminals and assembly:
13 Digit Description
A
Nut and washer supplied separately
A
Nut and washer mounted
B
Flanged nut supplied separately
C
Flanged nut mounted
D
Without nut and washer
E
Faston 2.8mm with soldering hole
F
Nut and washer supplied separately
plus faston 2.8mm with soldering hole
G
Mounted nut and washer plus faston
2.8mm with soldering hole
H
Flanged nut supplied separately plus
faston 2.8mm with soldering hole
I
Mounted flanged nut plus faston
2.8mm with soldering hole
L
Without nut and washer plus faston
2.8mm with soldering hole
th
Capacitance code in pico farads (ρF)
5
= Number of zeros to be added to the capacitance value
500 = First 3 figures indicating the capacitance value
th
7 Digit
1
4
Terminals
Kind of terminal
Faston 2.8mm plus hole
Push-in terminal
