Cellular Band Single and
Dual Directional Couplers
RLC Electronics' Cellular Directional Couplers exhibit high direc-
tivity, low insertion loss and low VSWR over their respective
bandwidths. These basic units may be easily optimized for your
particular frequency range.
Specifications
CC
-1-2-3-4
Model
Number
CC-*-800-100-
CC-*-850-100-
CC-*-900-100-
CC-*-950-100-
CC-*-1100-200-
Frequency
Range (MHz)
750-850
800-900
850-950
900-1000
1000-1200
Directivity
(dB) (Min)
25
25
25
25
20
VSWR
(Max)
1.15
1.15
1.15
1.20
1.20
Insertion Loss
(dB) (Max)
.20
.20
.20
.20
.25
Coupling(Nominal):
6±0.5dB, 10±0.5dB, 20±1.0dB
(Reference to Output) 30±1.0dB, 40±1.0dB, 50±1.5dB
Power:
500 watts avg
Impedance:
50 Ohms
Flatness:
±0.2dB (6 thru 40 dB) ±0.5dB(50dB)
Connector Type:
SMA, N
Environment:
MIL-E-5400, Class 1A
To designate coupler desired use:
(1) S for single or D for Dual
(2) 800, 850, etc for model number
(3) Coupling value in dB 6, 10, 20, 30, 40 or 50
(4) Connector type: Main Line N (female/male)
Secondary Line R for SMA (female). N for N (female)
Example: CC-D-850-100-30-R is a 30 dB dual coupler, 800-900 MHz frequency range, with SMA coupling connectors.

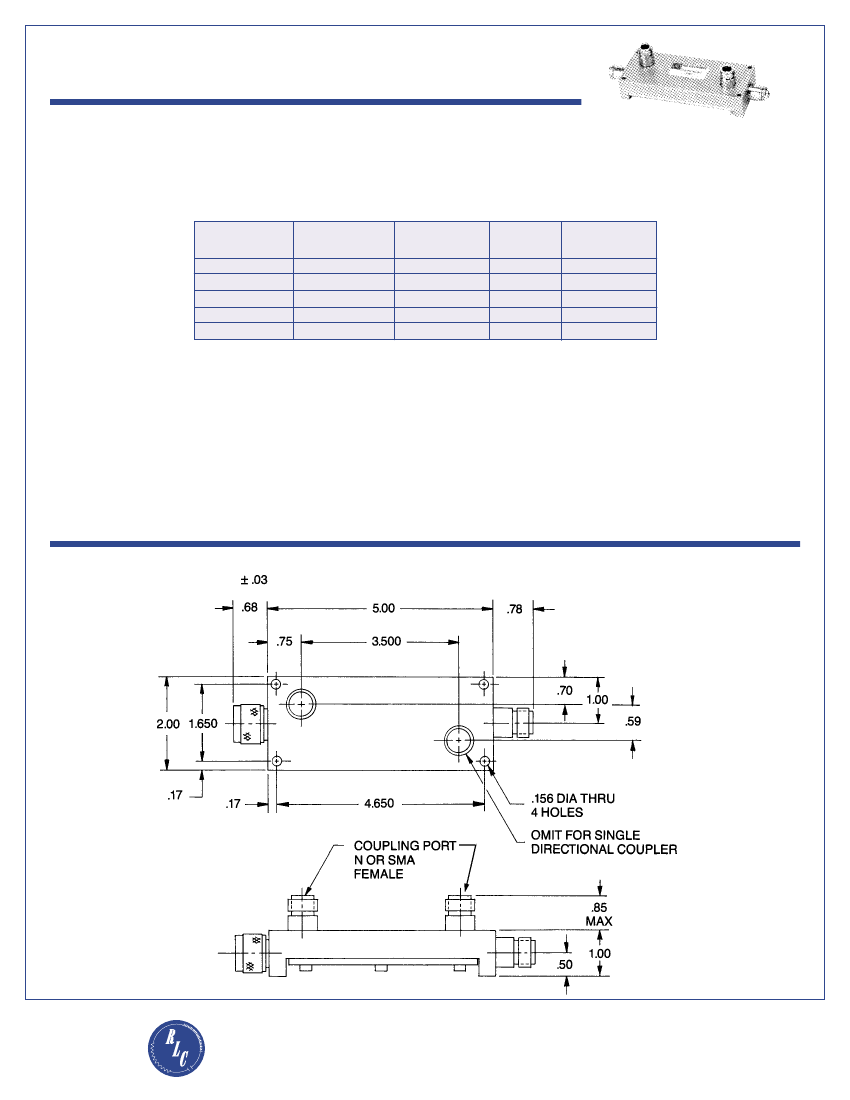

Outline Drawing
RLC ELECTRONICS, INC.
83 Radio Circle, Mount Kisco, New York 10549 • Telephone: 914-241-1334 • Fax: 914-241-1753
e-mail: sales@rlcelectronics.com • www.rlcelectronics.com
116
