L7824ACT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> L7824ACT

L7824ACT: Description24V FIXED POSITIVE REGULATOR, PSFM3, TO-3, 2 PIN; CategoryPower/power management The power supply circuit; File Size581KB，11 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

L7824ACT Overview

24V FIXED POSITIVE REGULATOR, PSFM3, TO-3, 2 PIN

L7824ACT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	TO-204AA
package instruction	TO-3, 2 PIN
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Adjustability	FIXED
Nominal dropback voltage 1	2 V
Maximum absolute input voltage	40 V
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Maximum grid adjustment rate	0.24%
Maximum load regulation	0.1%
Number of functions	1
Output times	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Maximum output current 1	1 A
Maximum output voltage 1	24.48 V
Minimum output voltage 1	23.52 V
Nominal output voltage 1	24 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	TO-204/-3
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	4%
Base Number Matches	1

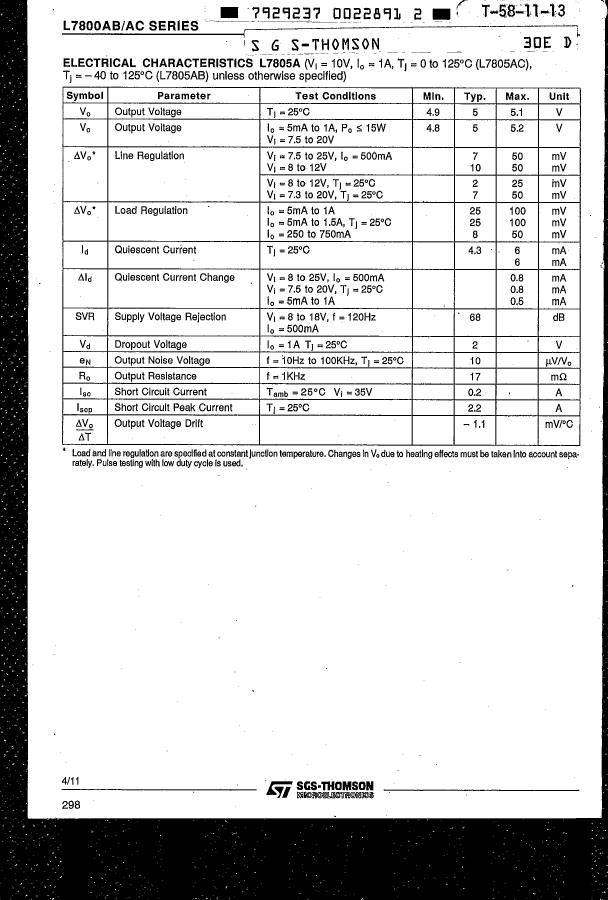

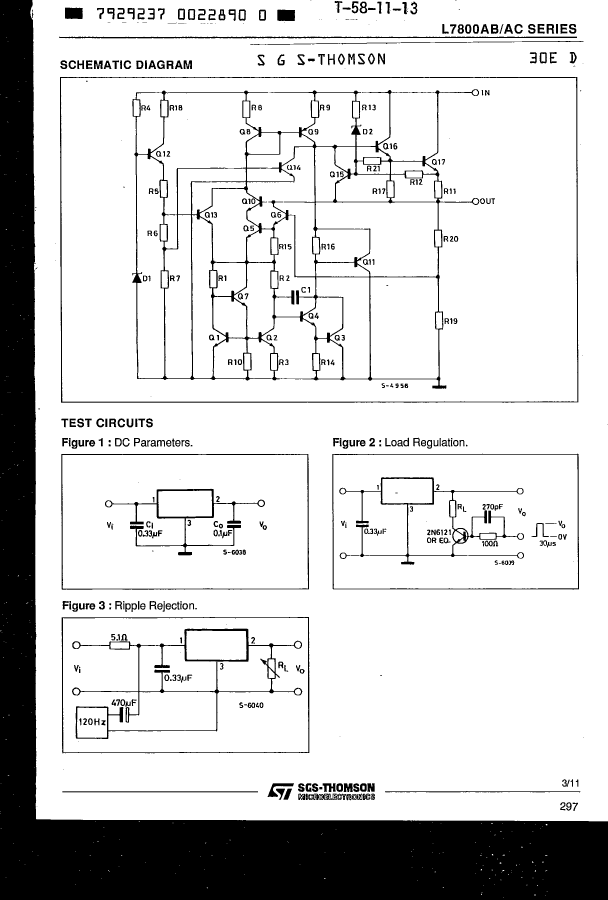

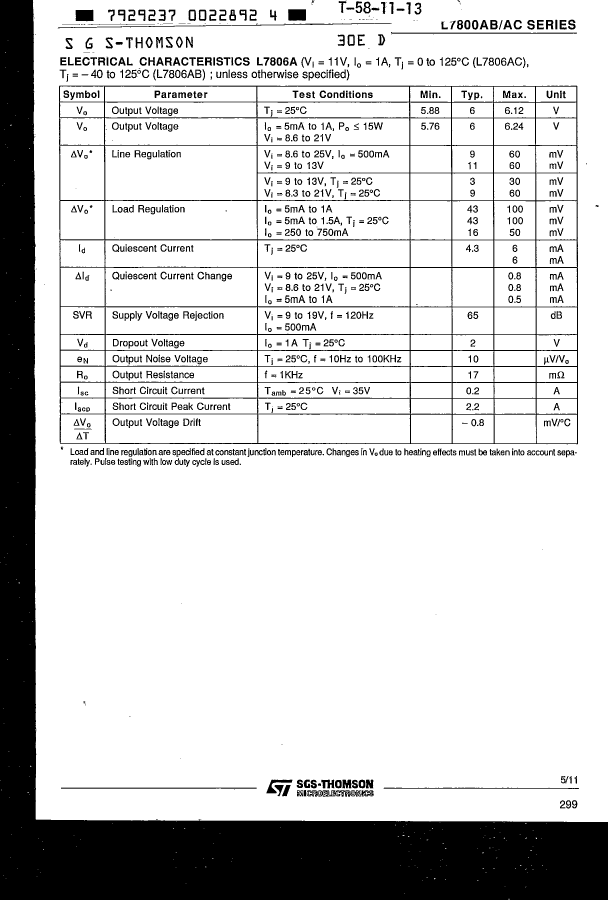

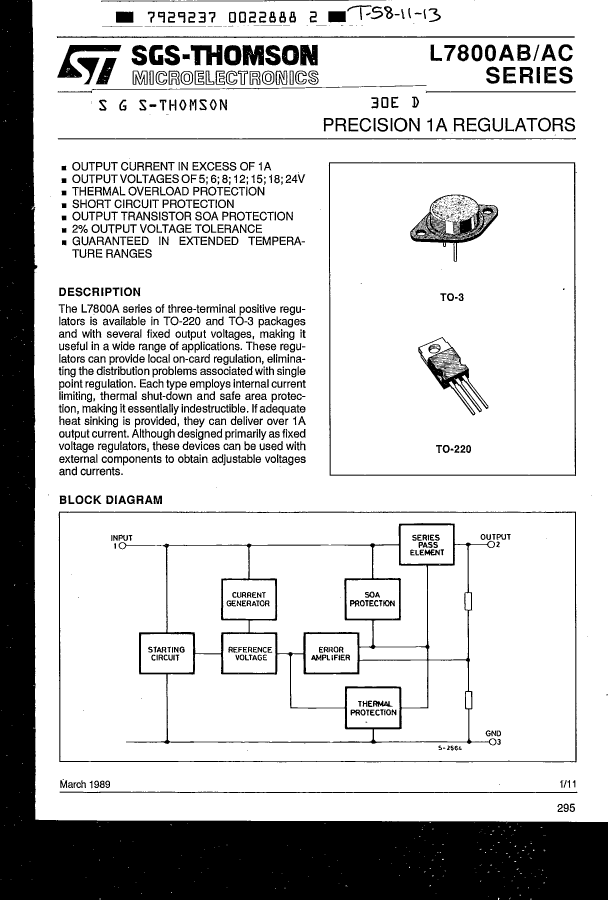

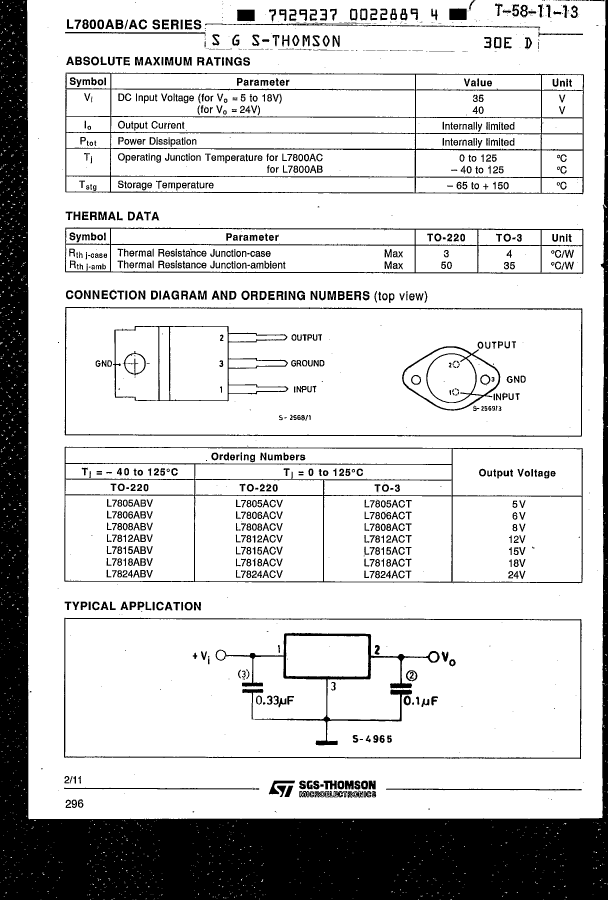

Preview

Download Datasheet

View All

L7824ACT Related Products

	L7824ACT	L7806ACT	L7815ACT	L7808ACT	L7812ACT	L7818ACT	L7805ACT
Description	24V FIXED POSITIVE REGULATOR, PSFM3, TO-3, 2 PIN	6V FIXED POSITIVE REGULATOR, PSFM3, TO-3, 2 PIN	15V FIXED POSITIVE REGULATOR, PSFM3, TO-3, 2 PIN	8V FIXED POSITIVE REGULATOR, PSFM3, TO-3, 2 PIN	12V FIXED POSITIVE REGULATOR, PSFM3, TO-3, 2 PIN	18V FIXED POSITIVE REGULATOR, PSFM3, TO-3, 2 PIN	5V FIXED POSITIVE REGULATOR, PSFM3, TO-3, 2 PIN
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	TO-204AA	TO-204AA	TO-204AA	TO-204AA	TO-204AA	TO-204AA	TO-204AA
package instruction	TO-3, 2 PIN	TO-3, 2 PIN	TO-3, 2 PIN	TO-3, 2 PIN	, TO-204/-3	TO-3, 2 PIN	, TO-204/-3
Contacts	2	2	2	2	2	2	2
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Adjustability	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED
Nominal dropback voltage 1	2 V	2 V	2 V	2 V	2 V	2 V	2 V
Maximum absolute input voltage	40 V	35 V	35 V	35 V	35 V	35 V	35 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Maximum grid adjustment rate	0.24%	0.06%	0.15%	0.08%	0.12%	0.18%	0.05%
Maximum load regulation	0.1%	0.1%	0.1%	0.1%	0.1%	0.1%	0.1%
Number of functions	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current 1	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Maximum output voltage 1	24.48 V	6.12 V	15.3 V	8.16 V	12.24 V	18.36 V	5.1 V
Minimum output voltage 1	23.52 V	5.88 V	14.7 V	7.84 V	11.76 V	17.64 V	4.9 V
Nominal output voltage 1	24 V	6 V	15 V	8 V	12 V	18 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	TO-204/-3	TO-204/-3	TO-204/-3	TO-204/-3	TO-204/-3	TO-204/-3	TO-204/-3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum voltage tolerance	4%	4%	4%	4%	4%	4%	5%
