ECS-129-8-35JT-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-129-8-35JT-TR

ECS-129-8-35JT-TR: DescriptionParallel - Fundamental Quartz Crystal, 12.999MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size144KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-129-8-35JT-TR Overview

Parallel - Fundamental Quartz Crystal, 12.999MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 2 PIN

ECS-129-8-35JT-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1098221235
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 2 PIN
Reach Compliance Code	compliant
YTEOL	6.8
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.002%
frequency tolerance	20 ppm
JESD-609 code	e4
load capacitance	8 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	12.999 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L8.0XB4.5XH1.8 (mm)/L0.315XB0.177XH0.071 (inch)
Series resistance	80 Ω
surface mount	YES
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

Low profile

8.0 x 4.5 mm Footprint

Extended Temp Range Option

RoHS Compliant

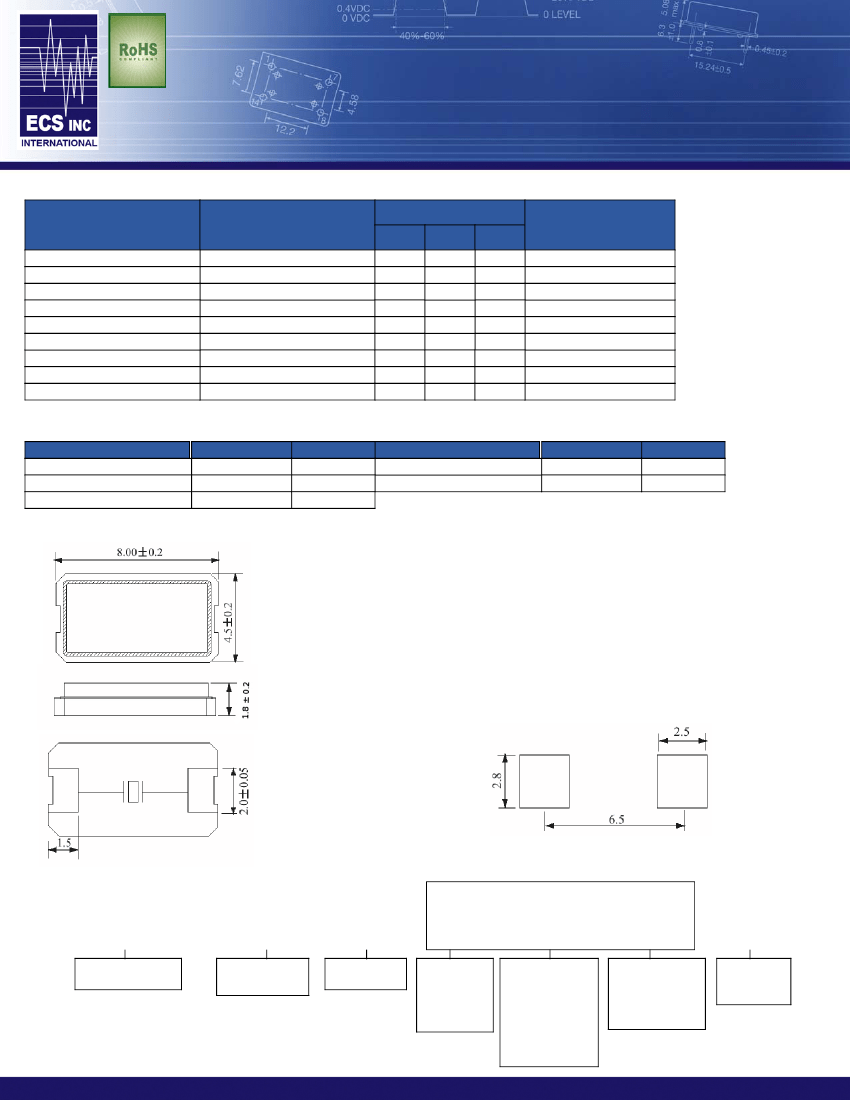

CSM-9

SMD QUARTZ CRYSTAL

The CSM-9 is a compact SMD Crystal. The 8.0 x 4.5 x 1.8 mm

ceramic package is ideal for today's SMD manufacturing

environment.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range

Frequency Tolerance

Frequency Stability

Shunt Capacitance

Load Capacitance

Drive Level

Operating Temperature

Storage Temperature

Aging (Per Year)

CONDITIONS

CSM-9

MIN

4.000

TYP

MAX

50.000

± 30

Series

100

+70

+125

±5

UNITS

MHz

ppm

µW

°C

ppm

at +25°C

-20 to +70°C

Specify in P/N

-10

-55

@ +25°C ±3°C

EQUIVALENT SERIES RESISTANCE/MODE OF OSCILLATION

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

4.00 ~ 7.999

Fundamental

300

12.000 ~ 12.999

Fundamental

8.000 ~ 9.999

Fundamental

200

13.000 ~ 50.000

Fundamental

10.000 ~ 11.999

Fundamental

100

DIMENSIONS (mm)

Figure 2) Suggested Land Pattern

Figure 1) Top, Side, Bottom and End views

Custom Options

PART NUMBERING GUIDE: Example ECS-200-20-35-TR

ECS - Frequency Abbreviation - Load Capacitance - Package

200 = 20.000 MHz

See P/N Guide

20 =20 pF

S=Series

35 =

CSM-9

Tolerance

Blank = Std

A = ± 25 ppm

J = ± 20 ppm

R = ± 15 ppm

C = ± 10 ppm

* Stability

Blank = Std

D = ± 100 ppm

E = ± 50 ppm

G = ± 30 ppm

H = ± 25 ppm

T = ± 20 ppm

W = ± 15 ppm

K = ± 10 ppm

Temp Range

Blank = Std

M = -20 ~ +70°C

N = -40 ~ +85°C

P = -40 ~ +105°C

S = -40 ~ +125°C

- Packaging

TR= Tape

& Reel

1K/Reel

*Consult Factory for available stability

options over extended temp range.

Rev. 8/11

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
