IPT1-123-01-SM-D-VS-A-POL datasheet, PDF

IPT1-123-01-SM-D-VS-A-POL: DescriptionRectangular Power Connector, 45 Contact(s), Male, Surface Mount Terminal; CategoryThe connector The connector; File Size500KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

IPT1-123-01-SM-D-VS-A-POL Overview

Rectangular Power Connector, 45 Contact(s), Male, Surface Mount Terminal

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
Other features	SHROUDED
Board mount options	POSITIONING PIN
body width	0.2 inch
subject depth	0.3 inch
body length	2.3 inch
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P46
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	.834 N
Insulator color	BLACK
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	IPT1
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Shell material	LIQUID CRYSTAL POLYMER
Termination type	SURFACE MOUNT
Total number of contacts	45
Evacuation force-minimum value	.7228 N
Base Number Matches	1

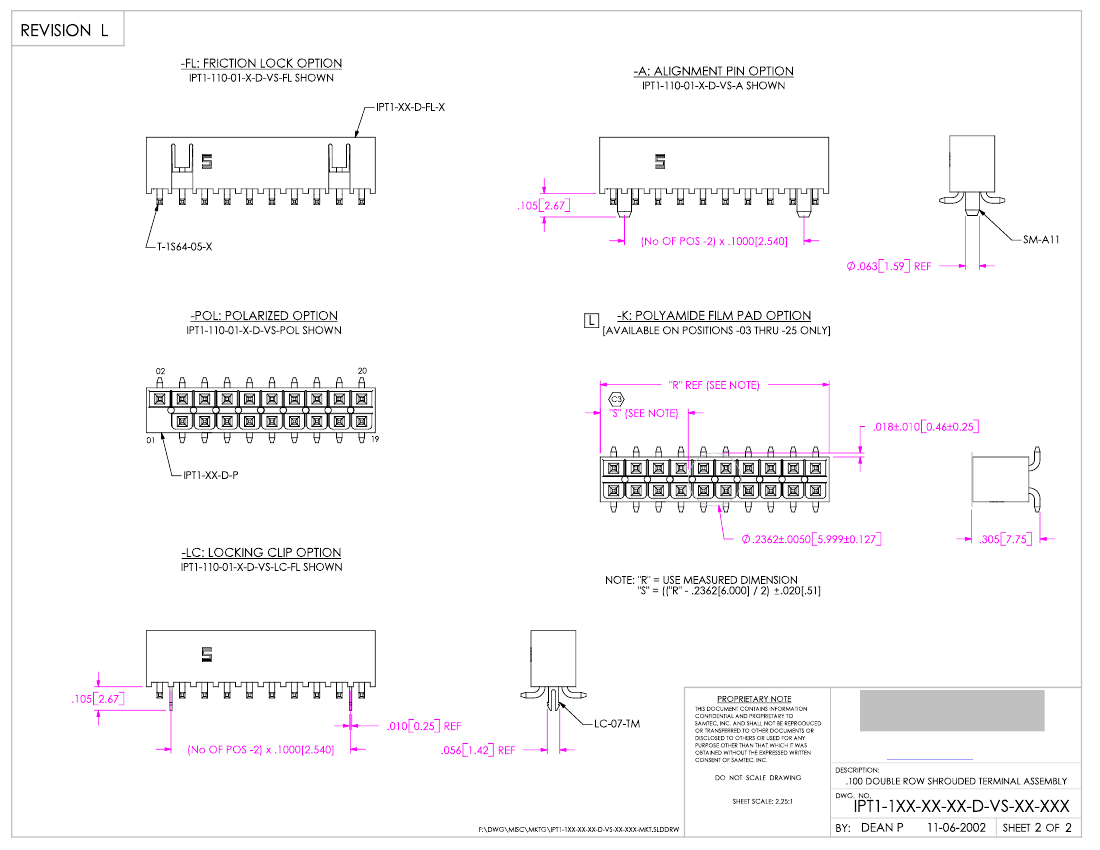

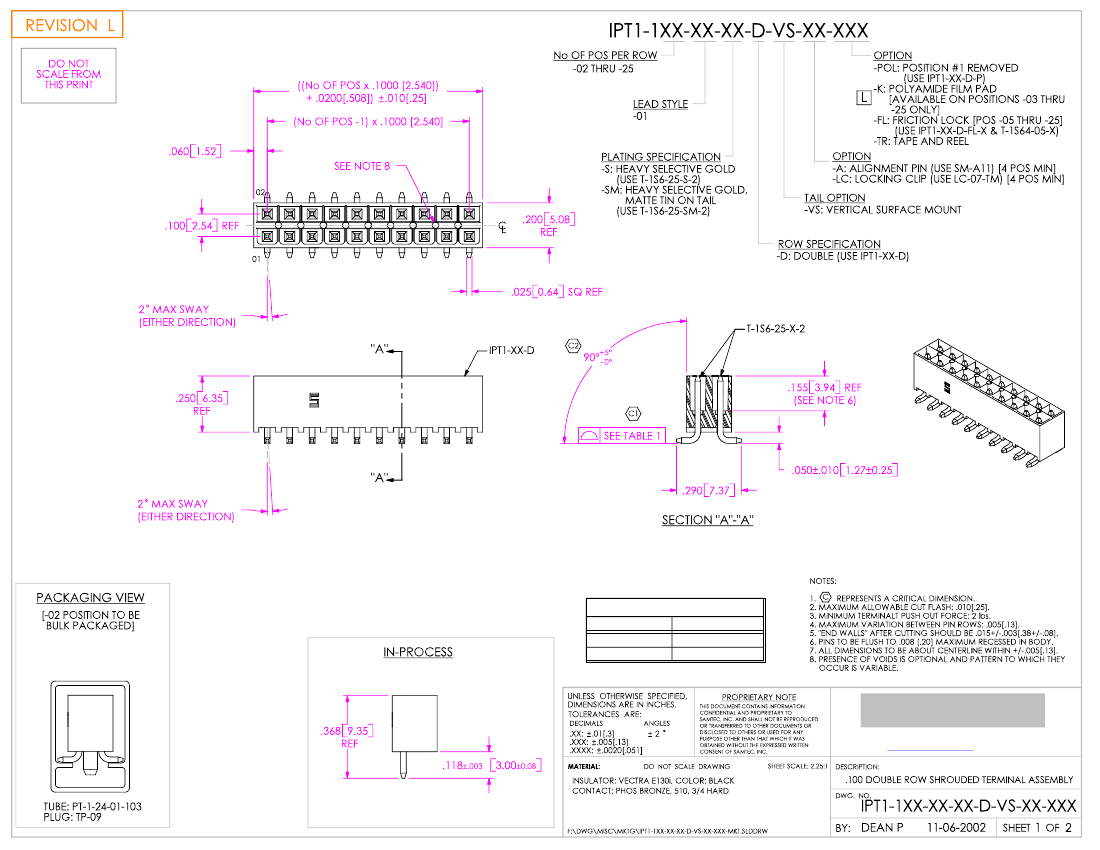

TABLE 1

POSITION

-02 THRU -10

-11 THRU -25

COPLANARITY

.005[.13]

.006[.15]

S A M TE C

5 2 0 P A R K E A S T B L V D , N E W A L B A N Y , IN 4 7 1 5 0

P H O N E : 8 1 2 .9 4 4 .6 7 3 3

F A X : 8 1 2 .9 4 8 .5 0 4 7

e -M ail:

IN F O @ S A M T E C .C O M

C O D E: 55322
