DG200ACK datasheet, PDF - EEWORLD Datasheet

DG200ACK: DescriptionSPST, 2 Func, 1 Channel, CMOS, CDIP14, CERDIP-14; CategoryAnalog mixed-signal IC The signal circuit; File Size3MB，6 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

DG200ACK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DG200ACK	-	-	View	Buy Now

SPST, 2 Func, 1 Channel, CMOS, CDIP14, CERDIP-14

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-GDIP-T14
length	19.43 mm
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	2
Number of terminals	14
Nominal off-state isolation	75 dB
Maximum on-state resistance (Ron)	80 Ω
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum seat height	5.842 mm
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	500 ns
Maximum connection time	1000 ns
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

___________________________________________________________________________

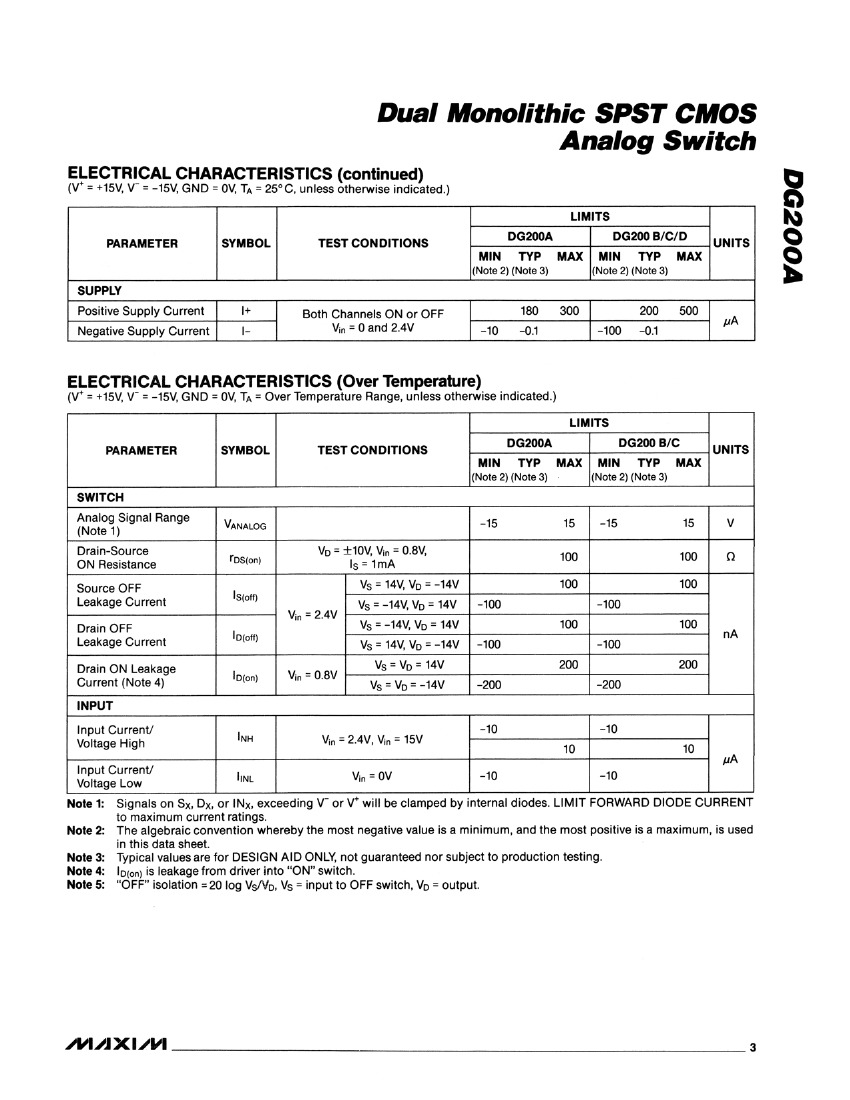

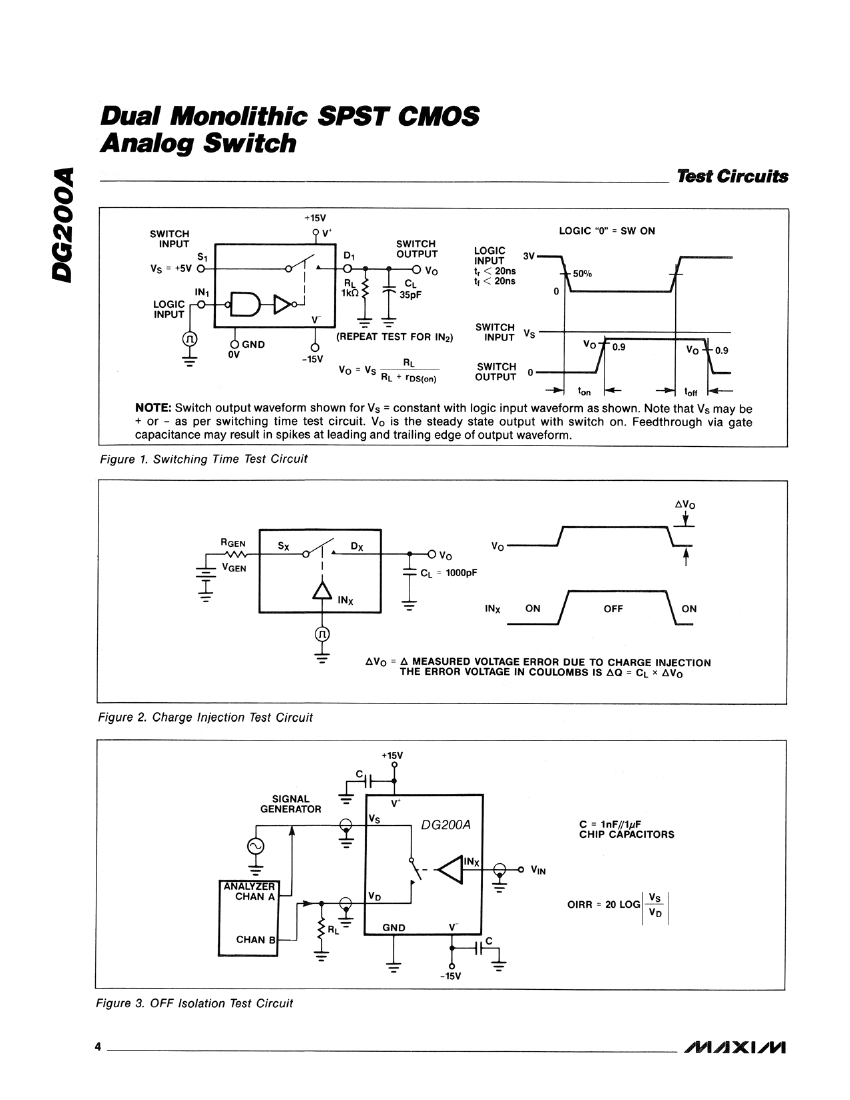

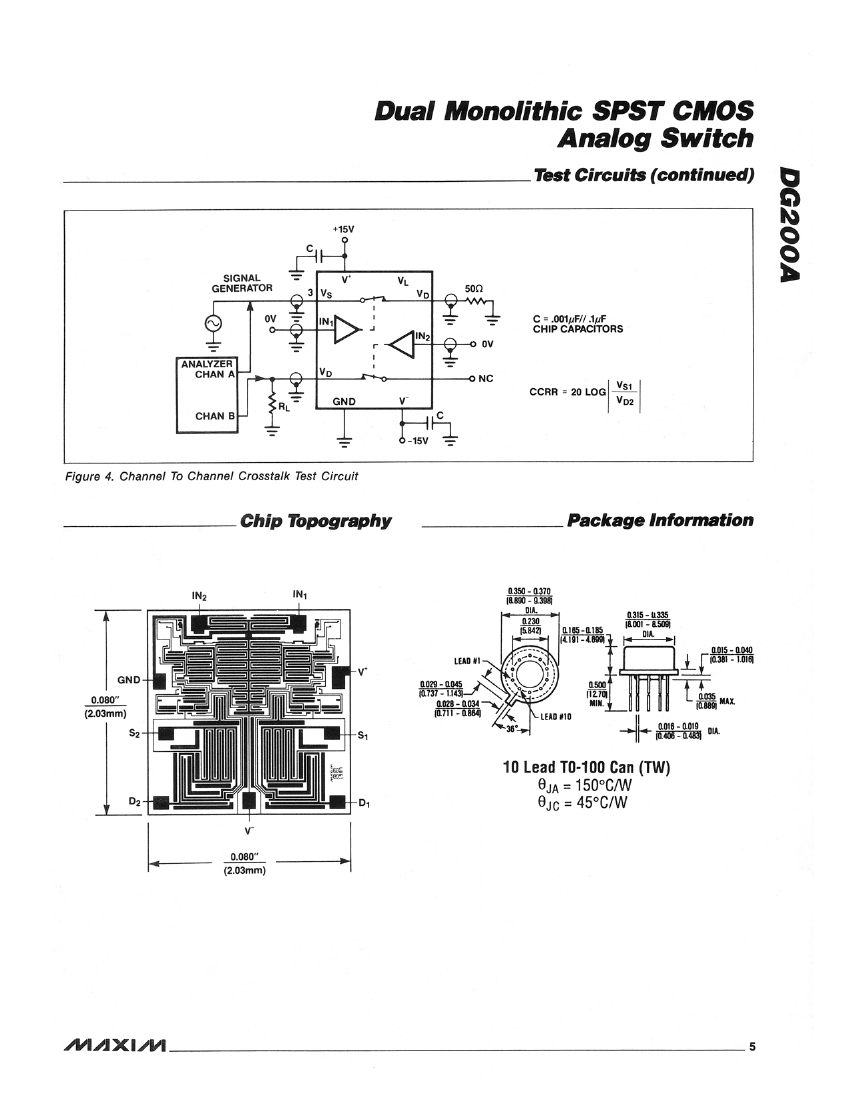

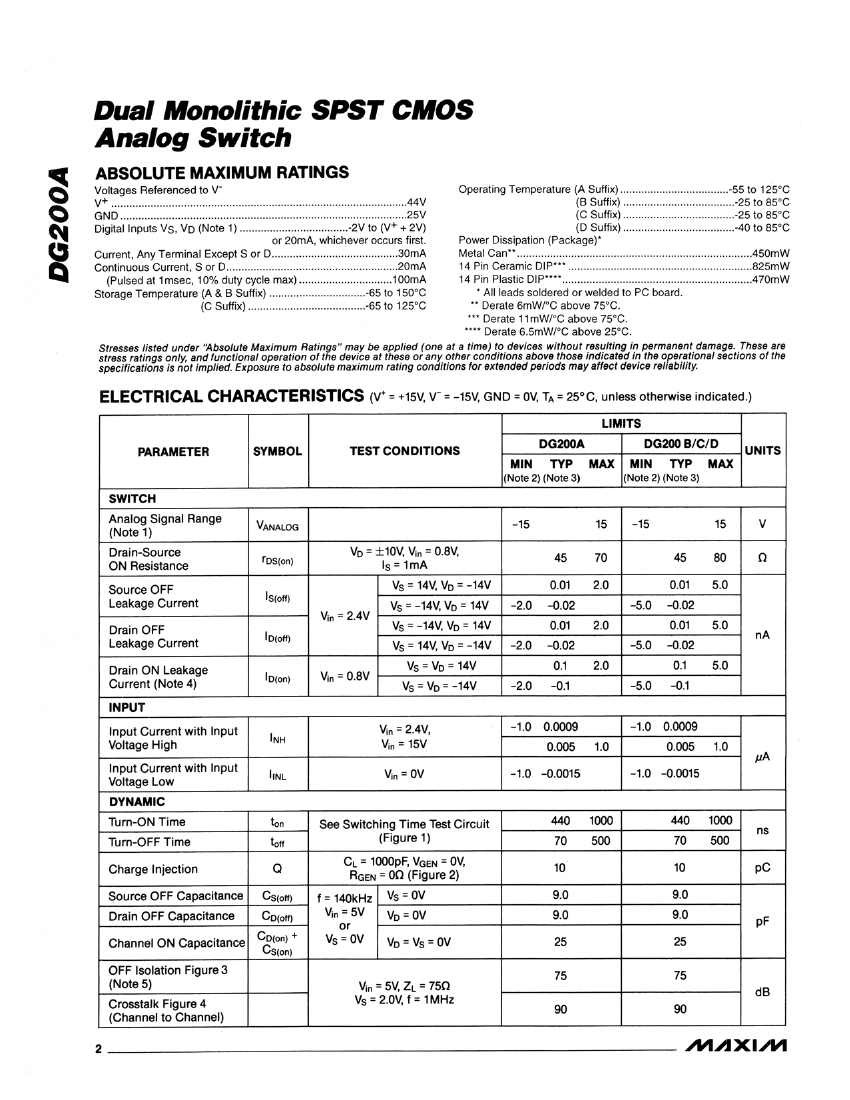

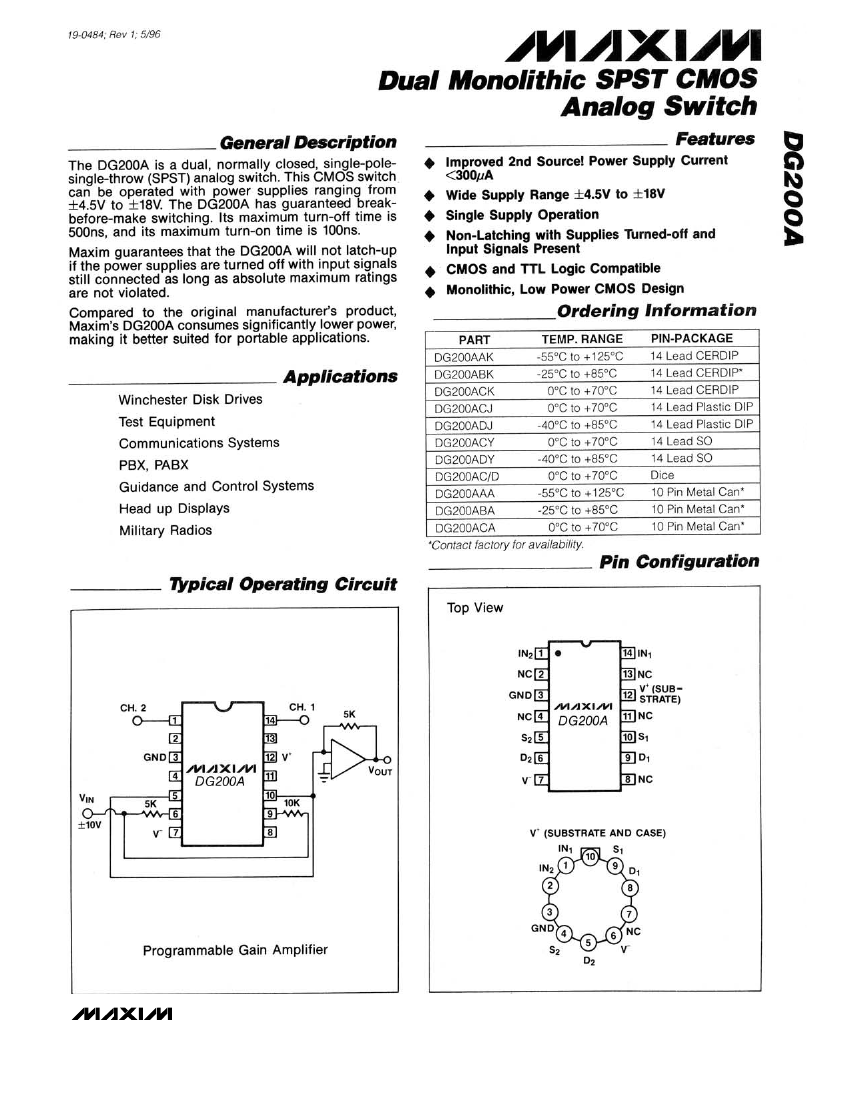

Maxim

Integrated Products

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at

1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

	DG200ACK	DG200ADY	DG200ACA
Description	SPST, 2 Func, 1 Channel, CMOS, CDIP14, CERDIP-14	SPST, 2 Func, 1 Channel, CMOS, PDSO14, SO-14	SPST, 2 Func, 1 Channel, CMOS, MBCY10, METAL CAN, TO-100, 10 PIN
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics
package instruction	DIP,	SOP,	,
Reach Compliance Code	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST	SPST
JESD-30 code	R-GDIP-T14	R-PDSO-G14	O-MBCY-W10
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V
Number of channels	1	1	1
Number of functions	2	2	2
Number of terminals	14	14	10
Nominal off-state isolation	75 dB	75 dB	75 dB
Maximum on-state resistance (Ron)	80 Ω	70 Ω	80 Ω
Maximum operating temperature	70 °C	85 °C	70 °C
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	METAL
Package shape	RECTANGULAR	RECTANGULAR	ROUND
Package form	IN-LINE	SMALL OUTLINE	CYLINDRICAL
Nominal supply voltage (Vsup)	15 V	15 V	15 V
surface mount	NO	YES	NO
Maximum disconnect time	500 ns	500 ns	500 ns
Maximum connection time	1000 ns	1000 ns	1000 ns
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING	WIRE
Terminal location	DUAL	DUAL	BOTTOM
length	19.43 mm	8.65 mm	-
encapsulated code	DIP	SOP	-
Maximum seat height	5.842 mm	1.75 mm	-
Terminal pitch	2.54 mm	1.27 mm	-
width	7.62 mm	3.9 mm	-
Base Number Matches	1	1	-
