8131-0-15-80-30-02-10-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 8131-0-15-80-30-02-10-0

8131-0-15-80-30-02-10-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size692KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

8131-0-15-80-30-02-10-0 Overview

PCB Terminal

8131-0-15-80-30-02-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	8131
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

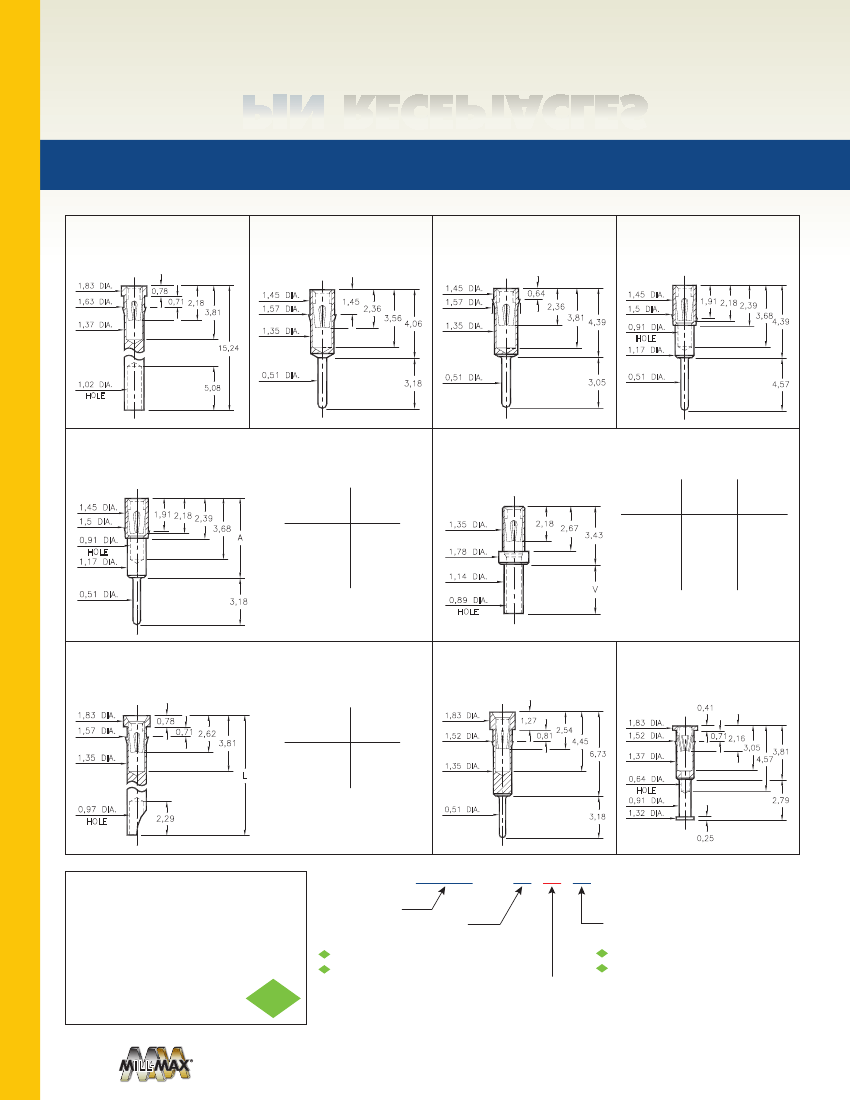

RECEPTACLES

FOR 0,38 - 0,64 DIAMETER PINS

1707

1,83 DIA.

1,63 DIA.

1,37 DIA.

1707-0-19-XX-30-XX-10-0

Press-fit in 1,55 mounting hole

0,78

0,71 2,18

3,81

0240

1,45 DIA.

1,57 DIA.

1,35 DIA.

15,24

0240-0-15-XX-30-XX-04-0

Press-fit in 1,49 mounting hole

0307

1,45 DIA.

1,57 DIA.

0307-0-15-XX-30-XX-04-0

Press-fit in 1,5 mounting hole

0,64

2,36

3,81

4,39

1753

1,45 DIA.

1,5 DIA.

0,91 DIA.

HOLE

1,17 DIA.

1753-0-15-XX-30-XX-04-0

Press-fit in 1,45 mounting hole

1,45

2,36

3,56

4,06

1,35 DIA.

1,91 2,18

2,39

3,68

4,39

0,51 DIA.

1,02 DIA.

HOLE

5,08

3,18

0,51 DIA.

3,05

0,51 DIA.

4,57

1705/1706/1762

17XX-0-15-XX-3X-XX-04-0

Press-fit in 1,45 mounting hole

1,45 DIA.

1,5 DIA.

0,91 DIA.

HOLE

1,17 DIA.

1,91 2,18

0672

Basic Part

Number

Height

1,35 DIA.

0672-X-15-XX-30-XX-10-0

Swage mount in 1,24 hole

Basic Part

Number

2,18

2,67

3,43

Board

Thickness

Length

2,39

3,68

1705-0

1706-0

1762-0

4,19

5,54

7,62

1,78 DIA.

1,14 DIA.

0,51 DIA.

3,18

0,89 DIA.

HOLE

0672-1

0672-2

0672-3

0672-4

0,79

1,57

2,39

3,18

1,32

2,13

2,92

3,71

1024/1104

1,83 DIA.

1,57 DIA.

1,35 DIA.

0,78

1XX4-0-18-XX-30-XX-10-0

Press-fit in 1,5 mounting hole

Accepts wire sizes up to 0,71 dia.

0498

Basic Part

Number

Length

1,83 DIA.

1,52 DIA.

0498-0-15-XX-35-XX-04-0

Press-fit in 1,45 mounting hole

1,27

0,81

2,54

4,45

6,73

1,35 DIA.

8131

1,83 DIA.

1,52 DIA.

1,37 DIA.

0,64 DIA.

HOLE

0,91 DIA.

8131-0-15-XX-30-XX-10-0

Press-fit in 1,45 mounting hole

0,41

0,71 2,62

3,81

0,71 2,16

3,05

3,81

4,57

1024-0

1104-0

7,37

11,43

0,97 DIA.

HOLE

2,79

2,29

0,51 DIA.

3,18

1,32 DIA.

0,25

PAGE 168 | PIN RECEPTACLES

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Millimeters

Tolerances On:

Lengths: ± 0,13

Diameters: ± 0,05

Angles:

±2°

ORDER CODE: XXXX - X - 1X - XX -

- XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

5,08μm TIN/LEAD OVER NICKEL

5,08μm TIN OVER NICKEL (RoHS)

0,25μm GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

2,54μm TIN/LEAD OVER NICKEL

2,54μm TIN OVER NICKEL (RoHS)

0,76μm GOLD OVER NICKEL (RoHS)

2011/65/EU

RoHS - 2

SELECT CONTACT:

#30 or #35

CONTACT (DATA ON PAGE 253 & 254)

(For alternate contact choices, see groups B and C on page 248)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
