KCA2AMA2BBD: DescriptionRocker Switch, On-off, Quick Connect Terminal, Rocker Actuator, Panel Mount,; CategoryMechanical and electronic products switch; File Size266KB，2 Pages; ManufacturerThe Cherry Corporation; Environmental Compliance

Download Datasheet Parametric View All

KCA2AMA2BBD Overview

Rocker Switch, On-off, Quick Connect Terminal, Rocker Actuator, Panel Mount,

KCA2AMA2BBD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	The Cherry Corporation
Reach Compliance Code	compliant
Actuator color	BLACK
Actuator length	0.551 inch
Actuator material	POLYCARBONATE
Actuator type	ROCKER
body height	8.3058 mm
center contact material	COPPER ALLOY
Center contact plating	SILVER
Contact function	ON-OFF
Contact resistance	0.05 mΩ
contact time	SNAP ACTION
Dielectric withstand voltage	1500VAC V
Electrical life	10000 Cycle(s)
End contact material	SILVER ALLOY
Shell material	NYLON
illumination	LED
Insulation resistance	100000000 Ω
JESD-609 code	e4
Manufacturer's serial number	KC
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
surface mount	NO
Switch type	ROCKER SWITCH
Terminal surface	Silver (Ag)
Terminal length	0.327 inch
Terminal material	COPPER ALLOY
Termination type	QUICK CONNECT
Base Number Matches	1

Preview

Download Datasheet

View All

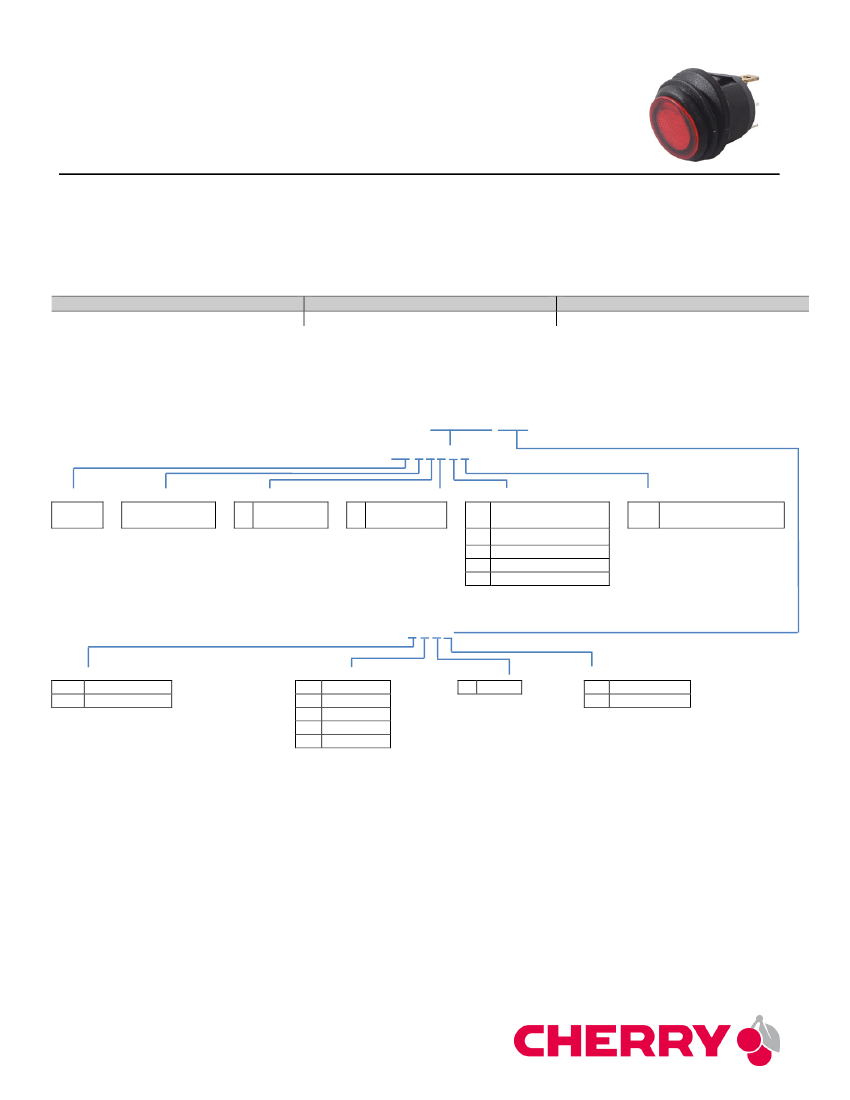

Sealed Rocker Switch

Single Pole

KC Series

Features

•

Snap-in mounting

RoHS compliant

100,000 cycles mechanical life

1

•

IP65

Lighted and non-lighted versions available

Standard Parts

North America

KCA2ALA2RBB

1

North America and Europe

KCA2ANA1BBB

Europe

KCA2AEA2GBB

The part number configuration matrix below provides details to the part numbers above.

For configurable part numbers that are not listed above, not listed in your region, or for custom part numbers, contact the factory or

your distributor.

Part Number Breakdown

KCA2ALA2RBB

KC A 2 A L A

Series

KC

Contact Rating

2

A

Circuitry

2

Single pole

Switch Function

A

ON-OFF

Lighting Options

N

E

L

C

M

Non-lighted

220 VAC neon

110 VAC neon

28 VDC LED

14 VDC LED

Terminal Type

4.75 mm (0.187”)

A

quick connect

2

See Electrical Specifications section

1BBB

Actuator Type

1

Non-lighted

2

Lighted

Actuator Color

3

A

Amber

B

Black

G

Green

L

Blue

R

Red

Actuator Marking

3

B

Blank

D

O ––

B

Black

3

Black actuator is only available for non-lighted; others only for lighted. Only non-lighted actuators can be marked.

www.cherryswitches.com

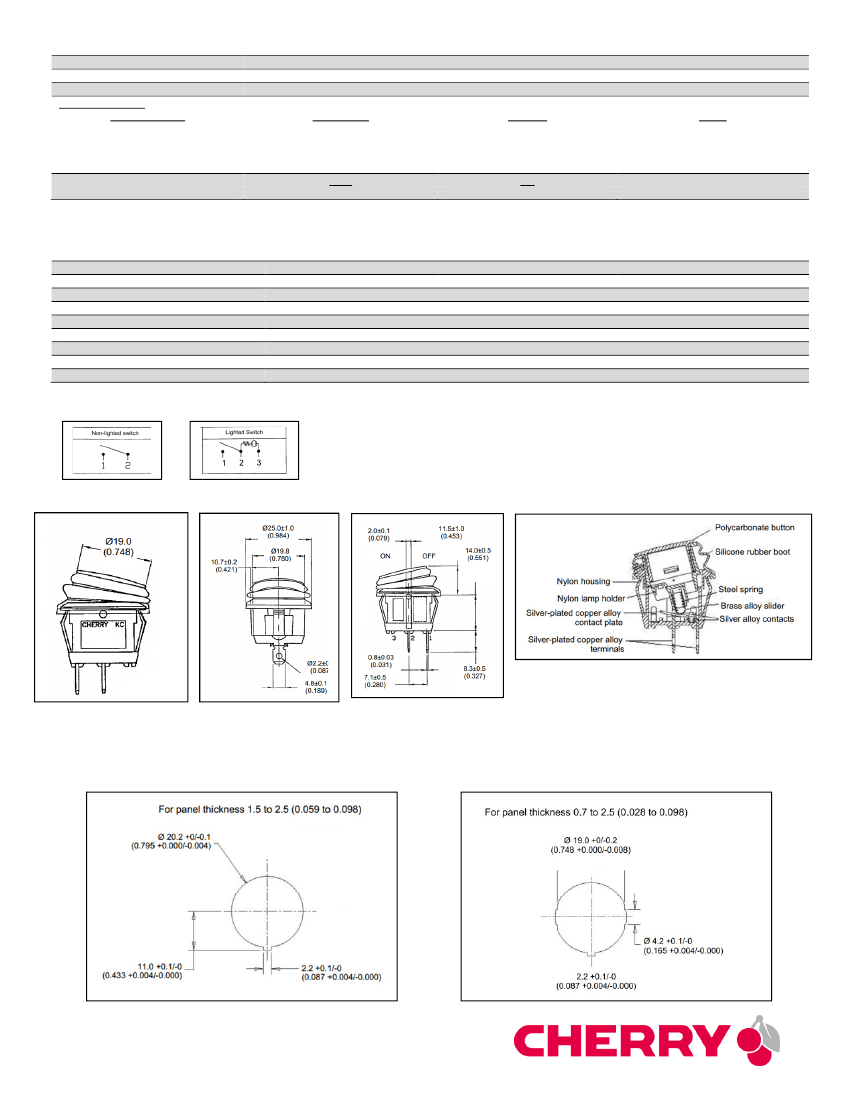

Page 1 of 2, Last update 2015-04-08, Specifications subject to change without notice.
