PX-4001-NAT-KFXS-4M0000000 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> PX-4001-NAT-KFXS-4M0000000

PX-4001-NAT-KFXS-4M0000000: DescriptionHCMOS Output Clock Oscillator, 4MHz Nom; CategoryPassive components oscillator; File Size315KB，4 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/

Download Datasheet Parametric View All

PX-4001-NAT-KFXS-4M0000000 Overview

HCMOS Output Clock Oscillator, 4MHz Nom

PX-4001-NAT-KFXS-4M0000000 Parametric

Parameter Name	Attribute value
Objectid	1060608563
Reach Compliance Code	compliant
Other features	ACMOS OUTPUT ALSO POSSIBLE
maximum descent time	15 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	4 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS

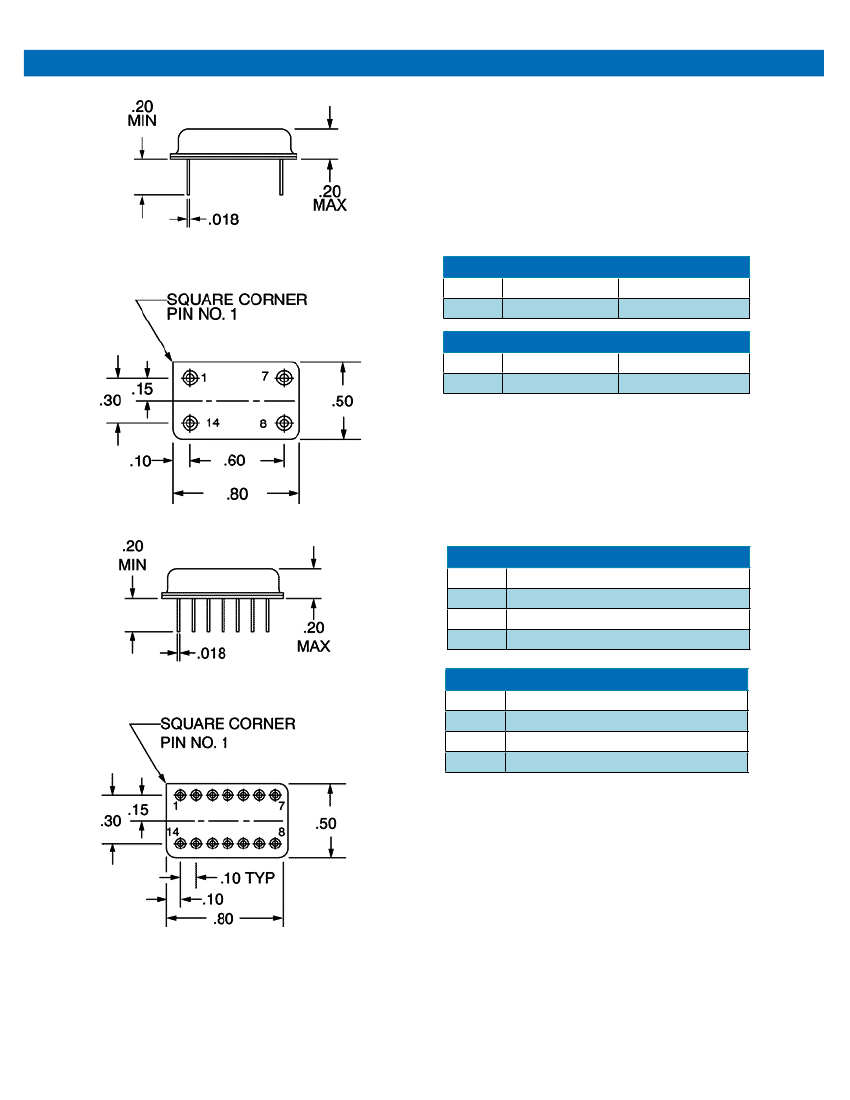

physical size	20.32mm x 12.7mm x 5.08mm
longest rise time	15 ns
Nominal supply voltage	-5.2 V
surface mount	NO
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

PX-400

Clock Oscillator

PX-400

Features

• Low Pro le

• 3 Point Mount Crystal

• Frequency Range: 1 HZ to 200 MHZ

• Previous Model: CO-401/402, CO-441/442, CO-431/451,

CO-432/452

Applications

Performance Speci cations

Parameter

vs. operating temperature range

(referenced to +25°C)

Min

-5

-10

-25

-50

-100

-300

-50

-25

-15

-10

-1

-3

-2

Typ

Max

+10

+25

+50

+100

+300

+50

+25

+15

+10

Units

ppm

Condition

0… +50°C

0… +70°C (standard)

-55… +85°C

-55… +125°C

-55… +200°C (custom number required)

@ +25°C

Set via external capacitor (custom number

required)

after 30 days of operation

Frequency Stabilities

Initial tolerance

vs. aging / 1 year

vs. aging / year (following years)

Supply Voltage (Vs)

Supply voltage (Standard)

Supply voltage (Option)

Supply voltage

4.75

3.135

5.0

3.3

-5.2

-4.5

5.25

3.465

VDC

below 20 MHz

@< 45 mA to 110 MHz,

@< 70 mA above 110 MHz

@< 60 mA

Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
