Non-reflective Terminations (BNC)
BNC-TM Series
s
Features
1.High Performance
These wide bandwidth/ultra high matching non-
reflective termination use Hirose Electric original
high frequency matching technology.
BNC-TMP-05(03)
BNC-TMP-05-1(01)
BNC-TMJ-05(02)
BNC-TMJ-05-1(01)
BNC-TMP-05-2(02)
BNC-TMP-05-3(01)
BNC-TMJ-05-2(02)
BNC-TMJ-05-3(01)
2.Full Assortment of 50 ohms and 75
ohms Types
In addition to the 50 ohms impedance type,
plugs and jacks are available in a 75 ohms type.
BNC-TMP-05(75)
BNC-TMJ-05(75)
BNC-TMP-1
s
Product Specifications
Ratings
Frequency range (Note)
Characteristic impedance
Maximum Input Power (Note)
DC to 3.0 GHz
50 ohms, 75 ohms
0.5 to 1 W
Operating temperature range
Operating relative humidity
-10
ç
to +65
ç
95% Max.
Note: The frequency range and the maximum input power will differ depending on the products.
Item
1.Vibration
Standard
Conditions
Frequency of 10 to 2000 Hz, overall amplitude of 1.52 mm,
acceleration of 98 m/s
2
for 2 hours in each of 3 directions
Acceleration of 490 m/s
2
, sine half-wave waveform,
3 cycles in each of the 3 axis
Temperature: -55
ç
¡
+5
ç
to +35
ç
¡
+85
ç
¡
+5
ç
to +35
ç
Time: 30
¡
15 max.
¡
30
¡
15 max. (Minutes)
200 cycles
No electrical discontinuity of 1 µs or more
No damage, cracks, or parts dislocation
2.Shock
3.Temperature cycle
No electrical discontinuity of 1 µs or more
q
The test method conforms to MIL-STD-202.
s
Materials
Part
Connector Body
Insulator
Male contacts
Female contacts
Resistor
Cover
s
Ordering Information
Material
Brass
PTFE
Brass
Beryllium copper
Metal film
PVC
Finish
Nickel plating
----------
Gold plating
Gold plating
----------
----------
BNC - TM P - 05 - 1
1
2
3
4
5
1
Series Name: BNC Series
4
Power
2
TM:Indicates a non-reflective termination
(Example) : 05: 0.5 W
3
Connector type
P: Plug type
J: Jack type
1:1W
5
Suffix
61
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
s
Specifications
Part Number
Frequency
Range
(GHz)
DC
~
1
1
~
3
DC
~
0.1
DC
~
1
1
~
3
DC
~
0.1
DC
~
0.5
0.5
~
2
DC
~
1
1
~
2
V.S.W.R.
(Max)
1.10
1.20
1.10
1.10
1.20
1.10
1.15
1.20
1.15
1.20
Power
(W)
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
1
Impedance
(Ohms)
50
50
50
50
50
50
50
50
75
75
50
Direct Current
Resistance
50
±
0.5
50
±
0.5
50
±
0.5
50
±
0.5
50
±
0.5
50
±
0.5
50
±
0.5
50
±
0.5
75
±
2.25
75
±
2.25
50
±
2
Connectors
Weight
(g)
15
10
15
10
16
11
16
11
14
9
16
π
1
π
1
π
2
π
2
π
1
π
2
π
1
π
2
BNC-TMP-05(03)
BNC-TMJ-05(02)
BNC-TMP-05-1(01)
BNC-TMJ-05-1(01)
BNC-TMP-05-2(02)
BNC-TMJ-05-2(02)
BNC-TMP-05-3(01)
BNC-TMJ-05-3(01)
BNC-TMP-05(75)
BNC-TMJ-05(75)
BNC-TMP-1
BNC-P
BNC-J
BNC-P
BNC-J
BNC-P
BNC-J
BNC-P
BNC-J
BNC-P(75)
BNC-J(75)
BNC-P
π
1 Low-cost items with DC to 100 MHz bandwidth limit.
π
2 Cover fitting type
s
Typical Data
62
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
s

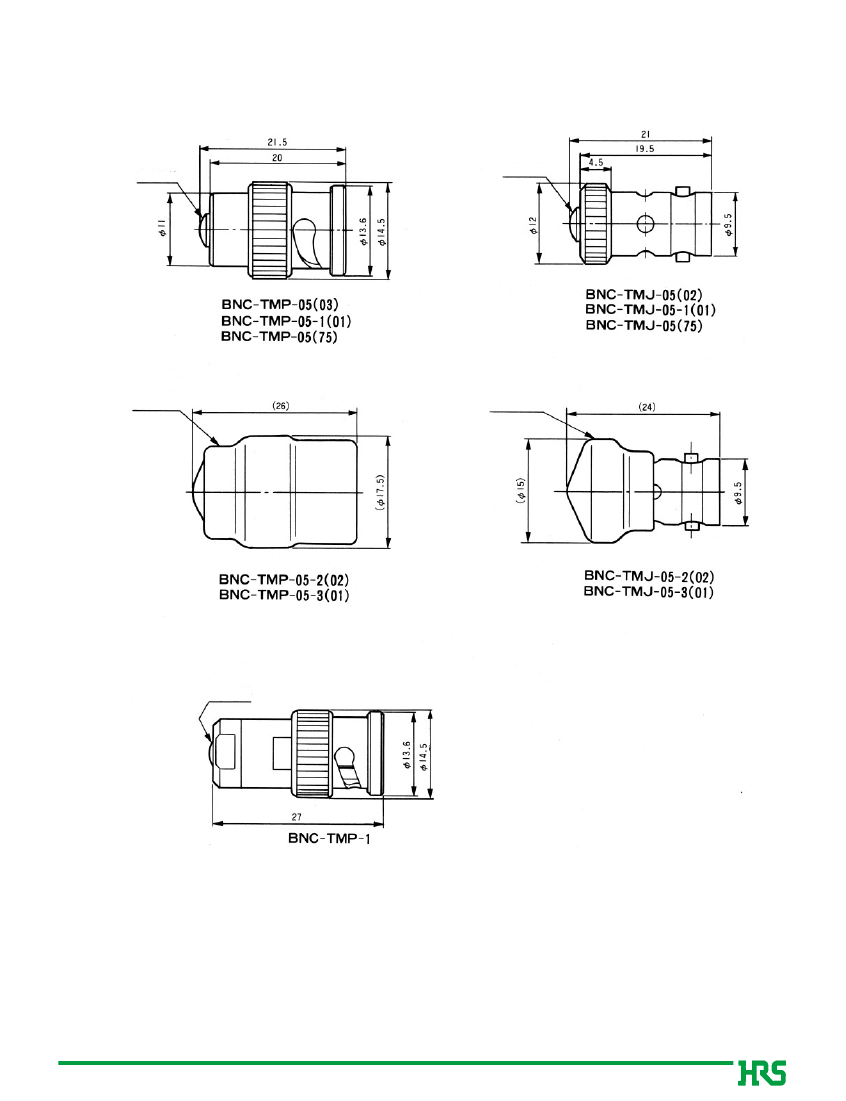

External Dimensions
Soldering
Soldering
Cover
Cover
Soldering
πBNC-TMP/TMJ-05
Series have a 50 ohms or 75 ohms
indication for each characteristic impedance.
63
