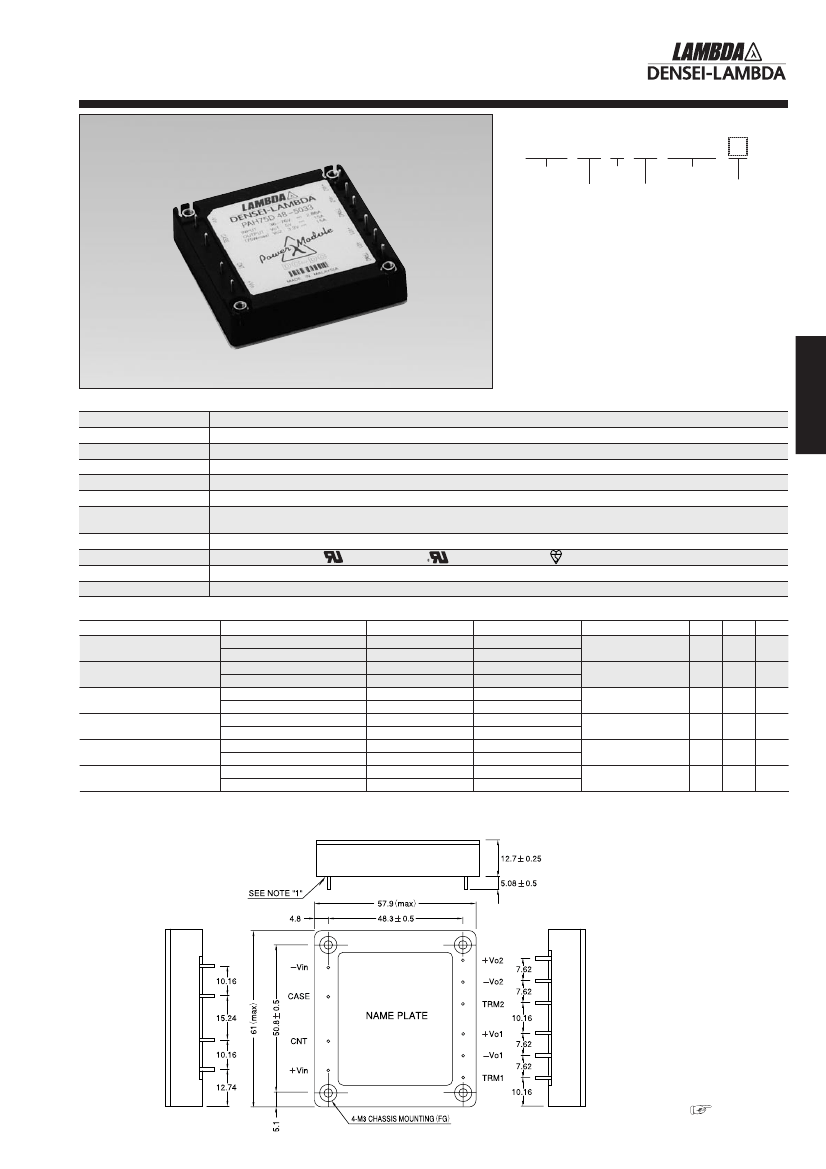

PAH75D
-SERIES
75W Dual Output
Model name
PAH 75 D 48-5033/
Series Name
Output type
D: Dual type
Output
Wattage
Rated output
voltage
Option:
Rated input
CH1: 5V
CH2: 3.3V blank: On/Off control minus logic
voltage
OVP manual reset
P: On/Off control plus logic
OVP manual reset
V: On/Off control minus logic
OVP auto-recovery
PV: On/Off control plus logic
OVP auto-recovery
Z: Trim compatible type
(PAH75D48-3325, -5033)
2 year warranty
Half-brick Dual Output DC-DC Power Module
Standardized pin disposition and size for "Half-Brick"DC-DC
Converter in European and American telecom industries applied
High power density achieved by our original ASIC and sophisticated design
Wide input voltage range: DC36 ~ 76V
Wide operation temperature range:
1) Base plate temperature range: -40 ~ +100°C
2) Conduction cooling system available for adjusting radiating
method conforming to the shape of the devices
Various Option
1) On/Off control (plus logic/minus logic)
2) Overvoltage protection reset (auto-recovery/manual reset)
2 year warranty
Features
Power Module
Specifications
1. Input voltage range
2. Output voltage range
3. Parallel operation
4. Line regulation
5. Load regulation
6. Cooling
7. Operating ambient
temperature
8. Withstand voltage
9. Safety standard
10. CE marking
11. Functions
PAH75D24: 18 ~ 36VDC, PAH75D48: 36 ~ 76VDC
10%
-
0.2% , within nominal input voltage range at constant load
0.5% , no load to full load at constant input voltage
Conduction cooling
-40°C ~ +100°C (Baseplate) Ambient temperature min=-40°C
Output Derating : -40 ~ +100°C (Baseplate) 100%
Input-output : 1.5kVAC (20mA) , Input-chassis : 1.5kVAC (20mA) , Output-chassis : 500VAC (100mA) for 1 min
Approved by UL1950
, CSA950(C-UL)
and EN60950(BSI)
Conforms to low voltage directive
Over voltage protection,Over current protection,Remote on/off control
Product lineup
Model name
PAH75D24-3325
(input 24VDC)
PAH75D24-5033
(input 24VDC)
PAH75D48-2518
(input 48VDC)
PAH75D48-3318
(input 48VDC)
PAH75D48-3325
(input 48VDC)
PAH75D48-5033
(input 48VDC)
CH
CH1(Vo1)
CH2(Vo2)
CH1(Vo1)
CH2(Vo2)
CH1(Vo1)
CH2(Vo2)
CH1(Vo1)
CH2(Vo2)
CH1(Vo1)
CH2(Vo2)
Output voltage
3.3V
2.5V
5.0V
3.3V
2.5V
1.8V
3.3V
1.8V
3.3V
2.5V
5.0V
3.3V
Output current
15.0A
15.0A
15.0A
15.0A
15.0A
15.0A
15.0A
15.0A
15.0A
15.0A
15.0A
15.0A
Output power
60W
75W
45W
50W
60W
75W
: Safety standard approved
UL
CSA
EN
CH1(Vo1)
CH2(Vo2)
Request customer specification for further details of specifications, outline,
characteristics, etc.Read the instruction manual before usage.
Contact us about delivery before ordering.
Outline drawing
Note 1: Input & output terminal..................10-ø1
(Unit: mm)
Recommended
Heatsink
P213
