CALIFORNIA MICRO DEVICES
PACS1284-06
P/Acitve™ IEEE 1284 ECP/EPP Termination Network
Features
• Single chip IEEE 1284 parallel port termination
• 28 pin QSOP package, smallest physical solution
• 17 terminating lines in a single package
• In system ESD protection to 8KV, HBM
• In system ESD protection to 4KV per IEC1000-4-2
• Protects downstream devices to 30V
Applications
• ECP/EPP Parallel Port termination
• PC Peripherals
• Notebook and Desktop computers
• Engineering Workstations and Servers
Product Description
California Micro Devices’ PACS1284-06 Parallel Port
Termination Network provides a complete integrated
solution for the entire IEEE 1284 interface in a single
QSOP package.
Advanced, enhanced high-speed parallel ports, con-
forming to the IEEE 1284 standard, are used to provide
communications with external devices such as tape
back-up drives, ZIP drives, printers, parallel port SCSI
adapters, external LAN adapters, scanners, video
capture, and other PC peripherals. These advanced
ports support bi-directional transfers to 2MB/sec. To
effectively support these higher transfer data rates, the
IEEE 1284 standard recommends a combined termina-
tion, pull-up filter network between the driver/receiver
and the cable at both ends of the parallel port interface.
In addition, government EMC compatibility requirements
impose strict filtering on the parallel port. California
Micro Devices’ PACS1284-06 Parallel Port Termination
Network addresses all of these requirements by provid-
ing a seventeen line, IEEE 1284 compliant network in a
thin film integrated circuit. The device provides a
complete parallel port termination solution for space
critical applications by integrating a total of 43 discrete
components. In addition, all I/O pins are ESD
protected for contact discharges up to 4KV per the
Human Body Model. However, the output pins of the
device which have the highest probability of exposure
to ESD pulses are protected to 8KV, HBM, thereby
providing the necessary robustness for the port’s
application environment.
California Micro Devices’ P/Active technology provides
high reliability and low cost through manufacturing
efficiency. The resistors and capacitors are fabricated
using proprietary state-of-the-art thin film technology.
California Micro Devices’ solution is silicon-based and
has the same reliability characteristics as today’s
integrated circuits.

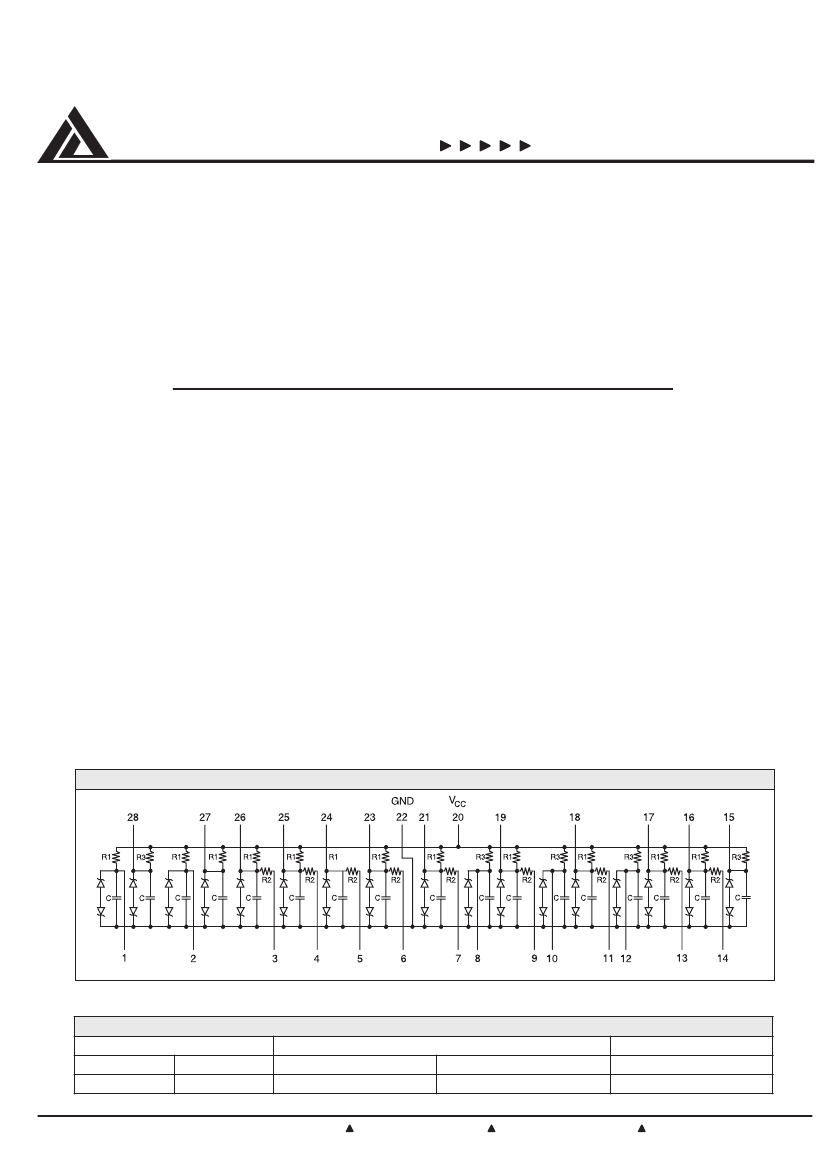

SCHEMATIC CONFIGURATION
S TA N D A R D PA R T O R D E R I N G I N F O R M AT I O N
Package
Pins
28
Style
QSOP
Tubes
PACS1284-06Q/T
Ordering Part Number
Tape & Reel
PACS1284-06Q/R
Part Marking
PACS1284-06Q
C1380800
© 2000 California Micro Devices Corp. All rights reserved.
8/25/2000
215 Topaz Street, Milpitas, California 95035
Tel: (408) 263-3214
Fax: (408) 263-7846
www.calmicro.com
1
CALIFORNIA MICRO DEVICES
PACS1284-06
S TA N D A R D S P E C I F I C AT I O N S
Ab s o l u t e To l e r a n c e ( R)
Ab s o l u t e To l e r a n c e ( C)
Op e r a t i n g Te mp e r a t u r e Ra n g e
V
CC
Powe r Ra t i n g / Re s i s t o r
M a x i mu m L e a k a g e C u r r e n t
( @V
CC
M a x )
Si g n a l Cl a mp Vo l t a g e :
Po s i t i ve Cl a mp
N e g a t i ve C l a m p
St o r a g e Te mp e r a t u r e
Pa ck a g e Powe r Ra n g e
±10%
±20%
0°C to 70°C
6V Max
100mW
1µA @ 25°C
>6V
<–6V
–65°C to 150°C
1. 00W Max
S TA N D A R D VA L U E S
R1 (
Ω)
Ω)
1K
R1 (
Ω)
Ω)
39
R1 (
Ω)
Ω)
5.1K
R1 (
Ω)
Ω)
150pF
E S D S P E C I F I C AT I O N S
MIN
ESD Protection*
Peak Discharg Voltage at nay I/O, Human Body Model, Method 3015 (Note 1)
InSystem Protection, HBM (Note 2)
InSystem Protection, IEC 1000-4-2, Level 2 (Note 2,3)
Channel Clamp Voltage @ 8KV ESD Pulses, HBM (Note 1,2)
* Guaranteed by design
Note 1: Human Body Model per MIL-STD-883, Method 3015
C
Discharge
= 100pF, R
Discharge
= 1.5 KΩ, pin 20 @ 5V and pin 22 @ ground.
Note 2: Pin 22 grounded, pin 20 to V
CC
, all other pins are open. ESD contact discharge between ground and
pins 1, 2, 8, 10, 12, 15, 16, 17, 18, 19, 21, 23 through 28, one at a time.
Note 3: Standard IEC 1000-4-2 with C
Discharge
= 150pF, R
Discharge
= 330Ω, pin 20 @ 5V and pin 22 @ ground.
MAX
4KV
8KV
4KV
30KV
–4KV
–8KV
–4KV
–30KV
©2000 California Micro Devices Corp. All rights reserved.
2
215 Topaz Street, Milpitas, California 95035
Tel: (408) 263-3214
Fax: (408) 263-7846
www.calmicro.com
8/25/2000
CALIFORNIA MICRO DEVICES
PACS1284-06
Application Information
The IEEE 1284 specification requires both termination and EMI filtering on a total of 17 signal lines. Control and
Status lines (8 in total) only require a pull-up resistor and a filter capacitor. The Data lines and Strobe also require a
series termination resistor in addition to the pull resistors and filter capacitors. See Table 1 and Schematic Diagram.
SIGNAL NAME
Data1 - Data8
Strobe
Init
AutoFeedXT
Selectin
Ack
Busy
Paper Empty
Select
Fault
SERIES TERMINATION
Yes
Yes
Not Required
Not Required
Not Required
Not Required
Not Required
Not Required
Not Required
Not Required
IEEE 1284 defines three interface connectors:
- 1284 A is a 25-pin DB series connector which is the defacto PC standard for the host connection.
- 1284 B is a 36-pin, 0.085 inch centerline connector used on the peripheral device.
- 1284 C is a new 36-pin, 0.050 inch centerline connector which can be used for both host and peripheral.

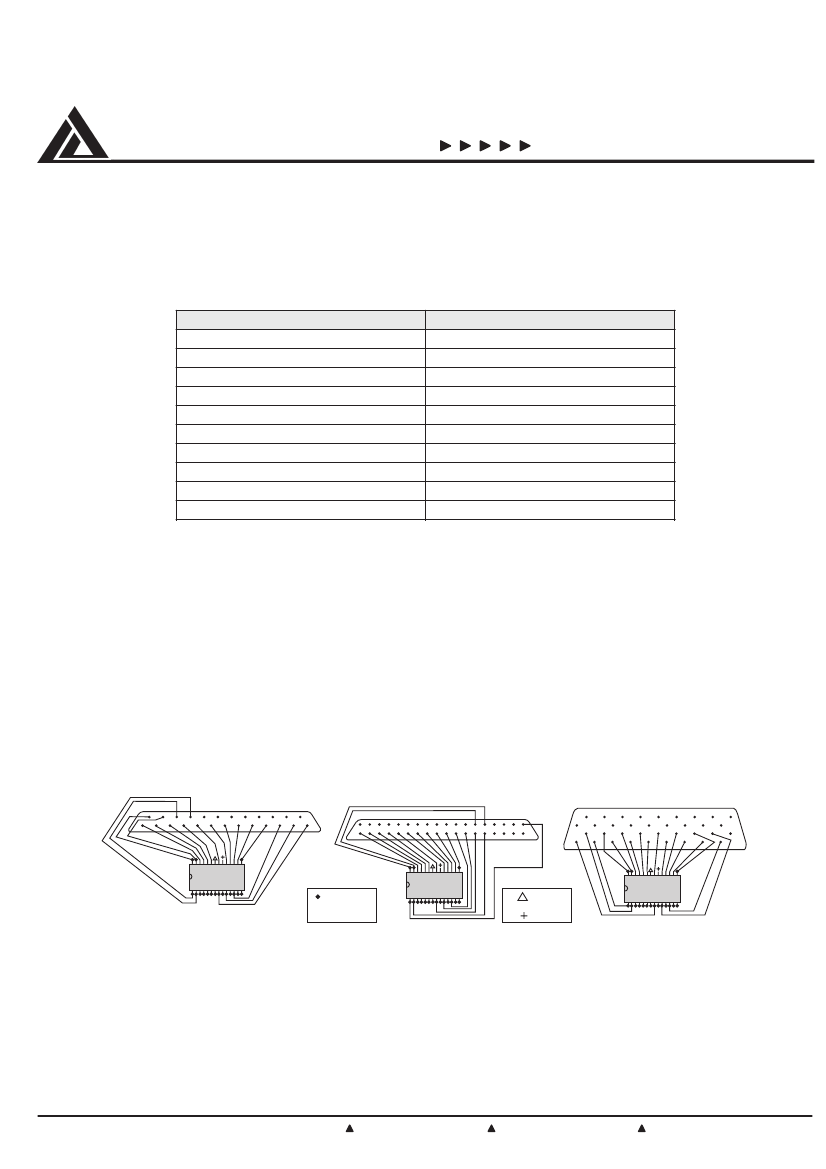

Figure 1 shows a possible hook-up between the 1284-A connector on a PC motherboard and the PACS1284-06,
illustrating how the pin configuration of the PACS1284-06 allows for easy interconnects between the two. The dotted I/
O signals of the PACS1284-06 will typically be connected to a Super I/O chip on the motherboard.
Figure 2 shows a possible hook-up between the 1284-B connector on a peripheral and the PACS1284-06.
Figure 3 shows a possible hook-up between the 1284-C connector and the PACS1284-06.
1284-A Connector
Host
14
25
19
1
1284-B Connector
Peripheral
36
19
13
1
18
1
2
20
1284-C Connector
Host/Peripheral
36
18
SUPER 1284
1
SUPER 1284
SUPER 1284
= FLOW
THROUGH
SIGNALS
1
= GND
= V
CC
1
Figure 1
Figure 2
Figure 3
Sample Hook-ups of IEEE 1284 Connectors and PACS1284-06.
(connector and PACS1284-06 not drawn to scale)
© 2000 California Micro Devices Corp. All rights reserved.
8/25/2000
215 Topaz Street, Milpitas, California 95035
Tel: (408) 263-3214
Fax: (408) 263-7846
www.calmicro.com
3
CALIFORNIA MICRO DEVICES
PACS1284-06
Table 2 defines the signals for the three connectors.
PIN
NUMBER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
1284-A
25-PINDSUB
STROBE
Data 1
Data 2
Data 3
Data 4
Data 5
Data 6
Data 7
Data 8
ACK
BUSY
PError
Select
AUTOFD
FAULT
INIT
Selectin
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
1284-B
36-PIN CHAMP
STROBE
Data 1
Data 2
Data 3
Data 4
Data 5
Data 6
Data 7
Data 8
ACK
BUSY
PError
Select
AUTOFD
Not Defined
Logic Ground
Chassis Ground
Peripheral Logic
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
INIT
FAULT
Not Defined
Not Defined
Not Defined
Selectin
1284-C
36-PIN HIGH
DENSITY
BUSY
Select
ACK
FAULT
PError
Data 1
Data 2
Data 3
Data 4
Data 5
Data 6
Data 7
Data 8
INIT
STROBE
Selectin
AUTOFD
Host Logic High
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Not Required
Table 2. IEEE 1284 Connector Pinouts.
When connecting a 1284-A host to a 1284-B peripheral the “Peripheral Logic High” signal is not used. Similarly, when
a 1284-A host is connected to a 1284-C peripheral the “Peripheral Logic High” and “Host Logic High” are not used.
These two signals are optionally used to detect a “Power Off” or “Cable Disconnect” state for host and peripheral
respectively.
©2000 California Micro Devices Corp. All rights reserved.
4
215 Topaz Street, Milpitas, California 95035
Tel: (408) 263-3214
Fax: (408) 263-7846
www.calmicro.com
8/25/2000
CALIFORNIA MICRO DEVICES
PACS1284-06
Figure 4 shows typical Insertion Loss graphs for the PACS1284-06 for Data and Strobe signals. The curves are
dependent on the physical location of the filter elements with respect to the ground and V
CC
terminals of the device.
These graphs are measured in a 50 Ohm environment. The signal is introduced at the series resistor input and the
output is measured at the corresponding filter capacitor. The graphs labeled A,B, and C are measured between 14
(input) and 16 (output), pin 3 (input) and 26 (output), and pin 6 (input) and 23 (output), respectively. The A graph
depicts “worst case” filter performance, while C represents a “best case” situation. Graphs of all other filter elements
will fall in between these two.
S
12
in dB
0
-10
A
-20
B
-30
C
-40
-50
300
450
600
750
900
1050
1200
(FREQUENCY, MHz)
Figure 4. Typical Filter Insertion Loss for PACS1284-06 (S
12
in dB, T
A
= 25
O
C)
Filter insertion loss is measured using Hewlett Packard HP 8753C Analyzer
© 2000 California Micro Devices Corp. All rights reserved.
8/25/2000
215 Topaz Street, Milpitas, California 95035
Tel: (408) 263-3214
Fax: (408) 263-7846
www.calmicro.com
5
