ES52C1B10N-10.245MTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ES52C1B10N-10.245MTR

ES52C1B10N-10.245MTR: DescriptionTCXO, CLIPPED SINE OUTPUT, 10.245 MHz, ROHS COMPLIANT, CERAMIC, SMD, 10 PIN; CategoryPassive components oscillator; File Size136KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

ES52C1B10N-10.245MTR Overview

TCXO, CLIPPED SINE OUTPUT, 10.245 MHz, ROHS COMPLIANT, CERAMIC, SMD, 10 PIN

ES52C1B10N-10.245MTR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECLIPTEK
Reach Compliance Code	not_compliant
Other features	TAPE AND REEL
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	1%
JESD-609 code	e4
Manufacturer's serial number	ES52C1
Installation features	SURFACE MOUNT
Nominal operating frequency	10.245 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	0.8 V
physical size	7.0mm x 5.0mm x 2.0mm
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)
Base Number Matches	1

Preview

Download Datasheet

View All

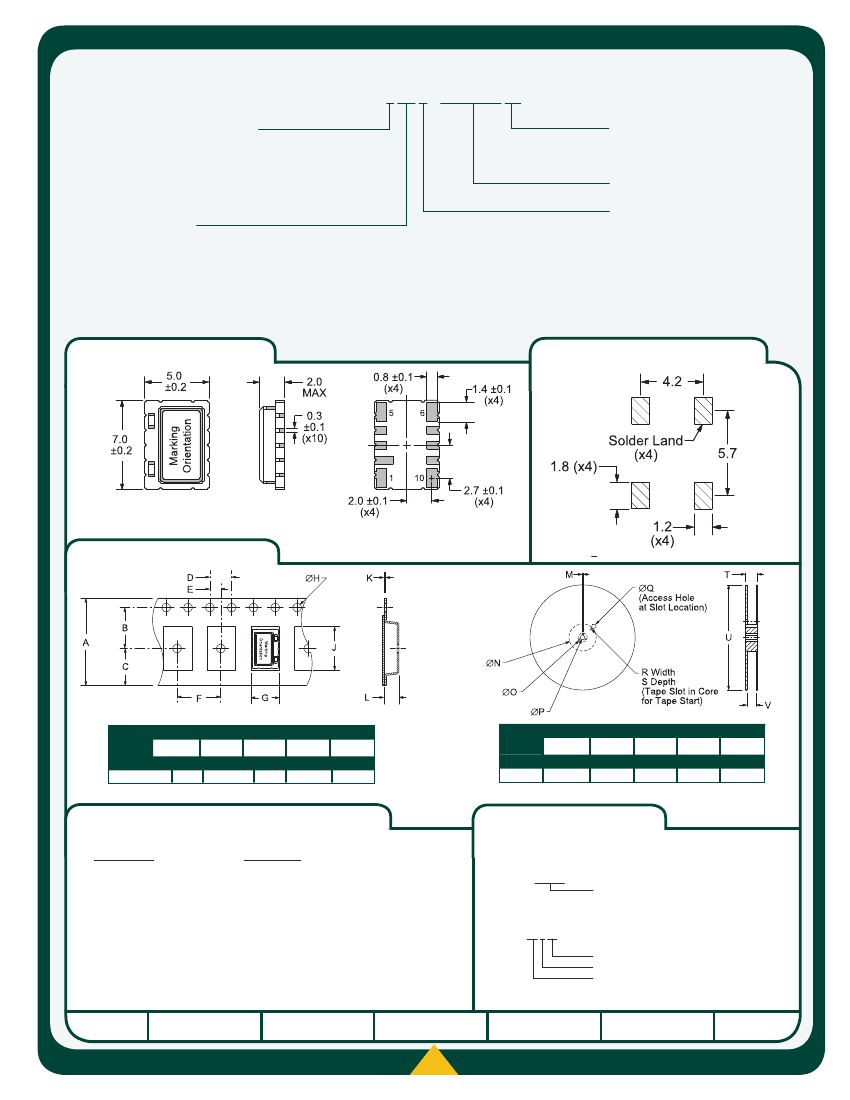

ES52C1

Series

• RoHS Compliant (Pb-free)

• Temperature Compensated Crystal

Oscillator (TCXO)

• Clipped Sinewave Output

• 3.3V Supply Voltage

• Ceramic 10-pad SMD package

• Stability to ±1.0ppm

• External voltage control option available

ES52C1

H 2.0

L 7.0

W 5.0

OSCILLATOR

ELECTRICAL SPECIFICATIONS

Nominal Frequency (MHz)

10.000, 10.240, 10.245, 12.000, 12.288, 12.800, 13.000, 14.000, 14.400, 14.7456, 15.360, 16.000,

16.384, 16.800, 17.500, 18.432, 19.200, 19.440, 20.000, 20.480, 24.000, 24.5535, 24.576, 25.000,

Frequency Stability

and 27.000MHz

vs. Operating Temperature Range

vs. Frequency Tolerance (25°C ±2°C, V

= 3.3V

, V

= 1.5V

)

vs. Input Voltage (±5%)

vs. Load (±1kΩ//±1pF)

Aging (at 25°C)

Operating Temperature Range

Supply Voltage (V

)

Input Current

10.000MHz to 14.999999MHz

15.000MHz to 25.999999MHz

26.000MHz to 27.0000MHz

Output Voltage

Load Drive Capability

External Trim (Voltage Control Option)

Linearity

Modulation Bandwidth

Input Impedance

Typical Phase Noise (at 12.800MHz)

At offset of 10Hz

At offset of 100Hz

At offset of 1kHz

At offset of 10kHz

At offset of 100kHz

Start Up Time

Storage Temperature Range

Measured at -3dB, V

= 1.5V

1.5V

±1.0V

; Positive Transfer Characteristic

See Part Numbering Guide

±1.0ppm Maximum

±0.2ppm Maximum

±1ppm / Year Maximum

See Part Numbering Guide

3.3V

±5%

1.5mA Maximum

2.0mA Maximum

2.5mA Maximum

0.8Vp-p Clipped Sinewave Minimum

10kOhms // 10pF

±8ppm Minimum

10% Maximum

3kHz Minimum

100kOhms Minimum

-80dBc/Hz

-115dBc/Hz

-135dBc/Hz

-145dBc/Hz

5mSec Maximum

-55°C to 125°C
