392XCX48P6.0MADC datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 392XCX48P6.0MADC

Preview

392XCX48P6.0MADC: DescriptionPower/Signal Relay, 3PDT, Momentary, 0.006A (Coil), 60VDC (Coil), 375mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Socket Mount,; CategoryMechanical and electronic products relay; File Size373KB，2 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric Compare View All

392XCX48P6.0MADC Overview

Power/Signal Relay, 3PDT, Momentary, 0.006A (Coil), 60VDC (Coil), 375mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Socket Mount,

392XCX48P6.0MADC Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	34.9 mm
body height	57.1 mm
Body length or diameter	34.9 mm
Maximum coil current (DC)	0.006 A
Coil power	375 mW
Coil resistance	10000 Ω
Maximum coil voltage (DC)	60 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	5A@240VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Installation features	SOCKET MOUNT
operating hours	20 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	34.9mm x 34.9mm x 57.1mm
Guideline	CSA; UL
Relay action	MOMENTARY
Relay function	3PDT
Relay type	POWER/SIGNAL RELAY
release time	15 ms
surface mount	NO
Termination type	SNAP-ON
Base Number Matches	1

Preview

Download Datasheet

View All

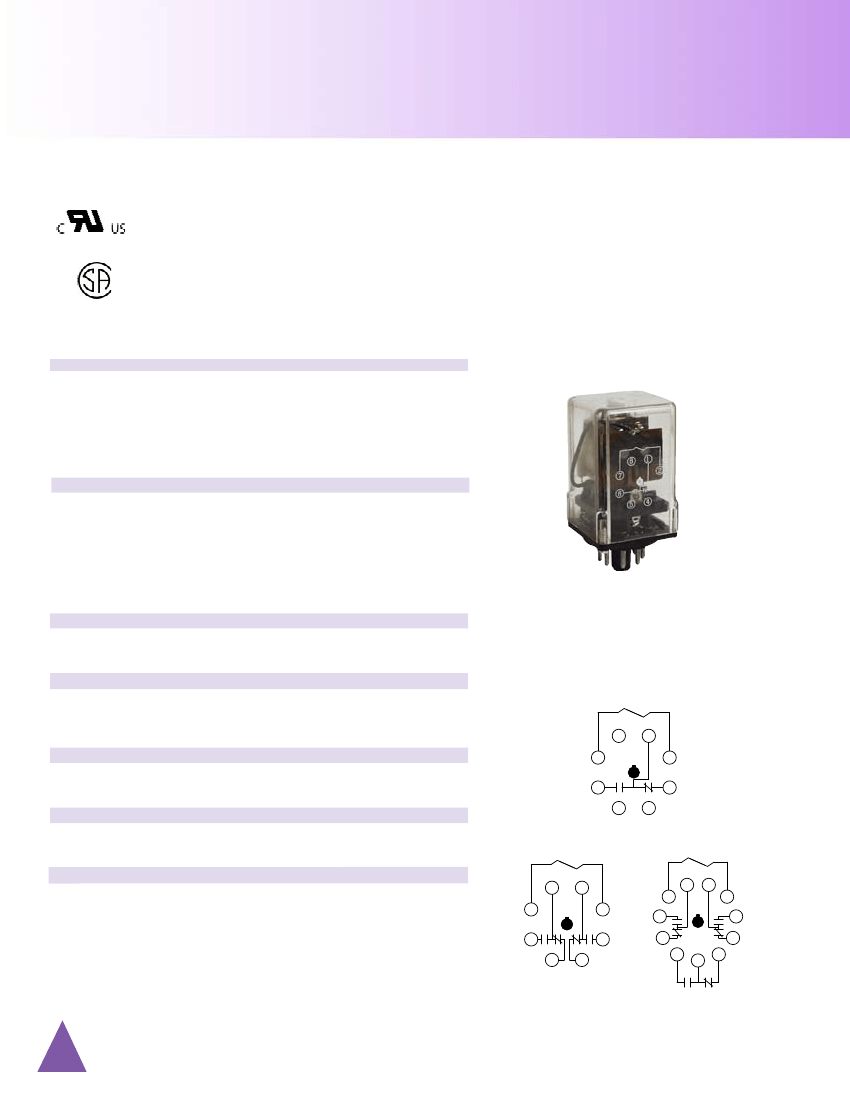

392 Series - Low Coil Power- Octal Base

SPDT - 3PDT, 5 Amp

E13224

The 392 series is an industry standard “octal” base version of DC sensitive relay. Single pole

versions operate on as little as 125mW and are capable of switching 5 amps. Power

requirements increase by 125mW per pole up to 3 poles. Operating current can be as low as

11.1mA. The 392 series can withstand wide voltage ranges of up to almost 4X minimum voltage

without overheating. Single pole and double pole versions have 8 pin bases. The 3 pole version

has 11 pins. All are intended for socket mounting.

GENERAL SPECIFICATIONS (@ 25° C)

Contacts:

Contact Configuration

Contact Material

Contact Rating

120 / 240VAC Resistive

28VDC Resistive

Contact Resistance, Initial

Coil:

Coils Available

Minimum Coil Power

Single Pole

Double Pole

3 Pole

4 Pole

Duty

Timing:

Operate Time (max)

Release Time (max)

Dielectric Strength:

Across Open Contacts

Between Mutally Insulated Points

Insulation Resistance

Temperature:

Operating

Storage

Life Expectancy:

Electrical (full load operations)

Mechanical (no load operations)

Miscellaneous:

Mounting Position

Mating Socket

Accessories

Enclosure

Weight

Up to 3PDT

Silver

5 Amp

100 milliohms max @ 6VDC

AC and DC

125mW

250mW

375mW

-

Continuous

20mS

15mS

500Vrms

1500Vrms

1,000 Mohms min @ 500VDC

-20 to 70°C (-4 to 158°F)

-40 to 105°C (-40 to 221°F)

100,000

10,000,000

Any

1P, 2P = SK-CIR8-DS

3P = SK-CIR11-DS

Clear Polycarbonate

3.2oz (90 grams)

8

7

6

5

4

1

2

3

9

8

7

6

5

IN CA

FO L

R LF

M O

AT R

IO

N

Socket Mount

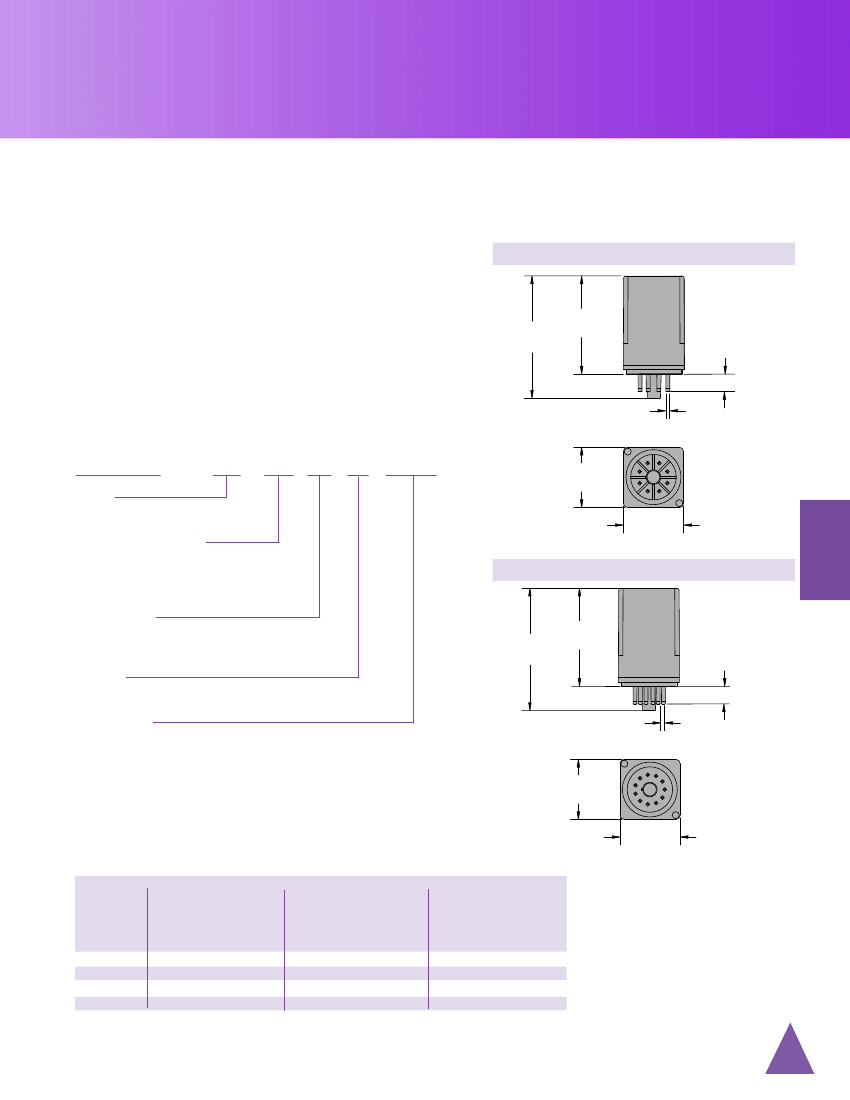

392 Wire Diagram

8

7

6

5

4

1

2

3

SPDT

10

11

1

2

3

4

DPDT

3PDT

6/11

www.struthers-dunn.com

(843) 664-3303

392XCX48P6.0MADC Related Products

	392XCX48P6.0MADC	392XCX48P8.5MADC	392XBX48P7.0MADC	392XCX48P12.0MADC	392XCX48P19.3MADC	392XAX48P11.7MADC
Description	Power/Signal Relay, 3PDT, Momentary, 0.006A (Coil), 60VDC (Coil), 375mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Socket Mount,	Power/Signal Relay, 3PDT, Momentary, 0.009A (Coil), 42.5VDC (Coil), 375mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Socket Mount,	Power/Signal Relay, DPDT, Momentary, 0.007A (Coil), 35VDC (Coil), 250mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Socket Mount	Power/Signal Relay, 3PDT, Momentary, 0.012A (Coil), 30VDC (Coil), 375mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Socket Mount,	Power/Signal Relay, 3PDT, Momentary, 0.019A (Coil), 19.3VDC (Coil), 375mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Socket Mount,	Power/Signal Relay, SPDT, Momentary, 0.012A (Coil), 11VDC (Coil), 125mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Socket Mount,
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum coil current (DC)	0.006 A	0.009 A	0.007 A	0.012 A	0.019 A	0.012 A
Coil power	375 mW	375 mW	250 mW	375 mW	375 mW	125 mW
Coil resistance	10000 Ω	5000 Ω	5000 Ω	2500 Ω	1000 Ω	1000 Ω
Maximum coil voltage (DC)	60 V	42.5 V	35 V	30 V	19.3 V	11 V
Coil/Input Power Type	DC	DC	DC	DC	DC	DC
Contact (AC) maximum rated R load	5A@240VAC	5A@240VAC	5A@240VAC	5A@240VAC	5A@240VAC	5A@240VAC
Maximum contact current (AC)	5 A	5 A	5 A	5 A	5 A	5 A
Maximum contact current (DC)	5 A	5 A	5 A	5 A	5 A	5 A
Contact (DC) maximum rated R load	5A@28VDC	5A@28VDC	5A@28VDC	5A@28VDC	5A@28VDC	5A@28VDC
Maximum contact voltage (AC)	240 V	240 V	240 V	240 V	240 V	240 V
Maximum contact voltage (DC)	28 V	28 V	28 V	28 V	28 V	28 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)
Installation features	SOCKET MOUNT	SOCKET MOUNT	SOCKET MOUNT	SOCKET MOUNT	SOCKET MOUNT	SOCKET MOUNT
operating hours	20 ms	20 ms	20 ms	20 ms	20 ms	20 ms
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Guideline	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL
Relay action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
Relay function	3PDT	3PDT	DPDT	3PDT	3PDT	SPDT
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	15 ms	15 ms	15 ms	15 ms	15 ms	15 ms
surface mount	NO	NO	NO	NO	NO	NO
Termination type	SNAP-ON	SNAP-ON	SNAP-ON	SNAP-ON	SNAP-ON	SNAP-ON
Base Number Matches	1	1	1	1	1	1
body width	34.9 mm	34.9 mm	-	34.9 mm	34.9 mm	34.9 mm
body height	57.1 mm	57.1 mm	-	57.1 mm	57.1 mm	57.1 mm
Body length or diameter	34.9 mm	34.9 mm	-	34.9 mm	34.9 mm	34.9 mm
physical size	34.9mm x 34.9mm x 57.1mm	34.9mm x 34.9mm x 57.1mm	-	34.9mm x 34.9mm x 57.1mm	34.9mm x 34.9mm x 57.1mm	34.9mm x 34.9mm x 57.1mm
