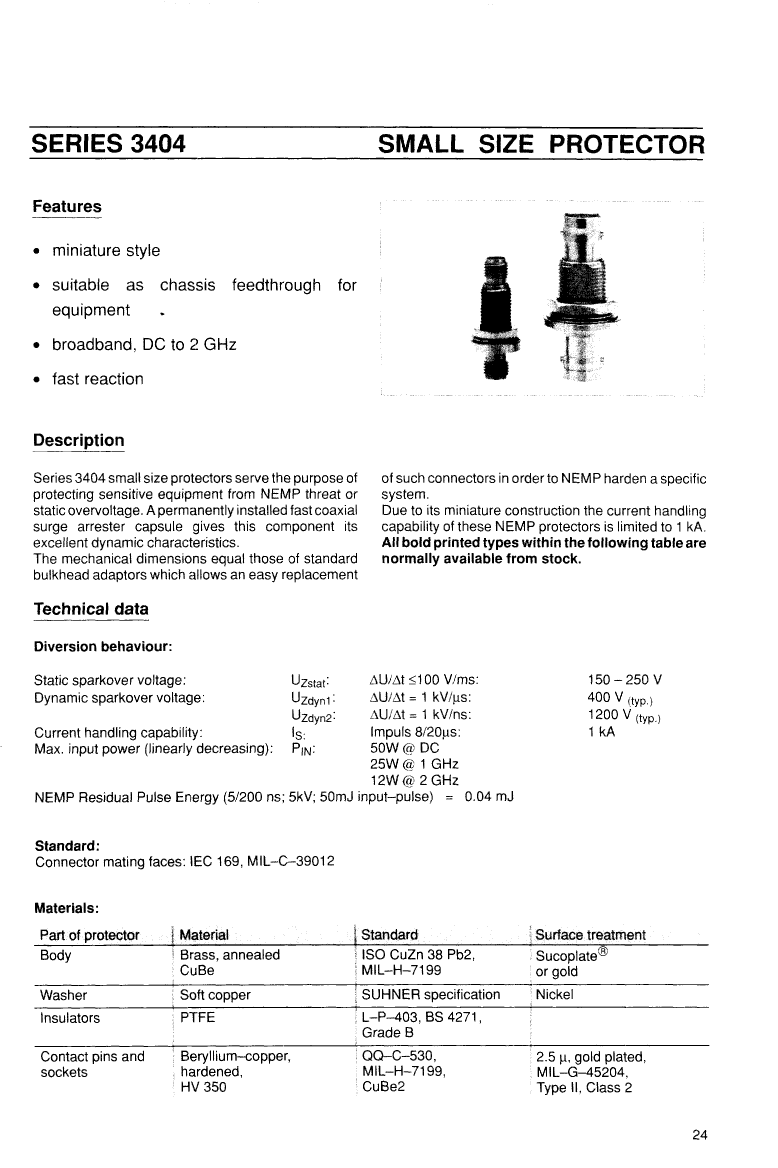

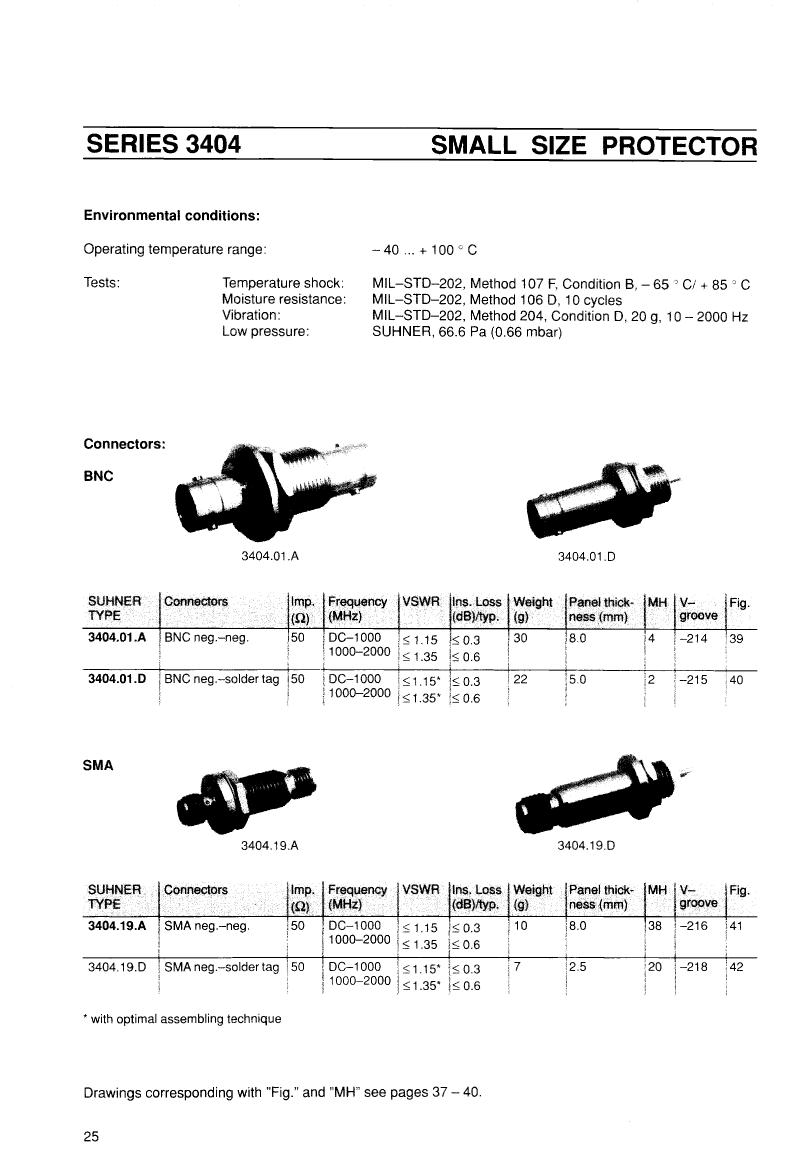

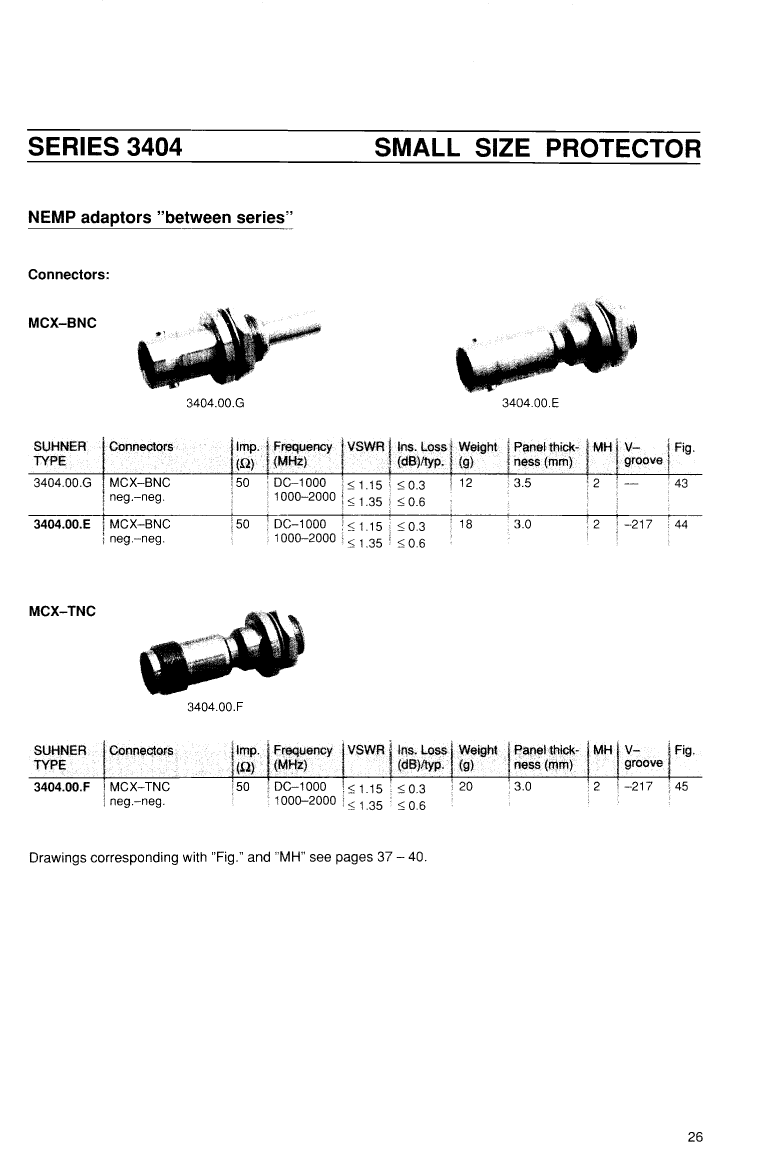

3404.00.F datasheet, PDF - EEWORLD Datasheet

3404.00.F: DescriptionRF Connector Adapter, MCX-TNC, Panel Mount, Female-Female; CategoryThe connector The connector; File Size180KB，3 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric Compare View All

3404.00.F Overview

RF Connector Adapter, MCX-TNC, Panel Mount, Female-Female

Parameter Name	Attribute value
Reach Compliance Code	compliant
Adapter type	MCX-TNC
Other features	VSWR MAX AT 1GHZ: 1.15
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	FEMALE-FEMALE
Coupling type	SNAP-THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.6 dB
insulator material	PTFE
MIL compliance	NO
Maximum operating frequency	2 GHz
Panel mounting	YES
voltage standing wave ratio	1.35
Base Number Matches	1

	3404.00.F	3404.01.A	3404.00.G	3404.19.A	3404.00.E	3404.01.D	3404.19.D
Description	RF Connector Adapter, MCX-TNC, Panel Mount, Female-Female	RF Connector Adapter, BNC-BNC, Panel Mount, Female-Female	RF Connector Adapter, BNC-MCX, Panel Mount, Female-Female	RF Connector Adapter, SMA-SMA, Panel Mount, Female-Female	RF Connector Adapter, BNC-MCX, Panel Mount, Female-Female	RF BNC Connector, Female, Panel Mount, Solder Terminal	RF SMA Connector
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF BNC CONNECTOR	RF SMA CONNECTOR
Adapter type	MCX-TNC	BNC-BNC	BNC-MCX	SMA-SMA	BNC-MCX	-	-
Other features	VSWR MAX AT 1GHZ: 1.15	VSWR MAX AT 1GHZ: 1.15	VSWR MAX AT 1GHZ: 1.15	VSWR MAX AT 1GHZ: 1.15	VSWR MAX AT 1GHZ: 1.15	-	-
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	-
Contact point gender	FEMALE-FEMALE	FEMALE-FEMALE	FEMALE-FEMALE	FEMALE-FEMALE	FEMALE-FEMALE	FEMALE	-
Coupling type	SNAP-THREADED	BAYONET	BAYONET-SNAP	THREADED	BAYONET-SNAP	BAYONET	-
DIN compliance	NO	NO	NO	NO	NO	NO	-
Filter function	NO	NO	NO	NO	NO	NO	-
IEC compliance	NO	NO	NO	NO	NO	NO	-
Insertion loss	0.6 dB	0.6 dB	0.6 dB	0.6 dB	0.6 dB	0.6 dB	-
insulator material	PTFE	PTFE	PTFE	PTFE	PTFE	PTFE	-
MIL compliance	NO	NO	NO	NO	NO	NO	-
Maximum operating frequency	2 GHz	2 GHz	2 GHz	2 GHz	2 GHz	2 GHz	-
Panel mounting	YES	YES	YES	YES	YES	YES	-
voltage standing wave ratio	1.35	1.35	1.35	1.35	1.35	1.35	-
Base Number Matches	1	1	1	1	1	1	-
