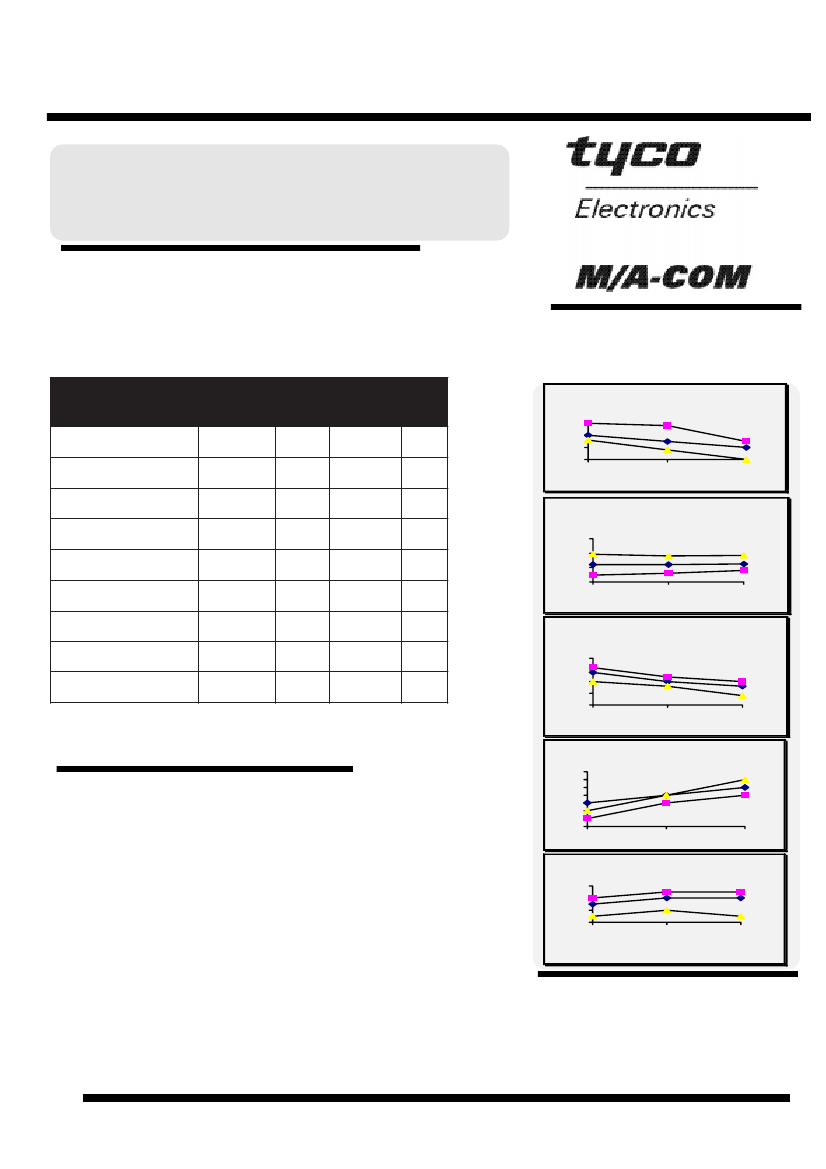

PA1217
800-1000 MHz.
Low Noise High Dynamic Range Linear Amplifier
Features
(typical values)
Low Cost Ceramic Surface Mount Package
Low NF ..................................................... 0.6 dB.
IP3 ........................................................ +40 dBm
Pout ......................................................... +25dBm
Typical
Value
M in.
Value
800
33
+/- 0.5
45.0
25
0.6
1.6:1
40
+12V/155
30
-
-
24
-
-
37
-
M a x.
Value
10 0 0
-
1.0
-
-
1.0
2.0:1
-
+12V/175
dBm
v./mA.
Typical Performance
--
u
-- 25
°
C --
n
-- -40
°
C --
∆
-- +70
°
C
G a in (d B ) v s . F re q u e n c y
Parame te r
Frequency
Gain @25 degrees C.
Gain Flatness
Reverse Isolation
Pout @ 1dB. comp.
Noise Figure
VSWR
Input IP3
Supply Required
Units
MHz
dB
dB
dB
dBm
dB
1
0 .7 5
0 .5
0 .2 5
800
900
1000
35
34
33
32
800
900
1000
N F (d B ) v s . F re q u e n c y
P o u t (d B m ) v s . F re q u e n c y
26
2 5 .5
25
2 4 .5
24
800
900
1000
IP3 measured with 2 tones @+10 dB @ 1 Mhz apart
Min and max values from -40 to +85 degrees C
1 .7
1 .6
1 .5
1 .4
1 .3
1 .2
1 .1
1
V S W R v s . F re q u e n c y
Outline Drawings
800
900
1000
IP 3 ( d B m ) v s . F r e q u e n c y
4 1 .5

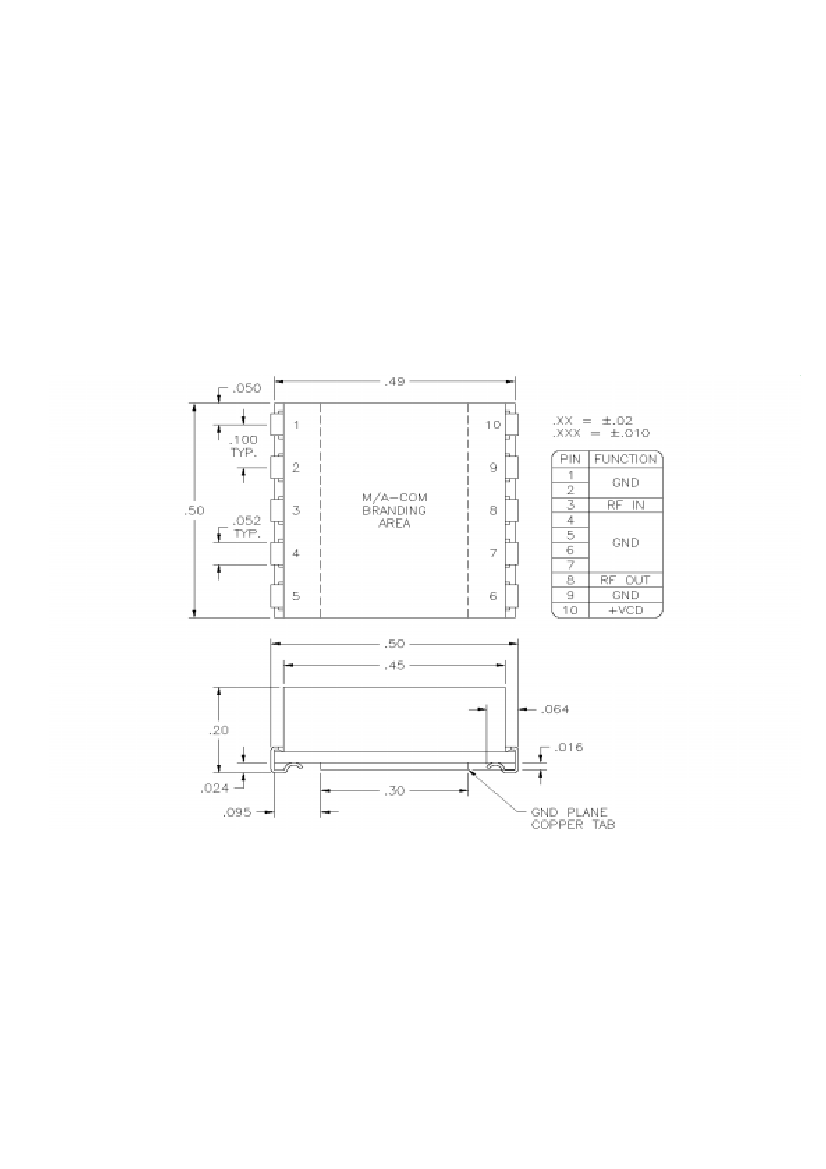

SEE ATTACHED DRAWING
4 0 .5
3 9 .5
3 8 .5
800
900
F re q u e n c y in M H z .
1000
Maximum Ratings
Storage Temperature ....... -65°C to +150°C
DC Voltage .................................. +15 volts
RF Input Power .......................... +17 dBm.
Heat Spreader Temperature .......... +100°C
Rev: 08012001
Specifications subject to change without notice
100 Emlen Way Telford, Pa. 18969
Tel. (215) 723-6011
Fax. (215) 723-6015
