352316-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 352316-9

352316-9: Description133 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT; CategoryThe connector The connector; File Size224KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

352316-9 Overview

133 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT

352316-9 Parametric

Parameter Name	Attribute value
Objectid	1714002550
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	8.6
body width	0.606 inch
subject depth	0.529 inch
body length	1.492 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN LEAD (20) OVER NICKEL (50)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.7506 N
Insulation resistance	10000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	352316
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	7
Number of rows loaded	7
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	133
Evacuation force-minimum value	.15012 N

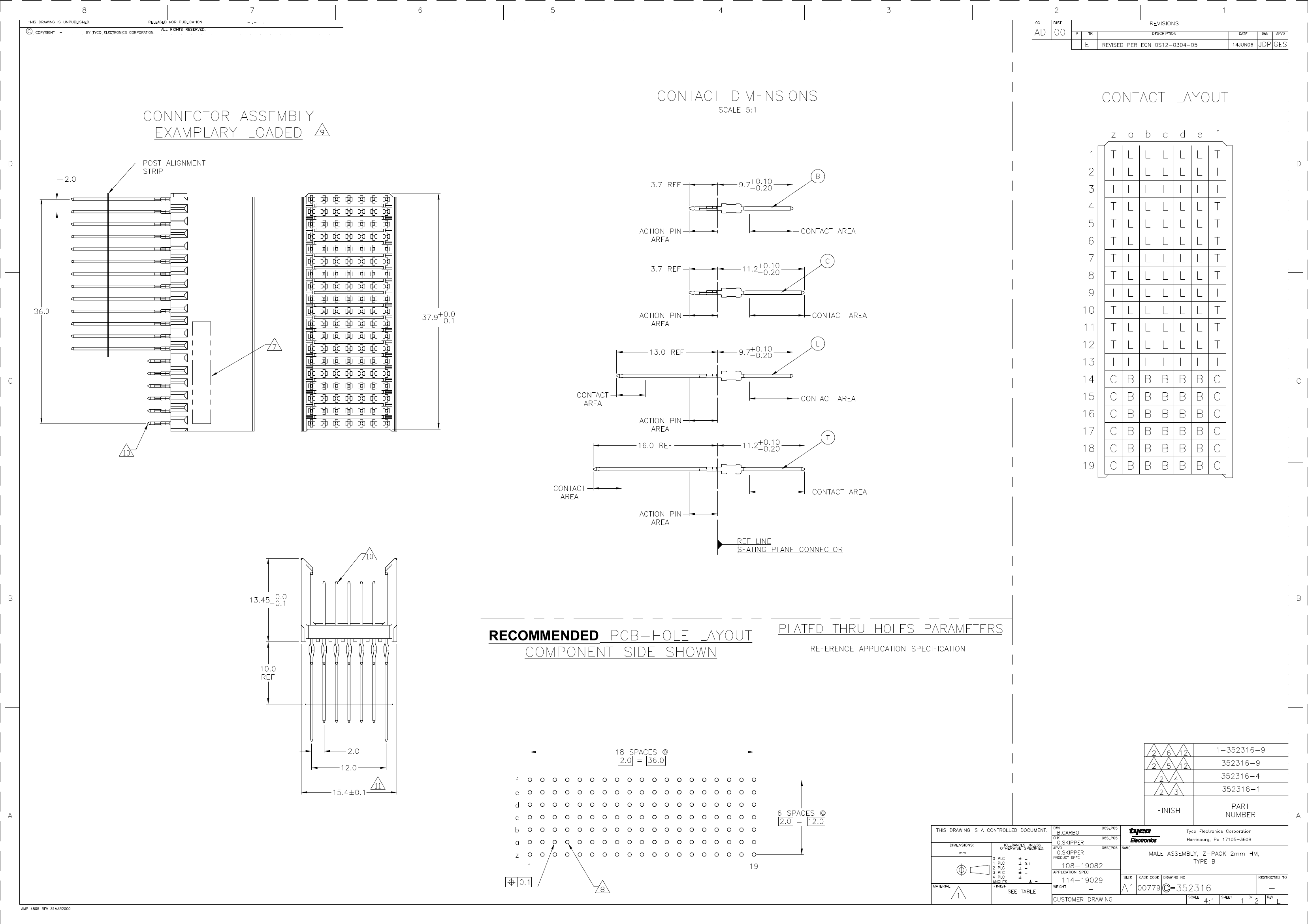

Preview

Download Datasheet

View All

352316-9 Related Products

	352316-9	1-352316-9
Description	133 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT	133 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT
Objectid	1714002550	1713992777
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
YTEOL	8.6	8.6
body width	0.606 inch	0.606 inch
subject depth	0.529 inch	0.529 inch
body length	1.492 inch	1.492 inch
Body/casing type	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN LEAD (20) OVER NICKEL (50)	TIN LEAD (20) OVER NICKEL (50)
Contact point gender	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO
Dielectric withstand voltage	750VAC V	750VAC V
Durability	250 Cycles	250 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	.7506 N	.7506 N
Insulation resistance	10000000000 Ω	10000000000 Ω
Insulator color	GRAY	GRAY
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
JESD-609 code	e0	e0
MIL compliance	NO	NO
Manufacturer's serial number	352316	352316
Plug contact pitch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch
Mixed contacts	NO	NO
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	7	7
Number of rows loaded	7	7
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1.5 A	1.5 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal pitch	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	133	133
Evacuation force-minimum value	.15012 N	.15012 N
