EQRG12G2L-155.520MTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EQRG12G2L-155.520MTR

EQRG12G2L-155.520MTR: DescriptionCRYSTAL OSCILLATOR, CLOCK, HSCL OUTPUT; CategoryPassive components oscillator; File Size1MB，12 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EQRG12G2L-155.520MTR Overview

CRYSTAL OSCILLATOR, CLOCK, HSCL OUTPUT

EQRG12G2L-155.520MTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7042858782
Reach Compliance Code	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TR, 14 INCH
maximum descent time	0.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	6
Nominal operating frequency	155.52 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HSCL
Output load	50 OHM

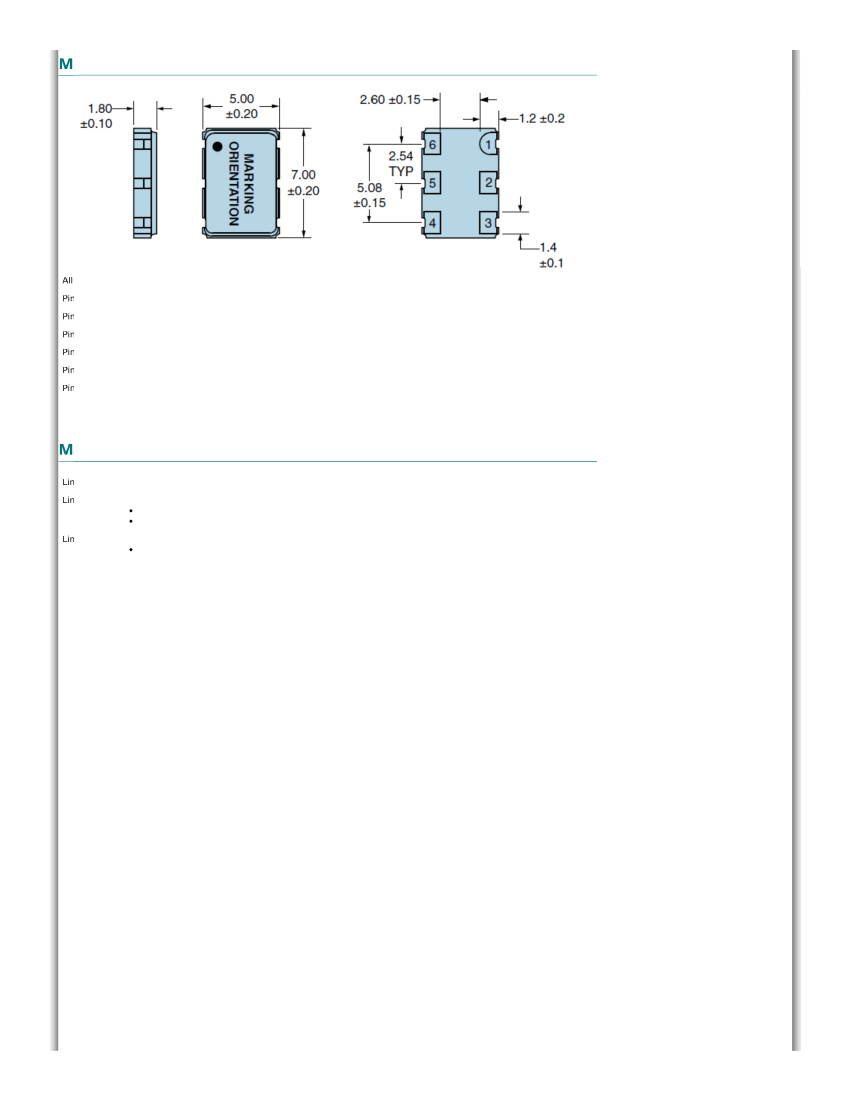

physical size	7.0mm x 5.0mm x 1.8mm
longest rise time	0.5 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

Ecliptek | EQRG12 Series Oscillator

http://www.ecliptek.com/oscillators/EQRG12/

Log On

| 714-433-1200 |

Email Customer Support

Home

Products

Quick Quote

My Parts List

Site Map

EQRG12 Series Oscillator

Quartz Crystal Clock Oscillators XO (SPXO) HCSL 2.5Vdc 6 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD)

2011/65 +

2015/863

168 SVHC

Revision C 06/26/2014

Electrical Specifications

Nominal Frequency

10.000MHz to 200.000MHz

Some frequencies within this range may not be available.

Frequency Tolerance/Stability

Inclusive of all conditions: Calibration Tolerance (at 25°C), Frequency

Stability over the Operating Temperature Range, Supply Voltage

Change, Output Load Change, First Year Aging at 25°C, Shock, and

Vibration

±100ppm Maximum

±50ppm Maximum

±25ppm Maximum

±20ppm Maximum

0°C to +70°C

-20°C to +70°C

-40°C to +85°C

±3ppm Maximum First Year

2.5V

±5%

Without Load

30mA Maximum

580mV

Minimum, 740mV

Typical, 850mV

Maximum

-150mV

Minimum, 0mV

Typical, 150mV

Maximum

Measured at 50% of waveform

50 ±10(%)

50 ±5(%)

Measured at 0.175V

to 0.525V

of waveform

500pSec Maximum

600mV Minimum, 740mV Typical, 850mV Maximum

Between Output and Ground

50 Ohms

HCSL

Click to Open Phase Noise Table

Standby (on Pad 1)

Standby (on Pad 2)

70% of V

Minimum or No Connect to Enable Output and

Complementary Output

30% of V

Maximum to Disable Output and Complementary Output

(High Impedance)

10mSec Maximum

Operating Temperature Range

Aging at 25°C

Supply Voltage

Input Current

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Duty Cycle

Rise Time/Fall Time

Output Swing (dVOpp)

Load Drive Capability

Output Logic Type

Phase Noise

Output Control Function

Output Control Input Voltage Logic High

(Vih)

Output Control Input Voltage Logic Low

(Vil)

Standby Output Enable Time

1 of 12

28-Jan-2016 2:24 PM
