16USC56000MSN35X45 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 16USC56000MSN35X45

16USC56000MSN35X45: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 56000uF, Through Hole Mount, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size89KB，4 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

16USC56000MSN35X45 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 56000uF, Through Hole Mount, CAN, ROHS COMPLIANT

16USC56000MSN35X45 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1746895425
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
capacitance	56000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	2.83972 mA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	16 V
ripple current	8450 mA
surface mount	NO
Delta tangent	0.5
Terminal surface	Tin (Sn)
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

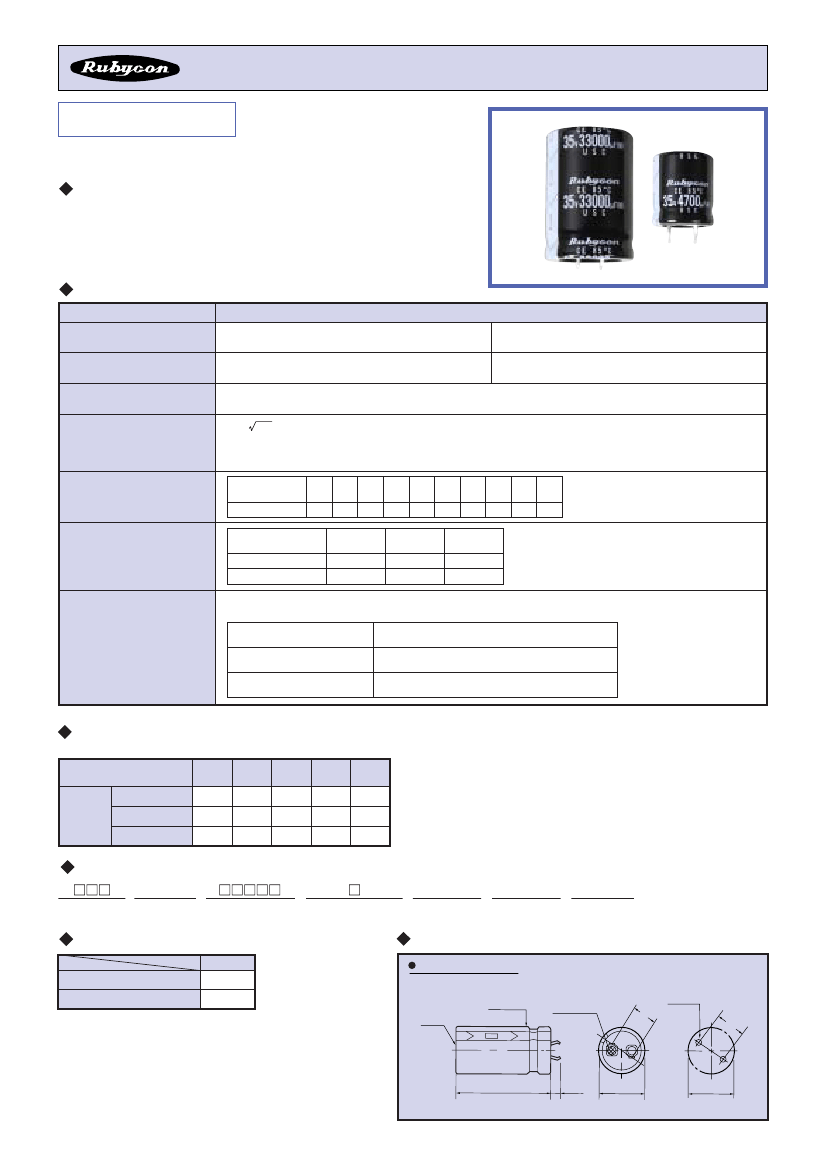

LARGE CAN TYPE ALUMINUM ELECTROLYTIC CAPACITORS

USC

SERIES

85 C Standard, Snap-in Terminal Type

FEATURES

Life : 85

C 3000 hours.

size with higher ripple current endurance than USR series.

•

RoHS compliance.

•

Load

•

Smaller

SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Tolerance

Characteristics

-40

∼

+85

∼

250V.DC

- 20% (20

C, 120Hz)

3 CV

(After 5 minutes application of rated voltage)

-25

∼

+85

315

∼

450V.DC

Leakage Current(MAX)

Leakage Current

(

Dissipation Factor(MAX)

(tanδ)

Rated Voltage

(V)

Rated Capacitance

(

(20

C, 120Hz)

Rated Voltage

10 16 25 35 50 63 80 100 160

∼

420

∼

(V)

400 450

tanδ

0.55 0.50 0.45 0.40 0.35 0.30 0.25 0.20 0.15 0.25

Rated Voltage

(V)

C) /Z(20

∼

250

315

∼

400

420

∼

450

(120Hz)

Impedance Ratio(MAX)

After applying rated voltage with rated ripple current for 3000hrs at 85

C, the capacitors shall meet the following requirements.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Within - 20% of the initial value.

Not more than 200% of the specified value.

Not more than the specified value.

MULTIPLIER FOR RIPPLE CURRENT

Frequency coefficient

Frequency (

Hz)

60(50) 120

1.00

500

1.05

1.20

1.10

1.30

1.25

10k<

1.15

1.50

1.40

∼

100WV 0.90

Coefficient

160

∼

250WV 0.80

315

∼

450WV 0.80

PART NUMBER

USC

Rated Voltage

Series

Rated Capacitance

Capacitance Tolerance

OOE

Option

Terminal Code

Case Size

Option

Code

without plate

with plate

DIMENSIONS

SN[4(3.5)mm] terminal type

(mm)

OOE

Blank

VENT

SLEEVE

NEGATIVE

0.1

∗

0.5

For

Ω φ

35, 3.5

0.5

MOUNTING HOLES

Recommended Resources

Gas alarm circuit (1)

Fast charger circuit diagram

Circuit for reading 16 digital input channels using PC serial port

Light controlled ringing circuit circuit diagram

Tone and volume adjusters for stereo equipment

Horizontal deflection coil circuit for data monitor
