450MMH224J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 450MMH224J

450MMH224J: DescriptionFilm Capacitor, Polyester, 450V, 10% +Tol, 10% -Tol, 0.22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size544KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

450MMH224J Overview

Film Capacitor, Polyester, 450V, 10% +Tol, 10% -Tol, 0.22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

450MMH224J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2112736162
package instruction	,
Reach Compliance Code	compliant
Country Of Origin	Japan
ECCN code	EAR99
YTEOL	6.57
capacitance	0.22 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
JESD-609 code	e3
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
positive tolerance	10%
Rated (DC) voltage (URdc)	450 V
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

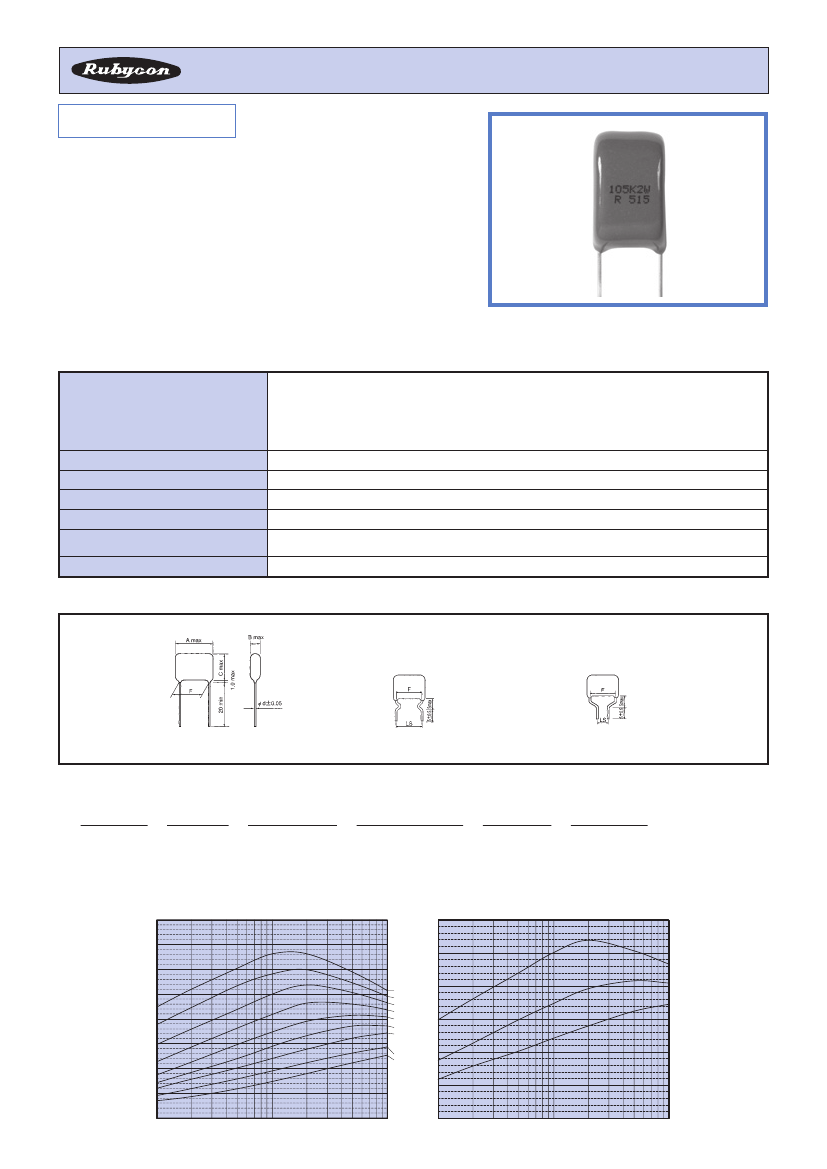

金属熔射型聚酯塑胶薄膜电容器

METALLIZED POLYESTER FILM CAPACITORS

MMH

◆特

•

系列

SERIES

长／

FEATURES

小型、大电流品。

具有自我修复性，是一款值得信赖的电容器。

外包装½用难燃性

(UL94 V-0)

环氧树脂，有优良的安全性。

最适合有源滤波器电路等。

RoHS指令对应品。

Small and high current.

Reliability is excellent because these capacitors provide self-healing and the

construction of safety protection.

Coated with flame-retardant (UL94 V-0) epoxy resin.

Ideal for active filter circuit, etc.

RoHS compliance.

◆规

格／

SPECIFICATIONS

－40℃½＋105℃

(在超过85℃时，请进行½用注意事项所记½½的电压降½内容。)

(Derate the voltage as shown in the "CAUTION FOR PROPER USE OF FILM CAPACITORS"

when using the capacitor beyond 85℃.)

工½温度/

Category Temperature

额定电压/

Rated Voltage (U

)

静电容量允许差/

Capacitance Tolerance

损失角正切值/

tan

耐电压/

Voltage Proof

绝缘电阻/

Insulation Resistance

标准规格/

Reference Standard

450VDC,500VDC

±5%(J), ±10%(K)

0.01max at 1kHz

×150%

60s

C≤0.33µF : 15000MΩmin

C＞0.33µF : 5000ΩFmin

JIS C 5101-2, JIS C 5101-1

(mm)

◆½状图／

OUTLINE

Blank

H7,Y7

S7,W7,Q7

◆产品型号½系／

PART NUMBER

□□□

额定电压

Rated Voltage

MMH

系列名称

Series

□□□

额定静电容量

Rated Capacitance

□

静电容量允许差

Capacitance Tolerance

□□□

副记号

Option

□□

引线加工记号

Lead Forming

◆相对于频率的允许电流／

PERMISSIBLE CURRENT FOR FREQUENCY

450MMH

500MMH

225

Permissible current

(Arsm)

Permissible current

(Arsm)

475

335

225

155

105

684

474

105

474

334

224

100

Frequency (kHz)

1000

100

Frequency (kHz)

1000
