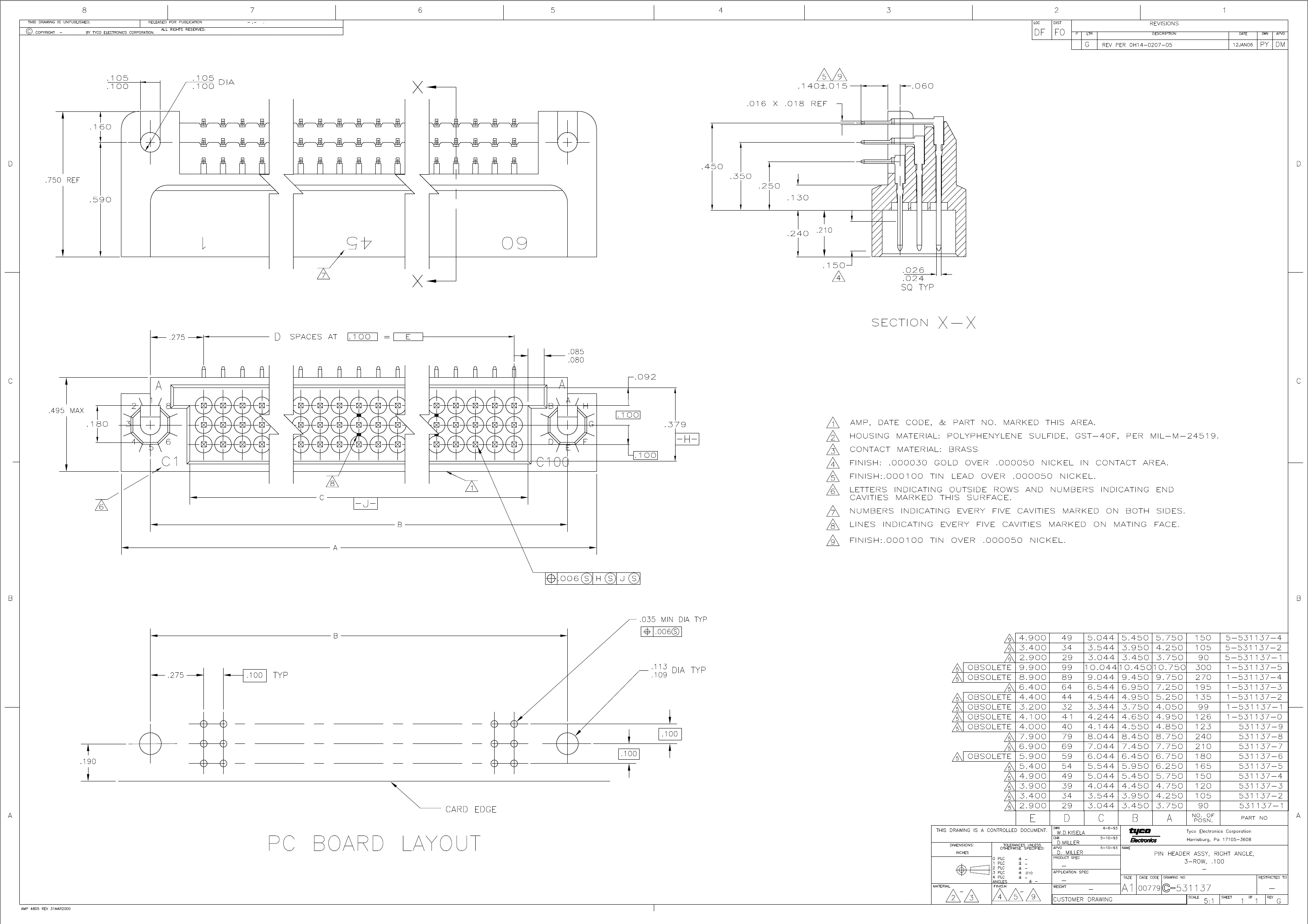

Preview

531137-3: Description120 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size148KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

531137-3 Overview

120 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

531137-3 Parametric

Parameter Name	Attribute value
Objectid	1431069076
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: MIL-C-55302
Board mount options	HOLE .099-.111
body width	0.495 inch
subject depth	0.75 inch
body length	4.75 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (100) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	531137
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	ENDS
reliability	COMMERCIAL
Terminal length	0.14 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	120

Preview

Download Datasheet

View All

531137-3 Related Products

	531137-3	531137-5	5-531137-4
Description	120 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	165 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	150 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
Objectid	1431069076	1431069103	1466316365
Reach Compliance Code	unknown	unknown	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE
Contact material	BRASS	BRASS	NOT SPECIFIED
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	120	165	150
ECCN code	EAR99	EAR99	-
Other features	STANDARD: MIL-C-55302	STANDARD: MIL-C-55302	-
Board mount options	HOLE .099-.111	HOLE .099-.111	-
body width	0.495 inch	0.495 inch	-
subject depth	0.75 inch	0.75 inch	-
body length	4.75 inch	6.25 inch	-
Body/casing type	RECEPTACLE	RECEPTACLE	-
Contact completed and terminated	TIN LEAD (100) OVER NICKEL	TIN LEAD OVER NICKEL	-
contact mode	RECTANGULAR	RECTANGULAR	-
Contact style	SQ PIN-SKT	SQ PIN-SKT	-
JESD-609 code	e0	e0	-
Plug contact pitch	0.1 inch	0.1 inch	-
Match contact row spacing	0.1 inch	0.1 inch	-
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-
Number of connectors	ONE	ONE	-
PCB row number	3	3	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	-
PCB contact row spacing	2.54 mm	2.54 mm	-
Plating thickness	30u inch	30u inch	-
polarization key	ENDS	ENDS	-
Terminal length	0.14 inch	0.14 inch	-
Is it Rohs certified?	-	incompatible	conform to
