150 RMI
Vishay BCcomponents
Aluminum Capacitors
Radial Miniature, Low Impedance
FEATURES
Polarized aluminum electrolytic capacitors,
non-solid electrolyte
Fig.1 Component outline
RoHS
Radial leads, cylindrical aluminum case with
COMPLIANT
pressure relief, insulated with a blue sleeve
Charge and discharge proof
Very long useful life:
4000 h to 10 000 h at 105
C,
high stability, high reliability
Very low impedance or ESR respectively, at smaller case
sizes than the 136 RVI series
Excellent ripple current capability
AEC-Q200 qualified
Compliant to RoHS Directive 2002/95/EC
136 RVI
miniaturize
APPLICATIONS
Power supplies (SMPS, DC/DC converters) for general
industrial,
EDP,
audio-video,
automotive
and
telecommunications
Smoothing, filtering, buffering
048 RML
148 RUS
lower Z
longer life
150 RMI
QUICK REFERENCE DATA
DESCRIPTION
Nominal case sizes (Ø D x L in mm)
Rated capacitance range, C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range
Endurance test at 105
C
Useful life at 105
C
Useful life at 40
C,
1.8 x I
R
applied
Shelf life at 0 V, 105
C
Based on sectional specification
Climatic category IEC 60068
VALUE
8 x 12 to 18 x 31
100 µF to 6800 µF
±20 %
10 V to 100 V
- 55
C
to + 105
C
3000 h to 5000 h
4000 h to 10 000 h
200 000 h to 500 000 h
1000 h
IEC 60384-4/EN130300
55/105/56
MARKING
The capacitors are marked (where possible) with the
following information:
Rated capacitance (in µF)
Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (M for ± 20 %)
Rated voltage (in V)
Date code, in accordance with IEC 60062
Code indicating factory of origin
Name of manufacturer
Upper category temperature (105
C)
Negative terminal identification
Series number (150)
SELECTION CHART FOR C
R,
U
R
AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(µF)
22
47
100
150
220
330
470
680
1000
10
-
-
-
-
-
-
-
8 x 12
-
10 x 12
-
10 x 16
-
16
-
-
-
-
8 x 12
-
8 x 12
8 x 15
10 x 12
10 x 16
-
10 x 20
-
25
-
-
-
-
8 x 12
-
10 x 12
10 x 16
-
10 x 20
-
12.5 x 20
-
U
R
(V)
35
-
-
8 x 12
-
8 x 15
10 x 12
10 x 16
10 x 20
-
12.5 x 20
-
12.5 x 25
16 x 20
50
-
-
-
10 x 12
10 x 16
-
10 x 20
12.5 x 20
-
12.5 x 25
-
16 x 25
-
63
-
8 x 12
10 x 12
10 x 16
10 x 20
-
12.5 x 20
12.5 x 25
16 x 20
16 x 20
16 x 25
16 x 31
-
100
8 x 12
-
-
-
-
-
18 x 20
-
-
-
-
-
-
www.vishay.com
140
For technical questions, contact:
aluminumcaps1@vishay.com
Document Number: 28323
Revision: 08-Mar-11
150 RMI
Aluminum Capacitors
Radial Miniature, Low Impedance
Vishay BCcomponents
SELECTION CHART FOR C
R,
U
R
AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(µF)
1200
1500
2200
3300
4700
6800
10
-
-
-
12.5 x 20
-
12.5 x 25
16 x 25
16 x 31
16
-
12.5 x 20
-
12.5 x 25
-
16 x 20
16 x 31
16 x 35
25
-
12.5 x 25
-
16 x 20
12.5 x 35
16 x 31
16 x 35
-
U
R
(V)
35
-
16 x 20
12.5 x 35
16 x 31
-
18 x 31
-
-
50
16 x 31
16 x 31
-
-
-
-
-
-
63
-
-
-
-
-
-
-
-
100
-
-
-
-
-
-
-
-
DIMENSIONS
in millimeters
AND AVAILABLE FORMS
ØD
ØD
L
L
+
F
-
15
min.
4
1
0
F
Ød
Ød
5
min.
Formed leads for Ø D =
8
mm
with
pitch F = 5 mm
Fig.2
Form CA:
Long leads
Fig.3
Form CB:
Cut leads
Fig.4
Form TFA:
Taped in box (ammopack)
Table 1
DIMENSIONS
in millimeters,
MASS AND PACKAGING QUANTITIES
NOMINAL
CASE SIZE
Ø
D x L
8 x 12
8 x 15
10 x 12
10 x 16
10 x 20
12.5 x 20
12.5 x 25
12.5 x 35
16 x 20
16 x 25
16 x 31
16 x 35
18 x 20
18 x 31
Document Number: 28323
Revision: 08-Mar-11
CASE
CODE
13
13L
14
15
16
17
18
18LL
19a
19
20
21
1820
1831
Ød
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
ØD
max.
8.5
8.5
10.5
10.5
10.5
13.0
13.0
13.0
16.5
16.5
16.5
16.5
18.5
18.5
L
max.
13.0
16.0
13.5
17.5
22.0
22.0
27.0
37.5
22.0
27.0
33.5
37.5
22.0
33.5
F
3.5 ± 0.5
3.5 ± 0.5
5.0 ± 0.5
5.0 ± 0.5
5.0 ± 0.5
5.0 ± 0.5
5.0 ± 0.5
5.0 ± 0.5
7.5 ± 0.5
7.5 ± 0.5
7.5 ± 0.5
7.5 ± 0.5
7.5 ± 0.5
7.5 ± 0.5
MASS
(g)
1.1
1.3
1.6
1.9
2.2
4.0
5.0
6.0
6.0
8.0
9.0
11.0
8.0
12.5
PACKAGING QUANTITIES
FORM
CA
5000
5000
1000
500
500
500
250
250
250
250
100
100
100
100
FORM
CB
5000
5000
500
500
500
500
250
250
250
250
100
100
100
100
FORM
TFA
1000
1000
800
800
800
500
500
-
250
250
250
-
-
-
For technical questions, contact:
aluminumcaps1@vishay.com
www.vishay.com
141
150 RMI
Vishay BCcomponents
Aluminum Capacitors
Radial Miniature, Low Impedance
ORDERING EXAMPLE
DESCRIPTION
ELECTRICAL DATA
SYMBOL
C
R
rated capacitance at 100 Hz , tolerance
±
20 %
rated RMS ripple current at 100 kHz , 105 °C
I
R
max. leakage current after 2 minutes at U
R
I
L2
tan
max. dissipation factor at 100 Hz
Z
max. impedance at 100 kHz
Note
Unless otherwise specified, all electrical values in Table 2 apply at
T
amb
= 20 °C, P = 86 kPa to 106 kPa, RH = 45 % to 75 %
Table 2
Electrolytic capacitor 150 series
470 µF/16 V; ± 20 %
Nominal case size:Ø 10 mm x 12 mm; Form TFA
Ordering Code: MAL215035471E3
Former 12NC: 2222 150 35471
ELECTRICAL DATA AND ORDERING INFORMATION
U
R
(V)
C
R
100 Hz
(µF)
470
680
1000
2200
3300
4700
6800
220
330
470
470
680
1000
1500
2200
3300
4700
6800
220
330
470
680
1000
1500
2200
2200
3300
4700
100
220
220
330
470
680
1000
1000
1500
1500
2200
3300
150
220
330
470
680
1000
1200
1500
NOMINAL
CASE SIZE
ØDxL
(mm)
8 x 12
10 x 12
10 x 16
12.5 x 20
12.5 x 25
16 x 25
16 x 31
8 x 12
8 x 12
8 x 15
10 x 12
10 x 16
10 x 20
12.5 x 20
12.5 x 25
16 x 20
16 x 31
16 x 35
8 x 12
10 x 12
10 x 16
10 x 20
12.5 x 20
12.5 x 25
12.5 x 35
16 x 20
16 x 31
16 x 35
8 x 12
8 x 15
10 x 12
10 x 16
10 x 20
12.5 x 20
12.5 x 25
16 x 20
12.5 x 35
16 x 20
16 x 31
18 x 31
10 x 12
10 x 16
10 x 20
12.5 x 20
12.5 x 25
16 x 25
16 x 31
16 x 31
I
R
100 kHz
105
C
(mA)
555
730
950
1460
1950
2390
2890
555
555
730
730
950
1180
1460
1950
1840
2890
3100
555
730
950
1180
1460
1950
2510
1840
2890
3100
555
730
730
950
1180
1460
1950
1840
2510
1840
2890
3000
500
700
900
1100
1400
1800
2200
2200
I
L2
2 min
(µA)
47
71
103
223
333
473
683
35
53
78
78
112
163
243
355
531
755
1091
55
86
121
173
253
378
553
553
828
1178
35
77
80
118
167
241
353
353
528
528
773
1155
78
113
168
238
343
503
603
753
tan
100 Hz
0.19
0.19
0.19
0.21
0.21
0.23
0.25
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.18
0.20
0.22
0.24
0.14
0.14
0.14
0.14
0.14
0.14
0.16
0.16
0.16
0.18
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.14
0.16
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
Z
100 kHz
+ 20
C
()
0.117
0.097
0.066
0.037
0.029
0.022
0.019
0.117
0.117
0.085
0.097
0.066
0.049
0.037
0.029
0.028
0.019
0.018
0.117
0.097
0.066
0.049
0.037
0.029
0.028
0.028
0.019
0.018
0.117
0.085
0.097
0.066
0.049
0.037
0.029
0.028
0.028
0.028
0.019
0.019
0.200
0.120
0.090
0.062
0.048
0.034
0.027
0.027
Z
100 kHz
-40
C
()
0.870
0.680
0.460
0.260
0.200
0.150
0.130
0.870
0.870
0.750
0.680
0.460
0.340
0.260
0.200
0.200
0.130
0.130
0.870
0.680
0.460
0.340
0.260
0.200
0.200
0.200
0.130
0.130
0.870
0.750
0.680
0.460
0.340
0.260
0.200
0.200
0.200
0.200
0.130
0.130
1.400
0.840
0.630
0.430
0.340
0.240
0.190
0.190
ORDERING CODE
MAL2150.......
BULK PACKAGING
FORM CA
54471E3
54681E3
54102E3
54222E3
54332E3
54472E3
54682E3
55221E3
55331E3
95475E3
55471E3
55681E3
55102E3
55152E3
55222E3
55332E3
55472E3
55682E3
56221E3
56331E3
56471E3
56681E3
56102E3
56152E3
96225E3
56222E3
56332E3
56472E3
50101E3
90225E3
50221E3
50331E3
50471E3
50681E3
50102E3
90105E3
90186E3
50152E3
50222E3
50332E3
51151E3
51221E3
51331E3
51471E3
51681E3
51102E3
51122E3
51152E3
FORM CB
84471E3
64681E3
64102E3
64222E3
64332E3
64472E3
64682E3
85221E3
85331E3
95478E3
65471E3
65681E3
65102E3
65152E3
65222E3
65332E3
65472E3
65682E3
86221E3
66331E3
66471E3
66681E3
66102E3
66152E3
96226E3
66222E3
66332E3
66472E3
80101E3
90228E3
60221E3
60331E3
60471E3
60681E3
60102E3
90106E3
90187E3
60152E3
60222E3
60332E3
61151E3
61221E3
61331E3
61471E3
61681E3
61102E3
61122E3
61152E3
TAPED
FORM TFA
34471E3
34681E3
34102E3
34222E3
34332E3
34472E3
34682E3
35221E3
35331E3
95473E3
35471E3
35681E3
35102E3
35152E3
35222E3
35332E3
35472E3
-
36221E3
36331E3
36471E3
36681E3
36102E3
36152E3
-
36222E3
36332E3
-
30101E3
90223E3
30221E3
30331E3
30471E3
30681E3
30102E3
90103E3
-
30152E3
30222E3
-
31151E3
31221E3
31331E3
31471E3
31681E3
31102E3
31122E3
31152E3
10
16
25
35
50
www.vishay.com
142
For technical questions, contact:
aluminumcaps1@vishay.com
Document Number: 28323
Revision: 08-Mar-11
150 RMI
Aluminum Capacitors
Radial Miniature, Low Impedance
ELECTRICAL DATA AND ORDERING INFORMATION
U
R
(V)
C
R
100 Hz
(µF)
47
100
150
220
330
470
470
680
680
1000
22
330
NOMINAL
CASE SIZE
ØDxL
(mm)
8 x 12
10 x 12
10 x 16
10 x 20
12.5 x 20
12.5 x 25
16 x 20
16 x 20
16 x 25
16 x 31
8 x 12
18 x 20
I
R
100 kHz
105
C
(mA)
405
420
560
700
930
1200
1100
1100
1500
1900
230
1700
I
L2
2 min
(µA)
30
66
97
141
211
299
299
431
431
633
22
330
tan
100 Hz
0.09
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.08
0.07
Z
100 kHz
+ 20
C
()
0.342
0.270
0.190
0.150
0.095
0.067
0.074
0.074
0.054
0.042
0.68
0.074
Z
100 kHz
-40
C
()
2.350
1.890
1.330
1.050
0.670
0.470
0.520
0.520
0.380
0.295
27.0
2.0
ORDERING CODE
MAL2150.......
BULK PACKAGING
FORM CA
58479E3
58101E3
58151E3
58221E3
58331E3
58471E3
98475E3
58681E3
98685E3
58102E3
59229E3
90183E3
FORM CB
88479E3
68101E3
68151E3
68221E3
68331E3
68471E3
98476E3
68681E3
98686E3
68102E3
89229E3
90185E3
TAPED
FORM TFA
38479E3
38101E3
38151E3
38221E3
38331E3
38471E3
98473E3
38681E3
98683E3
38102E3
39229E3
-
Vishay BCcomponents
63
100
ADDITIONAL ELECTRICAL DATA
PARAMETER
Voltage
Surge voltage
Reverse voltage
Current
Leakage current
Inductance
Equivalent series inductance (ESL)
Resistance
Equivalent series resistance (ESR)
Calculated from tan
max.
and C
R
(see Table 2)
ESR = tan
/2f
C
R
Case Ø D
10 mm
Case Ø D
12.5 mm
typ. 16 nH
typ. 18 nH
After 2 minutes at U
R
I
L2
0.01 C
R
x U
R
+ 3 µA
U
s
1.15 x U
R
U
rev
1 V
CONDITIONS
VALUE
CAPACITANCE (C)
1.2
C
C
0
1.1
0.8
1.0
0.6
0.4
0.9
0.2
0.8
- 60
0
- 40
- 20
0
20
40
60
80
100
120
T
amb
(°C)
140
Curve 1: U
R
≤
35
V
Curve 2: U
R
≥
50
V
10
2
10
3
10
4
5
f (Hz) 10
1.2
C
C
0
1.0
1
2
10
C
0
= typical capacitance at 20 °C, 100 Hz
C
0
= typical capacitance at 20 °C, 100 Hz
T
amb
20 °C

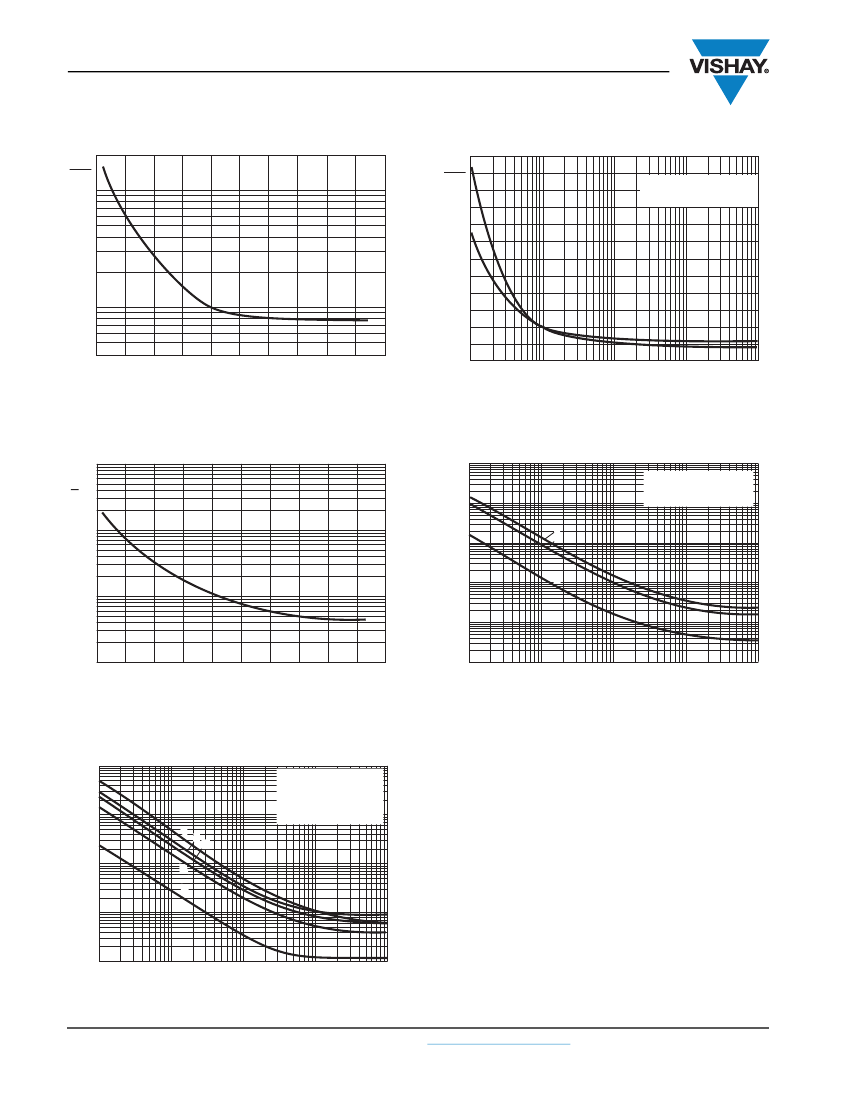

Fig.5 Typical multiplier of capacitance as a function
of ambient temperature
Fig.6 Typical multiplier of capacitance as
a function of frequency
Document Number: 28323
Revision: 08-Mar-11
For technical questions, contact:
aluminumcaps1@vishay.com
www.vishay.com
143
150 RMI
Vishay BCcomponents
Aluminum Capacitors
Radial Miniature, Low Impedance
6
ESR
ESR
0
5
EQUIVALENT SERIES RESISTANCE (ESR)
ESR
ESR
0
10
1
Curve 1: Ø D
≤
12.5 mm
Curve 2: Ø D
≥
16 mm
4
3
2
2
1
1
0
- 60
- 40
- 20
0
20
40
60
80
100
120
140
10
10
2
10
3
10
4
ESR
0
= typical ESR at 20 °C, 100 Hz
T
amb
(°C)
5
f (Hz) 10
Fig.7 Typical multiplier of ESR as a function
of ambient temperature
ESR
0
= typical ESR at 20 °C, 100Hz
T
amb
= 20 °C
Fig.8 Typical multiplier of ESR as a function of frequency
IMPEDANCE (Z)
10
2
Z
Z
0
10
10
10
3
Z
(Ω)
10
2
1
2
Curve 1: 100
µF,
63
V
Curve 2: 220
µF,
50
V
Curve 3: 680
µF,
63
V
1
1
10
-1
3
10
-1
- 60
- 40
- 20
0
20
40
60
80
100
120
140
10
-2
10
10
2
10
3
10
4
f (Hz)
10
5
Z
0
= typical impedance at 20 °C, 100 kHz
T
amb
(°C)
T
amb
= 20 °C
Fig.9 Typical multiplier of impedance as a function
of ambient temperature
10
2
Z
(Ω)
10
1
1
2
3
Curve 1: 330
µF,
35
V
Curve 2: 470
µF,
16
V
Curve 3: 680
µF,
16
V
Curve 4: 1000
µF,
16
V
Curve 5: 6800
µF,
16
V
Fig.11 Typical impedance as a function of frequency
4
5
10
-1
10
-2
10
10
2
10
3
10
4
f (Hz)
10
5
T
amb
= 20 °C
Fig.10 Typical impedance as a function of frequency
www.vishay.com
144
For technical questions, contact:
aluminumcaps1@vishay.com
Document Number: 28323
Revision: 08-Mar-11
京公网安备 11010802033920号
EEWORLD
