5962-8946804ZA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> 5962-8946804ZA

5962-8946804ZA: DescriptionUV PLD, 43ns, CMOS, CQFP68, QFP-68; CategoryProgrammable logic devices Programmable logic; File Size605KB，16 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

5962-8946804ZA Overview

UV PLD, 43ns, CMOS, CQFP68, QFP-68

5962-8946804ZA Parametric

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	QFP
package instruction	QFF,
Contacts	68
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
JESD-30 code	S-CQFP-F68
JESD-609 code	e0
length	24.13 mm
Dedicated input times	7
Number of I/O lines	52
Number of terminals	68
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	7 DEDICATED INPUTS, 52 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QFF
Package shape	SQUARE
Package form	FLATPACK
Programmable logic type	UV PLD
propagation delay	43 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	3.683 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	QUAD
width	24.13 mm
Base Number Matches	1

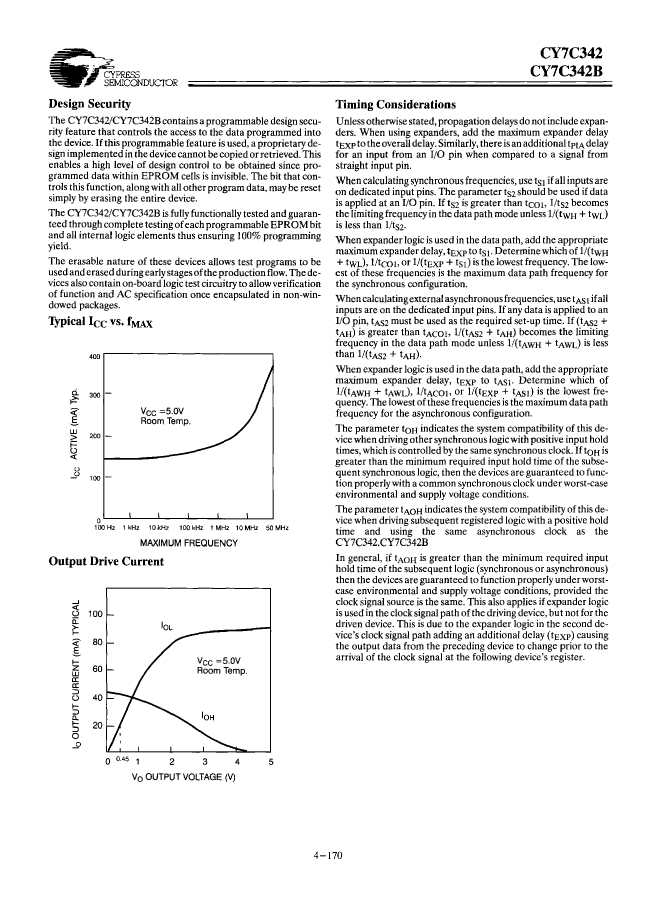

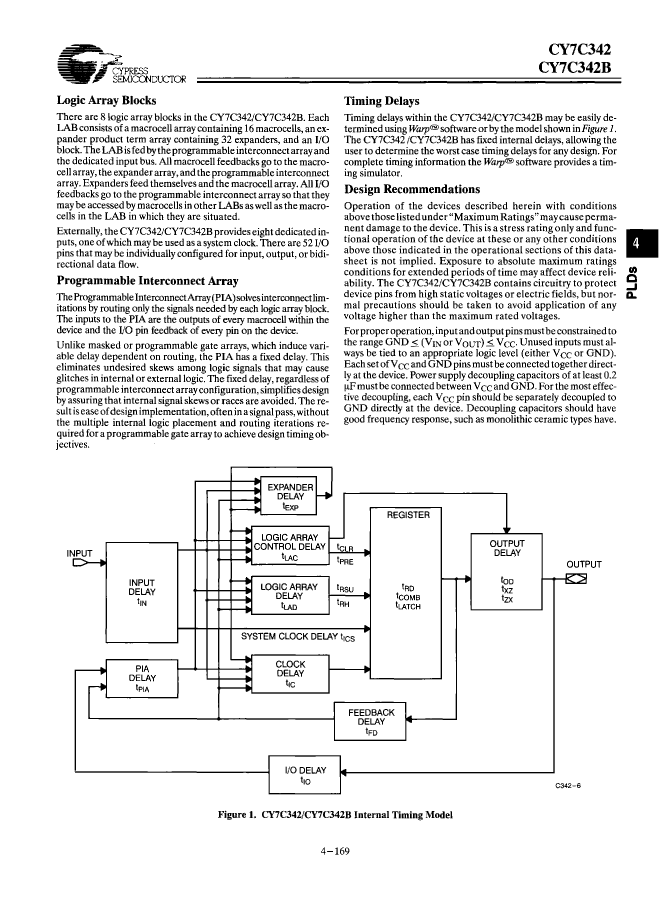

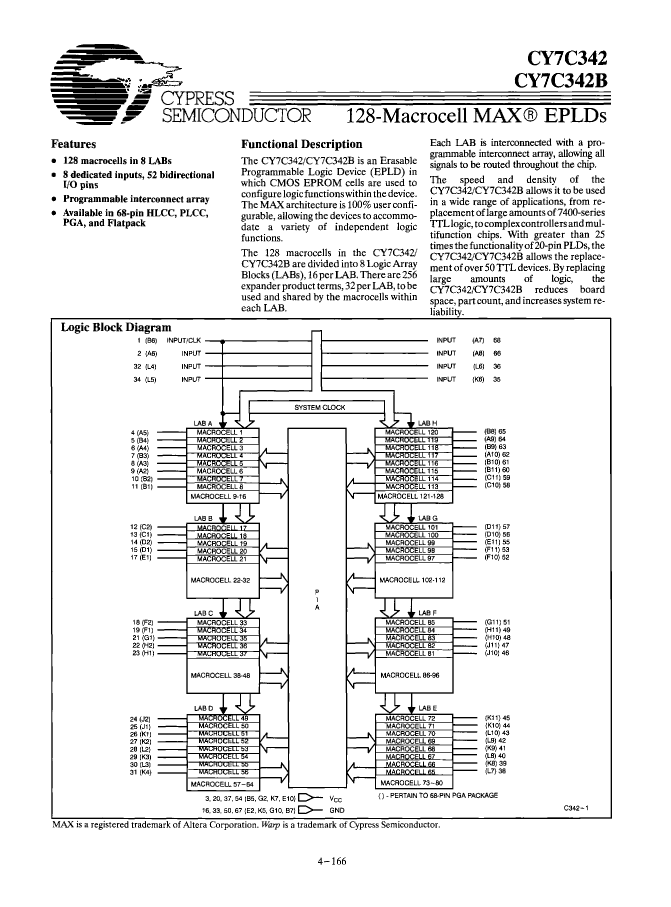

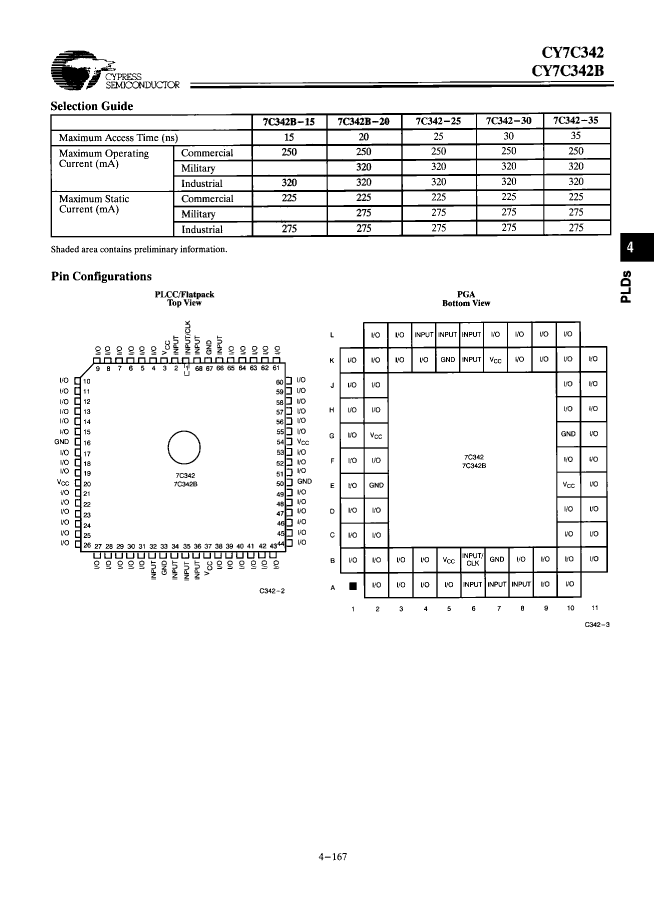

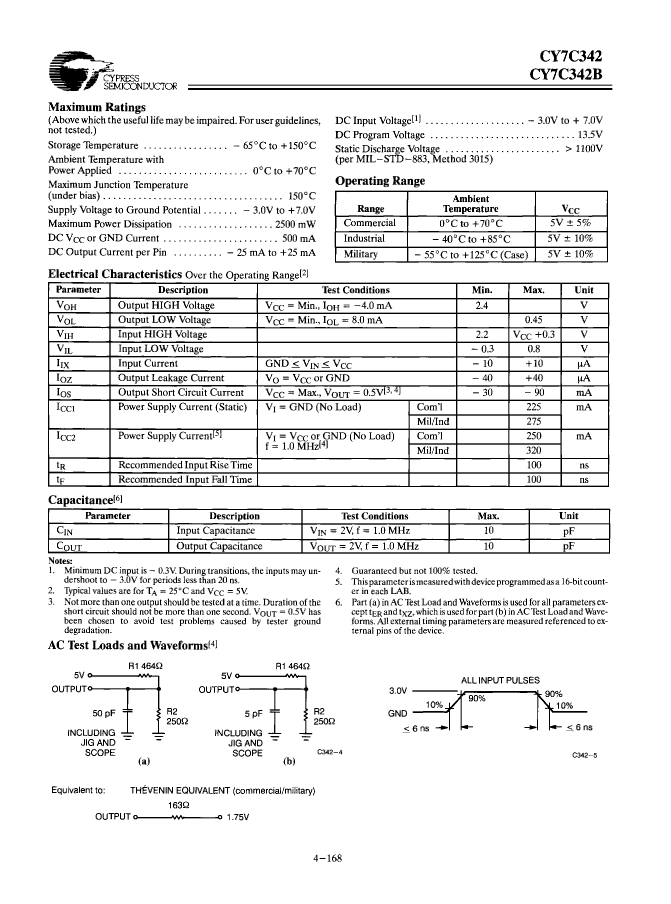

Preview

Download Datasheet

View All

5962-8946804ZA Related Products

	5962-8946804ZA	5962-8946803ZA	5962-8946804ZX	5962-8946803ZX	CY7C342B-20TMB	CY7C342B-25TMB	CY7C342-30TMB	CY7C342-35TMB
Description	UV PLD, 43ns, CMOS, CQFP68, QFP-68	UV PLD, 51ns, CMOS, CQFP68, QFP-68	UV PLD, 43ns, CMOS, CQFP68, QFP-68	UV PLD, 51ns, CMOS, CQFP68, QFP-68	UV PLD, 42ns, 128-Cell, CMOS, CQFP68, WINDOWED, CERQUAD-68	UV PLD, 51ns, 128-Cell, CMOS, CQFP68, WINDOWED, CERQUAD-68	UV PLD, 60ns, 128-Cell, CMOS, CQFP68, WINDOWED, CERQUAD-68	UV PLD, 75ns, 128-Cell, CMOS, CQFP68, WINDOWED, CERQUAD-68
Parts packaging code	QFP	QFP	QFP	QFP	QFP	QFP	QFP	QFP
package instruction	QFF,	QFF,	QFF,	QFF,	WINDOWED, CERQUAD-68	WINDOWED, CERQUAD-68	WINDOWED, CERQUAD-68	WINDOWED, CERQUAD-68
Contacts	68	68	68	68	68	68	68	68
Reach Compliance Code	unknown	unknown	unknown	unknown	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
JESD-30 code	S-CQFP-F68	S-CQFP-F68	S-CQFP-F68	S-CQFP-F68	S-CQFP-F68	S-CQFP-F68	S-CQFP-F68	S-CQFP-F68
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	24.13 mm	24.13 mm	24.13 mm	24.13 mm	24.13 mm	24.13 mm	24.13 mm	24.13 mm
Dedicated input times	7	7	7	7	7	7	7	7
Number of I/O lines	52	52	52	52	52	52	52	52
Number of terminals	68	68	68	68	68	68	68	68
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	7 DEDICATED INPUTS, 52 I/O	7 DEDICATED INPUTS, 52 I/O	7 DEDICATED INPUTS, 52 I/O	7 DEDICATED INPUTS, 52 I/O	7 DEDICATED INPUTS, 52 I/O	7 DEDICATED INPUTS, 52 I/O	7 DEDICATED INPUTS, 52 I/O	7 DEDICATED INPUTS, 52 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QFF	QFF	QFF	QFF	WQFF	WQFF	WQFF	WQFF
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK, WINDOW	FLATPACK, WINDOW	FLATPACK, WINDOW	FLATPACK, WINDOW
Programmable logic type	UV PLD	UV PLD	UV PLD	UV PLD	UV PLD	UV PLD	UV PLD	UV PLD
propagation delay	43 ns	51 ns	43 ns	51 ns	42 ns	51 ns	60 ns	75 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	3.683 mm	3.683 mm	3.683 mm	3.683 mm	3.683 mm	3.683 mm	3.683 mm	3.683 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	24.13 mm	24.13 mm	24.13 mm	24.13 mm	24.13 mm	24.13 mm	24.13 mm	24.13 mm
Maker	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	-	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor
