DDP-SJS-FG1-1-I2 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> DDP-SJS-FG1-1-I2

DDP-SJS-FG1-1-I2: DescriptionSingle Color LED, Pure Green, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size1MB，13 Pages; ManufacturerDOMINANT; Websitehttp://www.dominant-semi.com/

Download Datasheet Parametric Compare View All

DDP-SJS-FG1-1-I2 Overview

Single Color LED, Pure Green, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2

DDP-SJS-FG1-1-I2 Parametric

Parameter Name	Attribute value
Maker	DOMINANT
package instruction	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown
Other features	SUPPORTS INFRARED
color	PURE GREEN
Configuration	SINGLE
Maximum forward current	0.02 A
JESD-609 code	e3
Nominal luminous intensity	1.4 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.75 mm
method of packing	TAPE AND REEL 7\"
shape	ROUND
surface mount	YES
Terminal surface	TIN
Terminal pitch	3 mm
perspective	120 deg
Base Number Matches	1

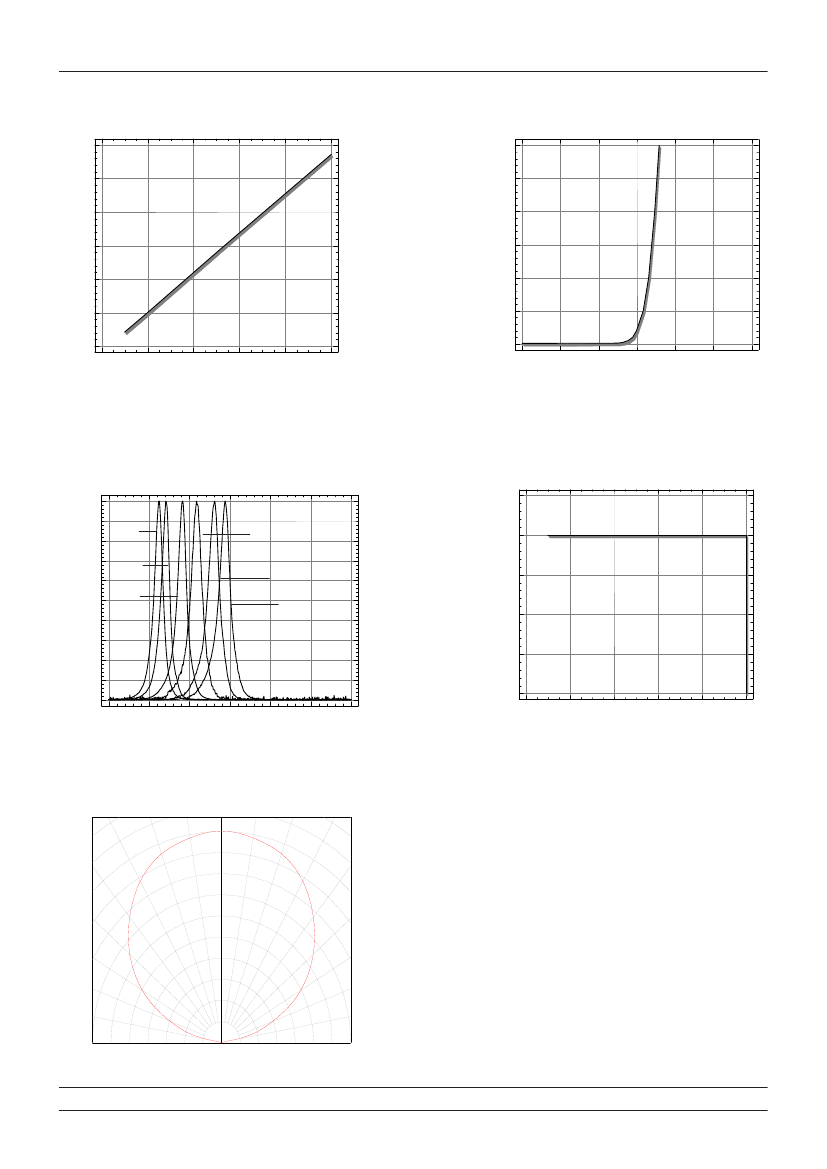

Preview

Download Datasheet

View All

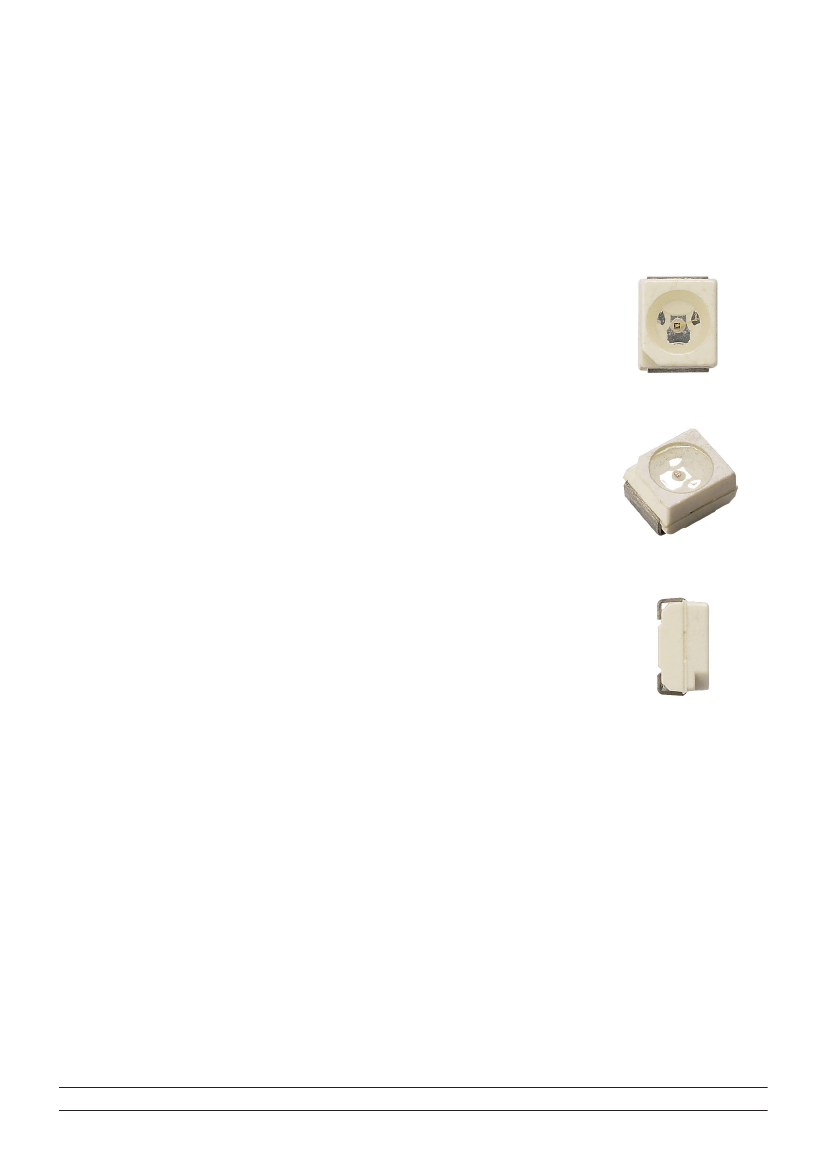

DOMINANT

Innovating Illumination

DATA SHEET:

Opto Technologies

DomiLED

AlInGaP : DDx-xJS-I2

DomiLED

Synonymous with function and performance, the

DomiLED

series is

perfectly suited for a variety of cross-industrial applications due to its

small package outline, durability and superior brightness.

Features:

High brightness surface mount LED.

120° viewing angle.

Small package outline (LxWxH) of 3.2 x 2.8 x 1.8mm.

Qualified according to JEDEC moisture sensitivity Level 2.

Compatible to IR reflow soldering.

Environmental friendly; RoHS compliance.

Applications:

Automotive: interior applications, eg: switches, telematics,

climate control system, dashboard, etc.

Consumer appliances: LCD illumination as in PDAs, LCD TV.

Communication: indicator and backlight in mobilephone.

Display: full color display video notice board.

Industrial: white goods (eg: Oven, microwave, etc.).

30/06/2011 V10.0

DDP-SJS-FG1-1-I2 Related Products

	DDP-SJS-FG1-1-I2	DDO-CJS-KL2-1-I2	DDY-CJS-KL2-1-I2	DDY-CJS-LM2-1-I2	DDR-CJS-LM2-1-I2	DDG-CJS-HJ2-1-I2	DDO-CJS-LM2-1-I2
Description	Single Color LED, Pure Green, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Orange, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Yellow, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Yellow, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Red, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Green, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Orange, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
package instruction	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	PURE GREEN	ORANGE	YELLOW	YELLOW	RED	GREEN	ORANGE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Nominal luminous intensity	1.4 mcd	11.2 mcd	11.2 mcd	18.0 mcd	18.0 mcd	4.5 mcd	18.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm
method of packing	TAPE AND REEL 7\"	TAPE AND REEL 7"	TAPE AND REEL 7"	TAPE AND REEL 7"	TAPE AND REEL 7"	TAPE AND REEL 7\"	TAPE AND REEL 7\"
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal pitch	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
perspective	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg
Other features	SUPPORTS INFRARED	SUPPORTS INFRARED	SUPPORTS INFRARED	SUPPORTS INFRARED	SUPPORTS INFRARED	-	SUPPORTS INFRARED
JESD-609 code	e3	-	e3	e3	e3	-	e3
Terminal surface	TIN	-	-	TIN	TIN	-	TIN
Base Number Matches	1	1	1	1	1	-	-
