FiberTEC 532
TM
532nm Laser Module
Up to 30mW Output Power
With
Integrated Drive, Temperature
Stabilization & Control
Electronics
Performance

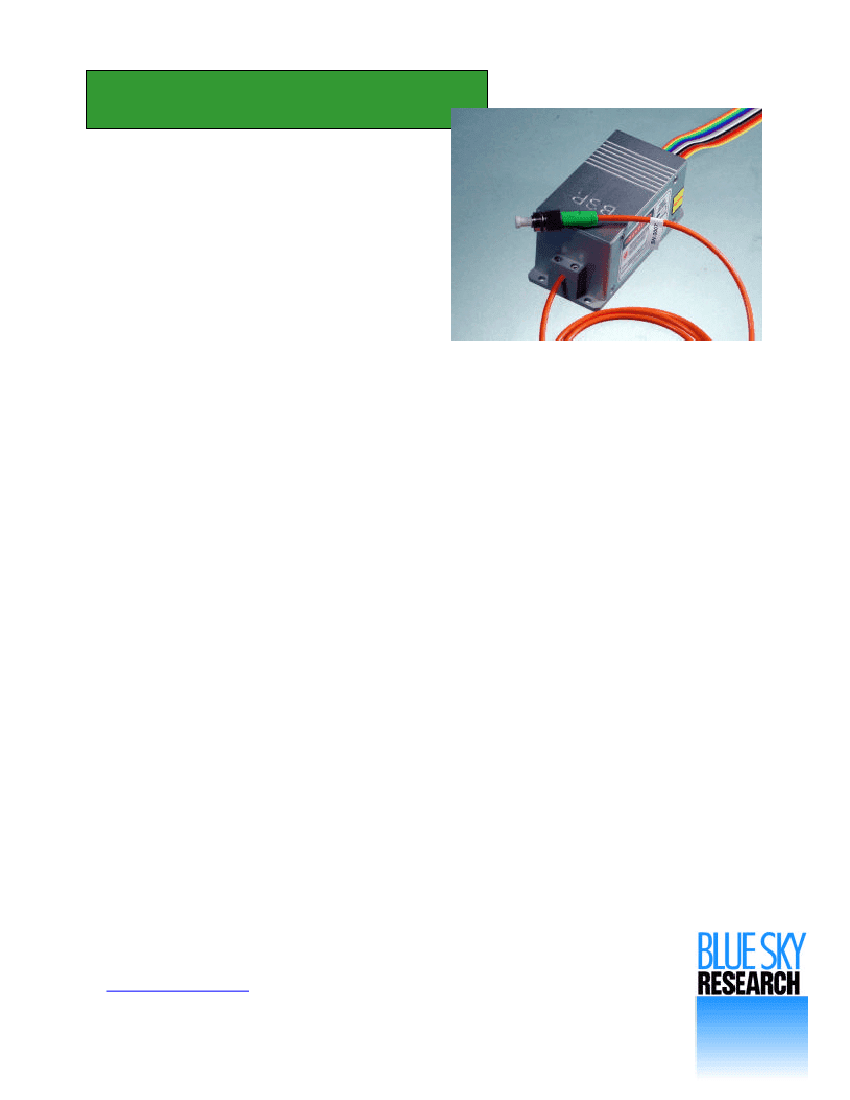

The Blue Sky Research FiberTEC 532
TM
laser module features a DPSS laser delivering a superior beam either
through a single-mode fiber, SMF, pigtail, or a polarization-maintaining fiber, PMF. The module contains a
thermoelectric cooler (TEC) and integrated drive, and protection electronics in a reduced, integrated, easy to use
package. Standard features include a SLEEP option, a 1mm collimator, low optical power alignment control,
and 5V dc operation. There is also a variable power option for high performance over a wide range of output
power. The FiberTEC 532
TM
package is a BSR standard size measuring 86x40x40 mm, and is a complete laser
system, which requires no external power conditioning, control boxes, or fan cooler systems.
The FiberTEC 532
TM
module makes use of proprietary technology to deliver a steady low noise output, over a
wide power range, with high power stability that avoids oscillations of normal DPSS lasers when fiber coupled.
Power out to 30 mW CW is available. With the variable power option, excellent stability and noise can be
maintained down to 20% of full power. This eliminates the need for costly external attenuators. The output
beam is collimated and provides the highest pointing stability available. The proven DPSS technology boasts
high reliability - the FiberTEC 532
TM
obsoletes green HeNe lasers for most applications. Options for
collimators with varying beam sizes are available.
Features
* Permanent low noise performance (< 0.5% RMS)
* SLEEP Mode and variable power option
* < 4W Typical power consumption
* Gaussian beam with M
2
<1.1
* to 30mW of 532nm Pout
* Power stability < 1.0%
* Single 5V DC operation
* Pointing stability < 10
µrad
Applications
* Analytical Instruments
* Flow Cytometry
* Entertainment
* Biomedical & Medical
* Basic R&D
* Inspection & Metrology
Contact Information:
BLUE Sky Research
* 1537 Centre Pointe Drive * Milpitas, CA 95035 * (408) 941-6068 * FAX (408) 941–0406
www.blueskyresearch.com
* email: Sales @blueskyresearch.com
FiberTEC 532
TM
Rev. 2/27/2007
FiberTEC 532
TM
Product Specifications
Laser System Characteristics
Parameter
Wavelength
Output Power
Noise, RMS 10Hz to 20MHz
Variable Power *
Noise RMS 10Hz-20MHz*
Specification
532 ± 0.5 nm
5-30 mW Variable 10-100%
< 0.5%
20-100%
20%-50%: <2%, 50%-80%: <1%
80%-100%: <0.5%
Power Stability
(8hrs,
∆T<3 °C,
5min warm-up)
< 1.0%
Pointing Stability
(8hrs,
∆T<3 °C,
5min warm-up)
< 10µrad
Beam Characteristics
Collimator Type
M
N
P
Beam Diameter (mm)
0.85
1.45
2.0
Divergence
(mrad) <1.1
<0.8
<0.6
2
M (Calculated, Far-Field) <1.1
<1.1
<1.1
2
Beam Diameter is 1/e with a +/-25% range from nominal
Fiber Type – Single Mode, MFD ~3.5-4.0 um, NA ~ 0.13
– Polarization Maintaining, MFD ~3.5-4.0 um, NA ~ 0.11
Jacketing – 3mm Cable, 1m Length; FC/APC connector – Other options available
upon request
Electrical Specifications
Parameter
Input Voltage
Power Consumption
Warm-Up Time
Specification
5Vdc (+/- 5%)
4W Typ. , <15W Max.
5 minutes
Environmental Specifications
Parameter
Storage Temperature
Operating Temperature (Base Plate)
Operating Humidity Range
Specification
-10° C to +65° C
10°C to 45°C
90 C (Non-Condensing)
Mechanical Specifications
Parameter
Package Dimensions
Mounting
Shock (11ms duration)
Vibration (5Hz-500 MHz Sinusoid)
Specification
86 x 40 x 40 mm Al Housing
Four 2.5 mm through holes
1g operating, 25g non-operational
0.3g operating, 2g non-operational
* Performance for Variable Power Option Only
Contact Information:
BLUE Sky Research
* 1537 Centre Pointe Drive * Milpitas, CA 95035 * (408) 941-6068 * FAX (408) 941–0406
www.blueskyresearch.com
* email: Sales @blueskyresearch.com
FiberTEC 532
TM
Rev. 2/27/2007
FiberTEC 532
TM
Mechanical Layout and Pin Configuration
Connector Header: 12-Pin JST S12B-ZR-3.4 (Plug- in Connector: JST ZHR-12)
PIN
1
2
3
4
5
6
7
8
9
10
11
12
FUNCTION
NC
NC
NC
Vset Power Adjust
SLEEP
GND
+5V
NC
GND
GND
+5V
+5V
Contact Information:
BLUE Sky Research
* 1537 Centre Pointe Drive * Milpitas, CA 95035 * (408) 941-6068 * FAX (408) 941–0406
www.blueskyresearch.com
* email: Sales @blueskyresearch.com
FiberTEC 532
TM
Rev. 2/27/2007
FiberTEC 532
TM

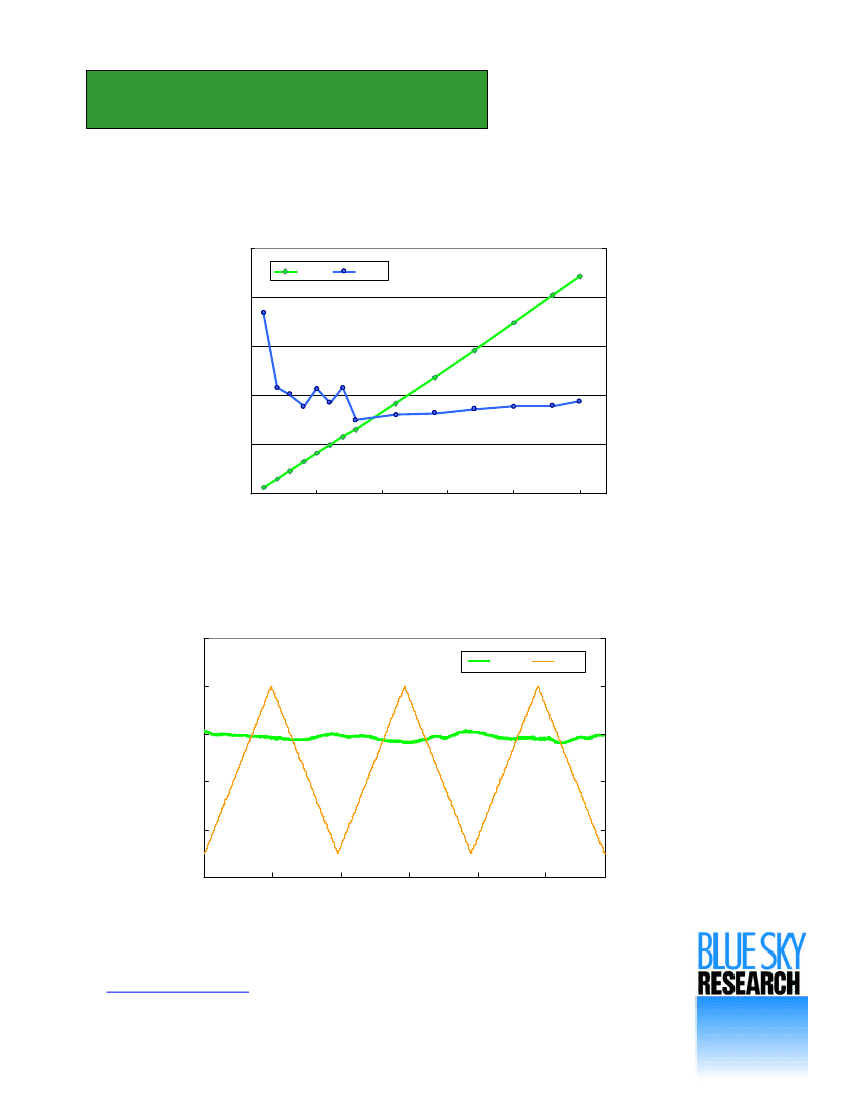

Typical Noise Performance
Noise vs. Power Set-Point
25
Power
Noise
1.0%
20
0.8%
15
0.6%
10
0.4%
5
0.2%
0
0
0.5
1
1.5
2
2.5
0.0%
Power Setting (volts)
Typical Performance
Output Power During Temperature Cycling
19
Power
Temp
55
18
Power (mW)
45
Temperature (C)
17
35
16
25
15
15
14
0:00
5
2:00
4:00
6:00
Time (hours)
8:00
10:00
Contact Information:
BLUE Sky Research
* 1537 Centre Pointe Drive * Milpitas, CA 95035 * (408) 941-6068 * FAX (408) 941–0406
www.blueskyresearch.com
* email: Sales @blueskyresearch.com
FiberTEC 532
TM
Rev. 2/27/2007
Noise (% rms)
Power (mW)
FiberTEC 532
TM

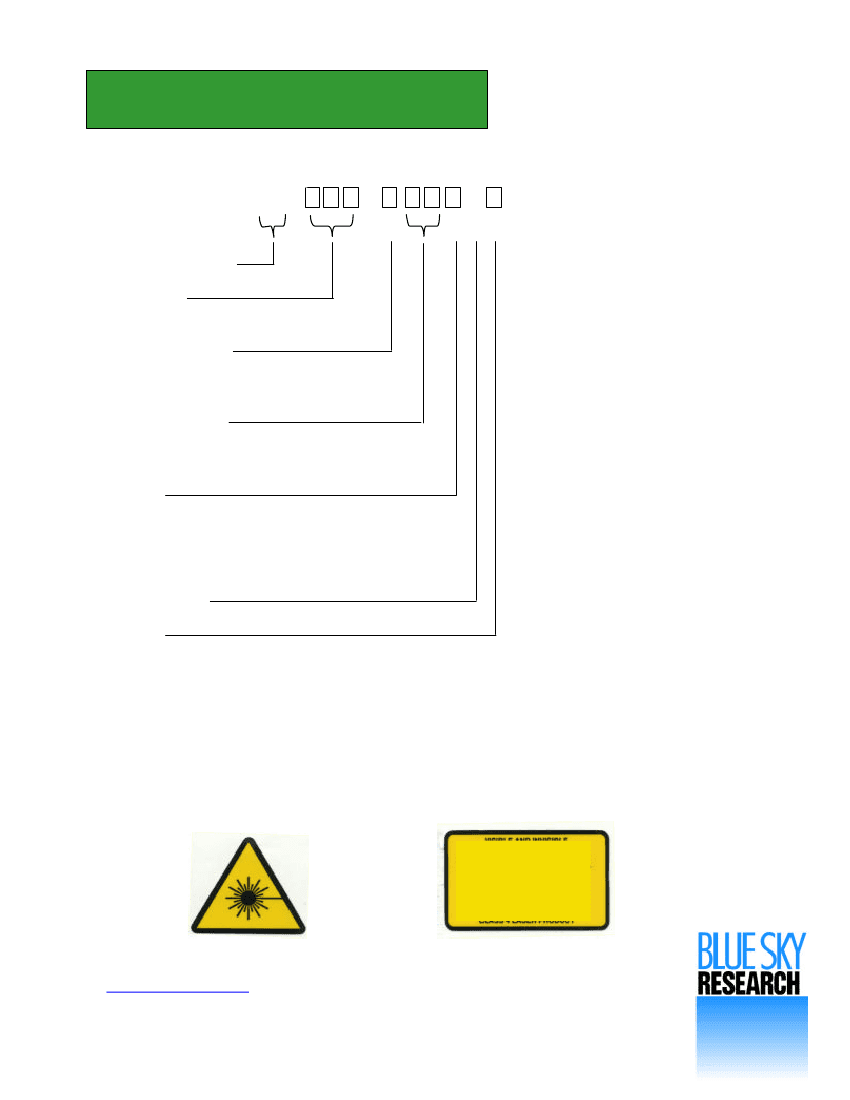

Ordering Information
FTEC -
-
A
Product Family = FTEC
Wavelength =
532
Power Control:
0 = Standard 100% Only
V = Variable 20-100% performance
Power Output (mW) =
10, 15,20,25,30*
* Max power for PMF is 25 mW.
Fiber Type:
S = SMF 3mm Jacket
P = PMF 3mm Jacket
T = SMF 900um Jacket
M = PMF 900um Jacket
FC/APC Connector
Collimator:
No Collimator = 0
0.85mm = M
1.45mm = N
2.0mm = P
Example: FTEC-532-V10-0SAP, FiberTEC model, 532nm, 10mW Variable output power, SMF with 3mm
Jacket, P Type Collimator.
This component does not comply with the Federal Regulations (21 CFR Subchapter1) as administered by the Center for Devices and Radiological health. Purchaser
acknowledges that his/her products must comply with these regulat ions before they can be sold to a customer. The output light from laser diodes is harmful to a human
body even if it is invisible. Avoid looking at the output light of a ChromaLase532 directly or even indirectly through a lens during operation. Observance of operation should
be through a TV camera or related equipment. Refer to IEC 825-1 and 21 CFR 1040.10-1040.11 as a radiation safety standard for laser products.
Blue Sky Research follows a policy of continuous improvement. Specifications are subject to change without notice.
VISIBLE AND/OR
INVISIBLE LASER
RADIATION. AVOID
DIRECT EXPOSURE TO
BEAM
Contact Information:
BLUE Sky Research
* 1537 Centre Pointe Drive * Milpitas, CA 95035 * (408) 941-6068 * FAX (408) 941–0406
www.blueskyresearch.com
* email: Sales @blueskyresearch.com
FiberTEC 532
TM
Rev. 2/27/2007
