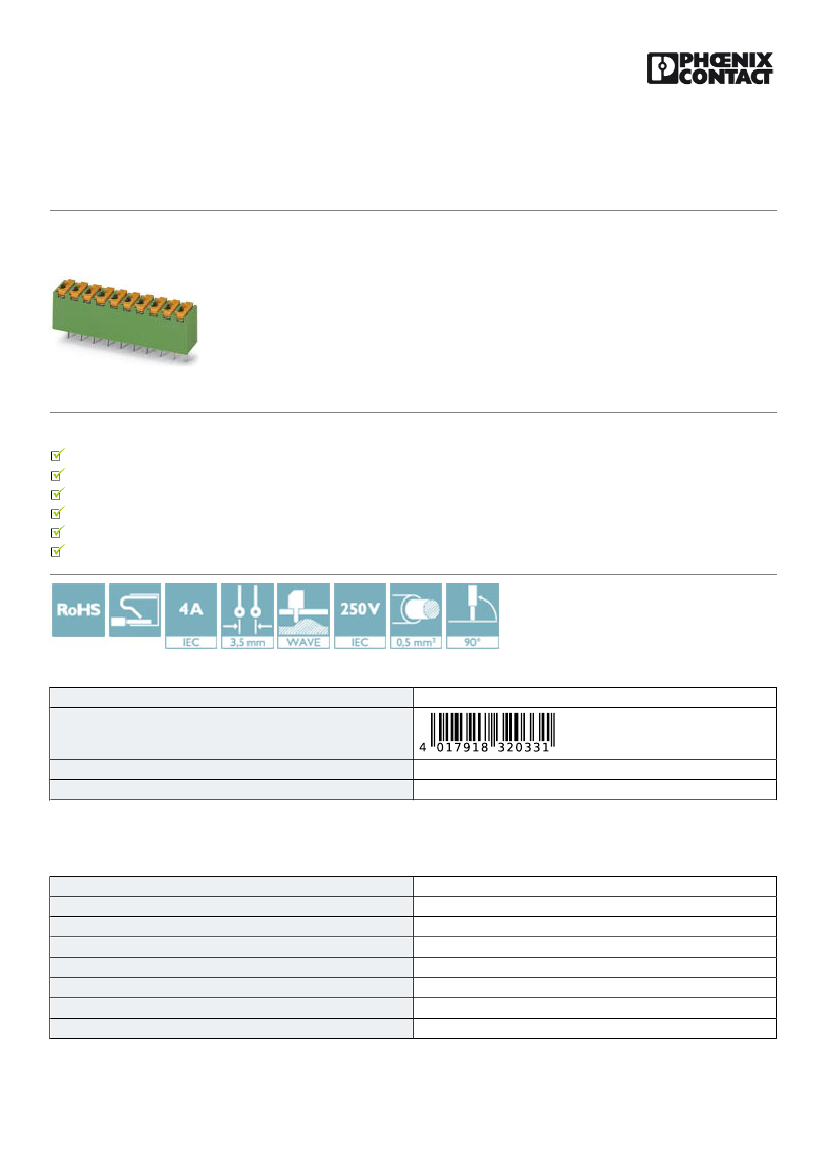

PCB terminal block - FK-MPT 0,5/ 4-3,5 NZ:88975D2 - 1907597
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, nominal current: 4 A, nom. voltage: 250 V, pitch: 3.5 mm, number of positions: 4,
connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection
direction: 90 °, color: green
The figure shows a 10-position
version of the product
Your advantages
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive use through colour coded actuation lever
Potentials can be easily looped through – ideal for BUS applications
Small component size for applications where space is at a premium
Vertical connection enables multi-row arrangement on the PCB
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4017918320331
85369010
1
Technical data
Dimensions
Length [ l ]
Pitch
Dimension a
Width [ w ]
Height
Height [ h ]
Solder pin [P]
Pin spacing
7 mm
3.5 mm
10.5 mm
14.5 mm
9.5 mm
13 mm
3.5 mm
3.5 mm
01/18/2019 Page 1 / 4
https://www.phoenixcontact.com/in/products/1907597
PCB terminal block - FK-MPT 0,5/ 4-3,5 NZ:88975D2 - 1907597
Technical data
Dimensions
Hole diameter
1 mm
General
Range of articles
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Stripping length
Number of positions
FK-MPT 0,5/..-V
2.5 kV
2.5 kV
2.5 kV
160 V
250 V
250 V
EN-VDE
4A
0.5 mm²
6.5 mm
4
Connection data
Conductor cross section AWG min.
Conductor cross section AWG max.
26
20
Standards and Regulations
Connection in acc. with standard
EN-VDE
CUL
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Drilling diagram
a
1,15
3,5
Dimensional drawing
a+4
7
1
3,5
9,5
1,15
3,5
a
Classifications
eCl@ss
eCl@ss 4.0
272607xx
01/18/2019 Page 2 / 4
https://www.phoenixcontact.com/in/products/1907597
PCB terminal block - FK-MPT 0,5/ 4-3,5 NZ:88975D2 - 1907597
Classifications
eCl@ss
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141109
27141190
27261100
27261100
27440401
27440401
27440401
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC001121
EC002643
EC002643
EC002643
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211801
39121432
34131203
39121432
39121432
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / SEV / EAC / cULus Recognized
Ex Approvals
Approval details
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
300 V
4A
28-20
FILE E 60425
300 V
4A
28-20
01/18/2019 Page 3 / 4
https://www.phoenixcontact.com/in/products/1907597
PCB terminal block - FK-MPT 0,5/ 4-3,5 NZ:88975D2 - 1907597
Approvals
cUL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
300 V
4A
28-20
FILE E 60425
300 V
4A
28-20
SEV
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
https://www.electrosuisse.ch/de/meta/shop/produktezertifikate.html
160 V
3A
0.5
IK-3558-M2
EAC
B.01742
cULus Recognized
Accessories
Accessories
Screwdriver tools
Screwdriver - SZF 0-0,4X2,5 - 1204504
Actuation tool, for ST terminal blocks, also suitable for use as a bladed screwdriver, size: 0.4 x 2.5 x 75 mm, 2-
component grip, with non-slip grip
Phoenix Contact 2019 © - all rights reserved
http://www.phoenixcontact.com
01/18/2019 Page 4 / 4
