Preview

DFAV36-SFREQ40B1/12: DescriptionSine Output Oscillator, 4MHz Min, 27MHz Max; CategoryPassive components oscillator; File Size25KB，1 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric Compare View All

DFAV36-SFREQ40B1/12 Overview

Sine Output Oscillator, 4MHz Min, 27MHz Max

DFAV36-SFREQ40B1/12 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	SUPPLY VOLTAGE 5 TO 15 V POSSIBLE
Ageing	1 PPM/FIRST YEAR
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	40 ppm
frequency stability	1%
Manufacturer's serial number	DFAV36
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	27 MHz
Minimum operating frequency	4 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	SINE
Output impedance	50 Ω
Output level	0.6363 V
physical size	36.1mm x 27.1mm x 10mm
Nominal supply voltage	12 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

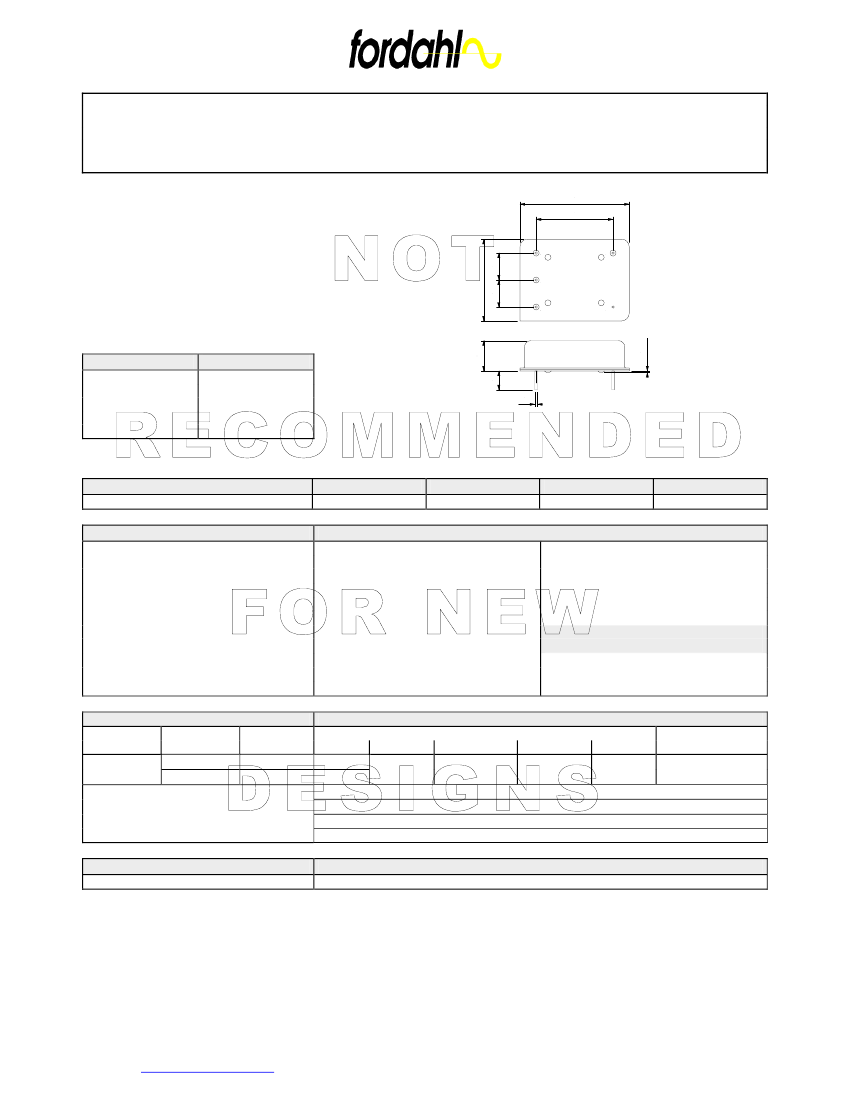

FREQUENCY CONTROL PRODUCTS

HIGH STABILITY STANDARD SIZE VC-TCXO

TYPE DF AV 36 & DF AV 36-M

EXCELLENT PULLING VERSUS STABILITY RATIO

WIDE FREQUENCY RANGE

27.1± 0.1

8.9

36.1± 0.1

25.4

WIDE PULLING RANGE

LOW COST

3

4

2

8.9

1

5

Function

V control

NC

Vcc

Output

GND

DFAV 36

1

2

3

4

5

10± 0.1

6.3

0.8

*MH and MS models supplied in solder sealed package.

Please consult factory for details.

TYPE

Frequency range

DFAV 36-H

4 to 27 MHz

DFAV 36-MH

25 to 70 MHz

DFAV 36-S

4 to 27 MHz

0.6± 0.1

DFAV 36-MS

25 to 70 MHz

ELECTRICAL SPECIFICATIONS

supply voltage

supply current (no load)

≤

25 MHz

> 25 MHz

5 to 15 V ± 5 %

≤

10 mA

≤

30 mA

HCMOS 15 pF

40/60...60/40 % @ 2.5 V

10 to 90 % :

≤

10 ns

≥

3.5 V/

≤

0.5 V

≤

10 ms

5 to 15 V ± 5 %

≤

10 mA

≤

30 mA

50

Ω

± 10 %

output load

duty cycle

rise/fall times (@ 15 pF load)

high/low levels or output amplitude

start up

FREQUENCY STABILITY

temperature

types

range

0 to 70°C

all types

-20 to 70°C

remarks

0 dBm ± 2 dB

≤

10 ms

model

code

40B1

40C2

temp.

≤

±1

≤

±2

@ 25°C

≤

±1

detailed tolerances [ ppm ]

stability versus:

Vcc ± 5 %

load ± 10 %

ageing

≤

± 0.2

≤

± 0.3

≤

±1

pulling range

positive function

≥

± 40

control voltage range 2.5 V ± 2 V

input impedance

≥

10 kΩ

temperature stability is guaranteed @ 2.5 V control voltage

st

ageing is 1 year at 25°C

ORDERING CODE

Example

type + frequency + model code / voltage value

DFAV 36-MH 38.88 MHz 40B1/12

web site :

http://www.fordahl.com
