SPECIFICTIONS
D
UL Style:
Temperature rating:
Voltage rating:
Flame test:
AWM 2651
-20°C to 105°C
300V max.
VW-1
E
CSA standard:
C22.2 No. 210.2
Temperature rating: -20°C to 105°C
Voltage rating:
300V max.
28
PVC, gray
9 mil aver.
7 mil min.
Spark test:
2,500V
Conductor Resistance: 0.237 ohm /Km
Insulation resistance: 100 megohm/Km min.
Capacitance:
60 PF/m (GSG). 42 PF/m (GS)
Inductance:
100 ohm (GSG)
Propagation delay:
5.0 ns/m
AWG size:
Insulator material:
Insulator thickness:
Con-
ductors
9
10
14
15
16
18
20
25
26
28
30
34
36
37
40
50
60
64
W
PT
(mm) (mm)
11.43 10.15
12.70 11.43
17.78 16.51
19.05 17.78
20.32 19.05
22.86 21.59
25.40 24.13
31.75 30.48
33.02 31.75
35.56 34.29
38.10 36.83
43.18 41.91
45.72 44.45
46.99 45.72
50.80 19.53
62.50 62.23
78.20 74.93
81.28 80.01
A
B
C
D
E
F
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
Series
FCXX

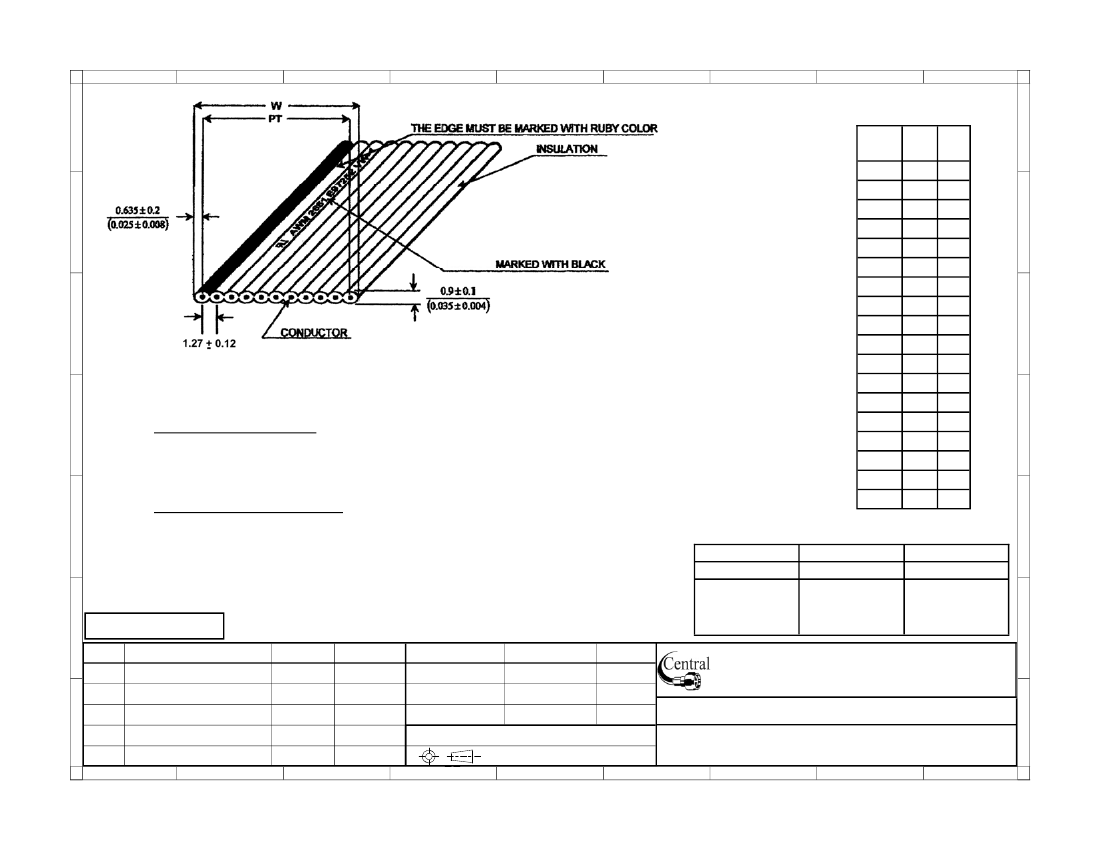

Ribbon Cable
XX=Conductors
(see chart)
Date
10/15/02
10/15/02
10/15/02 Part No.:
Type
050
Type=050
Length
XXX
100, 250
F
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
FCXX-050-XXX
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: Ribbon cable
