4N150W-06F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 4N150W-06F

4N150W-06F: DescriptionFixed Attenuator, 0MHz Min, 4000MHz Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size43KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

4N150W-06F Overview

Fixed Attenuator, 0MHz Min, 4000MHz Max, ROHS COMPLIANT PACKAGE

4N150W-06F Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	N-F, I/P POWER-MAX(PEAK)=2000W
Nominal attenuation	6 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	51.76 dBm
JESD-609 code	e4
Maximum operating frequency	4000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.35
Base Number Matches	1

Preview

Download Datasheet

View All

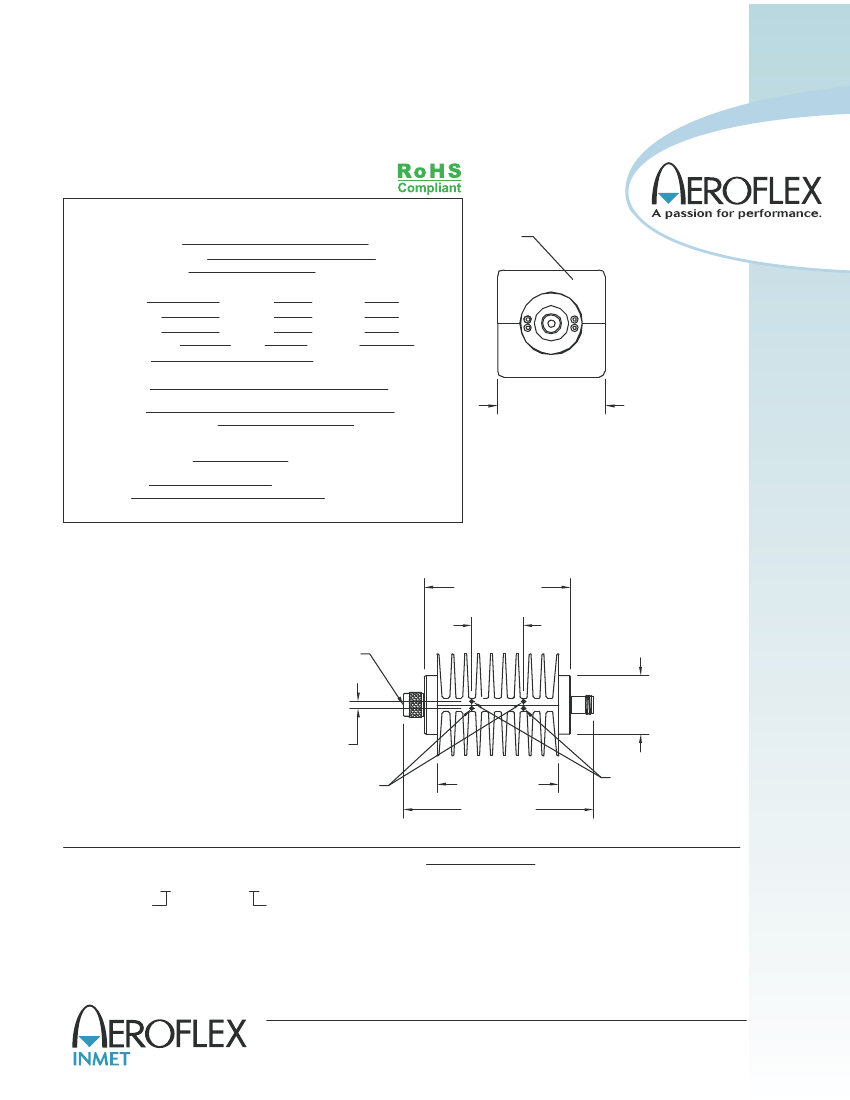

ATTENUATORS

Type N, up to 4 GHz, 150 Watts

SPECIFICATIONS:

Models: XN150W-XX, XN150W-XXF, XN150W-XXM

Electrical:

Frequency Range

Standard Freq. Values

Standard dB Value

Attenuation Accuracy

3 & 6 dB

10 & 20 dB

30 & 40 dB

Input VSWR (Max.)

Input Power

Peak Power

Impedance

Operating Temp. Range

DC - 4.0 GHz

2.5 & 4 GHz

3, 6, 10, 20, 30 & 40 dB

1.5 - 2.5 GHz

2.5 - 4 GHz

±1.5 dB

±1.0 dB

±.75 dB

±1.0 dB

±1.5 dB

1.25:1

1.35:1

150 Watts Avg. @ +25°C

2 kW Max.

(5uSec Pulse, .05% Duty Cycle)

Custom Mtg. hole Config.

may be Added to this

Surface

DC - 1.5 GHz

±0.50 dB

±0.75 dB

1. 5:1

Derated Linearly to 30 Watts @ +1

50 Ohms

-54°C to +125°C

Passivated Stainless Steel

Gold Plated Beryllium Copper

Anodized Aluminum

3.46 [87.9]

SQ.

Mechanical:

Type N Connectors

Mates with MIL

-STD-348

END VIEW

TYPICAL

Units must be Mounted in such a way as to

Allow for Free Air Flow Around fins to Assure

Performance

Conductors

Housing

Note: Units are Unidirectional, Therefore Input Connector MUST be specified & will be Indicated on Unit

Model Number:

XN150W-30

Male/Female Connectors

Length: 6.36 ±.05 [161.5 ±1.3]

Pictured

INPUT

4.965 ±.025

[126.11 ±0.64]

1.75

[44.5]

Model Number:

XN150W-30F

Female/Female Connectors

Length: 6.45 ±.05 [163.8 ±1.3]

.23 [5.8]

M4x0.7 TAP

x .50 [12.7] DP

4.125 [104.8]

6.36 ±.05

[161.5 ±1.3]

2x Ø1.98

[50.3]

Model Number:

XN150W-30M

Male/Male Connectors

Length: 6.28 ±.05 [159.5 ±1.3]

8-32UNC-2B TAP

x .50 [12.7] DP

HOW TO ORDER:

Model Number:

XN150W-30Y

Freq. Range

2 = DC - 2.5 GHz

4 = DC - 4 GHz

Connector Configuration

= Male/Female

F = Fem/Fem

M = Male/Male

Ordering Examples:

Model Number:

4N150W-30

DC - 4 GHz, 30 dB; Type N - Male/Fem

Model Number:

2N150W-30F

DC - 2.5 GHz, 30 dB; Type N - Fem/Fem

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design, specifications are subject to change without notice. Contact factory for technical

specifications before purchasing and/or use.

XN150W-ATT: REV F

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet • inmetsales@aeroflex.com
