5009-0005 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5009-0005

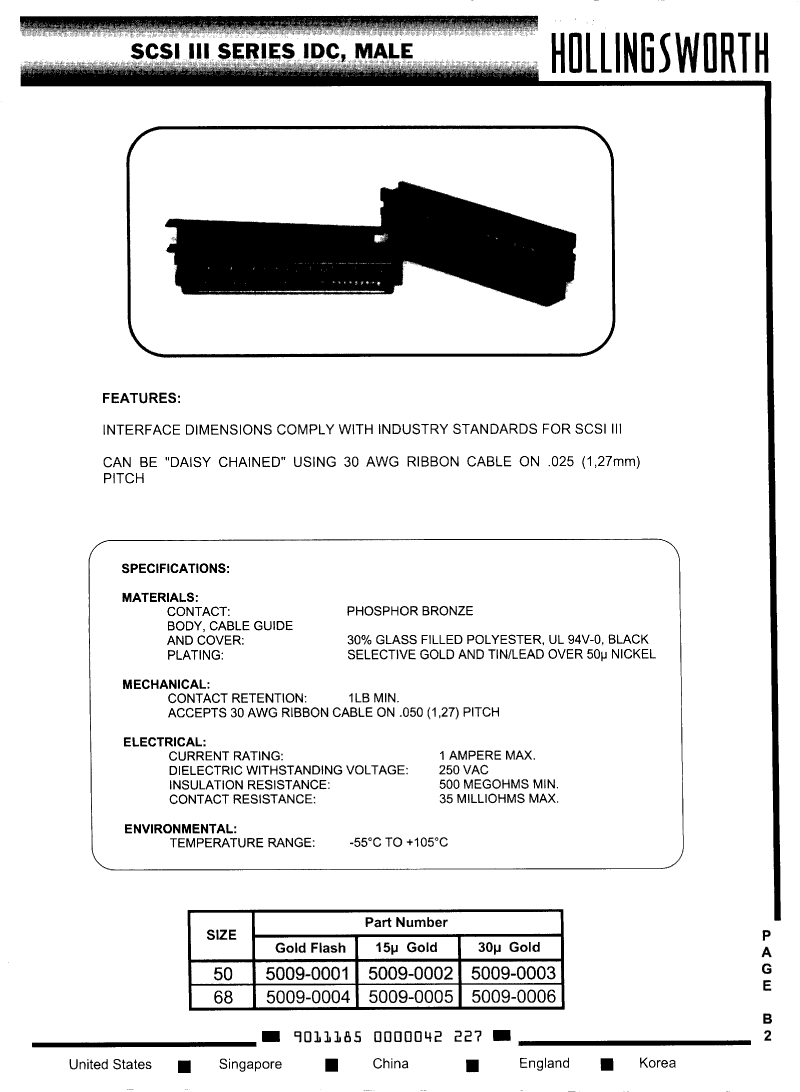

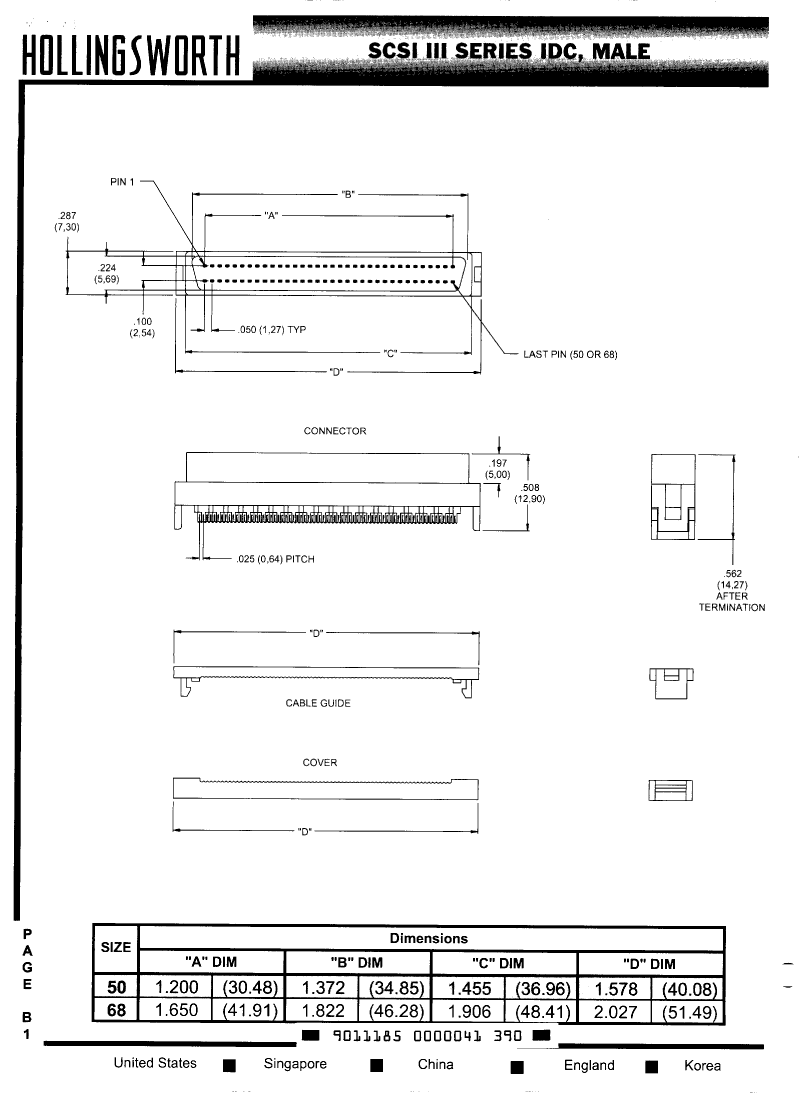

5009-0005: DescriptionBoard Connector, 68 Contact(s), 2 Row(s), Male, 0.05 inch Pitch, IDC Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size125KB，2 Pages; ManufacturerElectro-Term/Hollingsworth

Download Datasheet Parametric Compare View All

5009-0005 Overview

Board Connector, 68 Contact(s), 2 Row(s), Male, 0.05 inch Pitch, IDC Terminal, Black Insulator, Receptacle

5009-0005 Parametric

Parameter Name	Attribute value
Maker	Electro-Term/Hollingsworth
Reach Compliance Code	unknown
body width	0.287 inch
subject depth	0.562 inch
body length	2.027 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	250VAC V
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	SCSIIII
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	15u inch
polarization key	D-SHAPE
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	68
Maximum wire diameter	30 AWG
Minimum wire diameter	30 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

5009-0005 Related Products

	5009-0005	5009-0001	5009-0004	5009-0002	5009-0003	5009-0006
Description	Board Connector, 68 Contact(s), 2 Row(s), Male, 0.05 inch Pitch, IDC Terminal, Black Insulator, Receptacle	Board Connector, 50 Contact(s), 2 Row(s), Male, 0.05 inch Pitch, IDC Terminal, Black Insulator, Receptacle	Board Connector, 68 Contact(s), 2 Row(s), Male, 0.05 inch Pitch, IDC Terminal, Black Insulator, Receptacle	Board Connector, 50 Contact(s), 2 Row(s), Male, 0.05 inch Pitch, IDC Terminal, Black Insulator, Receptacle	Board Connector, 50 Contact(s), 2 Row(s), Male, 0.05 inch Pitch, IDC Terminal, Black Insulator, Receptacle	Board Connector, 68 Contact(s), 2 Row(s), Male, 0.05 inch Pitch, IDC Terminal, Black Insulator, Receptacle
Maker	Electro-Term/Hollingsworth	Electro-Term/Hollingsworth	Electro-Term/Hollingsworth	Electro-Term/Hollingsworth	Electro-Term/Hollingsworth	Electro-Term/Hollingsworth
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.287 inch	0.287 inch	0.287 inch	0.287 inch	0.287 inch	0.287 inch
subject depth	0.562 inch	0.562 inch	0.562 inch	0.562 inch	0.562 inch	0.562 inch
body length	2.027 inch	1.578 inch	2.027 inch	1.578 inch	1.578 inch	2.027 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	SCSIIII	SCSIIII	SCSIIII	SCSIIII	SCSIIII	SCSIIII
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Plating thickness	15u inch	FLASH inch	FLASH inch	15u inch	30u inch	30u inch
polarization key	D-SHAPE	D-SHAPE	D-SHAPE	D-SHAPE	D-SHAPE	D-SHAPE
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	68	50	68	50	50	68
Maximum wire diameter	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG
Minimum wire diameter	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG
