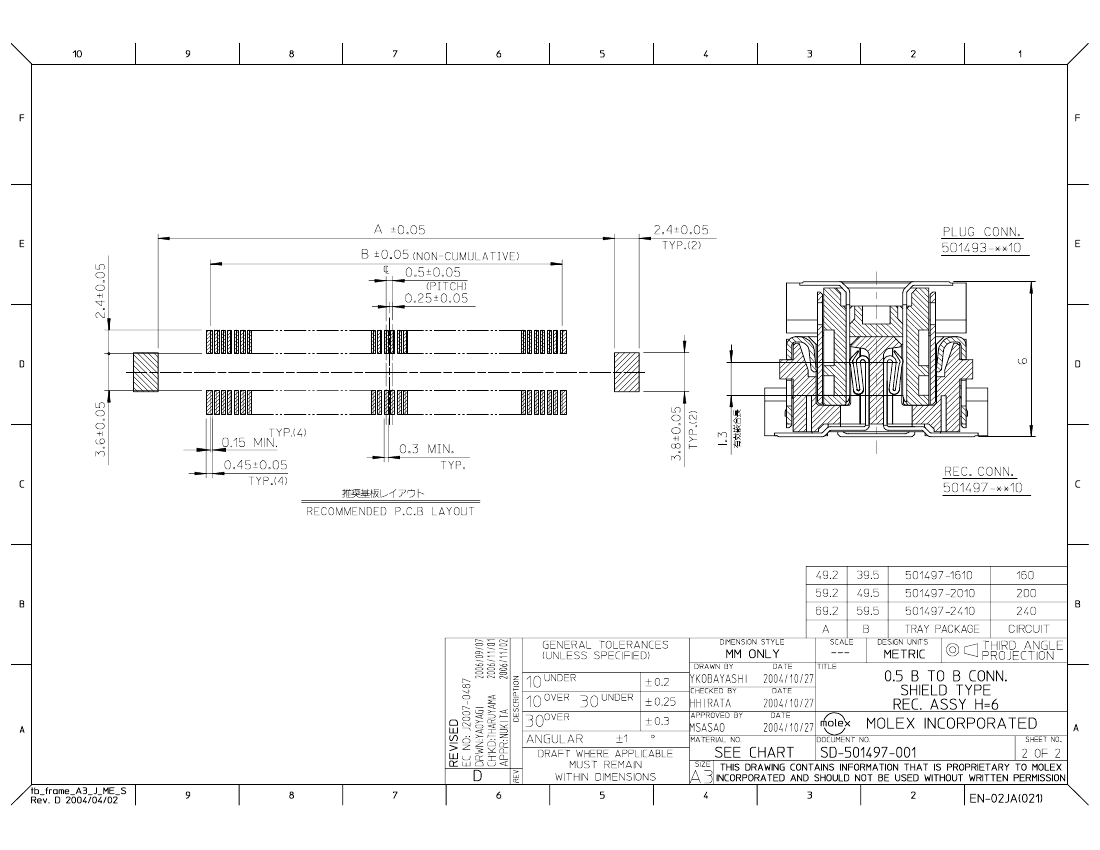

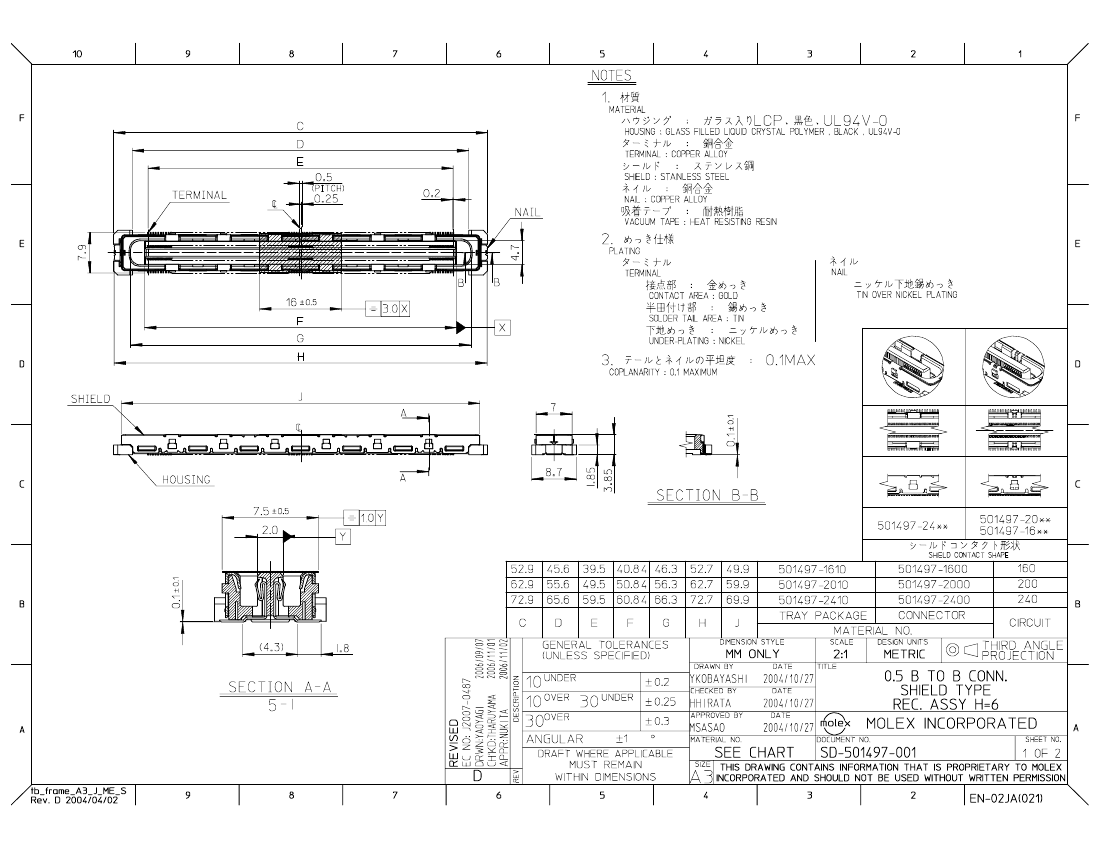

Board Connector, 240 Contact(s), 2 Row(s), Male, Straight, 0.019 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug,

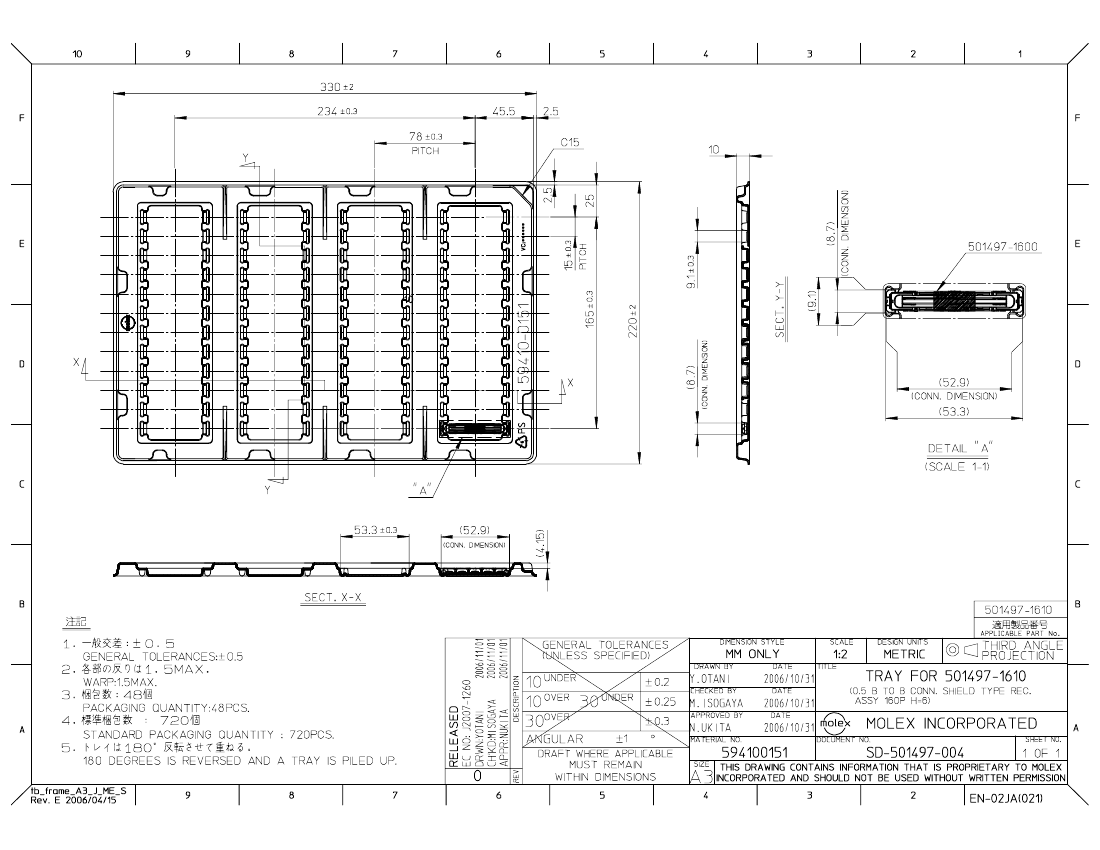

| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| body width | 0.343 inch |
| subject depth | 0.152 inch |
| body length | 2.87 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 70 mΩ |
| Contact style | CENTRONIC |
| Dielectric withstand voltage | 125VAC V |
| Durability | 30 Cycles |
| Insulation resistance | 100000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| Manufacturer's serial number | 501497 |
| Plug contact pitch | 0.019 inch |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -20 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 5.9944 mm |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 0.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 0.508 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 240 |
| Base Number Matches | 1 |
| 501497-2410 | 501497-1600 | |
|---|---|---|
| Description | Board Connector, 240 Contact(s), 2 Row(s), Male, Straight, 0.019 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug, | Board Connector, 160 Contact(s), 2 Row(s), Male, Straight, 0.019 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug |
| Maker | Molex | Molex |
| Reach Compliance Code | unknown | compli |
| body width | 0.343 inch | 0.343 inch |
| subject depth | 0.152 inch | 0.152 inch |
| body length | 2.87 inch | 2.083 inch |
| Body/casing type | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI | AU ON NI |
| Contact completed and terminated | TIN OVER NICKEL | TIN OVER NICKEL |
| Contact point gender | MALE | MALE |
| Contact material | COPPER ALLOY | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR |
| Contact resistance | 70 mΩ | 70 mΩ |
| Contact style | CENTRONIC | CENTRONIC |
| Dielectric withstand voltage | 125VAC V | 125VAC V |
| Durability | 30 Cycles | 30 Cycles |
| Insulation resistance | 100000000 Ω | 100000000 Ω |
| Insulator color | BLACK | BLACK |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER |
| Manufacturer's serial number | 501497 | 501497 |
| Plug contact pitch | 0.019 inch | 0.019 inch |
| Installation option 1 | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD |
| Number of connectors | ONE | ONE |
| PCB row number | 2 | 2 |
| Number of rows loaded | 2 | 2 |
| Maximum operating temperature | 85 °C | 85 °C |
| Minimum operating temperature | -20 °C | -20 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 5.9944 mm | 5.9944 mm |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 0.5 A | 0.5 A |
| Guideline | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 0.508 mm | 0.508 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 240 | 160 |
