1353-6-13-1-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1353-6-13-1-3

1353-6-13-1-3: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size95KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1353-6-13-1-3 Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle

1353-6-13-1-3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.087 inch
subject depth	0.41 inch
body length	0.65 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	1353
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.3876 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	13
Base Number Matches	1

Preview

Download Datasheet

View All

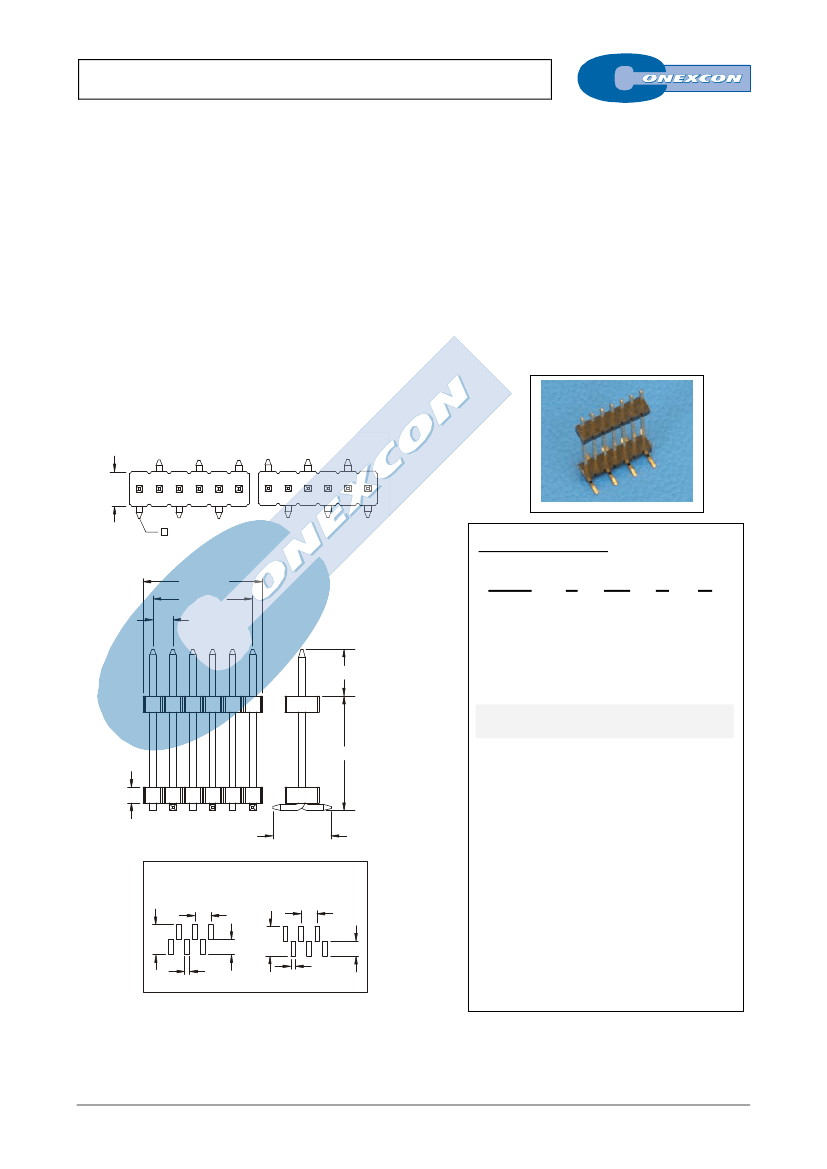

S/ ROW DUAL BODY VERT. SMT PIN HEADER

1353 SERIES.

1.27 mm (0.050”) pitch.

General Features

Electrical Features







Available in 2 through 33 circuits

Mates with sockets 1.27mm.pitch 1376,1377 and

1378 series

0,40 mm. square pin with different plating

Available with different pin length

Contact sales office



Voltage rating: < 100V

Current rating: < 1 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Capacitance: < 2 pF at 1 KHz

Materials

Insulator: Polyester LCP UL 94 V-0

Contact: Brass

Operating temperature: -40ºC to +105ºC

RoHS compliant

Mechanical Features

Pin retention force to insulator: > 0,15 Kgf

Durability: 50 cycles

Dimension Information

Type 1

2.20±0.10

Type 2

Nº 1

0.40±0.02

Nº 1

Ordering Information:

B ± 0.50

A ± 0.10

1.27±0.10

1353 -

T-

XX-

S-

1. Connector Series

2. (T) Contact Plating

1.00±0.10



T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel



3. (XX) Number of circuits

Available in 2 through 33 circuits

3.70±0.50

4. (S) Connector Type

RECOMMENDED PCB LAYOUT

Type 1

Type 2



2.54

C =

1. Type 1

C =

2. Type 2

5. (C) Pin Dimensions

2.54

4.80

2.40

0.76

2.40

0.76



4.80

C =

D = 2.60 mm. H = 3.00mm

C =

D = 9.75 mm. H = 3.00mm

C =

D = 10.41mm. H = 3.00mm

Other options consult the Sales Office

Dimensions:

(In mm.)

= 1.27 x (XX*-1)

= 1.27 x (XX)

* XX

(Number of circuits)

A-XX

FULL LINE CATALOGUE
