1279NTJKJ00: DescriptionPCMCIA Connector, 68+68 Contact(s), 4 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size38KB，1 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric View All

1279NTJKJ00 Overview

PCMCIA Connector, 68+68 Contact(s), 4 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle

1279NTJKJ00 Parametric

Parameter Name	Attribute value
Objectid	303535966
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	RIGHT EJECT, W/O LOGO, 5V
Board mount options	M2 THREADED HOLES
body width	0.654 inch
subject depth	4.847 inch
body length	2.642 inch
Body/casing type	RECEPTACLE
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Filter function	NO
maximum insertion force	LIF N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	8
Number of ports	2
Number of rows loaded	4
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	30u inch
Rated current (signal)	0.5 A
Guideline	UL, CSA
Terminal length	0.102 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	136

Preview

Download Datasheet

View All

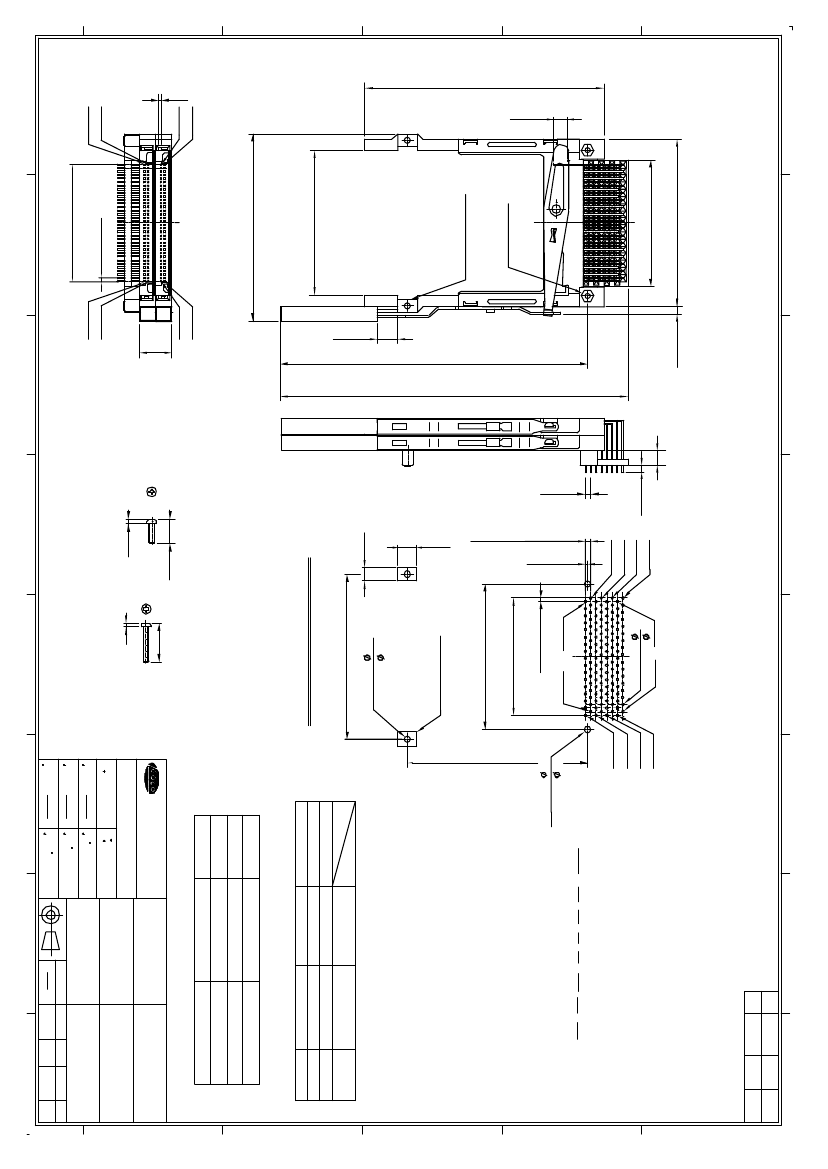

REV. ECO. NO.

CHG

APPD.

Features:

DWG REL.

59.8

2.354

45.4

1.787

2.6

.102

T-#01

T-#35

B-#01

B-#35

T-#02

T-#33

0.79± 0.05

.031± .002

(2.7)

(.106)

* Material:

1. Insulator: UL 94V-0 LCP,PBT

2. Contact: Copper Alloy

* Color : Black

T-#34

T-#68

B-#34

B-#68

* With 2 PCS M2× 5.0mm and

2 PCS M2× C mm screws

* Accept PCMCIA Type I,

Type II or Type III card

Ordering Information:

0.70 ± 0.10

.028 ± .004

1.905

.075

B-#36

1.27± 0.05

.050± .002

B-#67

2.30± 0.05

.091± .002

41.91 ± 0.08

1.650 ± .003

1279

T J *

* 0 *

3 4 5

2-M2 NUTS

85.5

3.366

12３．１２

4.8４７

2-M2 NUTS

10８．５

4.２７２

52.07 ± 0.10

2.050 ± .004

EMI,ESD PAD

7.00

.276

7.4

.291

5.00

.197

59.00 ±

2.323 ±

3.20± 0.05

.126± .002

0.10

.004

RECOMMENDED HOLE PATTERN

1. Series No.

2. D = Double stack(with logo)

N = Double stack(without logo)

3. T = Through hole

4. J = Metal Right ejection bar

5. Contact plating

F = Selective gold flash over 50? " nickel overall

S = Selective gold flash over 40? " PdNi

K= Selective 30? " gold over 50? " nickel

J = Selective 15? " gold over 50? " nickel

6. An attached table (1) A

7. Special options

8. An attached table (1) B

1.905± 0.05

.075± .002

64.50± 0.10

2.539± .004

L (2)

51.6

2.031

( H) A = 4.0 mm

( J ) A = 5.0 mm

( S ) A = 5.5 mm

DIM B = 1.1mm

(0) Voltage 5V

1279*TJ*H00

1279*TJ*J00

1279*TJ*S00

DIM B = 2.2mm

(V) Voltage 3.3V

1279*TJ*H0V

1279*TJ*J0V

1279*TJ*S0V

DIM C =

18.3

19.3

(1)

67.1

2.642

PIN TYPE

DETECT

GENERAL

T-#34

T-#68

11.6

.456

DIM. L ± 0.10(.004)

3.50(.138)

4.25(.167)

PIN NUMBER

36, 67

ALL OTHER PINS

T-#01

T-#35

POWER

5.0

1.3

1.27 ± 0.05

.050 ± .002

41.91 ± 0.08

1.650 ± .003

B-#34

B-#68

XX ±

XXX ±

5.00(.197)

1,17,34,35,51,68

(2)

APPROVED:

LEOCO CORPORATION

PART NO.:

DATE:

1279*TJ**0*

GENERAL TOLERANCE

0.30

.012

0.20

.008

0.10

.004

CHECKED:

B-#01

B-#35

2°

DATE:

TITLE:

DOUBLE STACK PC CARD PLUG

AND RIGHT METAL EJECTOR

DRAWN:

DRAWING NO.:

1°

0.5°

DATE:

1279MES

UNITS

SCALE

SIZE

SHEET

REV.

XXX ±

0.1°

inch

1/1
