YY-3600-H09M: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size175KB，4 Pages; ManufacturerYoung Yak Enterprise Co., Ltd.

Download Datasheet Parametric View All

YY-3600-H09M Overview

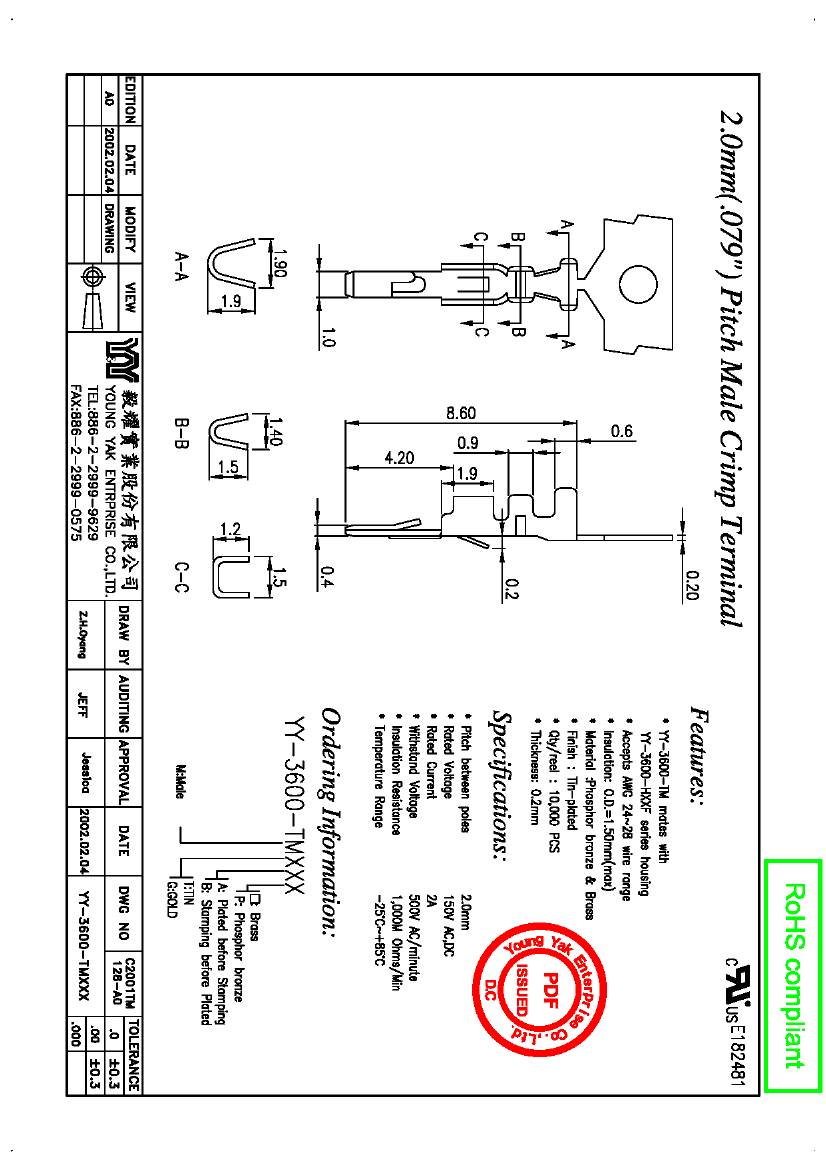

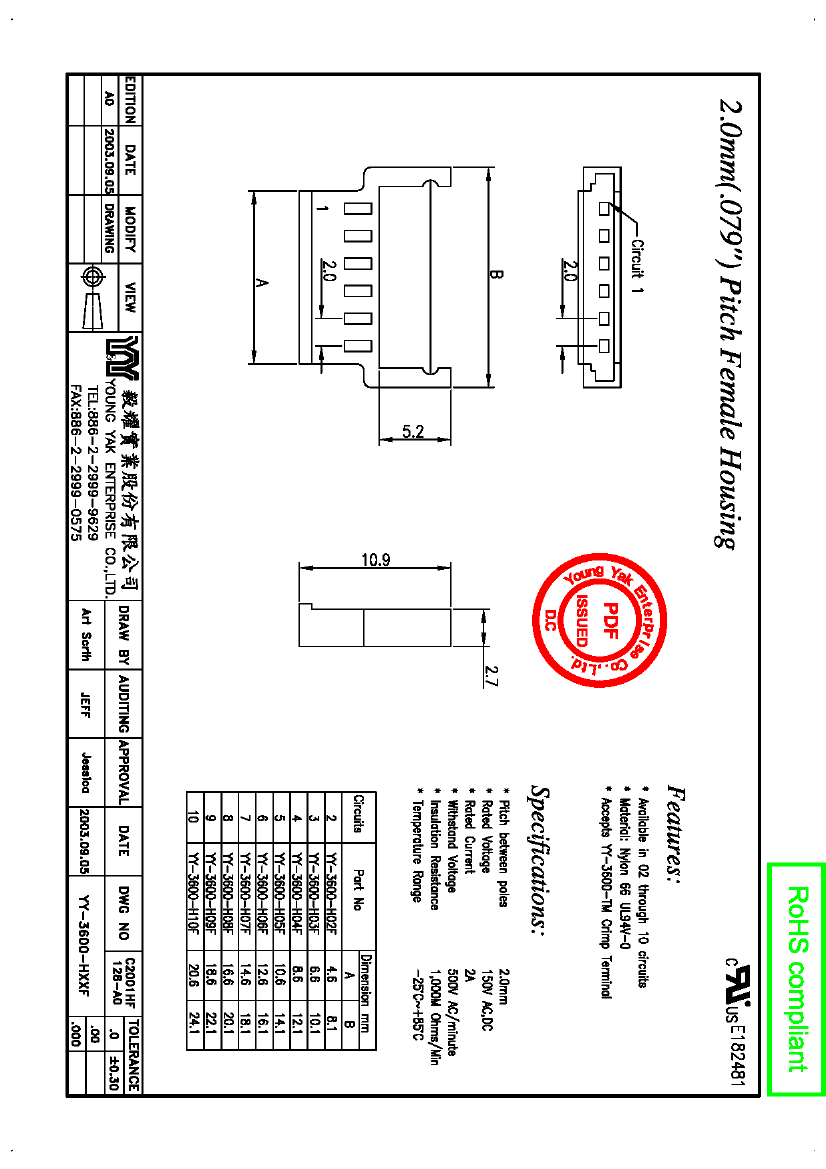

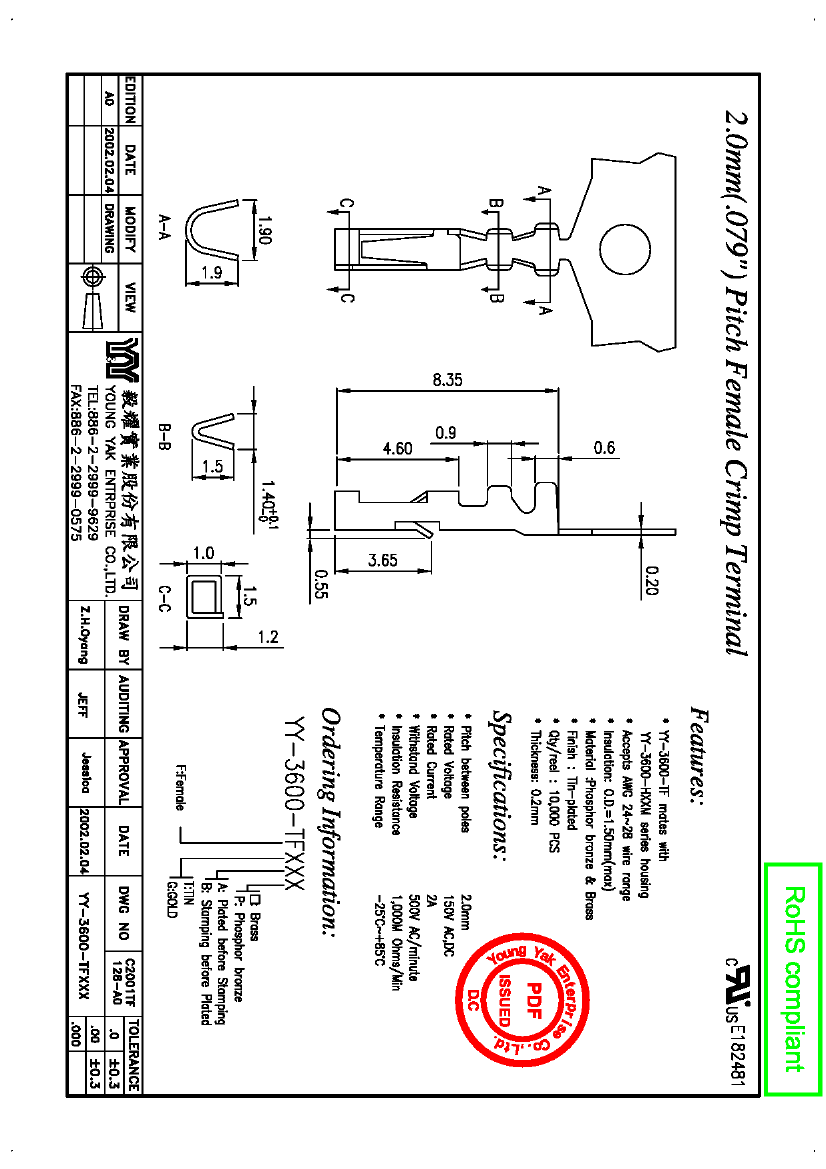

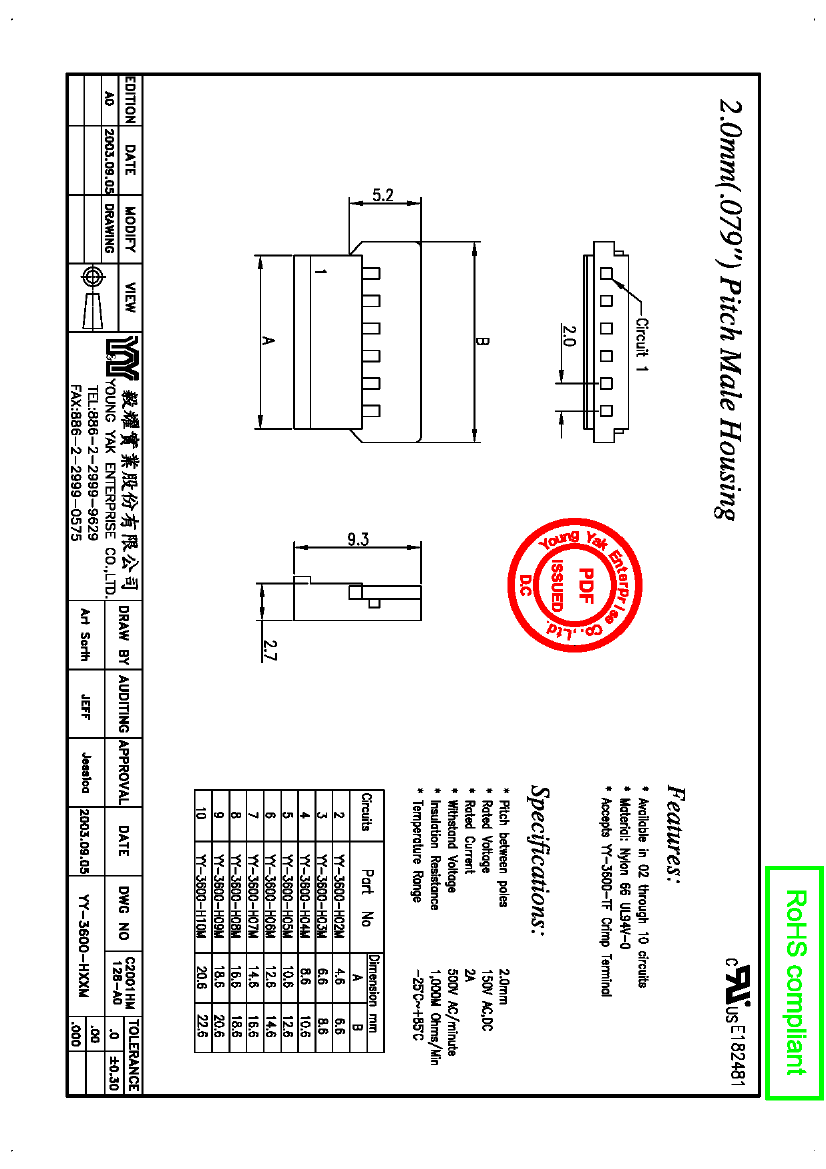

Board Connector, 9 Contact(s), 1 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, Locking, Receptacle

Parameter Name	Attribute value
Objectid	303977397
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	NONE
body width	0.106 inch
subject depth	0.366 inch
body length	0.811 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	STAMPED, STRIP
Contact point gender	MALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
Plug contact pitch	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
Termination type	CRIMP
Total number of contacts	9
Maximum wire diameter	24 AWG
Minimum wire diameter	28 AWG
