ECS-239.99-10-30-GS-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-239.99-10-30-GS-TR

ECS-239.99-10-30-GS-TR: DescriptionParallel - Fundamental Quartz Crystal, 23.999MHz Nom, ROHS COMPLIANT, MINIATURE, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size150KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-239.99-10-30-GS-TR Overview

Parallel - Fundamental Quartz Crystal, 23.999MHz Nom, ROHS COMPLIANT, MINIATURE, SMD, 2 PIN

ECS-239.99-10-30-GS-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1308753979
package instruction	ROHS COMPLIANT, MINIATURE, SMD, 2 PIN
Reach Compliance Code	compliant
YTEOL	7.05
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.003%
frequency tolerance	30 ppm
JESD-609 code	e4
load capacitance	10 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	23.999 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
physical size	L5.0XB3.2XH1.2 (mm)/L0.197XB0.126XH0.047 (inch)
Series resistance	40 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

Compact and low profile

Extended Temp Range Option

RoHS Compliant

2 Pad Option

ECX-53

SMD QUARTZ CRYSTAL

The ECX-53B is a miniature SMD Crystal with a 3.2 x 5 mm

footprint. This package is ideal for todays compact wireless

applications where board space is critical.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range

Frequency Tolerance

Frequency Stability

Shunt Capacitance

Load Capacitance

Drive Level

Operating Temperature

Storage Temperature

Aging (Per Year)

CONDITIONS

ECX-53

MIN

8.000

TYP

MAX

150.000

± 30 *

± 50 *

Series

100

+70

+125

±5

UNITS

MHz

ppm

µW

°C

ppm

at +25°C

-10 to +70°C

Specify in P/N

-10

-55

@ +25°C ±3°C

EQUIVALENT SERIES RESISTANCE/MODE OF OSCILLATION

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

8.00 ~ 9.999

Fundamental

100

20.000 ~ 23.999

Fundamental

10.000 ~ 15.999

Fundamental

24.000 ~ 50.000

Fundamental

16.000 ~ 19.999

Fundamental

50.100 ~ 150.000

3rd Overtone

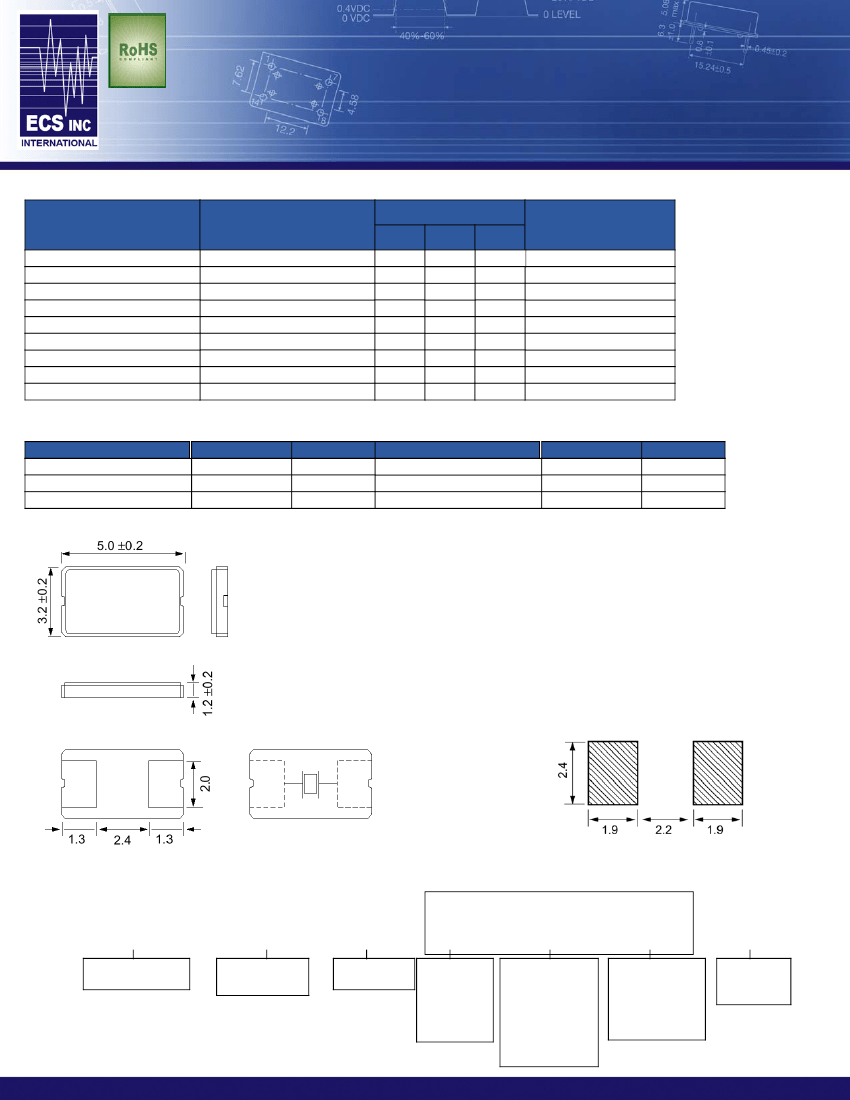

DIMENSIONS (mm)

Figure 1) Top, Side, Bottom and End views

Figure 2) Suggested Land Pattern

PART NUMBERING GUIDE: Example ECS-200-20-30-TR

ECS - Frequency Abbreviation - Load Capacitance - Package

200 = 20.000 MHz

See P/N Guide

20 =20 pF

S=Series

30 =

ECX-53

Custom Options

Tolerance

Blank = Std

A = ± 25 ppm

J = ± 20 ppm

R = ± 15 ppm

C = ± 10 ppm

* Stability

Blank = Std

D = ± 100 ppm

E = ± 50 ppm

G = ± 30 ppm

H = ± 25 ppm

T = ± 20 ppm

W = ± 15 ppm

K = ± 10 ppm

Temp Range

Blank = Std

M = -20 ~ +70°C

N = -40 ~ +85°C

P = -40 ~ +105°C

S = -40 ~ +125°C

U = -55 ~ +125°C

- Packaging

TR= Tape

& Reel

1K/Reel

*Consult Factory for available stability

options over extended temp range.

Rev 8/11
