Part Number

Search

52135-0350

Description
Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, White Insulator, Receptacle
CategoryThe connector    The connector

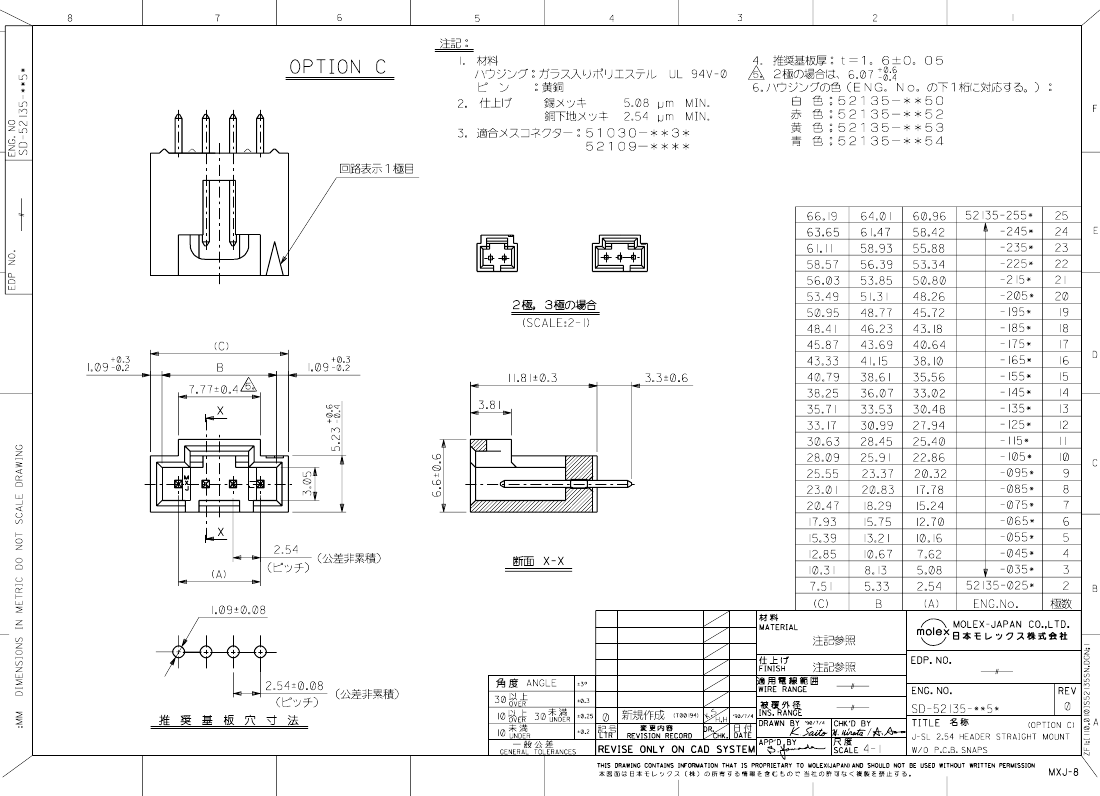

File Size75KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

52135-0350 Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, White Insulator, Receptacle

52135-0350 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid304013074
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL0
body width0.26 inch
subject depth0.465 inch
body length0.406 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1000VAC V
Durability30 Cycles
Filter functionNO
Insulation resistance1000000000 Ω
Insulator colorWHITE
insulator materialGLASS FILLED POLYESTER
Plug contact pitch0.1 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
polarization keyPOLARIZED HOUSING
Rated current (signal)2 A
GuidelineUL
Terminal length0.13 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts3
