3LPO8G-B-0.001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 3LPO8G-B-0.001

3LPO8G-B-0.001: DescriptionHCMOS Output Clock Oscillator, 0.000001MHz Min, 0.16MHz Max, 0.000001MHz Nom, ROHS COMPLIANT, DIL-8/4; CategoryPassive components oscillator; File Size236KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

3LPO8G-B-0.001 Overview

HCMOS Output Clock Oscillator, 0.000001MHz Min, 0.16MHz Max, 0.000001MHz Nom, ROHS COMPLIANT, DIL-8/4

3LPO8G-B-0.001 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Euroquartz
package instruction	DIP4/8,.3
Reach Compliance Code	compliant
Other features	100PPM STABILITY OVER 0 TO 70C AVAILABLE
maximum descent time	1000 ns
Frequency Adjustment - Mechanical	NO
frequency stability	160%
Installation features	THROUGH HOLE MOUNT
Number of terminals	4
Maximum operating frequency	0.16 MHz
Minimum operating frequency	0.000001 MHz
Nominal operating frequency	0.000001 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Package body material	METAL
Encapsulate equivalent code	DIP4/8,.3
physical size	12.8mm x 12.8mm x 5.08mm
power supply	3.3 V
Certification status	Not Qualified
longest rise time	1000 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	60/40 %
Base Number Matches	1

Preview

Download Datasheet

View All

EURO

QUARTZ

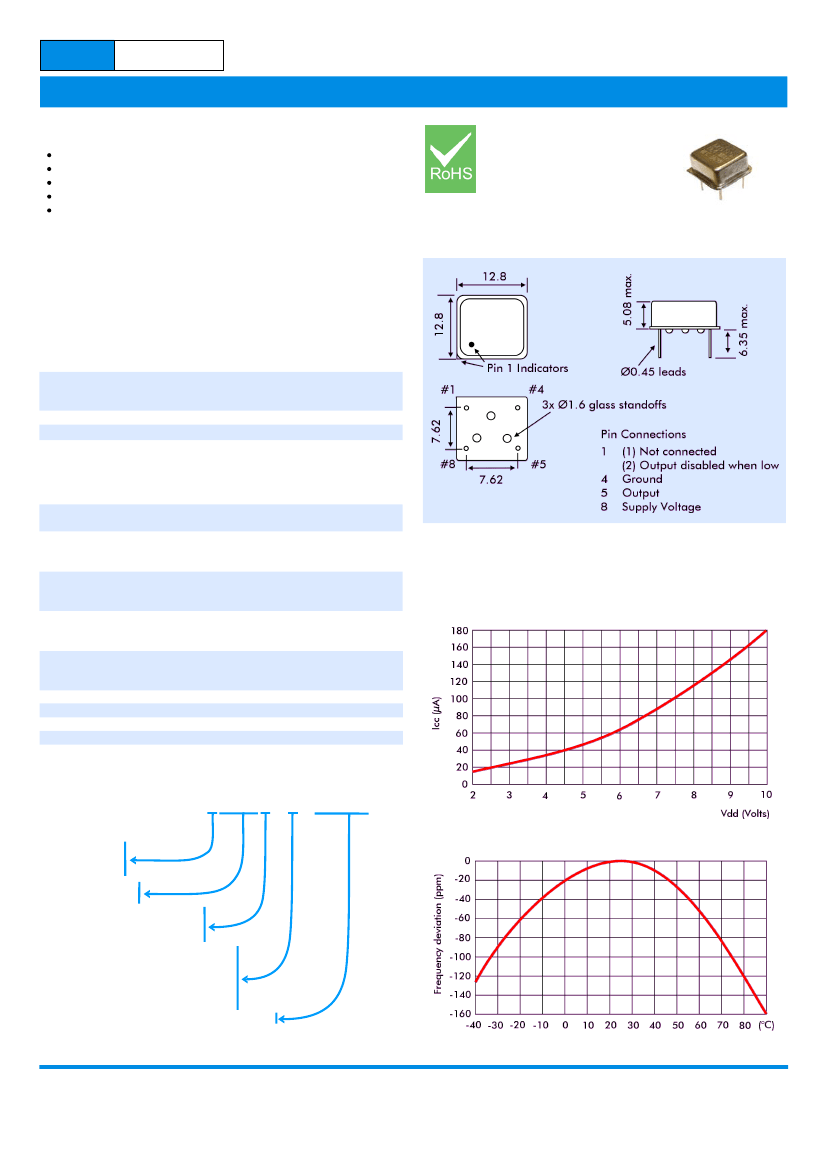

8 pin DIL Low-Power Oscillator

FEATURES

Frequency range 1Hz to 160kHz using a tuning fork crystal

Current consumption in µA range

Supply voltage range from +3.0V to +15.0 Volts

32.768kHz ideal for accurate real-time-clock applications

Suitable for battery-operated devices, data loggers etc.

DESCRIPTION

LPO oscillators are ideal for battery operated portable or hand-held

consumer electronic devices where low supply current consumption is

essential. Applications include data logging and portable test

equipment.

OUTLINE & DIMENSIONS

LPO8 Oscillators

1.0Hz to 160kHz

SPECIFICATION

Model:

Input Voltage (standard):

LPO8

+3.3 VDC±5% or +5.0 VDC ±10%

Input voltages from 3.0V to 15.0V

are available.

1.0Hz to 160.0kHz

HCMOS (square wave)

±10ppm

±25ppm

±50ppm

±100ppm

-100ppm (typical) over 0° to +70°C

-160ppm (typical) over -40° to +85°C

26µA typical

45µA typical

2.97V minimum

4.50V minimum

0.33V maximum

0.50V maximum

0.5µs typical, 1.0µs maximum

25µs typical, 50µs maximum

2 CMOS gates

450ms maximum

50%±5% typical, 50%±10% maximum

-50° to +100°C

±5ppm per year maximum

Frequency Range:

Output Waveform:

Frequency Tolerance

Tolerance code

Frequency Stability:

'P':

'A':

'B':

'C':

Curent Consumption

Supply = 3.3 Volts:

Output Logic High '1'

Supply = 3.3 Volts:

Supply = 5.0 Volts:

Output Logic Low '0'

Supply = 3.3 Volts:

Supply = 5.0 Volts:

Rise/Fall Times

Supply = 3.3 Volts:

Supply = 5.0 Volts:

Fanout:

Start-up Time:

Duty Cycle:

Storage Temperature:

Ageing:

PART NUMBERING

Example:

CURRENT CONSUMPTION vs. SUPPLY VOLTAGE

3LPO8G - P - 32.768

TYPICAL FREQUENCY STABILITY vs. TEMPERATURE

Supply Voltage

3 = 3.3V

5 = 5.0V

Holder type

LPO8

RoHS Compliance

Add G if RoHS Compliant

part required

Frequency Tolerance (25°C)

P = ±10ppm

A = ±25ppm

B = ±50ppm

C = ±100ppm

Frequency in kHz

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
