PMP03-05S12B-PT Overview

Analog Circuit

PMP03-05S12B-PT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	114017507
package instruction	, DIP7/24,.6
Reach Compliance Code	unknown
Maximum input voltage	9 V
Minimum input voltage	4.5 V
Number of terminals	7
Maximum operating temperature	94 °C
Minimum operating temperature	-40 °C
Maximum output current	0.25 A
Nominal output voltage	12 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	DIP7/24,.6
Certification status	Not Qualified
surface mount	NO
Temperature level	INDUSTRIAL

Preview

Download Datasheet

View All

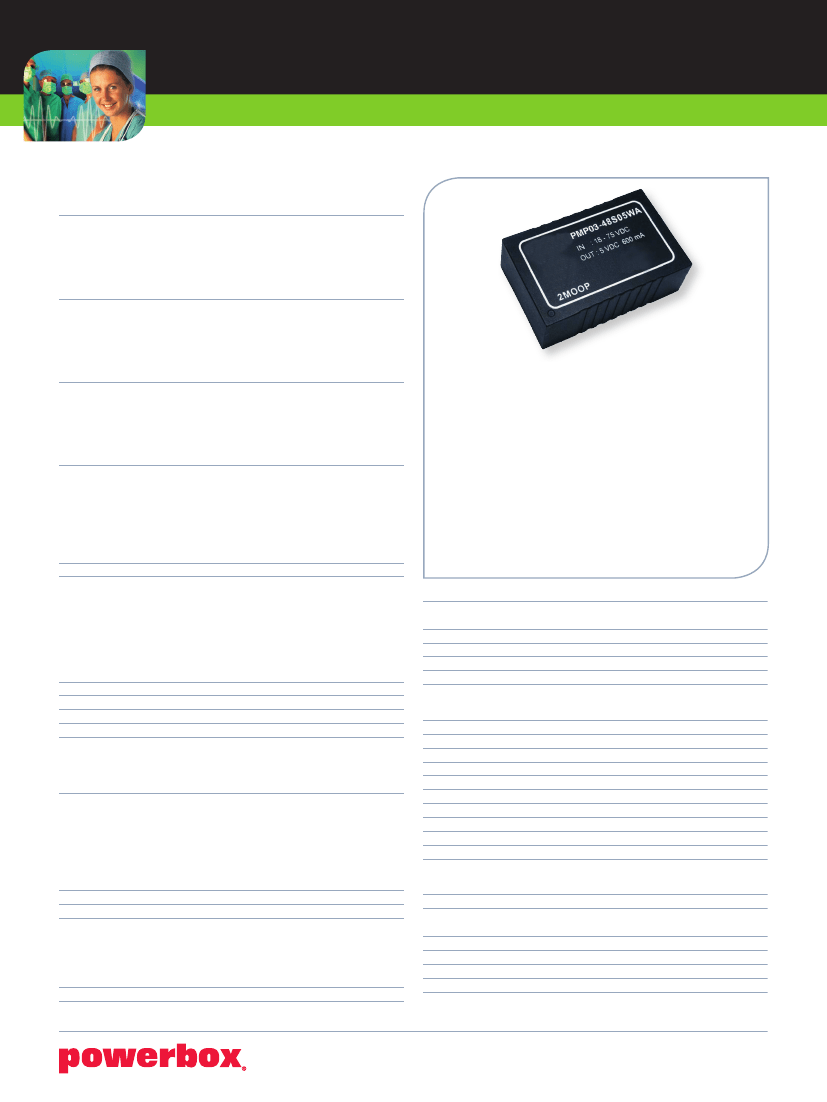

Medline PMP03 Series

3.3W 2:1 & 4:1 SINGLE OUTPUT MEDICAL DC/DC CONVERTER

Specifications

INPUT

Voltage range

5Vin(nom)

4.5-9VDC

12Vin(nom)

9-18VDC

24Vin(nom)

18-36VDC

48Vin(nom)

36-75VDC

4:1 (W) 24V(nom)

9-36VDC

48V(nom)

18-75VDC

2:1

5Vin(nom)

4.5VDC

12Vin(nom)

9VDC

24Vin(nom)

18VDC

48Vin(nom)

36VDC

4:1 (W) 24V(nom)

9VDC

48V(nom)

18VDC

2:1

5Vin(nom)

4VDC

12Vin(nom)

8VDC

24Vin(nom)

16VDC

48Vin(nom)

33VDC

4:1 (W) 24V(nom)

8VDC

48V(nom)

16VDC

3 seconds max.

2:1

5Vin(nom)

16VDC

12Vin(nom)

25VDC

24Vin(nom)

50VDC

48Vin(nom)

100VDC

4:1 (W) 24V(nom)

50VDC

48V(nom)

100VDC

Pi type.

Referenced to -INPUT pin

(only for B-type pin connection option)

DC-DC ON

Open or 0~1.2VDC

DC-DC OFF

2.2~12VDC

Input current of CTRL pin -0.5 min, 1mA max

Remote off input current 2.5mA

2:1

Start-up voltage

Features

• Reinforced insulation for 300VAC working voltage

• Clearance and creepage distance: 6.6mm/2MOOP

• 3000VAC input to output 2MOOP isolation

• Built-in EMI Class A filter

• 2μA patient leakage current

• Safety meets ANSI/AAMI ES60601-1, EN60601-1

and IEC60601-1

• CE mark meets 2006/95/EC, 2011/95/EC

and 2004/108/EC

• Compliant to RoHs EU Directive 2011/65/EU

ENVIRONMENTAL

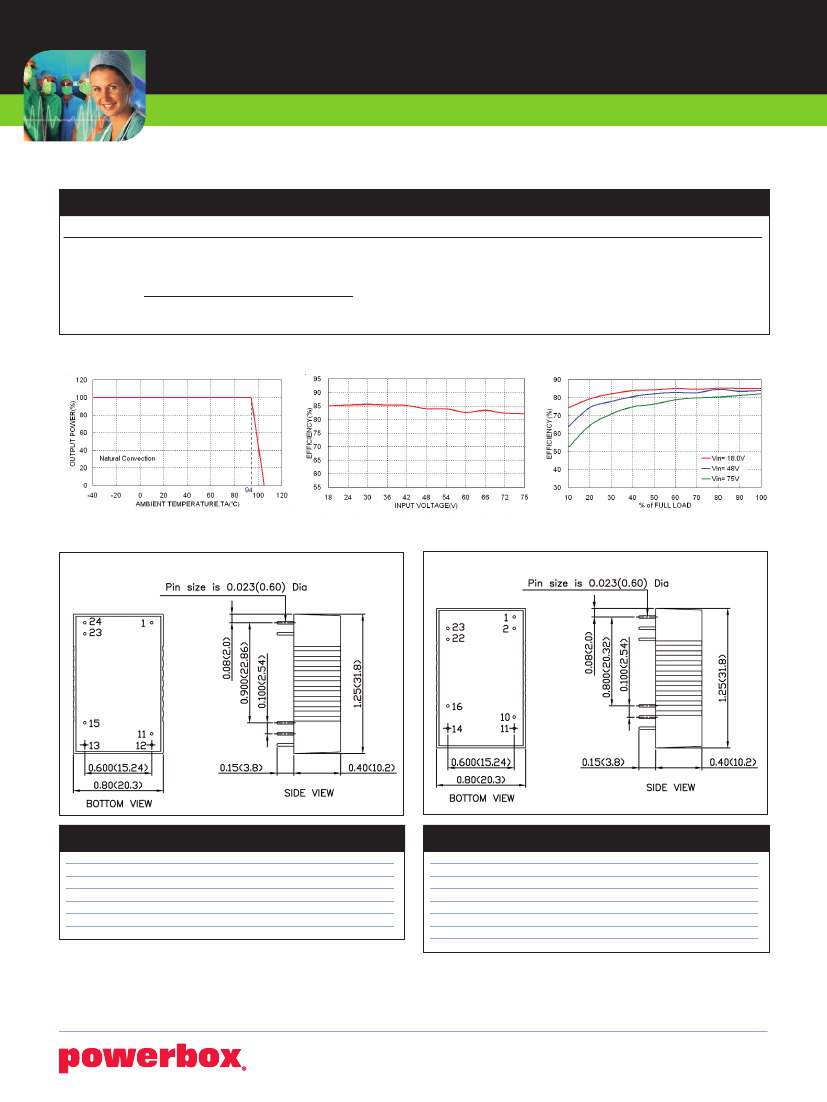

Operating ambient temp. –40°C to +94°C without derating.

+94°C to +105°C with derating.

Storage temperature

–55°C to +125°C.

Thermal impedance

18°C/W natrual convection (20LFM).

Thermal shock

MIL-STD-810F.

Vibration

MIL-STD-810F.

Relative humidity

5-95% RH.

GENERAL

Isolation voltage

Isolation capacitance

Leakage current

Switching frequency

Clearance/creepage

Case material

Base material

Potting material

Dimensions

Weight

MTBF

STANDARDS

Safety standards

EMC performance

EMI

ESD

Radiated immunity

Fast transient

Surge

Conducted immunity

Input to output 3000VAC, 1 minute.

12pF typ.

2mA max at 240VAC, 60Hz.

100KHz typ.

6.6mm.

Non-conductive black plastic.

Silicon (UL94-V0).

31.8 x 20.3 x 10.2 mm.

14g.

1.303 x 10

hrs, MIL-HDBK-217F, 25°C, full load.

ANSI/AAMI ES60601-1, IEC60601-1, EN60601-1.

EN55011, EN55022 and FCC Part 18.

EN61000-4-2 Air ±8kV Contact ±6kV Criteria A

EN61000-4-3 10V/m

Criteria A

EN61000-4-4 ±2KV

Criteria A

EN61000-4-5 ±2KV

Criteria A

EN61000-4-6 10Vrms

Criteria A

20130521

Shutdown voltage

Input surge voltage

Input filter

Remote On/Off

OUTPUT

Voltage accuracy

Line regulation

Load regulation

Cross regulation (dual)

Voltage adjustability

±1%.

±0.2%, low line to high line at full load.

±0.5%, no load to full load.

±5.0%, assymetrical load 25%/100% FL.

(only for B-type pin connection option)

Single: 3.3, 5, 12Vout

–10/+10%

15, 24Vout

–10/+20%

Dual: ±5, ±12, ±15Vout –10/+10%

Ripple and noise

Measured by 20MHz bandwidth with a

10mF/25V X7R MLCC:

3.3, 5Vout

30mV p-p

12, 15Vout

40mV p-p

Measured by 20MHz bandwidth with a

47mF/50V X7R MLCC:

24Vout

50mV p-p

Temperature coefficient ±0.02%/ °C.

Transient response

250ms recovery time at 25% load step change.

Over voltage protection 3.3Vout

3.7~5.4 VDC

5Vout

5.6~7.0 VDC

12Vout

13.5~19.6 VDC

15Vout

18.3~22.0 VDC

24Vout

29.1~32.5 VDC

Over load protection

150% of Iout rated; hiccip mode.

Short circuit protection Continuous, automatics recovery.

MEDLINE

www.powerbox.info
