337CKR050MPX

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 330uF, Through Hole Mount, RADIAL LEADED, LEAD FREE
CategoryPassive components    capacitor
File Size130KB，5 Pages
ManufacturerIllinois Capacitor
Websitehttp://www.illinoiscapacitor.com/
Environmental Compliance
Download Datasheet Parametric View All

337CKR050MPX Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 330uF, Through Hole Mount, RADIAL LEADED, LEAD FREE

337CKR050MPX Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance330 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
ESR502 mΩ
leakage current0.495 mA
Manufacturer's serial numberCKR
Installation featuresTHROUGH HOLE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package shapeCYLINDRICAL PACKAGE
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)50 V
ripple current650 mA
surface mountNO
Delta tangent0.1
Terminal shapeWIRE
Base Number Matches1

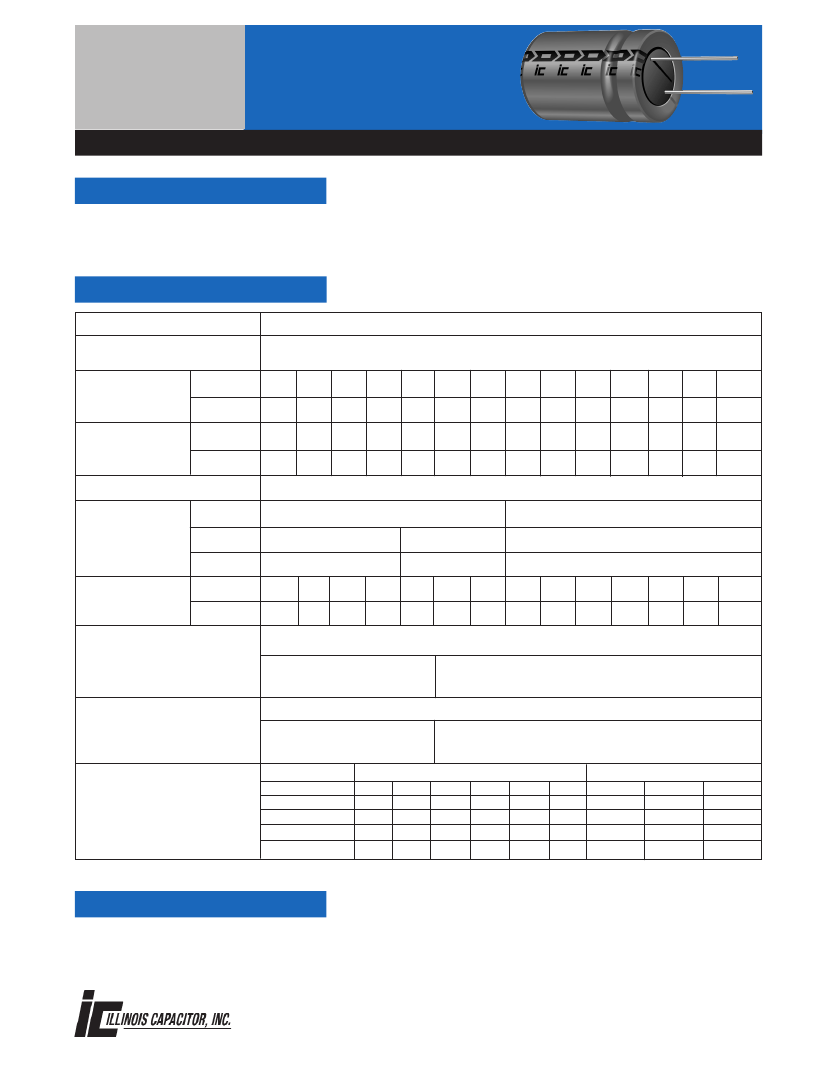

Preview

Download Datasheet
CKR/
CKS
FEATURES
I
Lead Free Leads
I
In Stock
SPECIFICATIONS
Capacitance Tolerance
Operating Temperature Range
Surge
Voltage
Dissipation Factor
120Hz, 20°C
WVDC
SVDC
WVDC
tan
δ
+85°C General Purpose
Aluminum Electrolytic
Capacitors
I
Standardized Case Sizes
I
Multiple Case Styles
±20% at 120Hz, 20°C
-40°C to +85°C (6.3 to 400 WVDC)
-25°C to +85°C (450 WVDC)
6.3
7.9
10
13
16
20
25
32
35
44
50
63
63
79
100
125
160
200
200
250
250
300
350
400
400
450
450
500
6.3
.24
10
.20
16
.16
25
.14
35
.12
50
.1
63
.1
100
.08
160
.15
200
.15
250
.15
350
.2
400
.2
450
.2
Note:
For above D.F. specifications, add .02 for every 1,000 µF above 1,000 µF
WVDC
Leakage Current
Time
6.3 to 100 WVDC
1 minutes
.03 CV or 4 µA,
whichever is greater
160 to 450 WVDC
2 minutes
2 minutes
0.03CV + 40µA
2
3
3
6
3
6
3
6
6
6
6
6
15
-
.01 CV or 3 µA,
whichever is greater
2
3
2
3
2
3
2
3
Impedance Ratio
(Max.) @120Hz
-25°C/20°C
-40°C/20°C
4
8
3
6
2
4
2,000 hours at 85°C with rated WVDC
Load Life
Capacitance change
Dissipation factor
Leakage current
< 20% of initial measured value
≤150%
of initial specified value
<100% Initial specified value
1,000 hours at 85°C with no voltage applied.
Shelf Life
Capacitance change
Dissipation factor
Leakage current
Frequency (Hz)
Capacitance (µF)
50
0.8
0.8
0.8
0.8
C≤10
10<C≤100
100<C≤1000
C>1000
120
1.0
1.0
1.0
1.0
400
1.3
1.23
1.16
1.11
1K
1.45
1.36
1.25
1.17
≤
20% of initial measured value
≤
200% of initial specified value
< The initial specified value
Temperature (°C)
10K
1.65
1.48
1.35
1.25
100K
1.7
1.53
1.38
1.28
+85
1.0
1.0
1.0
1.0
+70
1.3
1.3
1.3
1.3
+60
1.5
1.5
1.5
1.5
Ripple Current Multipliers
SPECIAL ORDER OPTIONS
•
•
•
Special tolerances: ±10% (K), -10% + 30%
Ammo Pack
Cut, Formed, Cut and Formed Leads
•
•
Epoxy end sealed
Mylar sleeve
®
3757 W. Touhy Ave., Lincolnwood, IL 60712 • (847) 675-1760 • Fax (847) 673-2850 • www.illcap.com
