LANC24833W5S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LANC24833W5S

LANC24833W5S: DescriptionAnalog Circuit,; CategoryPower/power management The power supply circuit; File Size256KB，4 Pages; ManufacturerWall Industries,Inc.; Websitehttps://www.wallindustries.com/

Download Datasheet Parametric View All

LANC24833W5S Overview

Analog Circuit,

LANC24833W5S Parametric

Parameter Name	Attribute value
Objectid	7214734398
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE

Preview

Download Datasheet

View All

Rev. D

LANCW5 Series

Single and Dual Outputs

2:1 and 4:1 Wide Input Voltage

Up to 6 Watts DC/DC Converters

FEATURES

APPLICATIONS

●

Wireless Network

●

Single and Dual Outputs

●

Telecom/Datacom

●

High Efficiency up to 84%

●

Industry Control Systems

●

Standard 1.25 x 0.8 x 0.4 Inches

●

Measurement Equipment

●

Fixed Switching Frequency (300KHz)

●

Semiconductor Equipment

●

2:1 and 4:1 Ultra Wide Input Voltage Ranges

●

Compliant to RoHS EU Directive 2002/95/EC

●

UL60950-1, EN60950-1, and IEC60950-1 Licensed

●

Standard 24 Pin DIP Package and SMT Type Package

●

CE Mark meets 2006/95/EC, 93/68/EEC, and 2004/108/EC

DESCRIPTION

The LANCW5 series of DC/DC converters offers up to 6 watts of output power in an IC compatible 24 pin DIP configuration. The LANCW5 series has a 2:1

(W) wide input voltage of 9-18, 18-36, and 36-75VDC. The LANCW5 series also has a 4:1 (UW) ultra wide input range of 9-36 and 18-75VDC. This series is

intended to provide power and isolation for applications requiring high power density. Some features include 1600VDC isolation, short circuit protection, and

five-sided shielding. Also available are SMT type (suffix "S") and I type (operating temperature: -40°C~+85°C without derating- add suffix "I").

SPECIFICATIONS:

LANCW5 Series

All specifications apply @ 25°C ambient unless otherwise noted

INPUT SPECIFICATIONS

Input Voltage Range

LANCW5 ........................ 12V nominal input .......................... 9-18VDC

24V nominal input .........................18-36VDC

48V nominal input ........................ 36-75VDC

LANCUW5...................... 24V nominal input ...........................9-36VDC

48V nominal input .........................18-75VDC

Input Filter ....................................................................................... Pi Type

Input Surge Voltage (100ms max) ...... 12V input ...........................36VDC

24V input ...........................50VDC

48V input .........................100VDC

Input Reflected Ripple Current (nominal Vin and full load) ...........20mAp-p

Start Up Time (nominal Vin and constant resistive load) ...........450ms typ.

PROTECTION SPECIFICATIONS

Over Load Protection (% of full load at nominal input) ................. 170% typ.

Short Circuit Protection...............................Continuous, automatic recovery

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature

Standard .................................................. -25°C to +85°C (w/ derating)

“I” (See Notes 6 & 9)............................. -40°C to +85°C (w/o derating)

“I” (UW Series)......................................... -40°C to +85°C (w/ derating)

Storage Temperature .......................................................... -55°C ~ +105°C

Maximum Case Temperature ................. Standard ......................... +100°C

“I” suffix ............................ +105°C

Relative Humidity (non-condensing) .....................................5% to 95% RH

Thermal Impedance (Natural Convection) ................................. 20°C / Watt

Thermal Shock ..................................................................... MIL-STD-810F

Vibration ................................10~55Hz, 10G, 30 minutes along X, Y, and Z

MTBF (See Note 1) ........BELLCORE TR-NWT-000332...... 3.165 x 10 hrs

MIL-HDBK-217F........................... 1.631 x 10 hrs

OUTPUT SPECIFICATIONS

Output Voltage ..............................................................................see table

Voltage Accuracy (nominal Vin and full load) ...................................... ±1%

Output Current ..............................................................................see table

Output Power .......................................................................... 5 watts max.

Line Regulation (LL to HL at FL)....................................................... ±0.2%

Load Regulation (no load to full load) ...... Single Output................. ±0.5%

Dual Output ....................... ±1%

Cross Regulation (Dual) (Asymmetrical load 25% / 100% FL) ............ ±5%

Minimum Load ....................................................................................... 0%

Ripple/Noise (20 MHz BW) .......................................................... 50mVp-p

Temperature Coefficient ................................................. ±0.02% / °C max.

Transient Response Recovery Time (25% load step) ...................... 200µs

PHYSICAL SPECIFICATIONS

Weight ....................................DIP type ................................... 0.55oz (16g)

SMT type................................. 0.63oz (18g)

Dimensions................... 1.25 x 0.80 x 0.40 inches (31.8 x 20.3 x 10.2 mm)

Case Material ..............................................................Nickel-coated copper

Base Material...................................................Non-conductive black plastic

Potting material..................................................................Epoxy (UL94-V0)

Shielding..................................................................................... five – sided

GENERAL SPECIFICATIONS

Efficiency.......................................................................................see table

Switching Frequency................................................................300KHz typ.

Isolation Voltage

Input to Output ............................................................. 1600VDC min.

Input (Output) to Case (DIP) ........................................ 1600VDC min.

Input (Output) to Case (SMT)....................................... 1000VDC min.

Isolation Resistance............................................................. 10 ohms min.

Isolation Capacitance............................................................... 300pF max.

SAFETY & EMC

Approvals and Standards .................. IEC60950-1, UL60950-1, EN60950-1

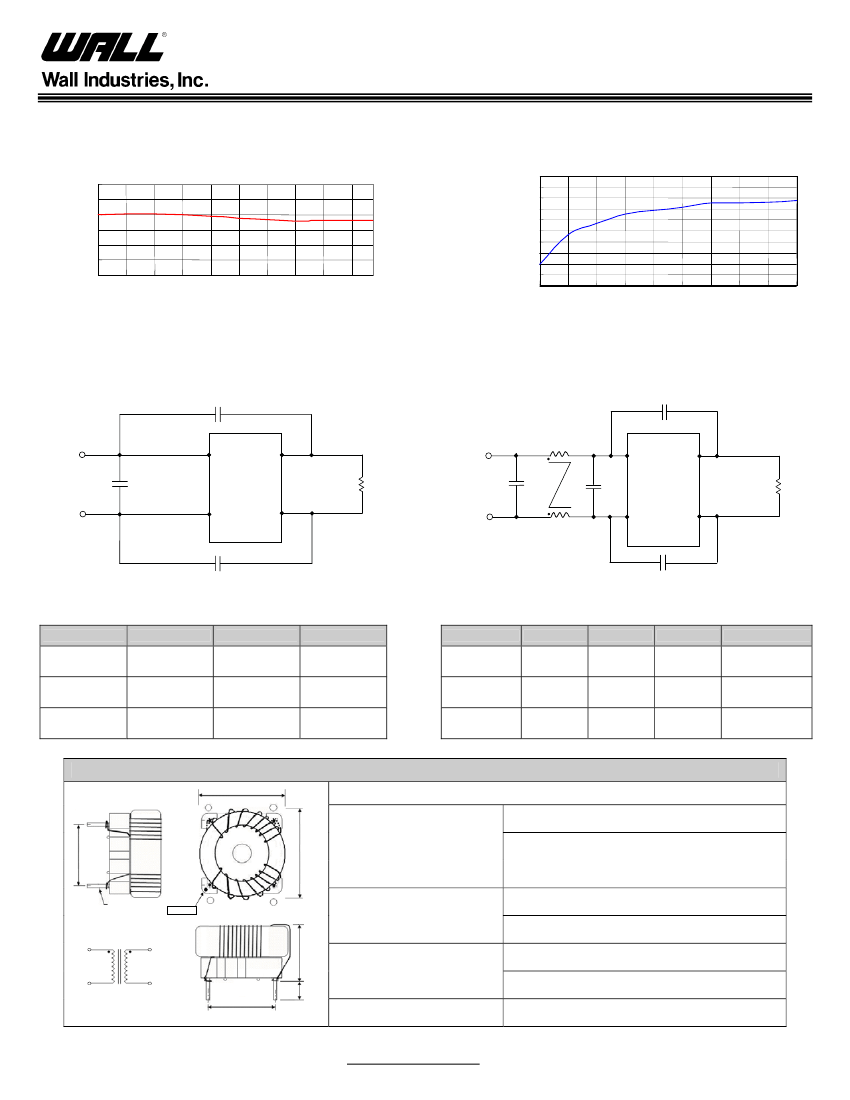

EMI (See Note 8)................EN55022 .............................................. Class A

± 8KV ………………Perf. Criteria A

ESD ..... EN61000-4-2………. Air

Contact ± 6KV

Radiated Immunity..............EN61000-4-3............... 10V/m Perf. Criteria A

Fast Transient.....................EN61000-4-4................. ±2KV Perf. Criteria B

Surge (See Note 7).............EN61000-4-5................ .±1KV Perf. Criteria B

Conducted Immunity...........EN61000-4-6............ 10 Vrms Perf. Criteria A

Due to advances in technology, specifications subject to change without notice

08/05/2011

Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833

603-778-2300 www.wallindustries.com Fax 603-778-9797

Page 1 of 4
