PCF4029031BF005008-52.00M

Description
Clipped Sine Output Oscillator, 52MHz Nom, ROHS COMPLIANT, CERAMIC, LCC-6
CategoryPassive components    oscillator
File Size102KB,6 Pages
ManufacturerPletronics
Environmental Compliance
Download Datasheet Parametric View All

PCF4029031BF005008-52.00M Overview

Clipped Sine Output Oscillator, 52MHz Nom, ROHS COMPLIANT, CERAMIC, LCC-6

PCF4029031BF005008-52.00M Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1085760674
Reach Compliance Codecompliant
YTEOL0
Other featuresTAPE AND REEL
Ageing1 PPM/YEAR
Maximum control voltage2.5 V
Minimum control voltage0.5 V
Frequency Adjustment - MechanicalNO
Frequency offset/pull rate8 ppm
frequency stability0.5%
JESD-609 codee4
Manufacturer's serial numberPCF4
Installation featuresSURFACE MOUNT
Nominal operating frequency52 MHz
Maximum operating temperature65 °C
Minimum operating temperature5 °C
Oscillator typeCLIPPED SINE
Output impedance10000 Ω
Output level0.8 V

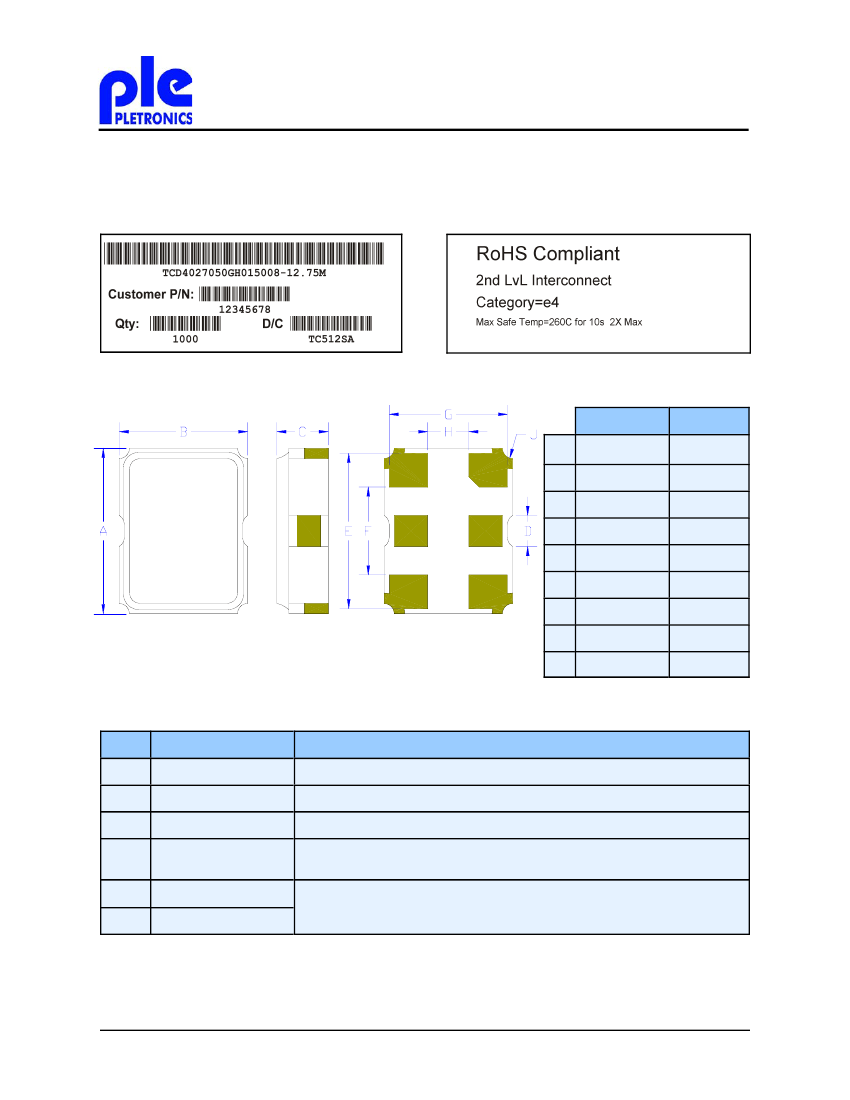

physical size2.55mm x 2.05mm x 1.0mm
Maximum supply voltage3.1 V
Minimum supply voltage2.9 V
Nominal supply voltage3 V
surface mountYES
Terminal surfaceGold (Au) - with Nickel (Ni) barrier
PCF4 Series
TCVCXO Oscillator
May 2010

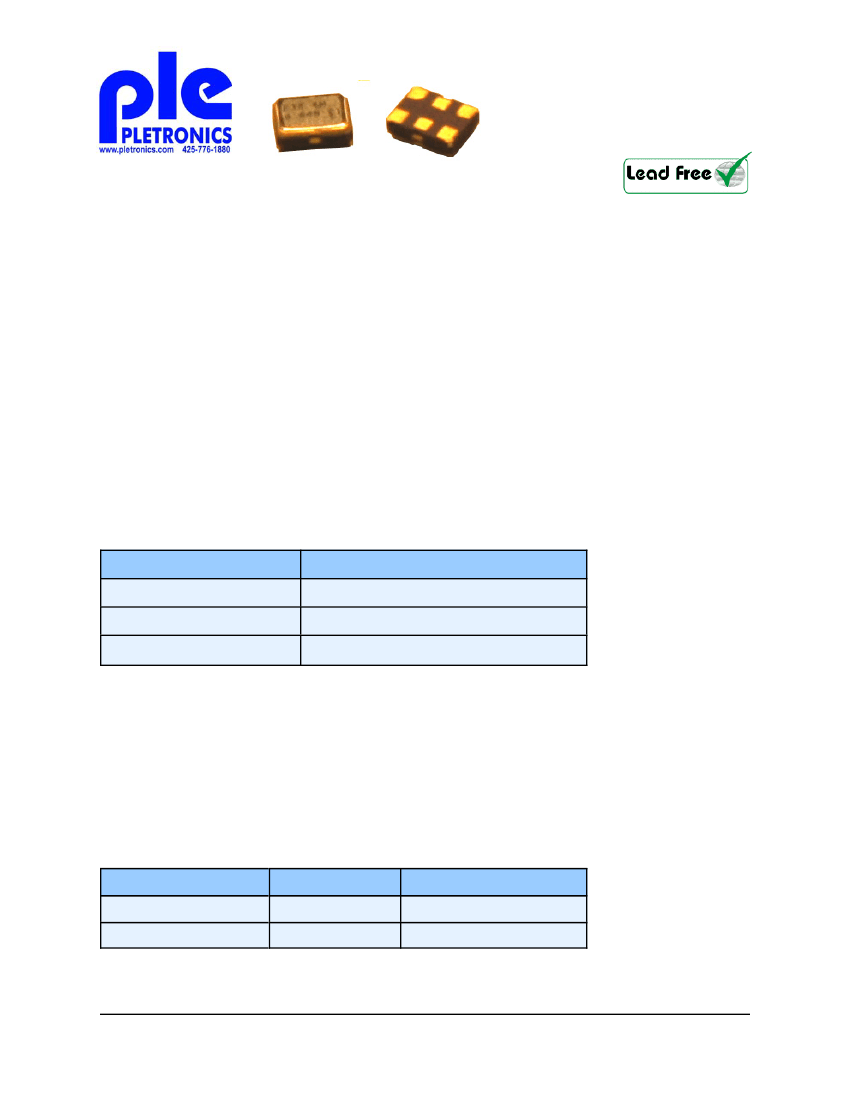

• Pletronics’ PCF4 Series is a temperature
compensated voltage controlled crystal
oscillator with a clipped sinewave output.
• The package is designed for high density
surface mount designs.

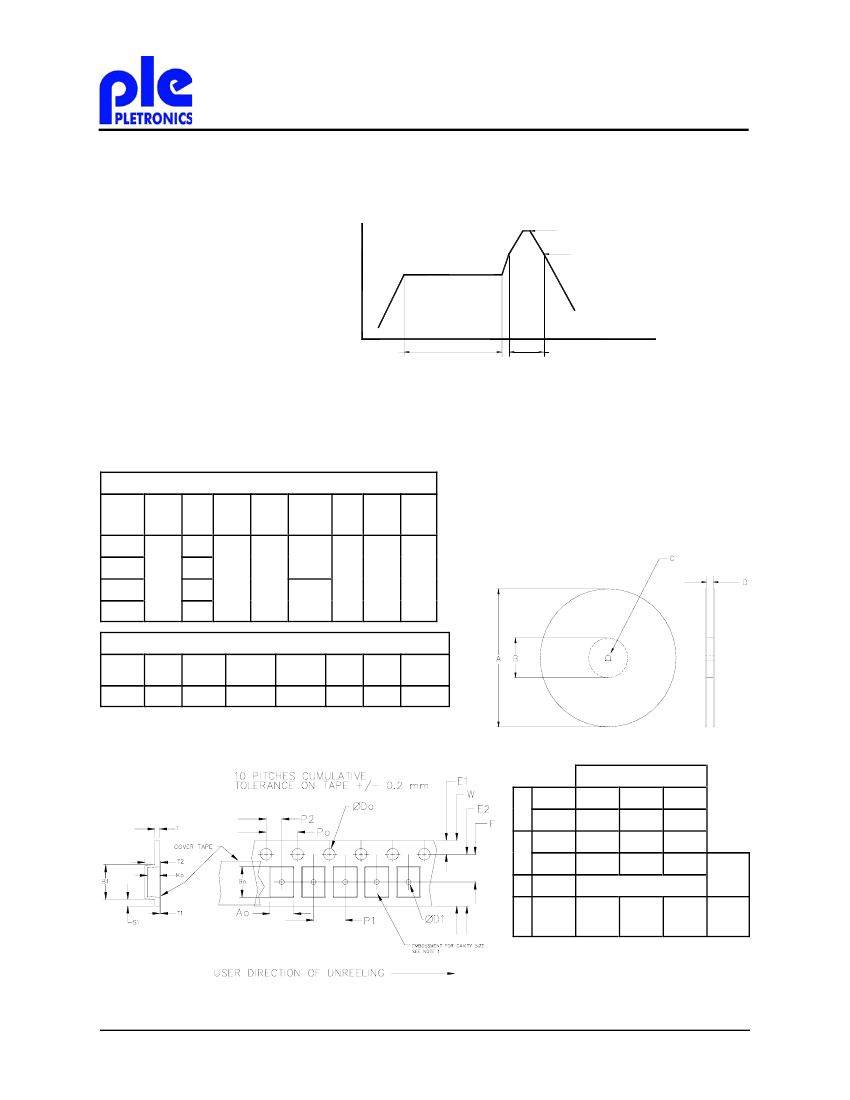

• Tape and Reel packaging is available.
10 to 52 MHz
2.3V to 3.6V
2.0 x 2.5 mm LCC Ceramic Package
Optional Voltage Control Function
Pletronics Inc. certifies this device is in accordance with the
RoHS 6/6 (2002/95/EC) and WEEE (2002/96/EC) directives.
Pletronics Inc. guarantees the device does not contain the following:
Cadmium, Hexavalent Chromium, Lead, Mercury, PBB’s, PBDE’s
Weight of the Device: 0.07 grams
Moisture Sensitivity Level: 1 As defined in J-STD-020D.1
Second Level Interconnect code: e4
Absolute Maximum Ratings:
Parameter
V
CC
Supply Voltage
Vi
Vo
Input Voltage
Output Voltage
Unit
-0.5V to +6.5V
-0.5V to V
CC
+ 0.5V
-0.5V to V
CC
+ 0.5V
Thermal Characteristics
The maximum die or junction temperature is 155
o
C
The thermal resistance junction to board is 35 to 50
o
C/Watt depending on the solder pads, ground plane
and construction of the PCB.
ESD Rating
Model
Human Body Model
Charged Device Model
Minimum Voltage
1500
1000
Conditions
MIL-STD-883 Method 3115
JESD 22-C101
Product information is current as of publication date. The product conforms
to specifications per the terms of the Pletronics standard warranty. Production
processsing does not necessarily include testing of all parameters.
Copyright © 2010, Pletronics Inc.
