259P824X0300T04

Description
Film Capacitor, Polycarbonate, 20% +Tol, 20% -Tol, 0.82uF,
CategoryPassive components    capacitor
File Size519KB,24 Pages
ManufacturerDearborn Electronics Inc
Download Datasheet Parametric View All

259P824X0300T04 Overview

Film Capacitor, Polycarbonate, 20% +Tol, 20% -Tol, 0.82uF,

259P824X0300T04 Parametric

Parameter NameAttribute value
Objectid803469174
package instruction,
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance0.82 µF
Capacitor typeFILM CAPACITOR
Custom functionsOther Options Available
diameter19.05 mm
dielectric materialsPOLYCARBONATE
length53.975 mm
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Package formAxial
positive tolerance20%
Rated (AC) voltage (URac)300 V
GuidelineMIL-C-39022/7
series259P( 300 VRMS )

259P824X0300T04 Preview

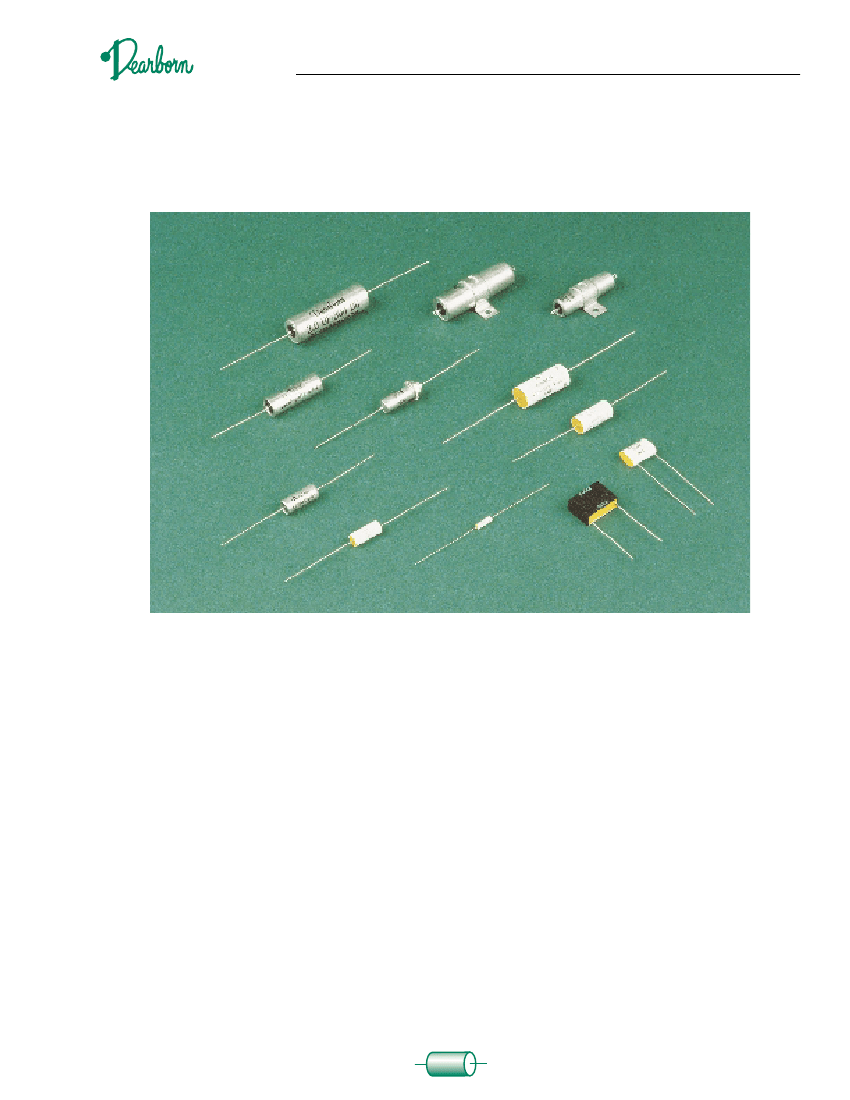

electronics
,
inc.
P
OLYCARBONATE
F
ILM
C
APACITORS
Metalized Polycarbonate Film Capacitors Typical Characteristics
………………D3
Type 259P …………………………………………………………………D4
Type 260P …………………………………………………………………D6
Type 611G …………………………………………………………………D9
Type 620P…………………………………………………………………D10
Type 629P…………………………………………………………………D13
Type 632P…………………………………………………………………D15
Type 642P…………………………………………………………………D18
Polycarbonate Film/Foil Capacitors Typical Characteristics
……………………D21
Type 610P…………………………………………………………………D22
D-1
D-1
electronics
,
inc.
POLYCARBONATE FILM CAPACITORS
General Electrical, Physical, and Environmental Characteristics
Test Procedures:
Section J of the catalog covers the
applicable test procedures
Humidity Test:
The Non-Hermetically sealed units shall be
tested as outlined in section J “Humidity Test”
As a result of the test there shall be:
• No visible damage
• Max.
C of ± 5%
• Min. IR = 50% of initial limit
• Max. DF = .5%
Electrical Characteristics:
Capacitance, Dissipation Factor, Insulation
Resistance, and Dielectric Strength shall be
measured as specified in section J.
Physical Characteristics:
The Lead Strength shall be measured as
specified in section J.
DC Life:
140% of rated voltage at 125°C for 250 hours
except for the 260P and 611G, which shall be tested at
125% of rated voltage at 105°C. for 250 hours.
As a result of the test there shall be:
• No permanent open or short circuit
Environmental Characteristics:
Vibration Test: (Condition B)
No mechanical damage, short, open or
intermittent circuit
• No visible damage
• Max.
C of ± 5%
• Min. IR = 50% of initial limit
Moisture Resistance:
The hermetically sealed units shall be tested
as outlined in the Moisture Resistance testing
of section J.
As a result of the test there shall be:
• No visible damage
• Max.
C of ± 5%
• Min. IR = 50% of initial limit
• Max. DF = .5%
• Max. DF = 0.3%
AC Life:
The 259P shall be tested at 110% of the
rated rms voltage at 400 Hz for 250 hours at 85°C.
As a result of the test there shall be:
• No permanent open or short circuit
• No visible damage
• Max.
C of ± 5%
• Min. IR = 50% of initial limit
• Max. DF = 0.5%
D-2
electronics
,
inc.
METALIZED POLYCARBONATE FILM CAPACITORS
TYPICAL CHARACTERISTICS — METALIZED POLYCARBONATE TYPES
CAPACITANCE CHANGE VS TEMPERATURE
METALIZED POLYCARBONATE
1.5
1
0.5
CAPACITANCE CHANGE VS FREQUENCY
METALIZED POLYCARBONATE
% CAPACITANCE CHANGE
0.2
0.1
0
-0.1
% CAPACITANCE CHANGE
0
-0.2
-0.5
-0.3
-1
-0.4
-1.5
-50
-25
0
25
50
75
100
125
-0.5
100
1000
10000
100000
TEMPERATURE IN DEGREES C
DISSIPATION FACTOR VS TEMPERATURE
METALIZED POLYCARBONATE
0.5
FREQUENCY Hz
DISSIPATION FACTOR VS FREQUENCY
METALIZED POLYCARBONATE
% DISSIPATION FACTOR
0.7
0.6
0.5
% DISSIPATION FACTOR
0.4
0.3
0.4
0.2
0.3
0.2
0.1
0
-50
-25
0
25
50
75
100
125
0
100
0.1
TEMPERATURE IN DEGREES C
MEASURED AT 1KHz
1000
10000
100000
FREQUENCY Hz
INSULATION RESISTANCE VS TEMPERATURE
METALIZED POLYCARBONATE
1000000
MEGOHMS x MICROFARADS
100000
10000
1000
25
TYPICAL
50
75
100
125
TEMPERATURE IN DEGREES C
ELECTRICAL CHARACTERISTICS AS A FUNCTION OF
TEMPERATURE AND FREQUENCY
D-3
electronics
,
inc.
METALIZED POLYCARBONATE FILM CAPACITORS
TYPE 259P
Metal-Case
Hermetically-Sealed
AC Rated
Metalized Polycarbonate
Film Capacitors
Features —
• Full Rating at 85°C and 400Hz
• High Stability
• Small Size
• Low Power Dissipation
• Low Dielectric Absorption
• Approved to Mil-C-39022/7
Major Applications:
Motor run, speed control, filtering
ELECTRICAL SPECIFICATIONS —
Capacitance Range:
0.01 µf to 10.0 µf
PHYSICAL CHARACTERISTICS —
Construction:
Non-inductive wound metalized polycarbonate
AC Voltage Range:
80 VRMS to 440 VRMS at 400Hz
Capacitance Tolerance:
±20%, ±10%, ±5%
Case:

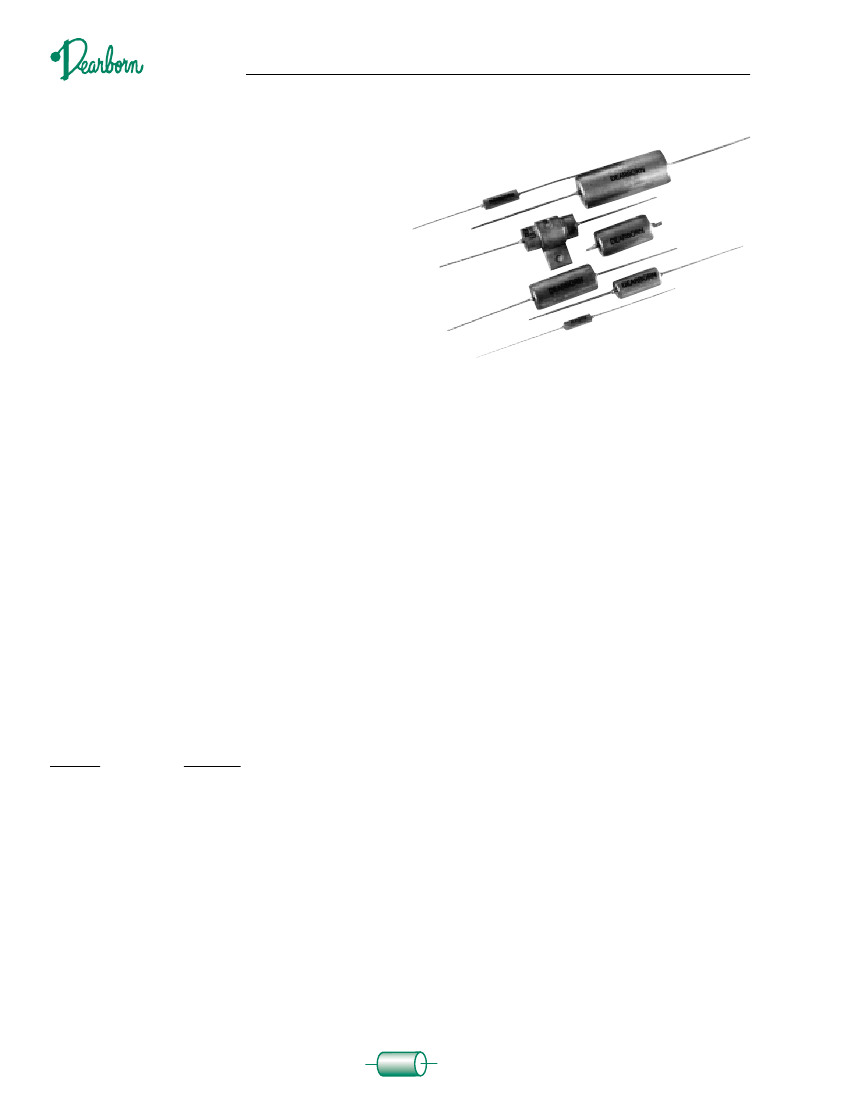

Hermetically sealed metal enclosure. Styles available are shown
in picture to right and in the general section in the front of the
catalog
Operating Temperature:
-55°C to 105°C
Voltage Derating:
At +105°C,
70% of +85°C rating
Lead Material:
Solder coated solid wire
Dissipation Factor:
0.13% maximum
Lead Wire Sizes:
Case Dia.
.312
.400 and over
Lead AWG
No. 20
No.18
AC Voltage Test:
140% of rated voltage for 2 minutes
Insulation Resistance:
Measurements made after a 2 minute charge at
200 volts DC for AC ratings equal to or less than
330 VRMS and at 400 volts DC for AC ratings
greater than 330 VRMS
At +25°C,
50,000 Megohm-Microfarads,
need not exceed 100,000 Megohms
At +85°C,
10,000 Megohm-Microfarads,
need not exceed 50,000 Megohms
At +105°C,
2,000 Megohm-Microfarads,
need not exceed 10,000 Megohms
Lead Pull:
5lbs. (2.3KG) for one minute. No physical damage
Lead Bend:
After three complete consecutive bends. No damage
Marking:
Dearborn trademark, type or catalog number, capacitance,
tolerance and voltage
D-4
electronics
,
inc.
METALIZED POLYCARBONATE FILM CAPACITORS
TYPE 259P
STANDARD RATINGS
Capacitance
µf
Code
0.01
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.5
2.0
2.2
2.5
3.0
3.3
4.0
4.7
5.0
6.8
8.0
9.0
10.0
103
123
153
183
223
273
333
393
473
563
683
823
104
124
154
184
224
274
334
394
474
564
684
824
105
155
205
225
255
305
335
405
475
505
685
805
905
106
165
165
165
165
165
165
165
165
165
165
165
165
165
165
165
165
165
165
155
150
150
145
140
140
135
130
130
110
100
090
080
165
165
165
165
165
165
165
165
165
165
165
165
165
165
165
165
165
165
155
150
150
145
140
140
135
130
130
110
100
090
080
0.312 0.875
0.312 0.875
0.312 0.875
0.312 0.875
0.312 0.875
0.312 0.875
0.312 1.125
0.312 1.125
0.400 0.875
0.400 0.875
0.400 1.125
0.400 1.125
0.400 1.375
0.400 1.375
0.562 1.125
0.562 1.125
0.562 1.375
0.562 1.375
0.562 1.625
0.670 1.625
0.670 1.625
0.670 1.875
0.750 1.875
0.750 1.875
0.750 2.125
0.750 2.375
0.750 2.375
1.000 1.875
1.000 2.125
1.000 2.375
1.000 2.625
LOW VOLTAGE RANGE
80 VRMS TO 165 VRMS
400 Hz
Volts RMS Voltage
Inches
85°C
Code
D
L
INTERMEDIATE VOLTAGE RANGE
215 VRMS TO 330 VRMS
400 Hz
Volts RMS Voltage
Inches
85°C
Code
D
L
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
320
320
300
300
265
215
215
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
320
320
300
300
265
215
215
0.312
0.400
0.400
0.400
0.400
0.400
0.400
0.400
0.400
0.400
0.400
0.500
0.500
0.562
0.562
0.562
0562
0.562
0.562
0.670
0.670
0.750
0.750
0.750
0.750
1.000
1.000
1.000
0.875
0.875
0.875
0.875
0.875
1.125
1.125
1.125
1.125
1.375
1.375
1.125
1.125
1.375
1.375
1.625
1.625
1.875
1.875
1.625
1.625
1.875
1.875
2.125
2.125
1.875
2.625
2.625
HIGH VOLTAGE RANGE
390 VRMS TO 440 VRMS
400 Hz
Volts RMS Voltage
Inches
85°C
Code
D
L
440
440
440
440
440
440
440
440
440
440
440
440
440
435
435
430
430
425
425
410
410
390
390
440
440
440
440
440
440
440
440
440
440
440
440
440
435
435
430
430
425
425
410
410
390
390
0.312
0.400
0.400
0.400
0.400
0.400
0.400
0.562
0.562
0.562
0.562
0.562
0.562
0.670
0.670
0.670
0.670
0.750
0.750
1.000
1.000
1.000
1.000
1.125
1.125
1.125
1.125
1.125
1.375
1.375
1.125
1.125
1.375
1.375
1.625
1.625
1.625
1.625
1.875
1.875
2.375
2.375
1.875
1.875
2.375
2.375
Additional capacitance values, voltages, and tolerances are available upon request
*The dimensions shown are for style 02. The dimensions for other styles are included in the general section in the front of the catalog
D-5
MEMS Vibration Analyzer with Frequency Response Compensation
Applications: Process Control and Industrial Automation Field Instrumentation and Smart Transmitters Automotive Applications Motor Control Electronics Test and Measurement Avionics Building Control an...
雨中 ADI Reference Circuit
TI's latest seminar
TI will hold a seminar in August, if you are interested, you can take a look!!!...
稔珏 ARM Technology
I have a problem, please help me!
I adjusted a sine signal generator and used SignalTap Ⅱ to measure the waveform. After downloading, I clicked the Autorun Analysis button and the following error occurred: Error: Can't find the instan...
eeleader FPGA/CPLD
Which operating system is best for embedded graphics development?
Which operating system is better for embedded graphics development? WinCE or UCLinux? Without considering the cost, which one is easier to use? Which one supports more ARM chip types? Thank you...
well2003 Embedded System
!!! Super contest question!!! Those who don’t read it will go home and cry!
[i=s] This post was last edited by paulhyde on 2014-9-15 08:54 [/i] :victory: :victory: ! ! Gathering! ! ! Competition questions! Those who don't read it will cry at home! Controlled cars: Two-dimensi...
sunnyzhu12 Electronics Design Contest
Interactive Magnetic Fluid Project
An interactive, ferrofluidic project. The electromagnet is controlled via a web server running on a Raspberry Pi Pico W and MicroPython....
dcexpert MicroPython Open Source section

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 1784  1337  2224  2138  1775  36  27  45  44  22
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
