BS1-028-G860-95 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BS1-028-G860-95

Preview

BS1-028-G860-95: DescriptionBoard Connector, 28 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size114KB，1 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric View All

BS1-028-G860-95 Overview

Board Connector, 28 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Plug

BS1-028-G860-95 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304773382
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.1 inch
subject depth	0.339 inch
body length	2.8 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	100 Cycles
Filter function	NO
Insulation resistance	10000000000 Ω
JESD-609 code	e3
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.921 mm
Rated current (signal)	3 A
Guideline	UL
Terminal pitch	5.08 mm
Termination type	SURFACE MOUNT
Total number of contacts	28

Preview

Download Datasheet

View All

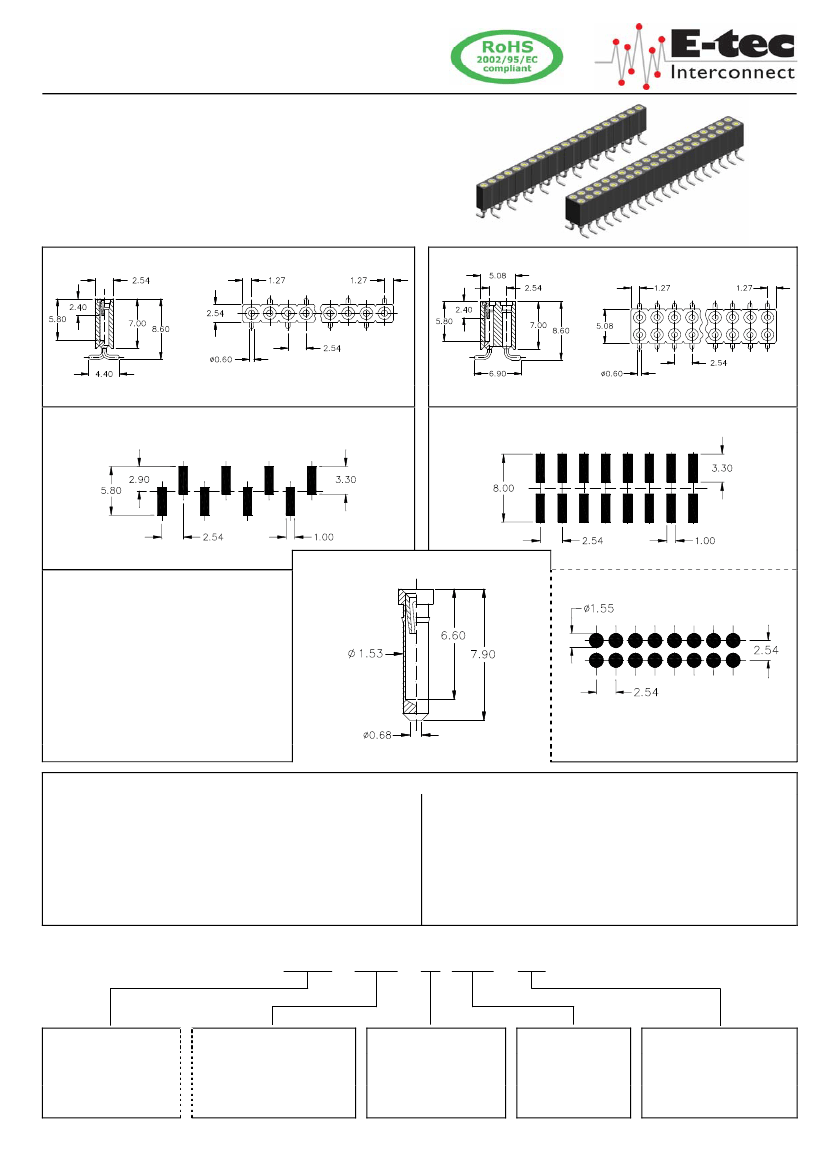

BS - Series

„Jumbo Contact“

2,54mm pitch

SMT

Female Headers

2,54mm pitch

SMT

female header with precision „Jumbo

Contact“ for board to board connections.

Accepts square pins 0,65 x 0,65mm max. (Pin Headers),

as well as round pins



0,65 to 0,85mm max.

The female headers are available in any number of

contacts, up to a maximum of 50 for the single row, and

100 for the double row.

single row

dual row

BS1 - xxx - G860 -

95

single row

PCB layout

BS2 - xxx - G860 -

95

dual row PCB layout

other available SMT Terminal

Only for dual row

702

Specifications

Mechanical data

Insertion force (test probe



0,66)

Extraction force (test probe



0,66)

Contact life



100 cycles

Operating temperature

Processing Temperature

2,00 N if Terminal 860

1,00 N for all Terminals

-55° C to +125° C

+250°C

+0/-5°C

for 20~40sec.

high temp plastic UL 94 V-O

CuZn

BeCu

Electrical data

Insulation resistance

Breakdown voltage

Contact resistance

Current rating

10

4

M min.

500 V AC for 1 minute

30 m / contact max.

3 A max., 100V

depends on the Terminal style

4,0mm / .157“

Material

Insulator

Terminal

Contact

(RoHS compliant)

Insertion depth

maximum

minimum

BSx - xxx - G xxx - xx

How to order

Series

BS1

=

single row..

BS2

=

double row.

Nbr of contacts

……..

002

……..

004

to

050

100

Connector style

G

= straight

Terminal Type

pls. ref. to the

drawings shown

above

Plating

-

95

=

tin/gold

(tin leadfree)

others on request

11

Recommended Resources

Do you know the possible factors that cause the analog quantity to be interfered with?

Variable frequency transistor oscillation circuit

Xinghui LSIB, LSIC type air conditioning fan circuit diagram
