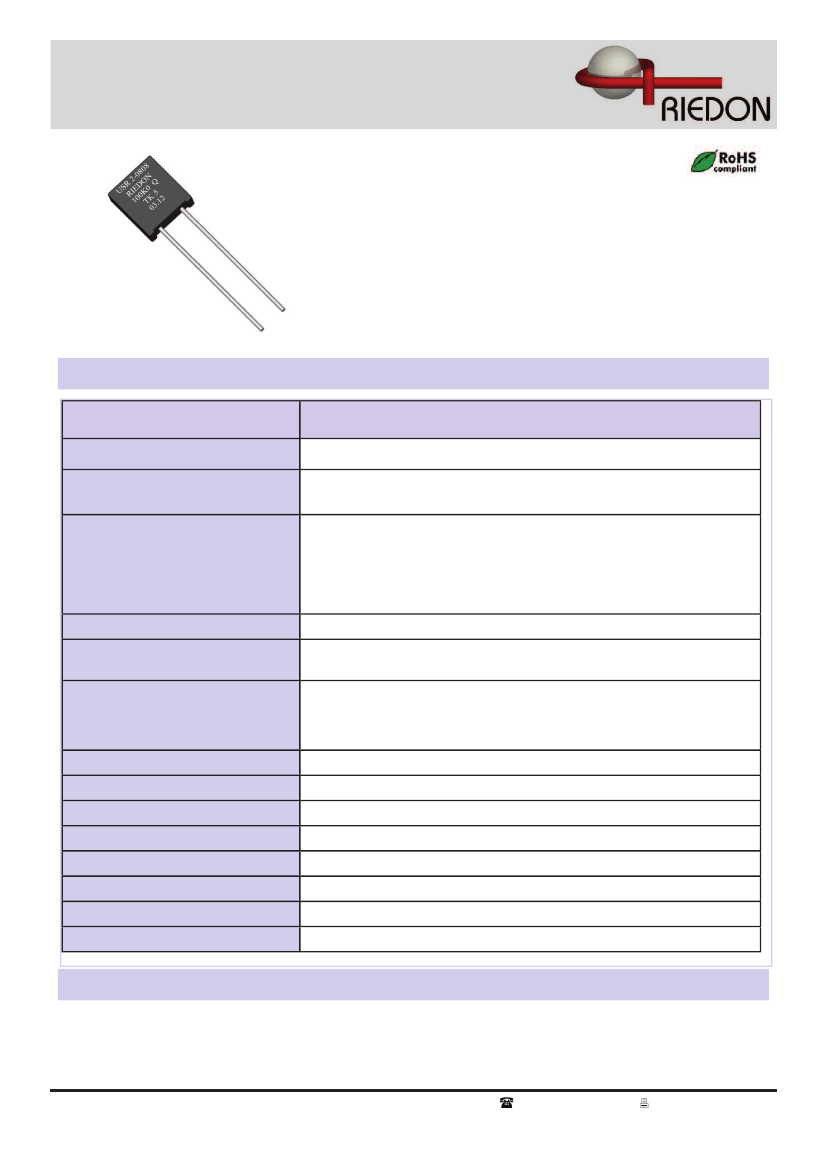

USR 2-0808
Precision Foil Resistors
•
•
•
•
•
Resistances from 1Ohm to 150kOhms
Power Rating to 0.6 Watts
Resistance Tolerances to ±0.005%
TCR to ±1ppm/°C
Load Stability to 0.01%
SPECIFICATIONS
Type
Resistance Range
Power rating (70°C)
USR 2-0808
1.0 to 150 kOhms
0.6W (<100 kOhms)
0.4W (>100 kOhms)
Tolerances
from 1.0 Ohms
from 5.0 Ohms
from 12.0 Ohms
from 25.0 Ohms
from 100.0 Ohms
Stability
Shelf Life Stability
0.1% / 0.25% / 0.5% / 1%
0.05% / 0.1% / 0.25% / 0.5% / 1%
0.02% / 0.05% / 0.1% / 0.25% / 0.5% / 1%
0.01% / 0.02% / 0.05% / 0.1% / 0.25% / 0.5% / 1%
0.005% / 0.01% / 0.02% / 0.05% / 0.1% / 0.25% / 0.5% / 1%
0.01%
25ppm / ∆R after 1 year
50ppm / ∆R after 3 year
max. ±5ppm/°C (-55 to 155°C)
typ. ±3ppm/°C (-55 to 125°C)
upon request ±1ppm/°C (0 to 60°C)
and ±1ppm/°C (-55 to 125°C)
> 10GOhm
< 0.1µV/°C
-55 to 155°C
NiCr-Foil
Al
2
O
3
PBTP / Epoxy
Cu tinned
2
Temperature Coefficient
Insolation Resistance
Thermal EMF
Operating Temperature Range
Resistor Material
Substrate
Housing
Connector Material
Terminals
Ordering Information
Part Description: Part Type - Resistance - Grid Type -
Tolerance - TCR
Example: USR 2-0808 150 kOhms D 0.1% 5ppm
Riedon Inc.
8/15

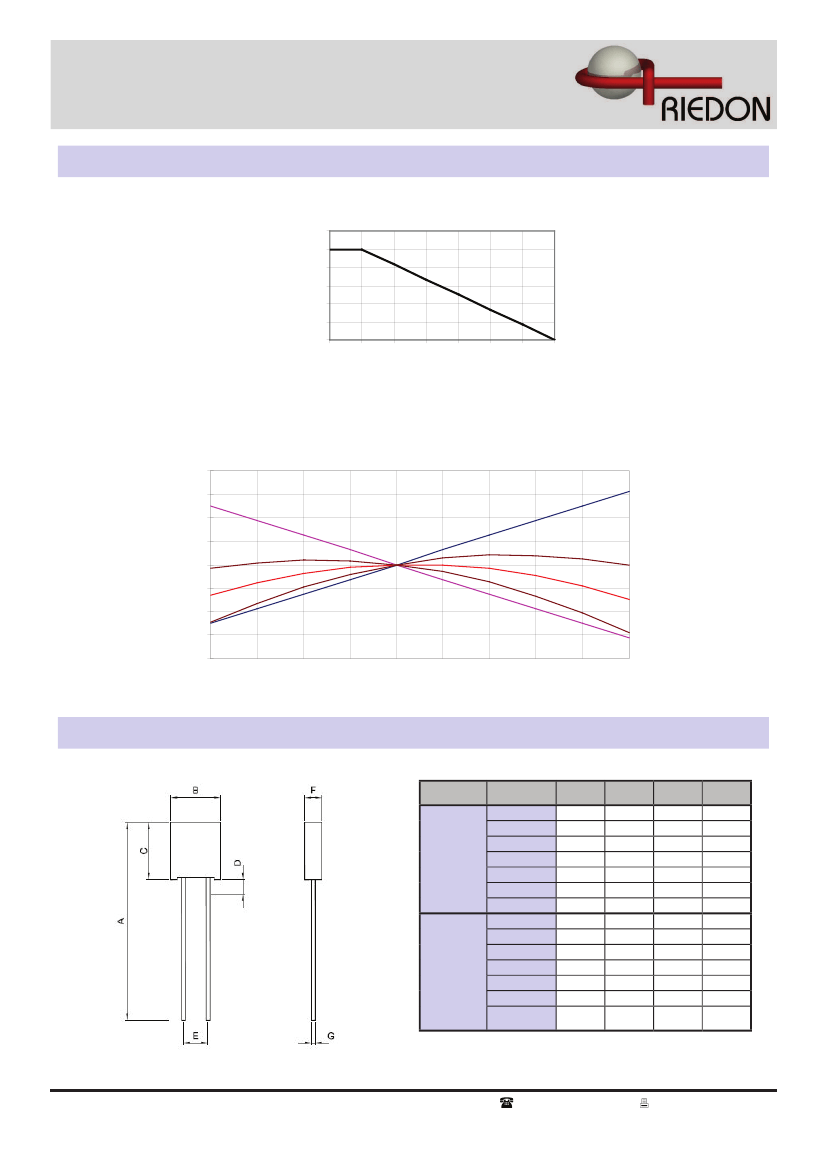

Grid D = 3.81mm (0.15inches) Lead Spacing
Grid J = 5.08mm (0.2inches) Lead Spacing
If none specified, Grid D is default
300 Cypress Avenue
Alhambra CA 91801
(626) 284-9901
(626) 284-1704
