PE42641MLBC-Z: DescriptionIC RF switch sp4t 50 ohm 16-qfn; CategoryWireless rf/communication Radio frequency and microwave; File Size232KB，8 Pages; ManufacturerpSemi (peregrine semiconductor); Websitehttp://www.psemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PE42641MLBC-Z Overview

IC RF switch sp4t 50 ohm 16-qfn

PE42641MLBC-Z Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	pSemi (peregrine semiconductor)
package instruction	LCC16,.12SQ,20
Reach Compliance Code	compliant
ECCN code	EAR99
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	37.99 dBm
Maximum insertion loss	0.8 dB
Minimum isolation	23 dB
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	16
Maximum operating frequency	3000 MHz
Minimum operating frequency	100 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	LCC16,.12SQ,20
power supply	2.75 V
RF/Microwave Device Types	DIVERSITY SWITCH
surface mount	YES
technology	CMOS
Maximum voltage standing wave ratio	3

Preview

Download Datasheet

View All

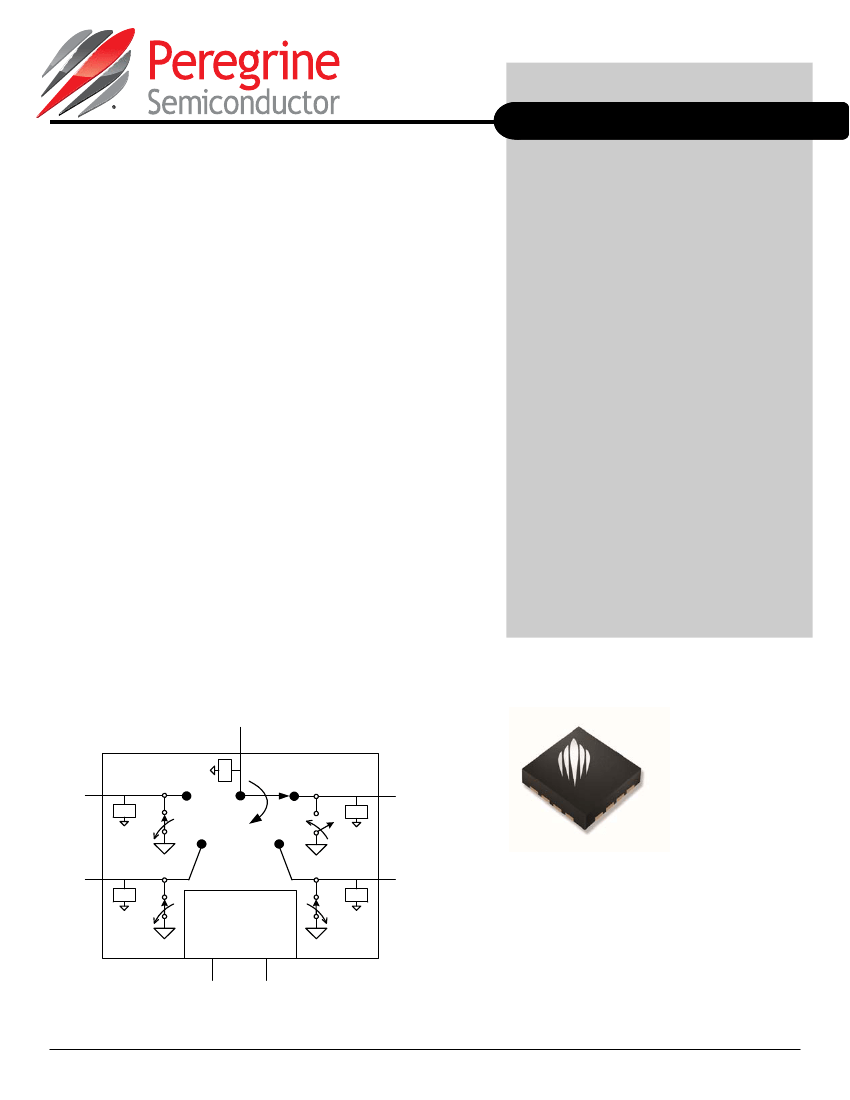

Product Specification

PE42641

Product Description

The PE42641 is a HaRP™-enhanced SP4T RF switch

developed on the UltraCMOS

process technology. This

switch contains 4 identical WEDGE/CDMA compliant TX

paths and can be used in various GSM and WCDMA

mobile applications as well as other wireless applications

up to 3000 MHz. It is also suitable for antenna band

switching and switchable matching networks for cellular

and non-cellular mobile applications. It integrates on-

board CMOS control logic with a low voltage CMOS-

compatible control interface and requires no DC blocking

capacitors. This RoHS-compliant part is available in a

standard 3



0.75 mm QFN package.

Peregrine’s HaRP™ technology enhancements deliver

high linearity and exceptional harmonics performance. It

is an innovative feature of the UltraCMOS

process,

providing performance superior to GaAs with the

economy and integration of conventional CMOS.

SP4T UltraCMOS

RF Switch

100 MHz – 3.0 GHz

Features



Symmetric, High-Power SP4T: All

ports WEDGE/CDMA-Compliant



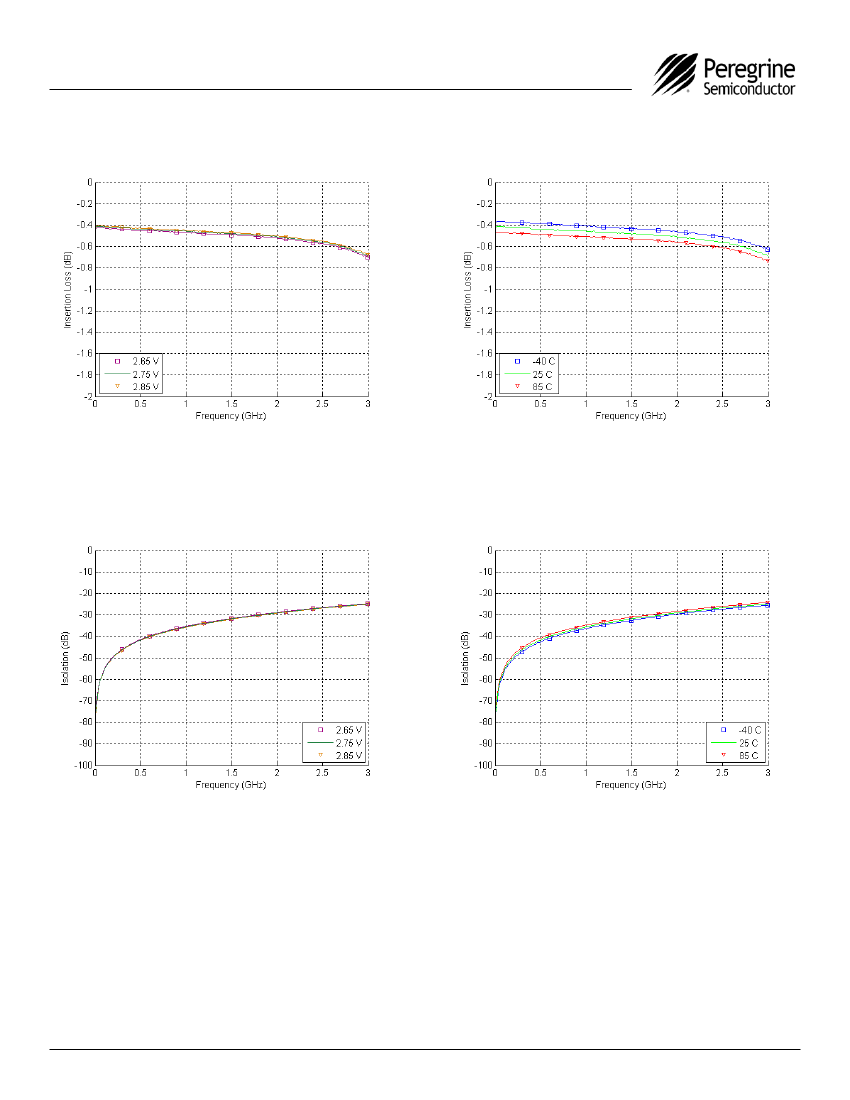

Very Low Insertion Loss: 0.45 dB @

1000 MHz, 0.6 dB @ 2000 MHz



HaRP



- enhanced Technology for

Unparalleled Linearity

Low harmonics of 2f

= -86 dBc and

= -81 dBc at +35 dBm

IMD3 of -110 dBm at WCDMA Band I

IIP3 of +68 dBm



Very high isolation: 35 dB @ 900 MHz,

29 dB @ 1900 MHz



Exceptionally high ESD tolerance:



Class 3 (4.0 kV HBM) on ANT pin

Class 2 (2.0 kV HBM) on all pins

Accepts 1.8V and 2.75V levels



Integrated decoder for 2-pin control



Low 4.5 ohm series ON resistance



No blocking capacitors required

Figure 1. Functional Diagram

ANT

Figure 2. Package Type

16-lead 3



3 mm QFN

ESD

RF1

ESD

RF3

RF2

ESD

RF4

CMOS

Control/Driver

and ESD

Document No. DOC-17914-2

│

www.psemi.com

Page 1 of 8

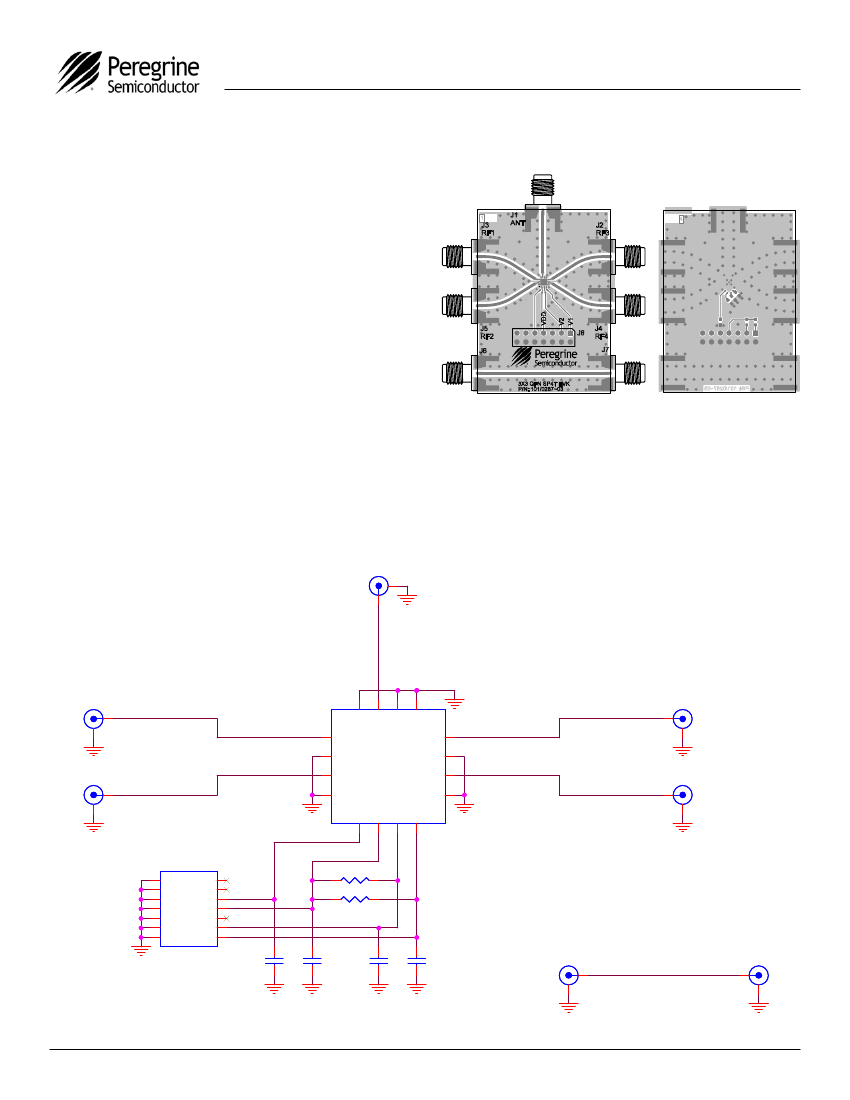

PE42641MLBC-Z Related Products

	PE42641MLBC-Z	EK42641-03	EK42641-04	PE42641MLBD-Z	EK42641-02	PE42641MLI-Z	PE42641MLIBB	PE42641MLIBB-Z	PE42641MLI
Description	IC RF switch sp4t 50 ohm 16-qfn	eval board sp4t switch pe42641	EVAL BOARD SP4T SWITCH PE42641	IC RF SWITCH SP4T 50 OHM 16QFN	KIT EVAL FOR 42641 RF SWITCH	SP4T, 0MHz Min, 3000MHz Max, 1 Func, 0.75dB Insertion Loss-Max, CMOS, 3 X 3 MM, 0.75 MM HEIGHT, GREEN, QFN-16	SP4T, 0MHz Min, 3000MHz Max, 0.75dB Insertion Loss-Max, 3 X 3 MM, 0.75 MM HEIGHT, GREEN, QFN-16	SP4T, 0MHz Min, 3000MHz Max, 1 Func, 0.75dB Insertion Loss-Max, CMOS, 3 X 3 MM, 0.75 MM HEIGHT, GREEN, QFN-16	SP4T, 0MHz Min, 3000MHz Max, 1 Func, 0.75dB Insertion Loss-Max, CMOS, 3 X 3 MM, 0.75 MM HEIGHT, GREEN, QFN-16
Is it Rohs certified?	conform to	-	-	conform to	-	conform to	conform to	conform to	conform to
package instruction	LCC16,.12SQ,20	-	-	QFN-16	-	LCC16,.12SQ,20	-	LCC16,.12SQ,20	LCC16,.12SQ,20
Reach Compliance Code	compliant	-	-	compliant	-	compliant	compliant	compliant	compliant
Characteristic impedance	50 Ω	-	-	50 Ω	-	50 Ω	50 Ω	50 Ω	50 Ω
structure	COMPONENT	-	-	COMPONENT	-	COMPONENT	COMPONENT	COMPONENT	COMPONENT
Maximum input power (CW)	37.99 dBm	-	-	36 dBm	-	37.99 dBm	37.99 dBm	37.99 dBm	37.99 dBm
Maximum insertion loss	0.8 dB	-	-	0.75 dB	-	0.75 dB	0.75 dB	0.75 dB	0.75 dB
Maximum operating frequency	3000 MHz	-	-	3000 MHz	-	3000 MHz	3000 MHz	3000 MHz	3000 MHz
Maximum operating temperature	85 °C	-	-	85 °C	-	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-	-	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C
RF/Microwave Device Types	DIVERSITY SWITCH	-	-	DIVERSITY SWITCH	-	SP4T	SP4T	SP4T	SP4T
Maximum voltage standing wave ratio	3	-	-	3	-	3	3	3	3
JESD-609 code	-	-	-	e4	-	e4	e4	e4	e3
Terminal surface	-	-	-	Nickel/Palladium/Gold (Ni/Pd/Au)	-	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Matte Tin (Sn)
Base Number Matches	-	-	-	1	-	1	1	1	1
