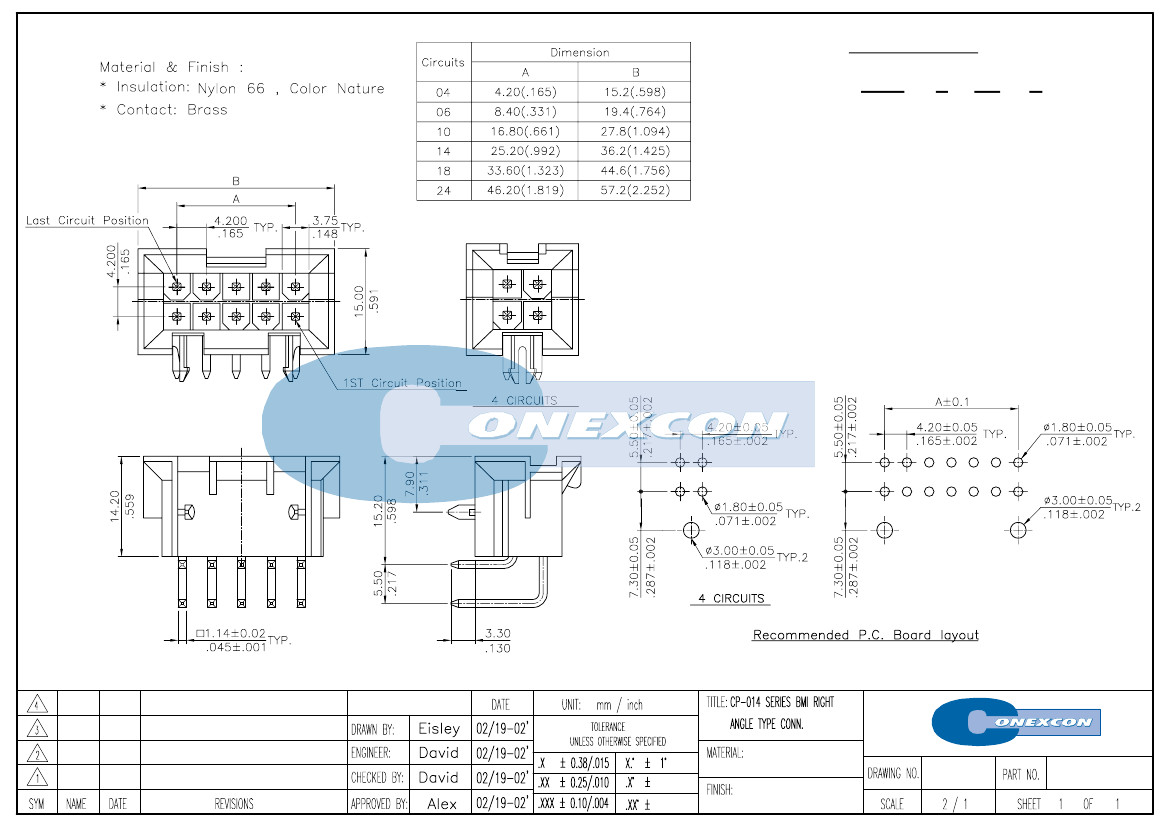

6783-2-06-1

Description
Board Connector, 6 Contact(s), 2 Row(s), Right Angle, 0.165 inch Pitch, Solder Terminal, Locking, Natural Insulator
CategoryThe connector    The connector
File Size64KB,1 Pages
ManufacturerConexcon Group
Download Datasheet Parametric Compare View All

6783-2-06-1 Overview

Board Connector, 6 Contact(s), 2 Row(s), Right Angle, 0.165 inch Pitch, Solder Terminal, Locking, Natural Insulator

6783-2-06-1 Parametric

Parameter NameAttribute value
MakerConexcon Group
Reach Compliance Codeunknown
Board mount optionsSPLIT BOARD LOCK
body width0.591 inch
subject depth0.815 inch
body length0.764 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact materialBRASS
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Insulator colorNATURAL
insulator materialNYLON
Manufacturer's serial number6783
Plug contact pitch0.165 inch
Match contact row spacing0.165 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
PCB contact patternRECTANGULAR
PCB contact row spacing5.5118 mm
polarization keyPOLARIZED HOUSING
reliabilityCOMMERCIAL
Terminal length0.13 inch
Terminal pitch4.191 mm
Termination typeSOLDER
Total number of contacts6
Base Number Matches1
Ordering Information:
6783-
1
T-
2
XX-
3
P
4
1. Connector Series
2. (T) Contact Plating
T =
2.
Tin plated
Recommended Finish
3. (XX) Circuit Size
Available in 4, 6, 10, 14, 18, and 24 circuits
4. (P)Finish Options
P =
0.
UL 94V-0
P =
1.
UL 94V-2
6783

6783-2-06-1 Related Products

6783-2-06-1 6783-2-06-0
Description Board Connector, 6 Contact(s), 2 Row(s), Right Angle, 0.165 inch Pitch, Solder Terminal, Locking, Natural Insulator Board Connector, 6 Contact(s), 2 Row(s), Right Angle, 0.165 inch Pitch, Solder Terminal, Locking, Natural Insulator
Maker Conexcon Group Conexcon Group
Reach Compliance Code unknown unknown
Board mount options SPLIT BOARD LOCK SPLIT BOARD LOCK
body width 0.591 inch 0.591 inch
subject depth 0.815 inch 0.815 inch
body length 0.764 inch 0.764 inch
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation SN SN
Contact completed and terminated TIN TIN
Contact material BRASS BRASS
contact mode RECTANGULAR RECTANGULAR
Contact style SQ PIN-SKT SQ PIN-SKT
Insulator color NATURAL NATURAL
insulator material NYLON NYLON
Manufacturer's serial number 6783 6783
Plug contact pitch 0.165 inch 0.165 inch
Match contact row spacing 0.165 inch 0.165 inch
Installation option 1 LOCKING LOCKING
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 2 2
Number of rows loaded 2 2
PCB contact pattern RECTANGULAR RECTANGULAR
PCB contact row spacing 5.5118 mm 5.5118 mm
polarization key POLARIZED HOUSING POLARIZED HOUSING
reliability COMMERCIAL COMMERCIAL
Terminal length 0.13 inch 0.13 inch
Terminal pitch 4.191 mm 4.191 mm
Termination type SOLDER SOLDER
Total number of contacts 6 6
Base Number Matches 1 1
