Part Number

Search

501527-0830

Description
Board Connector, 80 Contact(s), 2 Row(s), Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size416KB,6 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

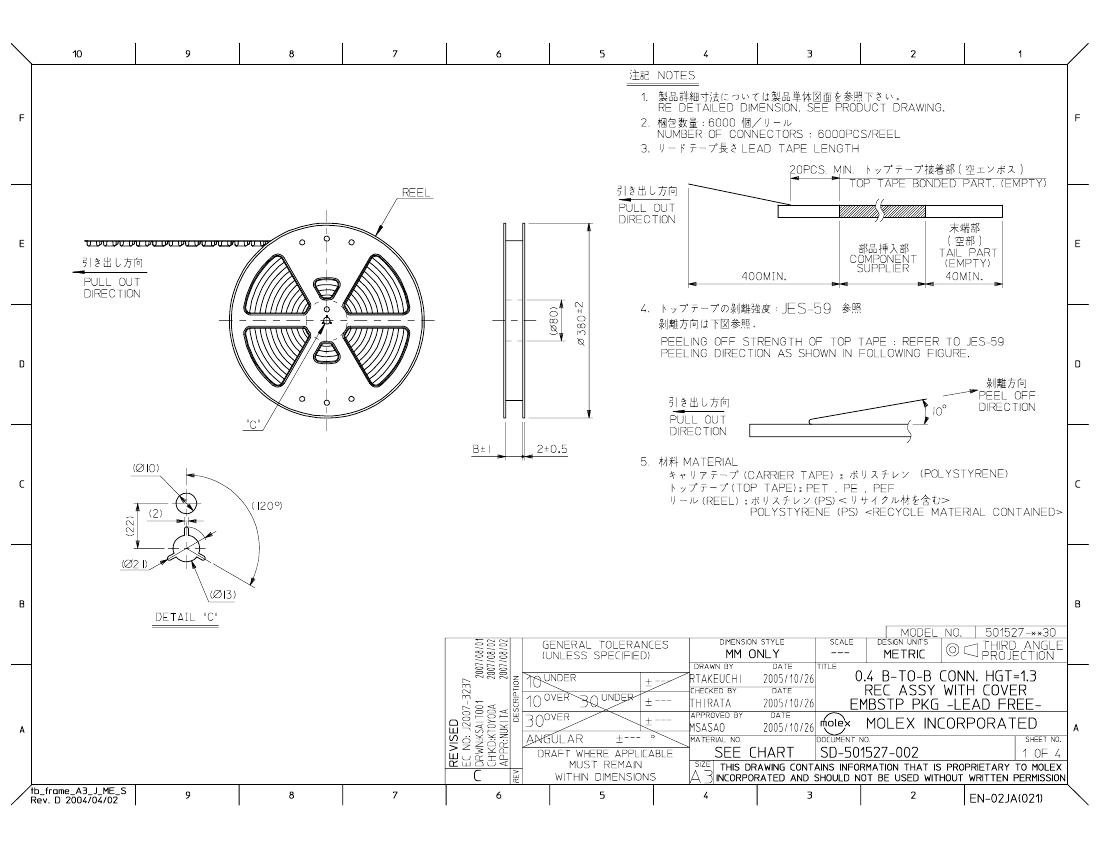

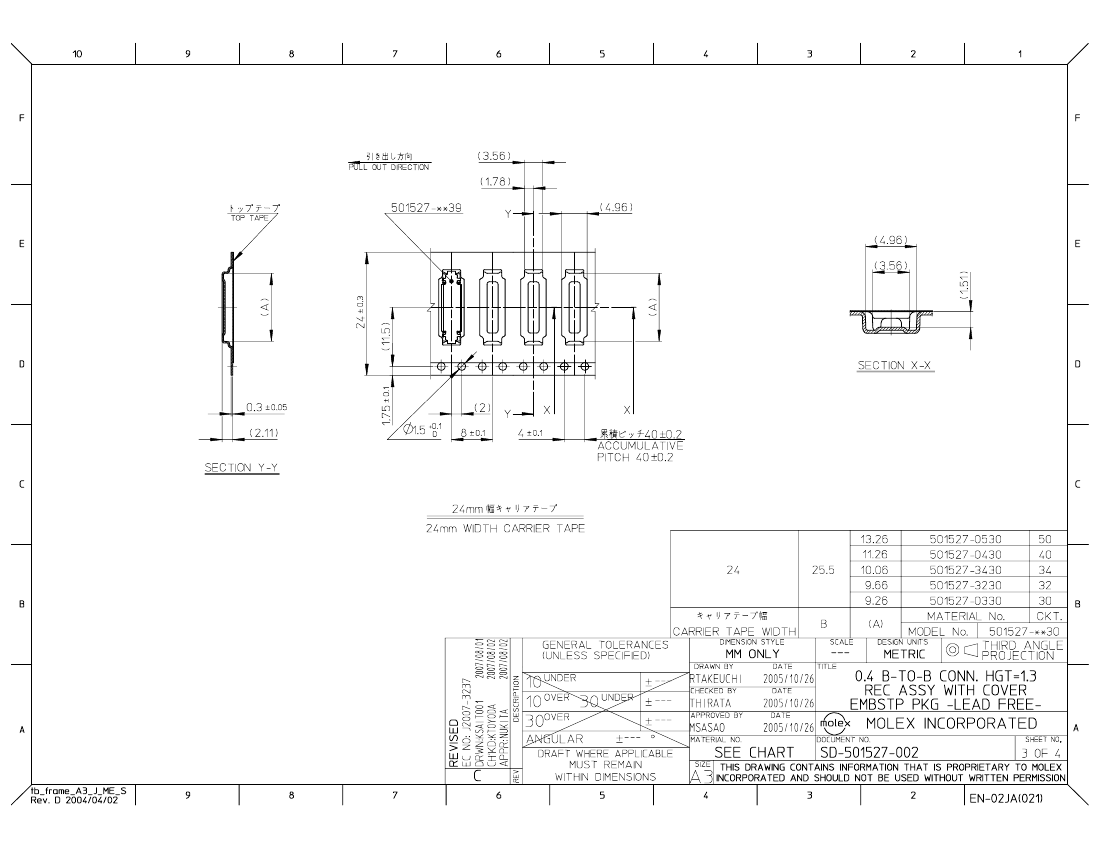

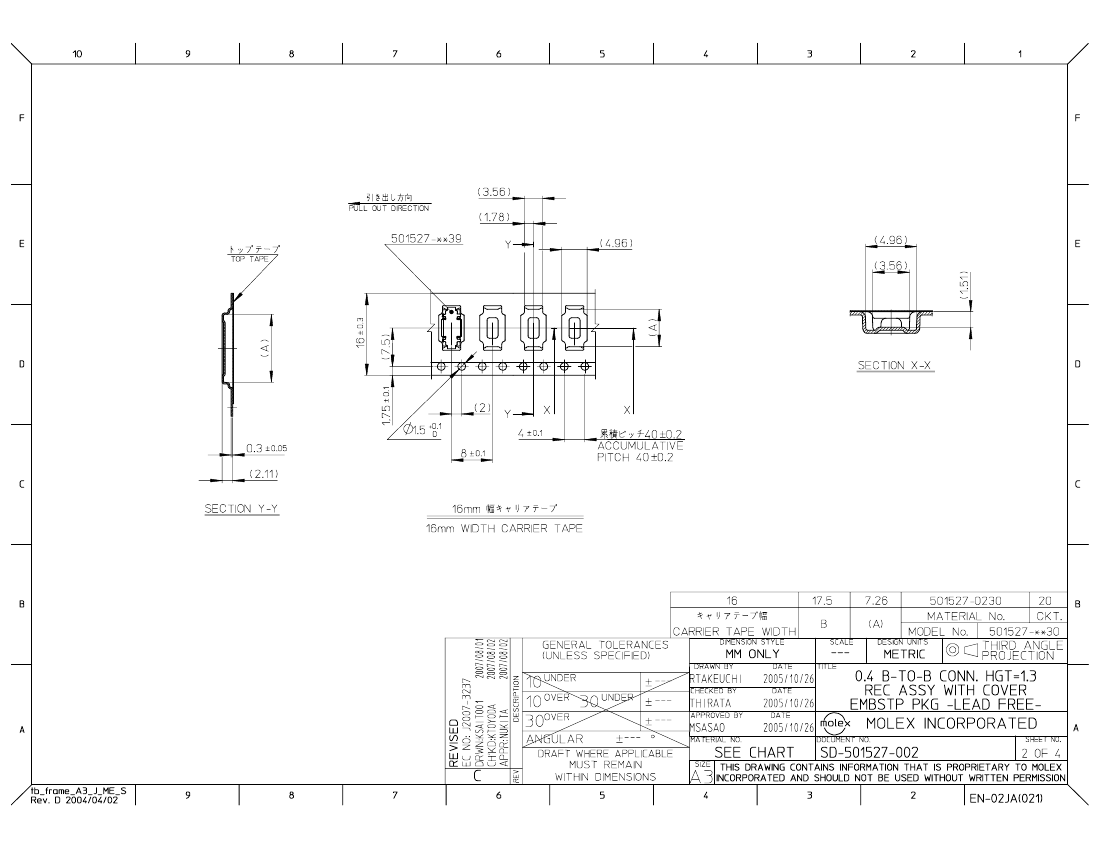

501527-0830 Overview

Board Connector, 80 Contact(s), 2 Row(s), Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle

501527-0830 Parametric

Parameter NameAttribute value
Objectid305454309
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL0
Board mount optionsFITTING NAIL

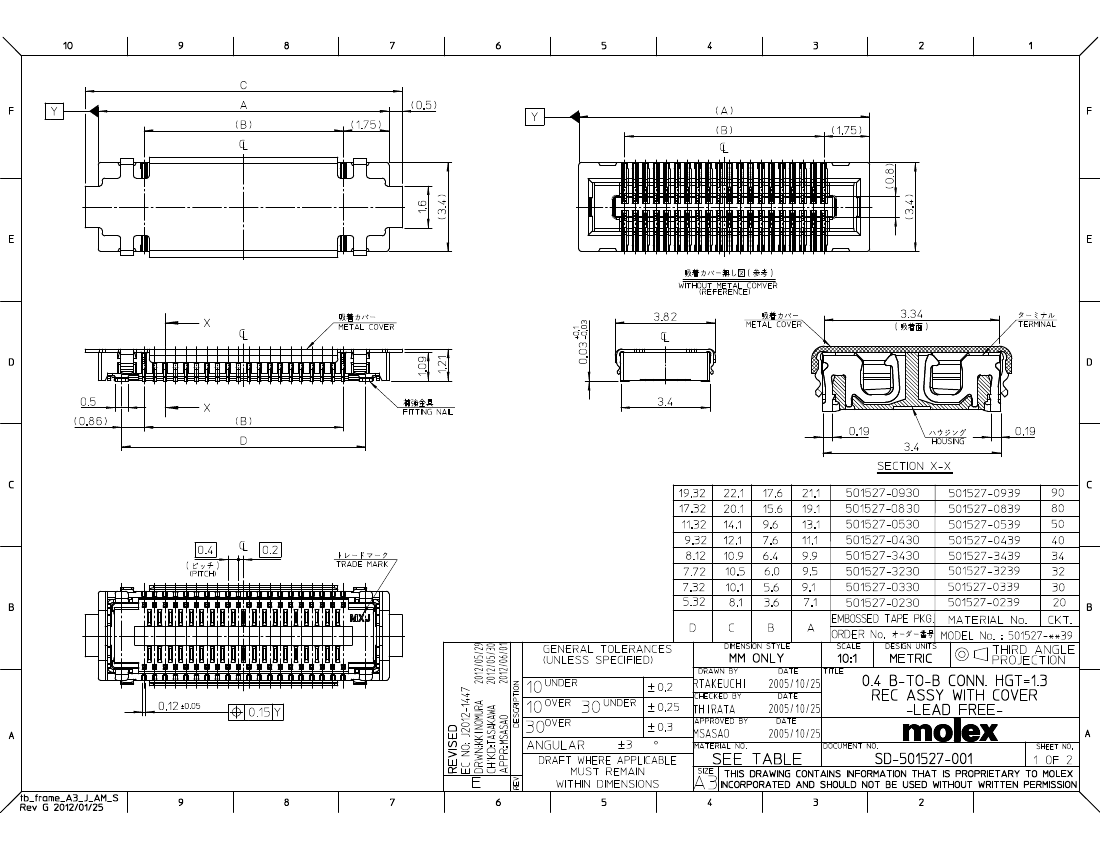

body width0.134 inch
subject depth0.048 inch
body length0.791 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD OVER NICKEL
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance40 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage3500VAC V
Durability30 Cycles
Filter functionNO
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
Plug contact pitch0.016 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-25 °C

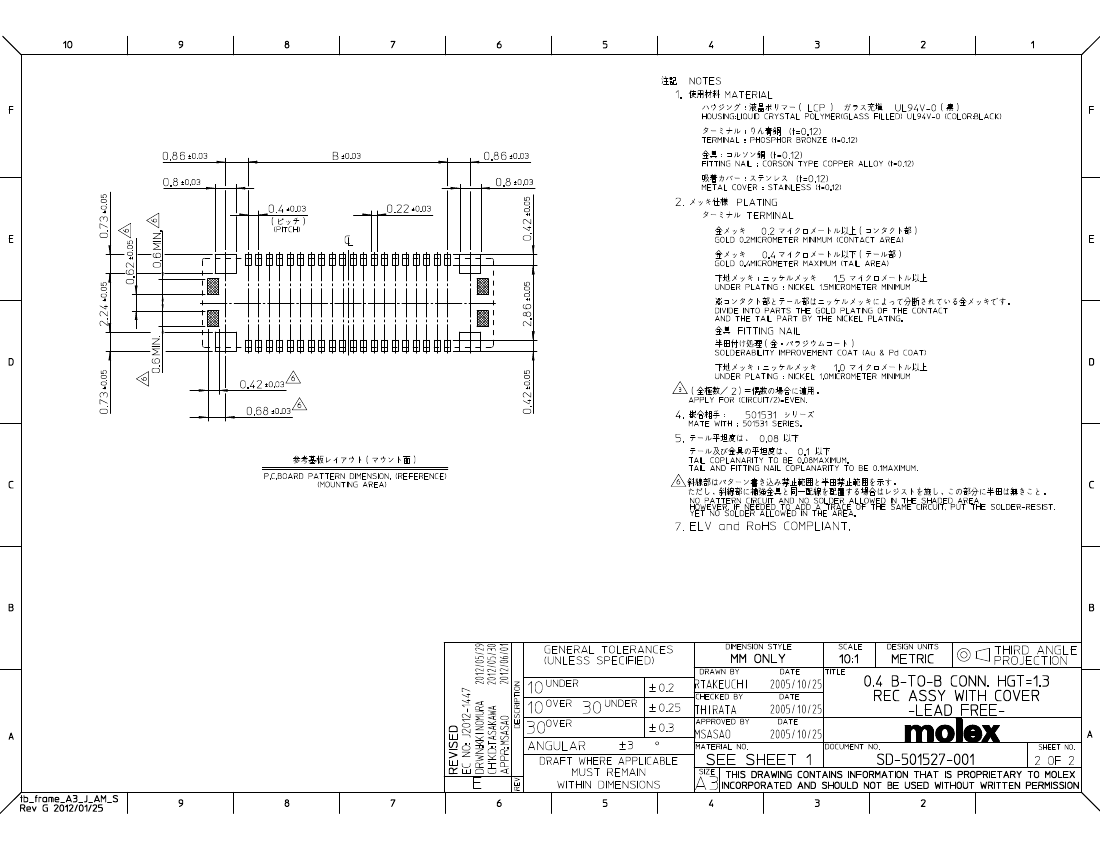

PCB contact patternRECTANGULAR
PCB contact row spacing3.302 mm
Plating thickness8u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)0.3 A
GuidelineUL
Terminal pitch0.4064 mm
Termination typeSURFACE MOUNT
Total number of contacts80
