5962R9579201TRC datasheet, PDF

Datasheet> All Categories > logic> logic> 5962R9579201TRC

5962R9579201TRC: DescriptionHC/UH SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDIP20; Categorylogic logic; File Size123KB，3 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric View All

5962R9579201TRC Overview

HC/UH SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDIP20

5962R9579201TRC Parametric

Parameter Name	Attribute value
Objectid	1529799774
Parts packaging code	DIP
package instruction	DIP, DIP20,.3
Contacts	20
Reach Compliance Code	unknown
YTEOL	0
series	HC/UH
JESD-30 code	R-CDIP-T20
JESD-609 code	e4
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.006 A
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Prop。Delay @ Nom-Sup	24 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class T
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
width	7.62 mm

Preview

Download Datasheet

View All

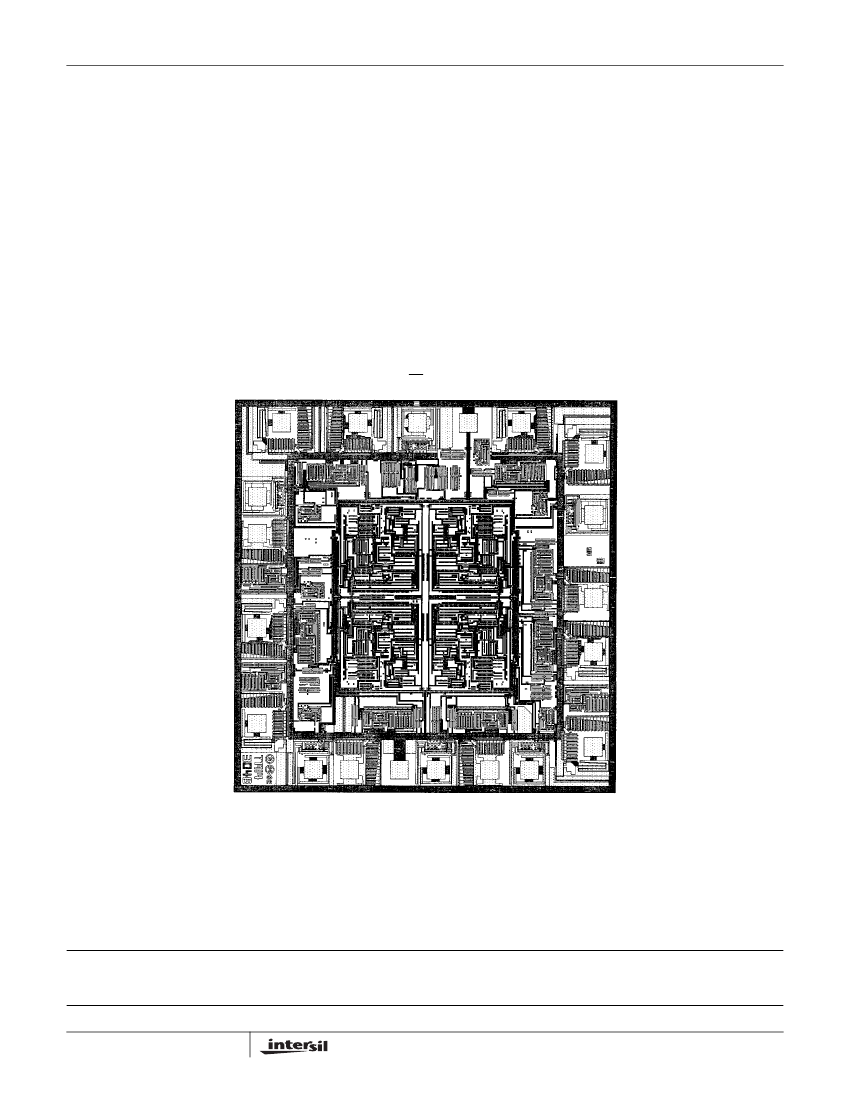

HCS373T

Data Sheet

July 1999

FN4617.1

Radiation Hardened Octal Transparent

Latch, Three-State

Intersil’s Satellite Applications

(SAF) devices are fully

tested and guaranteed to 100kRAD total dose. These QML

Class T devices are processed to a standard flow intended

to meet the cost and shorter lead-time needs of large

volume satellite manufacturers, while maintaining a high

level of reliability.

The Intersil HCS373T is a Radiation Hardened Octal

Transparent Three-State Latch with an active-low output

enable. The HCS373T utilizes advanced CMOS/SOS

technology. The outputs are transparent to the inputs when

the Latch Enable (LE) is HIGH. When the Latch Enable (LE)

goes LOW, the data is latched. The Output Enable (OE)

controls the three-state outputs. When the Output Enable

(OE) is HIGH, the outputs are in the high impedance state.

The latch operation is independent of the state of the Output

Enable.

Flow

Features

• QML Class T, Per MIL-PRF-38535

• Radiation Performance

- Gamma Dose (γ) 1 x 10

RAD(Si)

- Latch-Up Free Under Any Conditions

- SEP Effective LET No Upsets: >100 MEV-cm

/mg

- Single Event Upset (SEU) Immunity < 2 x 10

-9

Errors/Bit-Day (Typ)

• 3 Micron Radiation Hardened CMOS SOS

• Significant Power Reduction Compared to LSTTL ICs

• DC Operating Voltage Range: 4.5V to 5.5V

• Input Logic Levels

- V

= 0.3 V

Max

- V

= 0.7 V

Min

• Input Current Levels Ii

≤

5mA at V

, V

Specifications

Specifications for Rad Hard QML devices are controlled by

the Defense Supply Center in Columbus (DSCC). The SMD

numbers listed below must be used when ordering.

Detailed Electrical Specifications for the HCS373T are

contained in SMD 5962-95792.

A “hot-link” is provided from

our website for downloading.

www.intersil.com/

Intersil’s Quality Management Plan (QM Plan), listing all

Class T screening operations, is also available on our

website.

www.intersil.com/

Pinouts

HCS373DTR (SBDIP), CDIP2-T20

TOP VIEW

20 V

19 Q7

18 D7

17 D6

16 Q6

15 Q5

14 D5

13 D4

12 Q4

11 LE

GND 10

Ordering Information

ORDERING

NUMBER

5962R9579201TRC

5962R9579201TXC

PART NUMBER

HCS373DTR

HCS373KTR

TEMP.

RANGE

(

-55 to 125

GND

HCS373KTR (FLATPACK), CDFP4-F20

TOP VIEW

NOTE:

Minimum order quantity for -T is 150 units through

distribution, or 450 units direct.

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 321-724-7143

Intersil (and design) is a trademark of Intersil Americas Inc.

Satellite Applications Flow™ (SAF) is a trademark of Intersil Corporation.
