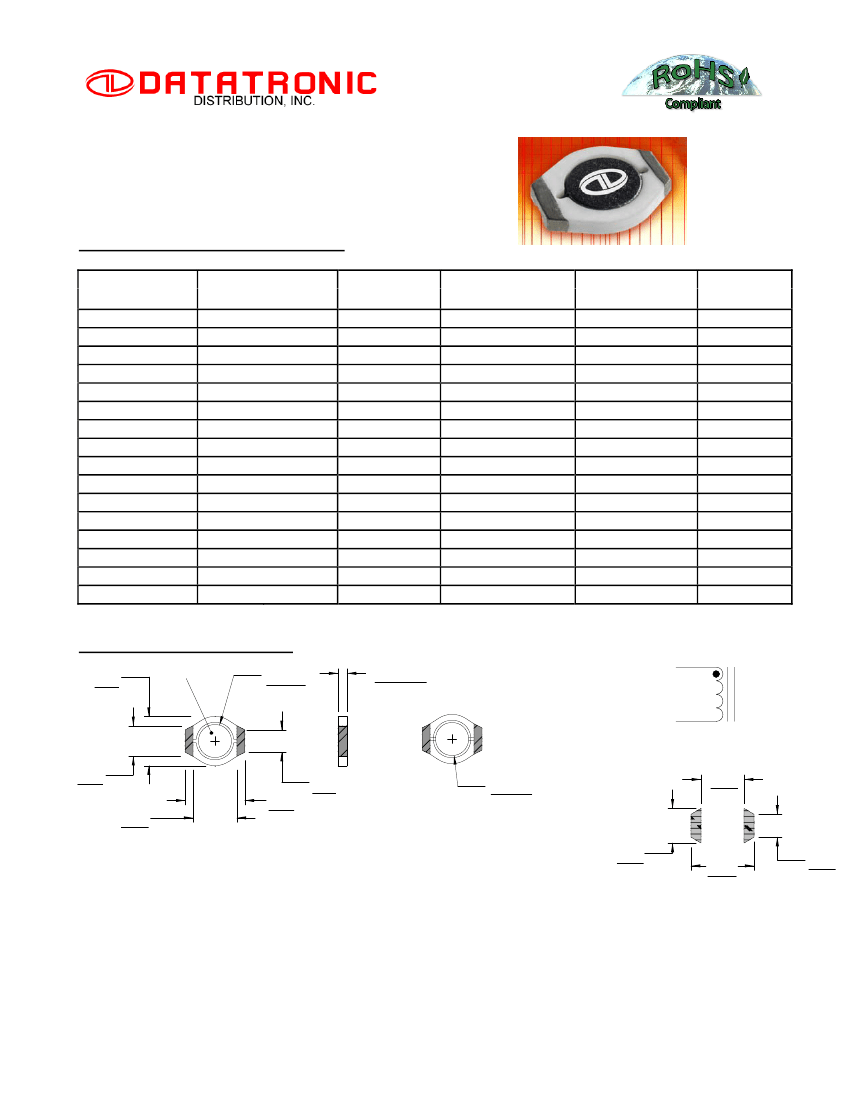

SMD INDUCTOR DR331-5 SERIES

Features

Low Profile Surface Mount Design

Inductance Range from 1.2µH to 330µH

Operating Temp. -20°C to +80°C

Tinned Leads with Leaded Solder is Available

(note 6)

ELECTRICAL SPECIFICATIONS AT 25°C

Inductance (μH )

Part Number

DR331-5-122-Y

DR331-5-152-Y

DR331-5-222-Y

DR331-5-332-Y

DR331-5-472-Y

DR331-5-682-Y

DR331-5-103-Y

DR331-5-153-Y

DR331-5-223-Y

DR331-5-333-Y

DR331-5-473-Y

DR331-5-683-Y

DR331-5-104-Y

DR331-5-154-Y

DR331-5-224-Y

DR331-5-334-Y

1.2

1.5

2.2

3.3

4.7

6.8

100

150

220

330

± 20%

DCR (Ω)

Max.

0.08

0.1

0.12

0.16

0.2

0.32

0.41

0.65

0.85

1.3

1.8

2.5

3.5

I sat (A)

Max. (Note 2)

2.1

1.9

1.6

1.3

1.1

0.9

0.8

0.65

0.5

0.4

0.35

0.3

0.25

0.18

0.16

0.13

I rms

Max. (Note 3)

1.7

1.5

1.4

1.2

1.1

0.85

0.75

0.6

0.52

0.42

0.36

0.3

0.26

0.21

0.18

0.13

SRF

(MHz) REF.

190

140

115

Suffix –Y:

Specify (-1) for gold wrap around or (-2) for tin wrap around terminations

MECHANICAL SPECIFICATIONS

.220

5,60

XXX

Ø .145

3,70

.047 MAX

1,2 MAX

SCHEMATIC

.192

4,90

.133

3,40

.192

4,90

.263

6,70

.098

2,50

Ø .165

4,20

NOTES:

1. Dimensions are shown in inches/millimeters

Unless otherwise specified, tolerance

= Inches: ±0.010

= Millimeters: ±0,30

2. Isat based on the inductance being 90% of its initial value

3. Irms based on temperature rise of 40°C

4. Tape & Reel Packaging

5. Inductance tested at 0.1 Vrms @ 100 kHz

6. For non-RoHS parts replace DR prefix with 42- (e.g. DR331-5 becomes 42-331-5)

7. Terminal finish is compliant to RoHS requirements. Solder in accordance with J-STD-020C.

.149

3,80

.271

6,90

.098

2,50

SUGGESTED PAD LAYOUT

DATATRONIC:

28151 Highway 74, Romoland, CA 92585 Tel: 951-928-7700 Toll Free Tel: 888-889-5391 Fax: 951-928-7701

Email: ddisales@datatronics.com

499 King’s Road, Hong KongTel: (852) 2562 3858, (852) 2564 8477 Fax: (852) 2565 7214, (852) 2563 1290

All specifications are subject to change without notice.
